Introduction
The HS-8E is a bulk paper stacker for with the Kyocera Mita page
printers. The bulk paper stacker provides face-up delivery of up to
approximately 2,000 printed pages at one time.
The bulk paper stacker must be installed to the printer together with a
PF-8E bulk paper feeder. Before installing the paper stacker, please read
these manuals carefully.
Packing List
Make sure that the paper stacker package contains each of the following
items in the indicated quantities.
❐HS-8E optional bulk paper stacker, 1
❐Paper receiving sub tray, 2 (1 large and 1 small)
❐Instruction manual (this booklet), 1
HS8-Eng.p65 8/8/01, 11:27 AM3
4
Installing the Bulk Paper Stacker with a P -8E Bulk Paper
eeder
When the printer is installed with a PF-8E option bulk paper feeder, the
printer is mounted onto the mounting base (PB-60[option]). (For details on
the bulk paper feeder installation, refer to the instructions provided with the
PF-8E option bulk paper feeder.) Then, the HS-8E bulk paper stacker
mounts on the rear of the printer.
❐❐
❐❐
❐Always turn off the printer’s power before installing or
removing the bulk paper stacker.
❐❐
❐❐
❐When setting the bulk paper stacker before installihg it
or after removing it from the printer, remove the sub
tray and lay the bulk paper stacker on its side as shown
below.
When using the legal cassette in the printer; remove the
cassette until the bulk paper stacker is installed.
Sub Tray
HS8-Eng.p65 8/8/01, 11:27 AM4
5
English
1. If installed, remove the printer’s face-up tray from the printer.

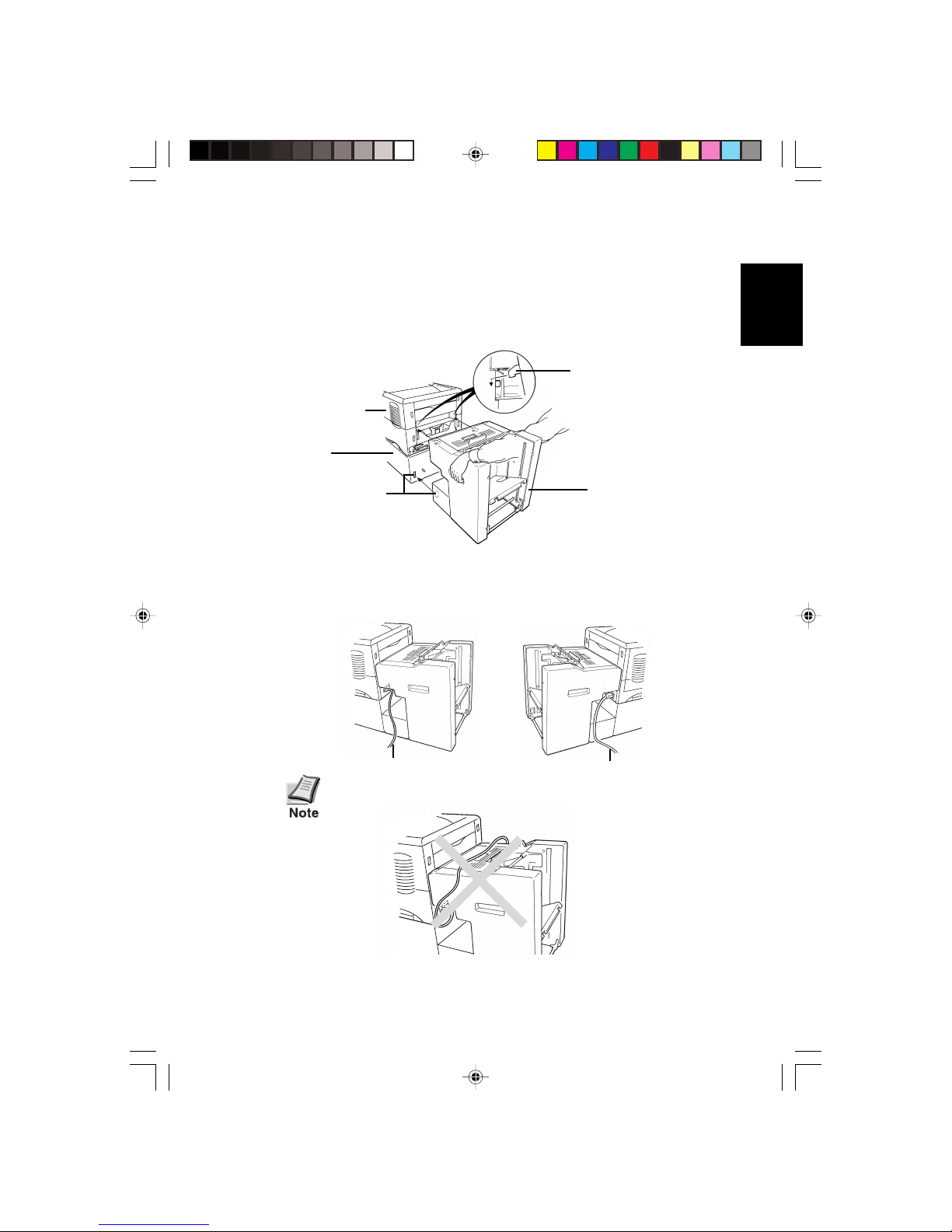

2. Mount the bulk paper stacker on the rear of the printer as
shown.
3. When installing the bulk paper stacker, arrange the printer’s
power and interface cables to fit through the slots at the side of
the bulk paper stacker as shown below.
Do not let cables hang on the bulk paper stacker.
Interface Cable Power Cable
Connector
Hook
Printer
HS-8E
Base
(PB-60
[option])
HS8-Eng.p65 8/8/01, 11:27 AM5
6
4. Mount the sub tray to the main tray as shown below.
This unit is provided with two sub trays, one large
and one small. Ordinarily, you should use the small
sub tray. However, in case printouts fall out of the
tray, you can replace the small sub tray with the
larger one.
5. Adjust the left and right paper guides according to the paper size
of the paper on the tray. Note that the paper guides are best
adjusted when there is an approximately 5-mm gap on each side
of the paper delivered to the adjuster.
This completes setting up the paper stacker. Before using the stacker,
make sure that the top cover is closed. Then, plug the printer to power.
Paper Guides
Paper
Sub Tray
HS8-Eng.p65 8/8/01, 11:27 AM6
English
Removing the sub tray
To remove the sub tray, press at (A) as shown in the figure below.
Operating the Bulk Paper Stacker
1. Turn printer power on by pressing the printer’s power switch. If
there is no paper in the stacker, the stacker’s tray rises to the
home (uppermost) position.
When the paper tray is rising or descending, do not
put your hand above or below the tray. Keep your
fingers out of the left and right cutouts inside the
paper stacker.
2. Make sure that the printer’s message display shows Ready.
Sub Tray
(A)
When the tray is rising or
descending, keep your fingers
out from the inside of the bulk
paper stacker.
Cutouts
HS8-Eng.p65 8/8/01, 11:28 AM7
8
3. To select the stacker for face-up delivery of printed pages, press
the MENU key, then press the or key repeatedly until the
printer’s message display shows Paper Handline >.
Paper Handling >
4. Press the key, then press the or key repeatedly until the
printer’s message display shows >Stack Select.
>Stack Select
5. Press the ENTER key. When the ?mark begins flashing, press
the or key to display Option Stacker, then press the
ENTER key.
>Stack Select
? Option Stacker
6. Make sure that the printer is on-line, then begin printing.
During printing, the paper tray in the stacker automatically
lowers as it receives printed pages.
The printer does not stop printing when the stacker
tray becomes full. If printing is continued, paper will
fall out of the tray or jam inside the stacker.
Therefore, when the tray becomes full, set the
printer off line and remove the paper as described
below, then set the printer back on line to resume
printing.
HS8-Eng.p65 8/8/01, 11:28 AM8
