Kyocera Mita FS-1800N+ Manuale utente

For the Kyocera Mita Page Printers

Für Kyocera Mita Seitendrucker

Pour imprimantes de page Kyocera Mita

Per la stampanti Kyocera Mita

Para la impresora de páginas Kyocera Mita

User's Manual

Bedienungsanleitung

Manuel d'utilisation

Istruzioni per l'uso

Manual del usario

Bulk Paper Feeder

Papierzuführung

Chargeur de papier

Alimentatore carta

Alimentador de papel

PF8-cvr.pm6 12/19/00, 8:21 PM1

PF8-cvr.pm6 12/19/00, 8:21 PM2

English

Note on Paper

Before purchasing paper, test a sample on the printer installed with

the paper feeder and check that printing quality is satisfactory.

Notice

We shall have no liability or responsibility to customers or any other

person or entity with respect to any liability, loss or damage caused or

alleged to be caused directly or indirectly by equipment sold or

furnished by us, including but not limited to, any interruption of

service, loss of business or anticipatory profits, or consequential

damages resulting from the use or operation of the equipment or

software.

Caution

NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY

IMPROPER INSTALLATION.

The information in this manual is subject to change without

notification. Additional pages may be inserted in future editions. The

user is asked to excuse any technical inaccuracies or typographical

errors in the present edition.

No responsibility is assumed if accidents occur while the user is

following the instructions in this manual.

The contents of this manual are protected by copyright. No part of this

manual may be reproduced or copied by any means without the

permission of the copyright holder.

pf8-Eng.pm6 12/19/00, 8:21 PM1

Radio interference requirement in European countries

The option bulk paper feeder PF-8E is intended for use with the printer models FS-1800,

FS-1800N, FS-3800, and FS-3800N which are type tested and categorized as a Class B

computing devices in accordance with the EN55022 rules.

Device in the Class B category may cause interference to radio or television reception

particularly in a residential installation.

Information to users:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

❐Reorient or relocate the receiving antenna.

❐Increase the separation between the equipment and receiver.

❐Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

❐Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the manufacturer for compliance could void the

user’s authority to operate the equipment.

Table of contents

Introduction ............................................................................................3

Packing List .....................................................................................4

Setup .........................................................................................................4

Choosing a Location ........................................................................4

Installation ..............................................................................................5

Removing the MP Tray ...................................................................5

Installing the Base and the Printer................................................7

Installing the Bulk Paper Feeder ...................................................8

Operating the Optional Bulk Paper Feeder ................................. 10

Loading Paper................................................................................10

Cleaning Paper Jam ........................................................................... 13

Specifications....................................................................................... 14

pf8-Eng.pm6 12/19/00, 8:21 PM2

English

Introduction

The PF-8E is a bulk paper feeder for Kyocera Mita page printers. By

removing the MP tray and attaching the bulk paper feeder to the front

of the printer, you can continuously print on up to approximately 2,000

sheets of paper (at paper thickness of 0.1 mm). At the same time, you

can still select the printer’s normal paper cassette for the alternative

paper source. The bulk paper feeder is shipped with a base that

provides mounting for both the printer and the paper feeder. You can

select the source of paper supply yourself using the printer’s operator

panel or the printer driver.

Before using the optional bulk paper feeder, please read this manual,

then carefully follow all instructions given for installing and using the

optional paper feeder.

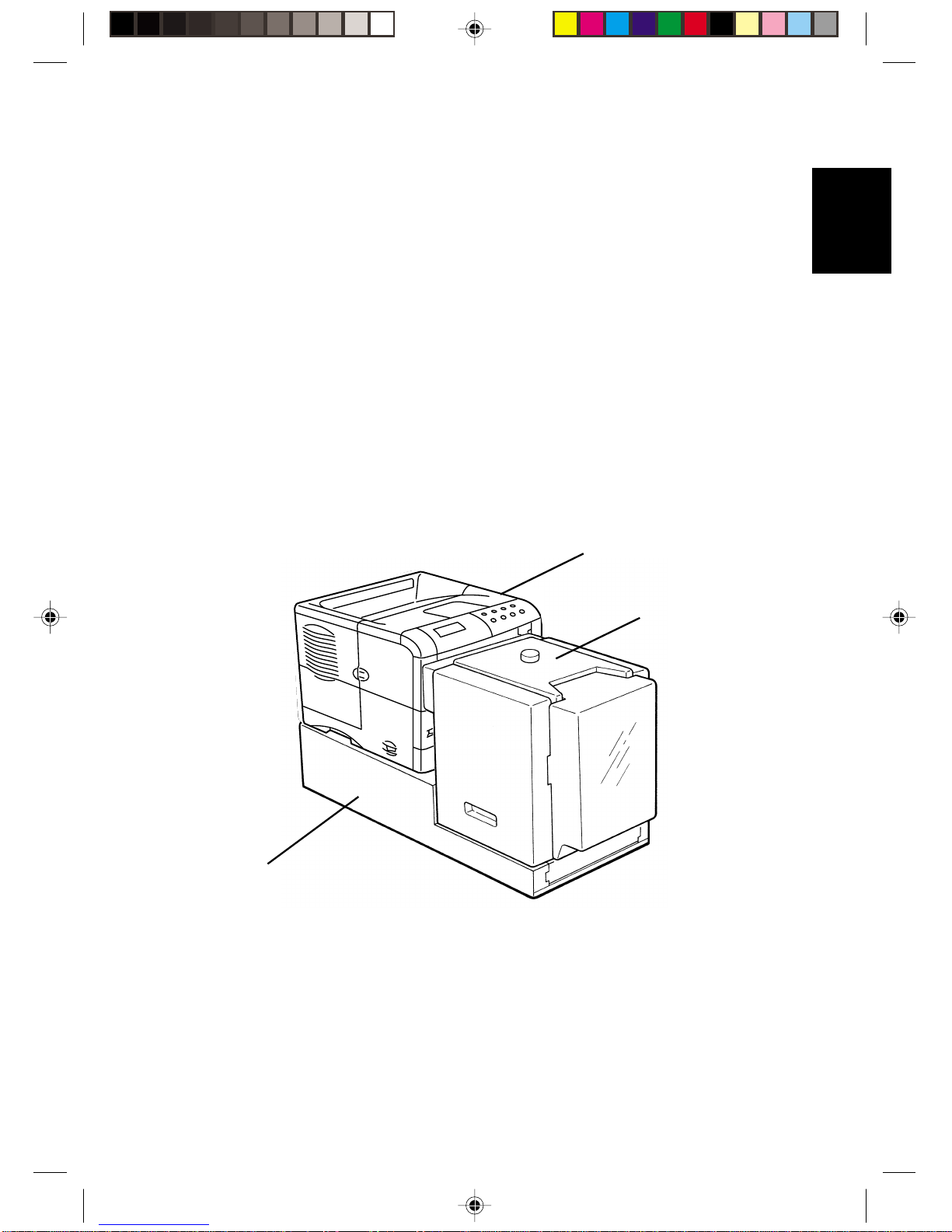

Printer

Paper Feeder

(PF-8E)

Base PB-60

(Option)

pf8-Eng.pm6 12/19/00, 8:21 PM3

Packing List

Make sure that the optional bulk paper feeder package contains each of

the following items in the indicated quantities.

❐PF-8E optional bulk paper feeder, 1

❐User’s Manual (this booklet), 1

Setup

The PF-8E is set up by placing itself and the printer on the base

(option), removing the printer’s MP tray and attaching the bulk paper

feeder to the front of the printer. Power for the paper feeder is supplied

directly from the printer through connectors on the base.

Before installing (or removing) the optional bulk

paper feeder, be sure to turn off the printer’s power.

Choosing a Location

The feeder will work best if it is installed in a location that is:

❐Level and well-supported: Place the base on a sturdy table or

desk.

❐Not exposed to sunlight or other bright light (not next to an

uncurtained window).

❐Well ventilated, not too hot or cold, and not too damp or dry:

Temperature should be 10 to 32.5 °C, ideally about 23 °C (50 to

90 °F, ideally about 68 °F). Humidity should be 20 to 80%,

ideally 60%.

pf8-Eng.pm6 12/19/00, 8:21 PM4

English

Installation

Removing the MPTray

Before installing the bulk paper feeder, remove the MP tray from the

front of the printer. The procedure is as follows.

The printer’s MP tray cannot be used together with

the optional bulk feeder.

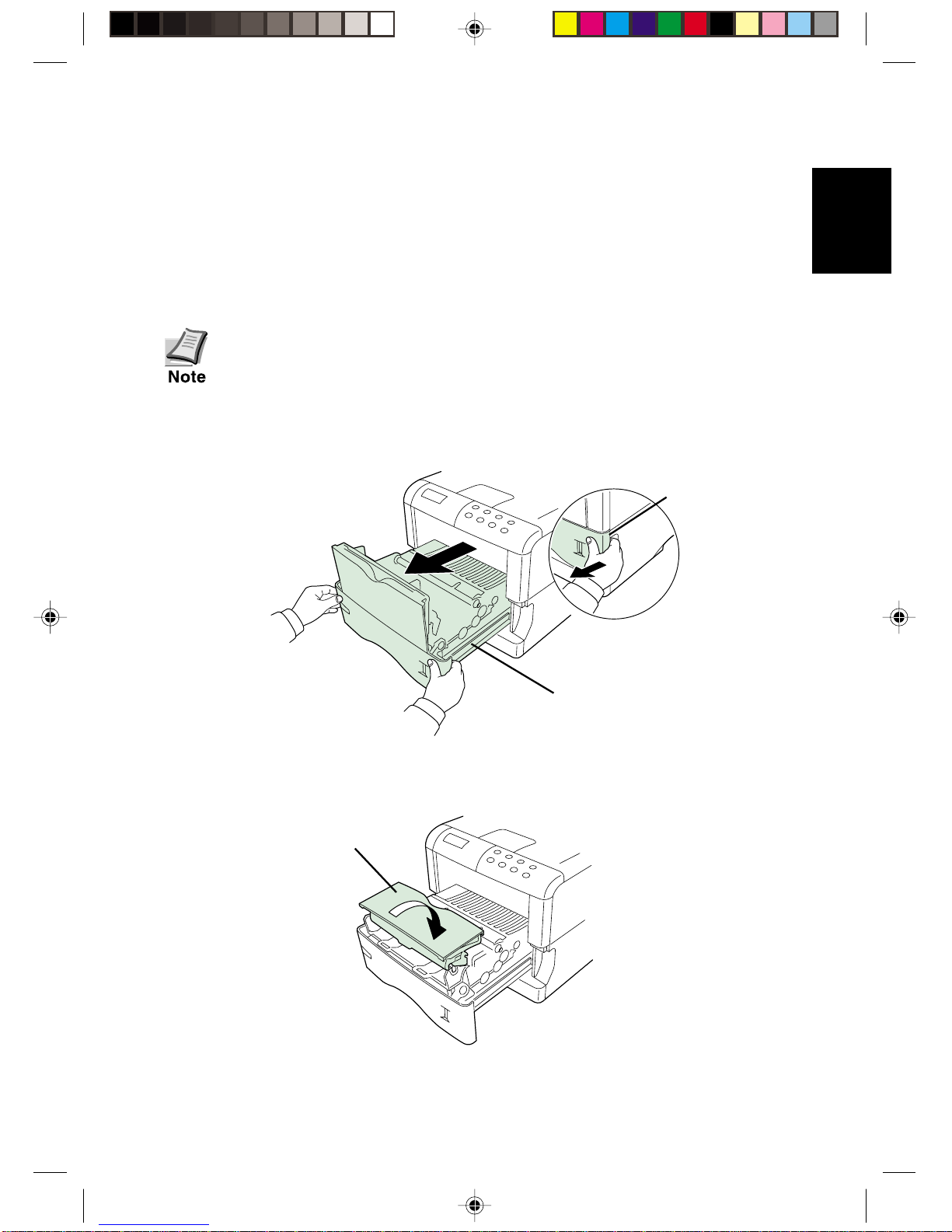

1. Pull the printer’s paper feed unit release lever, then draw the

paper feed unit fully out of the printer.

2. Gently tilt the MP tray toward the printer until that it rests on

its side as shown in the figure.

Paper Feed Unit

Release Lever

Paper Feed Unit

MPTray

pf8-Eng.pm6 12/19/00, 8:21 PM5

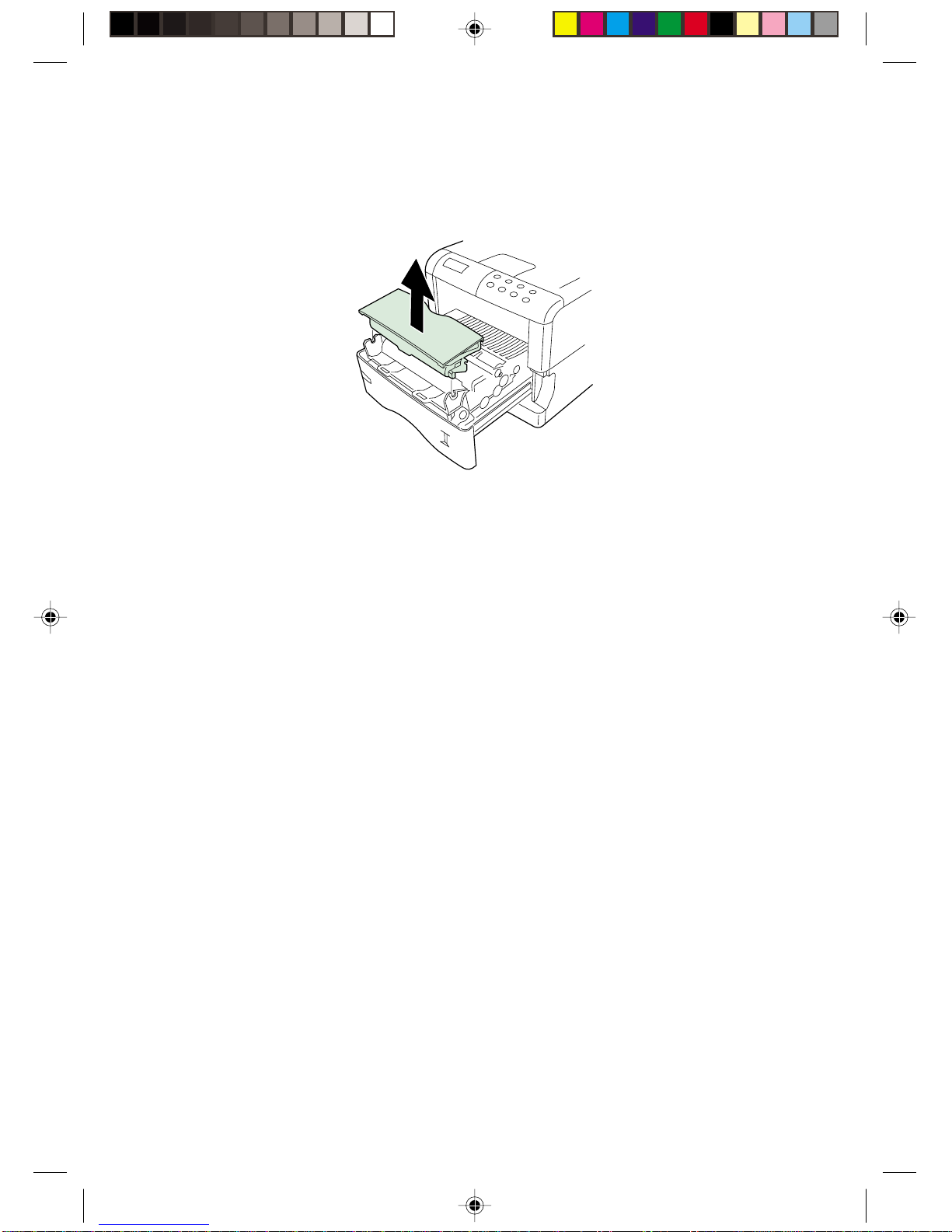

3. Remove the MP tray from the printer by lifting it straight

upward.

4. After removing the MP tray, return the paper feed unit to its

original position.

pf8-Eng.pm6 12/19/00, 8:21 PM6

English

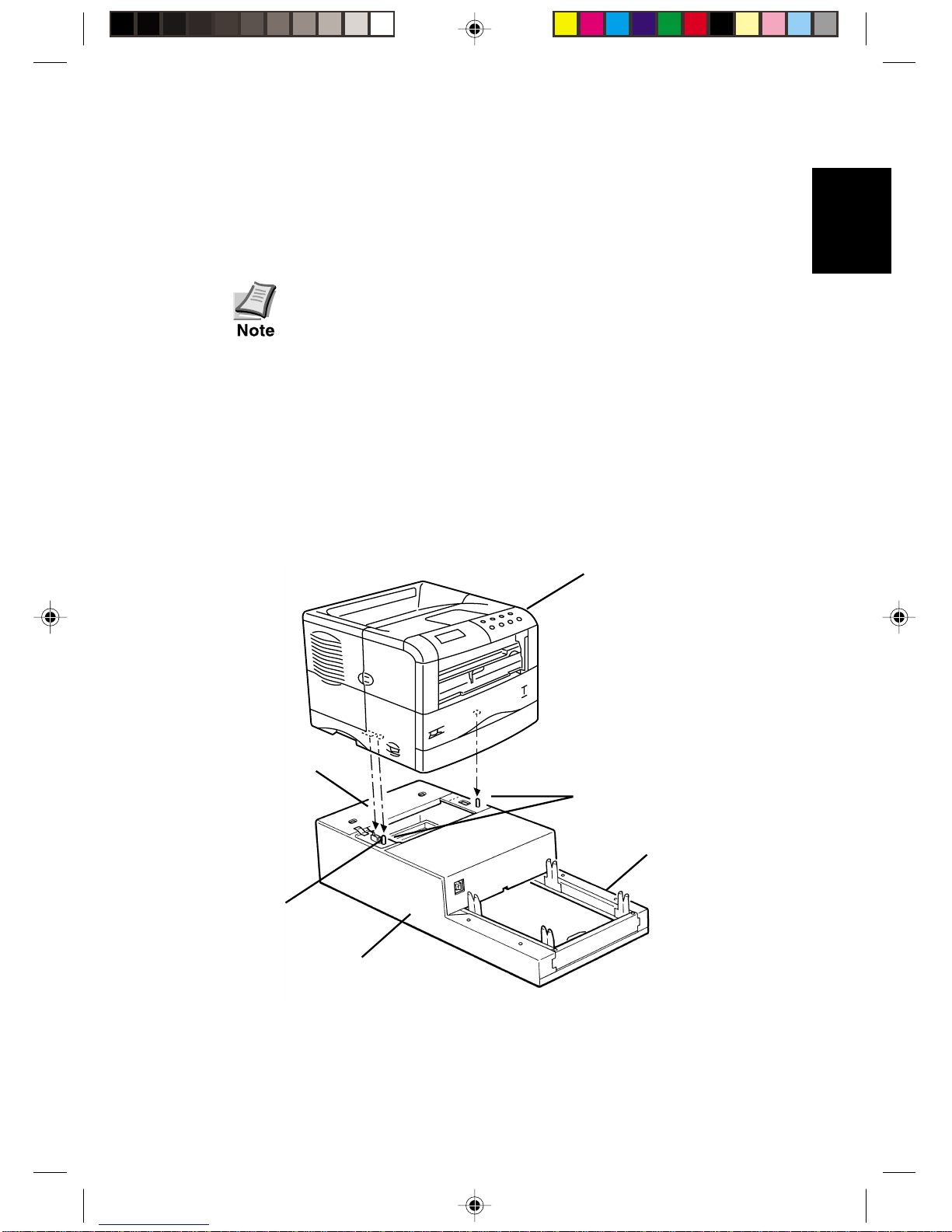

Installing the Base and the Printer

The printer is mounted on the upper deck of the base. See figure below.

1. Place the base onto a firm, sturdy table or desk.

The table or desk must be larger than the base.

2. Align the positioning pins on the top of the base with the holes

in the base of the printer, then slowly and carefully lower the

printer onto the base. You can easily set the printer on the

base by aligning the back edge of the printer with the end of

the base. Make sure that the connector on the base fits

squarely into the corresponding connector in the base of the

printer. See figure below.

Printer

Positioning Pins

Lower Deck for

the Feeder

Base

Connector

Upper Deck

pf8-Eng.pm6 12/19/00, 8:21 PM7

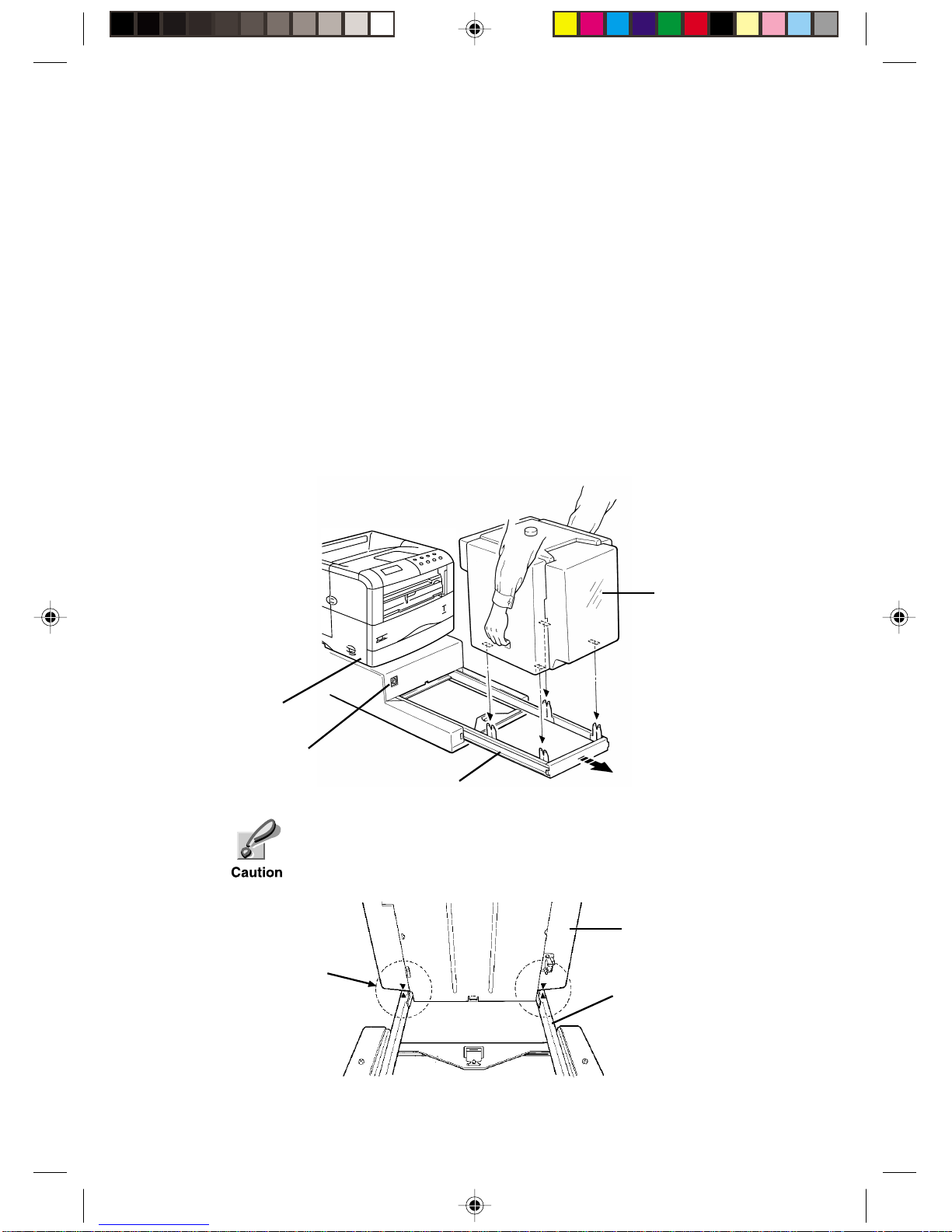

Installing the Bulk Paper Feeder

Mount the bulk paper feeder onto the rail in the lower deck of the base.

The rail is movable and must be pulled out before installing the bulk

paper feeder.

1. Pull the rail fully out until it stops. See figure below.

2. Grasp the feeder by the two handles in the side covers.

3. Facing the paper output slot of the feeder toward the printer,

align the (four) positioning tabs on the rail of the base with the

holes in the base of the feeder. Then slowly and carefully lower

the feeder onto the base.

Ensure that the arrow marks on the rail are

correctly aligned with the arrow marks on the

front side of the feeder before proceeding.

Feeder

Rail

Connector

Printer

Arrow Marks

PF-8E

Rail

pf8-Eng.pm6 12/19/00, 8:21 PM8
