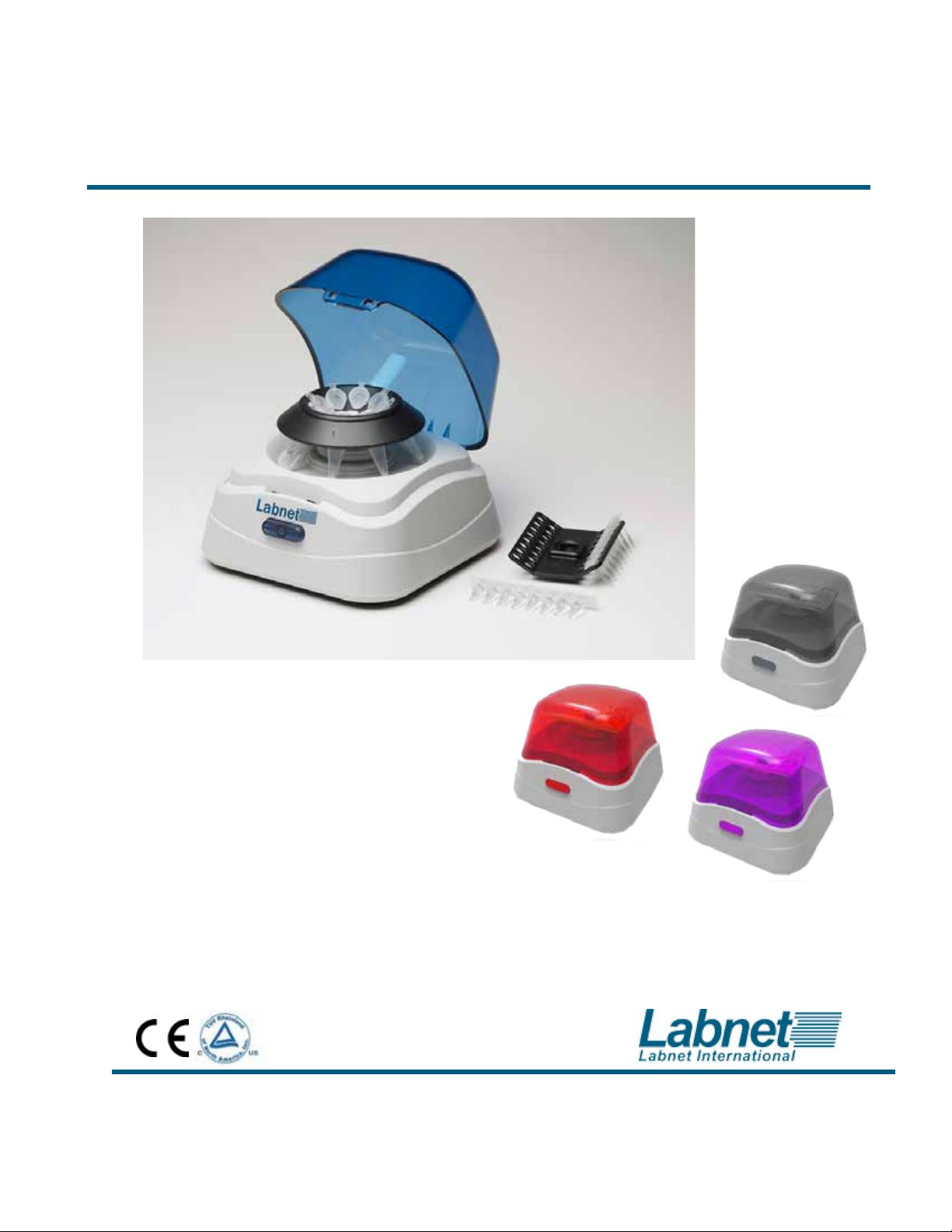

Mini Centrifuge User Manual

C1601-B C1601-P

C1601-R C1601-G

About This Manual:

This manual is designed to assist you in the optimal usage of your Labnet

Mini Centrifuge. The manual is available in English, French, German, Italian,

Portuguese, and Spanish on our website at:

www.labnetinternational.com

Product Overview:

The Labnet 1601 Mini Centrifuge provides comprehensive designs for a wide

variety of life science research applications. Smart and stable running can deliver

accurate and reliable experimental results from one experiment to another.

Table of Contents

1.0 Specications .........................................................................................1

1.1 Environmental Conditions..................................................................................................................1

2.0 General Information................................................................................1

3.0 Safety Precautions .................................................................................1

4.0 Installation ..............................................................................................2

5.0 Operation................................................................................................2

6.0 Equipment Maintenance.........................................................................2

7.0 Rotors.....................................................................................................3

8.0 Cleaning .................................................................................................3

9.0 Service....................................................................................................3

10.0 Appendix...............................................................................................3

10.1 Spare Parts.......................................................................................................................................3

10.2 Symbols and Conventions................................................................................................................3

10.3 Equipment Disposal - European Regulations...................................................................................3

10.4 Limited Warranty...............................................................................................................................4

Mini Centrifuge | 1

1.0 Specications

Dimensions 5.9 x 5.9 4.6 in/15 x 15 x 11.6 cm

Weight 2.65 lbs/1.2kg

Electrical

Unit Input

AC 100 -- 240V,50/60Hz, 0.35

24VDC 1A

Maximum Speed/RCF 6000rpm/2000 x G

1.1 Environmental Conditions

Indoor use only

Altitude up to 2000m

Temperature 5°C to 40°C

Maximum relative humidity 80% for temperature up to 30°C decreasing linearly to 50% relative

humidity at 40°C

Pollution degree 2

If the centrifuge is used in a manner not specied by the manufacturer, the protection provided by the centrifuge may be impaired.

2.0 General Information

The Labnet C1601 Mini Centrifuge is supplied with two rotors, one for micro tubes and one for 0.2ml PCR

strip tubes. The 8 place rotor is designed to centrifuge up to eight individual 1.5/2.0ml plastic micro centrifuge

tubes. It will also accept 0.5/0.6ml,0.4/0.25ml and 0.2ml tubes with the adapters supplied with the unit. The

strip tube rotor is designed to centrifuge four 8 x 0.2ml strip tubes. It will also accept up to 32 individual 0.2ml

tubes. Both rotors are designed for applications requiring relatively low g-forces, such as microltration, cell

separation and quick spin downs from the walls of tubes.

Please read this manual thoroughly before attempting to operate the centrifuge.

3.0 Safety Precautions

NEVER use the centrifuge in any manner not specied in these instructions.

NEVER operate the centrifuge without a rotor properly attached to the shaft.

NEVER ll tubes while they are in the rotor. Liquid spillage may harm unit.

NEVER put hands in the rotor area unless the rotor is completely stopped.

NEVER move the centrifuge while the rotor is spinning.

NEVER use solvents or ammables near this or other electrical equipment.

NEVER centrifuge ammable, explosive or corrosive materials

NEVER centrifuge hazardous materials outside of a hood or proper containment facility

NEVER try to continue operating the centrifuge if the centrifuge stops working prematurely.

Stop the centrifuge immediately by turning off the main power switch on the back side of the centrifuge. Wait

one minute before turning on the main power switch to operate the centrifuge again.

ALWAYS load the rotor symmetrically. Each tube should be counterbalanced by another tube. Weight of

individual tubes may not exceed of 3.0g.

ALWAYS locate the centrifuge within easy access to an electrical outlet.

ALWAYS use only micro centrifuge tubes made from plastic and designed to withstand centrifugal forces of at

least 2,000 x g.

2 | Mini Centrifuge

4.0 Installation

Adapter body American Australian European British

Push the plug into its position rmly!

5.0 Operation

Before operating the centrifuge, be sure that the power switch on the back of the unit is in the “on” position.

To begin a run, simply close the lid of the centrifuge. No other controls are required.

Fast stop

Press down and release the tab on the front of the lid. This will release the lid lock, allowing the lid

to open and the rotor to come to a braked stop.

Gradually stop

Put the power switch in the “off” position, this will cut the power to the motor, and the

rotor to come to a gradual stop.

Caution: Do not attempt to open the lid or remove samples until the unit has come to a complete stop. Once

the rotor has come to a full stop, the lid can be manually lifted to the full open position and samples may be

removed from the rotor.

Safe operation of the centrifuge requires that the rotor be loaded in a balanced fashion. Failure to load the

rotor properly presents a hazardous condition and may damage the centrifuge. Individual tubes, strip tubes

and/or adapters must always be loaded symmetrically to ensure proper balance. Never run the centrifuge

with only one tube or one strip tube in place.

6.0 Equipment Maintenance

The centrifuge should be cleaned periodically. Ensure that the unit is not plugged in. Use a damp cloth and a

mild, noncorrosive detergent (ph<8). Do not immerse the centrifuge in liquid or pour liquids over it. Excessive

amounts of liquid should be avoided. Liquid should not come into contact with the motor. After cleaning,

ensure all parts are dried thoroughly before attempting to operate the unit.

Should a spill of infectious materials occur within the rotor or rotor chamber, the unit should be disinfected.

This should be performed by qualied personnel with proper protective equipment.

1. Make sure to always install the centrifuge on stable at surfaces only

2. Place the centrifuge near the electrical outlet

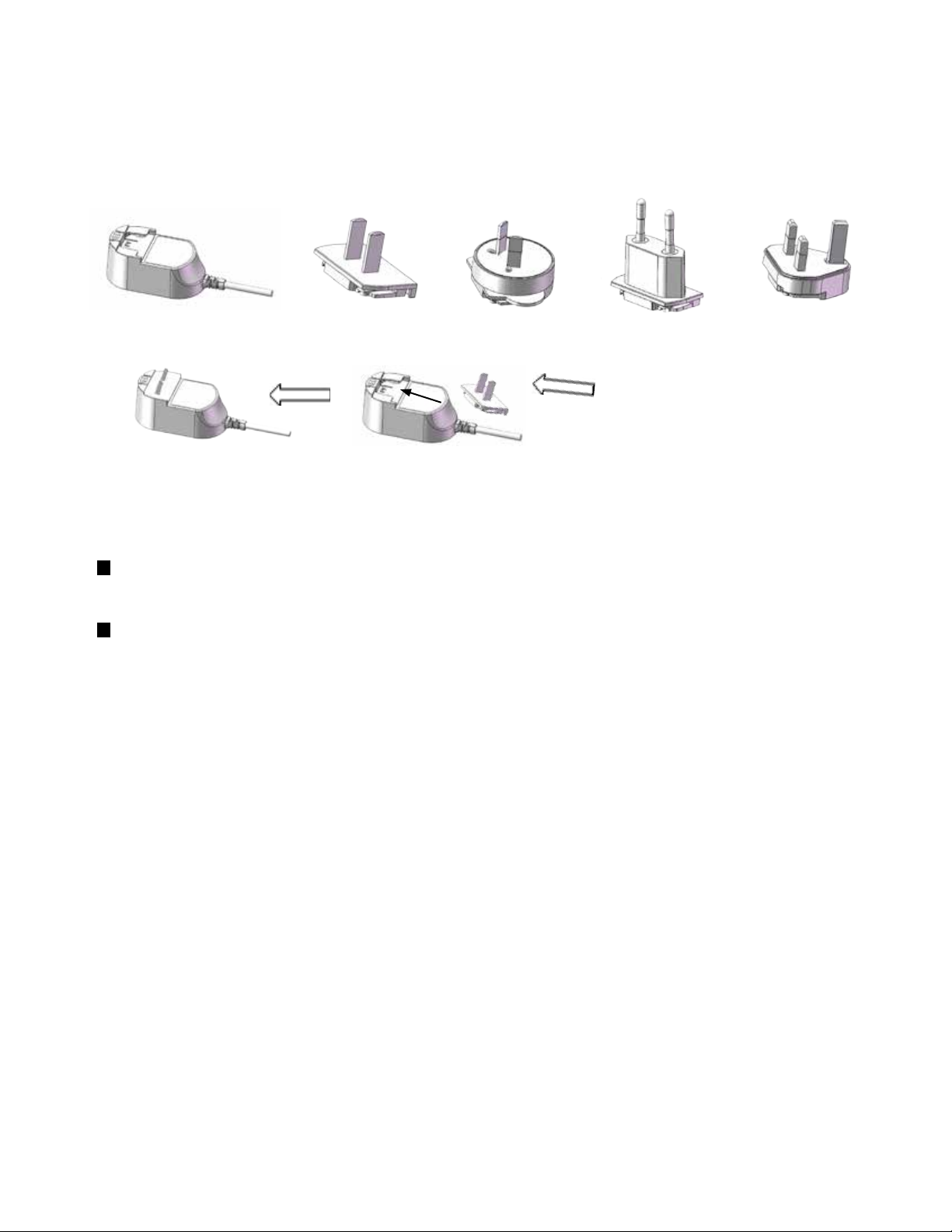

3. Power adapter instructions

3.1 Power adapter components

Mini Centrifuge | 3

7.0 Rotors

The centrifuge is supplied with two interchangeable quick release rotors. No tools are required to exchange

the rotors or attach them to the motor shaft. The rotors can be easily exchanged with one hand by way of

the quick release system. Removal of the rotors is done by placing your thumb on top of the motor shaft

and lifting up with two ngers under the rotor. Place the other rotor into position on the motor shaft and

snap in.

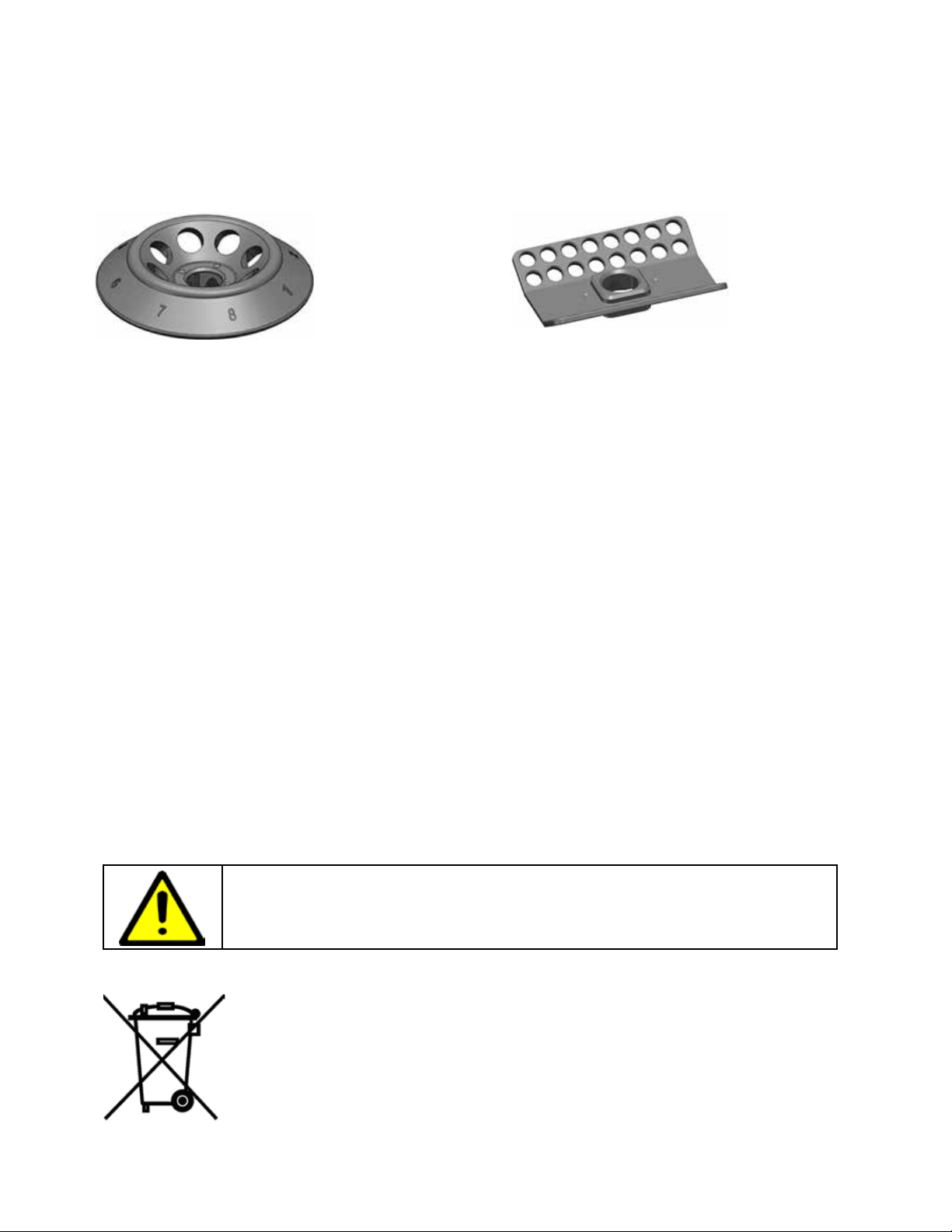

8 place tube rotor 4 place strip rotor

8.0 Cleaning

Before using any cleaning or decontamination methods except those recommended by the manufacturer, check

with the manufacturer that the proposed method will not damage the equipment. To clean the centrifuge, use

a damp cloth and a mild, noncorrosive detergent (ph <8). After cleaning, ensure all parts are dried thoroughly

before attempting to operate the unit. Do not immerse the centrifuge in liquid or pour liquids over it.

9.0 Service

Should you have a question about the operation of the Mini Centrifuge or if service is required, contact Corning

at: 800-492-1110. Do not send in a unit for service without rst calling to obtain a repair authorization number.

Should the unit require return to Corning for service, it should be properly packed to avoid damage. Any

damage resulting from improper packaging shall be the responsibility of the user.

10.0 Appendix

8 place tube rotor for Mini Centrifuge

4 place PCR strip rotor for Mini Centrifuge

Adapter, 0.5ml tubes

Adapter, 0.2ml tubes

Adapter, 0.25ml tubes

10.1 Spare Parts

6770-RT

6770-RTS

6770-RTA.5

6770-RTA.20

6770-RTA.25

401025 Power Adapter, 24V for Mini Centrifuge

10.2 Symbols and Conventions

The following chart is an illustrated glossary of the symbols that may be used in this manual or on the

product.

CAUTION This symbol refers you to important operating and maintenance (servicing)

instructions within the product Instruction Manual. Failure to head this information may

present a risk of damage or injury to persons or equipment

10.3 Equipment Disposal - European Regulations

According to Directive 2012/19/EU of the European Parliament and of

the Council of 4 July 2012 on waste electrical and electronic equipment

(WEEE), Labnet C1601-B Mini centrifuge is marked with the crossed-out

wheeled bin and must not be disposed of with domestic waste.

Consequently, the buyer shall follow the instructions for reuse and recycling

of waste electronic and electrical equipment (WEEE) provided with the

products and available at the following link: www.corning.com/weee

4| Mini Centrifuge

10.4 Limited Warranty

Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship

for a period of two (2) years from date of purchase. This warranty is valid only if the product is used for its intended

purpose and within the guidelines specied in the supplied instruction manual.

Should this product require service, contact Corning Customer Service department at 1.800.492.1110 or

978.492.1110 to receive a return authorization number and shipping instructions. Products received without proper

authorization will be returned. All items returned for service should be sent postage prepaid in the original packaging

or other suitable carton, and padded to avoid damage. Corning will not be responsible for damage incurred by

improper packaging,.Corning may elect for onsite service for larger equipment.

This warranty does not cover damage caused by accident, neglect, misuse, improper service, natural forces, or

other causes not arising from defects in original material or workmanship. This warranty does not cover motor

brushes, fuses, light bulbs, batteries, or damage to paint or nish. Claims for transit damage should be led with

the transportation carrier.

ALL WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE LIMITED IN DURATION OF 24 MONTHS FROM THE ORIGINAL DATE OF

PURCHASE

CORNING’S SOLE OBLIGATION UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT,

AT CORNING’S DISCRETION, OF A DEFECTIVE PRODUCT.CORNING IS NOT LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGE, COMMERCIAL LOSS, OR ANY OTHER DAMAGES RESULTING FROM THE USE

OF THIS PRODUCT.

Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of incidental or

consequential damages. This warranty gives you specic legal rights.You may have other rights which vary from

state to state

No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this

warranty.

For your reference, make a note of the model and serial number, date of purchase, and supplier here.

Model No._____________________ Serial No.________________________________

Date Purchased ____________________________________________________________

Supplier __________________________________________________________________

Corning Incorporated

271 County Route 64

Big Flats, NY 14814

www.labnetinternational.com

[email protected]

LN177000
