Lanner electronics AP-545L Manuale utente

AP-545L

Single Board Computer

with VGA / LCD

for ZIF Socket 7 Processor

The contents & information in this

manual are subject to change without

prior notice. For reference only.

This document is a copyright of the original manufacturer, 1999. The original

manufacturer reserves the right to make improvements to the product(s) described in

this manual at any time without notice. This manual may not, in whole or in part, be

photocopied, reproduced, transcribed, translated, or transmitted in whatever form

without the written consent of the manufacturer, except for copies retained by the

purchaser for backup purposes. All rights are reserved.

TRADEMARKS

Pentiumâis a registered trademark of Intel Corporation.

The following are trademarks or registered trademarks of their respective companies:

IBM, Intel, AMD, Cyrix, Award, AMI, Microsoft, Windows, Windows NT, Novell, SCO,

PC/104, PICMG, ALI, UMC, SMC, Winbond. Products mentioned in this manual are

mentioned for identification purposes only. All names of products or services

appearing in this manual are the trademarks or registered trademarks of their respective

organizations and companies.

Ver. No. 1.0

LEI-UM-AP545L0-000

Date : 02.01.1999

TABLE OF CONTENTS

CHAPTER1INTRODUCTION 1

1.1 SPECIFICATIONS 2

1.2 PACKING CHECK LIST 3

CHAPTER2JUMPER SETTINGS AND CONNECTORS 4

2.1 BOARD OUTLINE OF AP-545L 4

2.2 CPU INSTALLING AND UPGRADING 5

2.3 JUMPER SETTING OVERVIEW 5

2.4 JUMPER LOCATION FOR AP-545L 6

2.5 JUMPER SETTINGS SUMMARY FOR AP-545L 7

2.6 JUMPER SETTINGS FOR AP-545L 8

2.7 I/O CONNECTORS LOCATION FOR AP-545L 14

2.8 I/O CONNECTORS SUMMARY FOR AP-545L 15

2.9 SETTING STATUS INDICATORS AND CONTROL 16

CONNECTORS

2.10 I/O CONNECTORS DESCRIPTION 17

CHAPTER3AMI BIOS SETUP 28

3.1 RUNNING AMI BIOS 28

3.2 AMI BIOS HIFLEX SETUP UTILITY 29

3.3 STANDARD CMOS SETUP 30

3.4 ADVANCED CMOS SETUP 34

3.5 ADVANCED CHIPSET SETUP 39

3.6 POWER MANAGEMENT SETUP 41

3.7 PCI PLUG AND PLAY SETUP 44

3.8 PERIPHERAL SETUP 48

3.9 CHANGE SUPERVISOR/USER PASSWORD 50

3.10 UTILITY 52

3.11 BIOS DEFAULTS 52

TABLE OF CONTENTS

APPENDIX A HOW TO USE WATCH-DOG TIMER 53

APPENDIX B TECHNICAL REFERENCE 54

APPENDIX C PC/104 MODULE INSTALLATION 56

GLOSSARY 57

TERMS AND CONDITIONS

RMA SERVICE REQUEST FORM

AP-545L / 1

INTRODUCTION

The AP-545L is a half-size ISA single board computer for Socket 7 processor that is

using the SIS’s BGA chipset SiS5582 that support the Ultra DMA-33 for faster hard

drive, and USB function. For boosting operation, this motivated card also supports

sockets for a Flash Disk and one DIMM memory module. It offers the function of an

industrial computer on a single board with on-board 2nd level cache RAM of 512KB for

maximum performance.

Take note that the AP-545L is a high power & full engine SBC with on-board function in

the LCD/VGA display of resolution up to 1280 x 1024 at 256 colors. It provides the

primarily elements for building an IBM PC/AT compatible computer for a wide variety of

applications with system integration. The AP-545L is fully compatible with the IBM

PC/AT which means virtually all the software written for the IBM PC/AT will run on the

AP-545L SBC.

Other on-board features include two serial ports (one each of RS-232 and

RS-232/422/485), one multi-mode parallel (ECP/EPP/SPP) port, a floppy drive

controller and a keyboard interface and a PS/2 mouse interface. The built-in one high

speed PCI IDE controller supports both PIO and bus master modes. Up to two IDE

devices can be connected, including large hard disks, CD-ROM drives, tape backup

drives and other IDE devices. Its 6-layer printed circuit board combines with

noise-tolerant and low power consumption CMOS technology applied on the board

makes AP-545L able to withstand any harsh industrial environments very well.

CHAPTER 1.

INTRODUCTION

AP-545L / 2

1.1 SPECIFICATIONS

oProcessor :For ZIF Socket 7 Processor

Intel PentiumÒ& MMX, AMD K5, K6 & K6-2, Cyrix

6x86 & M2 CPU

oChipset :SiS 5582 Chipset, SMI 811 chip, Winbond 877TF

chip compatible

oSystem Memory :One 168-pin DIMM socket up to 128MB SDRAM

oCache Memory :On-board 512KB Pipelined Burst Synchronous cache

oBIOS :256KB AMI License BIOS

oFlash Memory Disk :Reserved socket for DiskOnChip from M-System

support up to 72 MB Flash Memory Disk

oLCD/VGA Controller :LCD/VGA on chipset SMI 811, on-board 2MB video

memory

oIDE Drive Interface :One PCI IDE port, support up to two IDE devices and

Ultra DMA-33

oFloppy Drive Interface :One FDD port, support up to two floppy devices

oSerial Port :Two COM ports, one RS-232 and one RS-

232/422/485 serial ports

oParallel Port :One multi-mode parallel port (SPP/EPP/ECP)

oBus Interface :ISA bus

oRTC Battery :Dallas RTC battery or compatible

oDMA :8 DMA channels

oInterrupts :16 levels of hardware interrupts

oPS/2 Mouse & Keyboard :On-board 6-pin Mini-Din PS/2 mouse & keyboard

Connector connector

oExpansion Bus :On-board PC/104 expansion connector

oWatchdog Timer :Software 16 level time-out intervals

(0/2/4/6/8/10/12/14/16/18/20/22/24/26/28/30 sec.)

oUniversal Serial Bus :Support 2 USB ports

oOperating Temperature :0°C~55°C (32°F~132°F)

oHumidity :10％~90％RH

oDimensions :185 mm X 122 mm (71/4” X 45/6” inches)

oNet weight :250 g (0.517 pounds)

INTRODUCTION

AP-545L / 3

1.2 PACKING CHECK LIST

Before you begin to install your card, please make sure that you received the following

materials as listed below:

Item Qty Remark

AP-545L Single Board Computer 1 pc. AP-545L SBC

Keyboard / Mouse adapter cable 1 set 6-pin PS/2 to 5-pin PS/2 keyboard / mouse

connector

IDE / Floppy cable 1 pc. 40-pin standard header to 40-pin standard header

34-pin standard header to 34-pin standard header

Printer / COM port cable 1 set 26-pin female flat connector t header to 25-pin

female D-Sub connector

10-pin standard flat header to 9-pin D-Sub cable

LCD/VGA / Utility Drivers 1 pc. CD-ROM diskette

User‘s manual 1 pc. AP-545L user’s manual

AP-545L / 4

JUMPER SETTINGS AND CONNECTORS

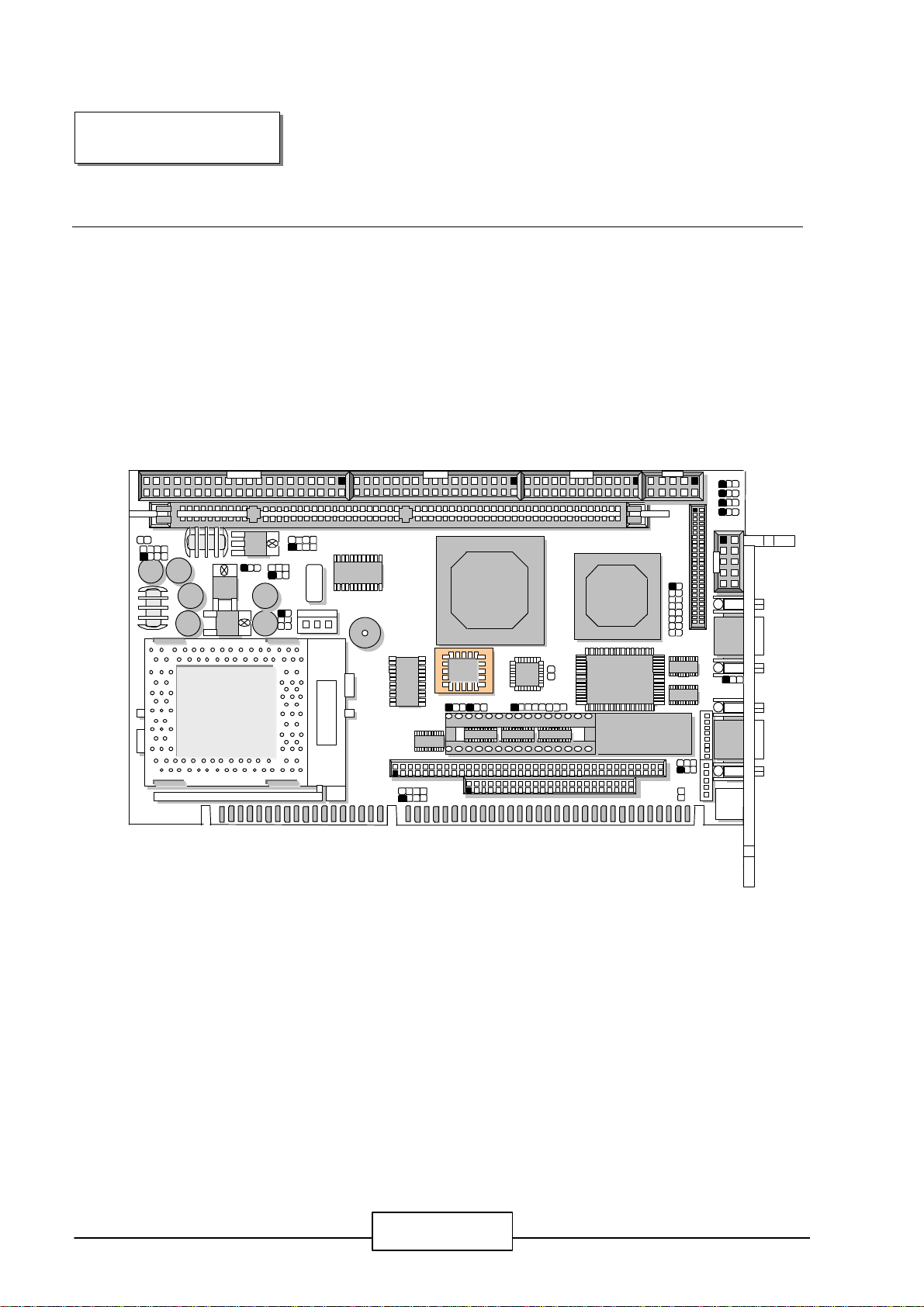

2.1BOARD OUTLINE OF AP-545L

The Figure below shows the jumpers and connectors location on the AP-545L:

CHAPTER 2.

PKM1

DIMM1

AP-545L

JP2

SiS

5582

BZ1

JP10

JP11

JP13

JP12

JP9

IDE1

COM2

JP5

KCN1

CON1

CON2

JP4

JP7

CN2

JP6

FAN1

JP1

VGA1

COM1

Socket 7

SMI

811

RTC

BATTERY

8USBC1

PS1

JP8

JP3

2 5

FDC1 PRT1
