Larson Electronics EPL-FL-26 Manuale utente

Larson Electronics LLC www.larsonelectronics.com

9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364 - E: sales@larsonelectronics.com

EPL-FL-26

INTRODUCTION

This document covers the operation, maintenance, and re-lamping procedures for an EPL-FL-26

hazardous locations work light. This light is suitable for the following hazardous locations only:

Class I, Divisions 1 & 2, Groups C & D

Class II, Divisions 1 & 2, Groups E, F, and G

Class III, Divisions 1 & 2

Refer to the National Electric Code (NEC) NFPA 70 for more information on hazardous locations.

WARRANTIES

This product has a one-year limited warranty from any factory defects on parts and labor.

Please record your serial number and retain this paperwork for future reference.

SERIAL #___________________________________________________

OPERATIONS AND USE

WARNING: This light is not supplied with a plug. If the light is used in a hazardous location

environment, it must be terminated with a suitable plug or hard wired into an appropriate junction box

rated for the environment it is to be used in. Comply with all NEC Rules and Regulations when

terminating light with a plug. Failure to comply with this could result in an explosion, electrical shock, or

personal injury.

CAUTION: Follow manufacturer’s instructions for attaching plug to light ensuring all wires are properly

terminated and grounded.

CAUTION: When hanging the light using the hook, use an appropriate entity capable of holding at

least 6 pounds. (2.72 kg)

Maintenance:

WARNING: It is very important that only qualified personnel perform maintenance and repair

operations in a non-hazardous area. The integrity of the component assembly and flame-path must be

maintained in order to provide adequate protection for personnel using this light. Comply with all NEC

Larson Electronics LLC www.larsonelectronics.com

9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364 - E: sales@larsonelectronics.com

Rules and Regulations when performing maintenance operations. Failure to comply with these could result in

an explosion, electrical shock, or personal injury.

Make a thorough visual inspection of the work light for any chips, cracks, or burns within the glass, aluminum

handle, and cage. Check the entire length of the cord for any frays or visible wires that could affect the

performance of the light. Check that all the rubber bumpers are integral with the aluminum. If there are any

frays in the cord, cracks in the glass or disturbances in the aluminum outside of normal wear, remove the light

from service immediately and contact Larson Electronics.

CAUTION: Clean external parts of work light only; internal parts do not require cleaning. Applying

solvent could result in damage to the electrical equipment.

The EPL-FL-26 can be cleaned applying Simple Green or an equivalent cleanser and wiping any dust or

grease off with a rag. After cleaning process is performed, allow adequate time for light to completely

dry before placing in operation.

WARNING: When relamping work light, disconnect power. Failure to do so could result in electrical

shock.

1. Loosen strain relief from handle end of light and slide down the cord.

2. Loosen and remove the four brass Allen Head screws using the appropriate tool.

3. Slide handle cap doughnut off the end of the handle to gain access to the handle cap. With a

slow rocking motion, slide the handle cap and lamp head assembly from the handle and cage

casing assembly.

Larson Electronics LLC www.larsonelectronics.com

9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364 - E: sales@larsonelectronics.com

4. Remove the shock from the end of the lamp and set aside. Grasping lamp holder in one hand

and lamp in other hand, remove the lamp with a slow rocking motion and discard.

5. Replace lamp with a Sylvania Dul D/E 26W CF26DD/E/841 or Dulux D CF26DD/841 lamp or

equivalent. Slide shock on the end of the lamp. Slide lamp into lamp holder assembly until a click

is heard.

6. Make a visual inspection of the “O”Ring.

7. Slide the lamp assembly back into handle and cage assembly, aligning the four screw holds.

Tighten brass screws and torque to 35lbf-ft (47.5N-m). Slide handle cap doughnut onto handle

cap, align holes with screws. Slide strain-relief into place and tighten to a snug fit.

8. Test light in a non-hazardous location before using in a hazardous location to ensure proper

operation of lamp.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Larson Electronics Luce da lavoro

Larson Electronics

Larson Electronics RL-85-LED-36W-CPR Manuale utente

Larson Electronics

Larson Electronics WAL-DL-60LED-M-GCR50-SP0002 Manuale utente

Larson Electronics

Larson Electronics WL-LED-12-M Manuale utente

Larson Electronics

Larson Electronics WAL-QP-2X500LTL-LED-100 Manuale utente

Larson Electronics

Larson Electronics EHL-LED-7W-25-1523 Manuale utente

Larson Electronics

Larson Electronics EXPRL-98 Manuale utente

Larson Electronics

Larson Electronics WDL-12-IPS-LED-1227 Manuale utente

Larson Electronics

Larson Electronics AML-LED-WP40-M-22C Manuale

Larson Electronics

Larson Electronics GNM-LEDWL-25W Manuale

Larson Electronics

Larson Electronics EPL-QC-16C-2X50LED-RT-X12V-C1D1-12.3-100-EPP Manuale utente

Larson Electronics

Larson Electronics WAL-TP.S-2XRL16-LED Manuale utente

Larson Electronics

Larson Electronics EPLC2-MB-100LED-100 Manuale utente

Larson Electronics

Larson Electronics EPL-QC-16C-2X50LED-RT-100 Manuale utente

Larson Electronics

Larson Electronics LEDWP-600E-OS Manuale

Larson Electronics

Larson Electronics WAL-SBDL-WP60E-XX-1227 Manuale utente

Larson Electronics

Larson Electronics WAL-BP-3XLED-CPR Manuale utente

Larson Electronics

Larson Electronics LED10W-1X2LT Manuale utente

Larson Electronics

Larson Electronics EPL-BS-25WRE Manuale

Larson Electronics

Larson Electronics EPL-BS-70LED-6XMB-150X12 Manuale

Larson Electronics

Larson Electronics EHL-LED-15W-50-HR Manuale utente

Larson Electronics

Larson Electronics WAL-TP.S-RL16-LED Manuale utente

Larson Electronics

Larson Electronics WAL-WBC-500LTL-LED-100 Manuale utente

Larson Electronics

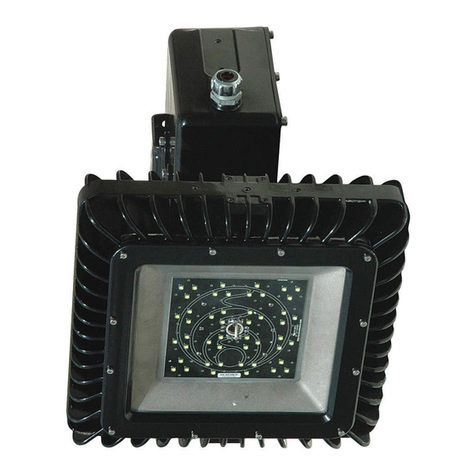

Larson Electronics RSLED Manuale utente
