LatticeSC PCI Express x4 Evaluation Board



User’s Guide

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

Introduction

This user’s guide describes the LatticeSC PCI Express x4 Evaluation Board featuring the LatticeSC

LFSCM3GA80EP1-6FC1152C FPGA device. This stand-alone evaluation PCB provides a functional platform for

development and rapid prototyping of applications that require high-speed SERDES interfaces and/or PCI Express

protocols.

The evaluation board includes provisioning to connect high-speed SERDES channels via SMA connectors to test

and measurement equipment. The board is manufactured using standard FR4 dielectric and through-hole vias.

The nominal impedance is 50-ohm for single-ended traces and 100-ohm for differential traces.

The board has several debugging and analyzing features for complete user evaluation of the LatticeSC device. This

user’s guide is intended to be referenced in conjunction with evaluation design tutorials to demonstrate the Lattic-

eSC FPGA.

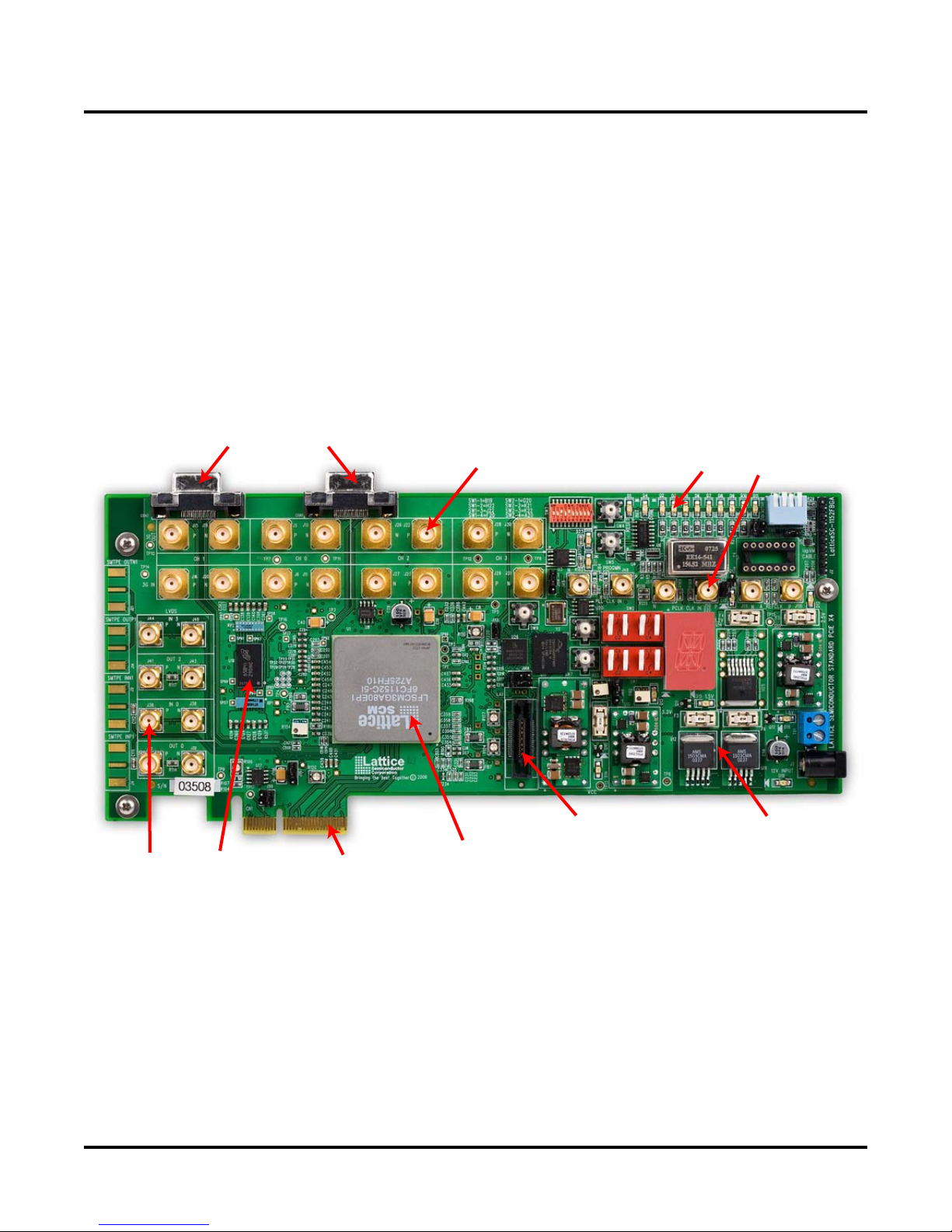

Figure 1. LatticeSC PCI Express x4 Evaluation Board

DDR2

SDRAM

LVDS I/O PCI Express x4

Edge

Mictor Connector

for Logic Analyzer

LatticeSC-80

1152 fpBGA

Power

Supplies

PCI Express

Cable Connectors

SERDES I/O Test LEDs Clock I/O

Features

• LatticeSCM-80 device in 1152 fcBGA package

• SERDES interface to x4 PCI Express edge fingers

• Two x1 PCI Express cable connections

• DDR2 memory device

• SERDES high-speed interface SMA test points and clock connections

• Power connections and power sources

•ispVM

®programming support

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

• On-board and external reference clock sources

• Interchangeable clock oscillators

• ORCAstra demonstration software interface via standard ispVM JTAG connection

• Various high-speed layout structures

• User-defined input and output points

• SMA connectors included (10) for high-speed clock or data interfacing

• Performance monitoring via test headers, LEDs and switches

This user’s guide includes top-level functional descriptions of the various portions of the evaluation board, descrip-

tions of the on-board connectors, diodes and switches and a complete set of schematics of the board. Figure 2

shows the functional partitioning of the board.

Additional Resources

For additional information and resources related to this board, including updated documentation and hard-

ware/software demos, please see the Lattice web site at www.latticesemi.com/boards and navigate to the appropri-

ate page for this board.

A PCI Express demonstration is also available on-line, including a GUI and drivers for a PCI Express solution using

this board.

Lattice makes its best effort to provide evaluation board designs to help users with evaluation and development.

However it remains the user's responsibility to verify proper and reliable operation of Lattice products in their end

application by consulting documentation provided by Lattice. Differences in component selection and/or PCB layout

in the user's application may significantly affect circuit performance and reliability.

Figure 2. Evaluation Board Block Diagram

LatticeSC

1152 fcBGA

LVDS SMAs

4-bit

Input/Output

DDR2

Memory

84 fBGA

PCI Express x4

PCI Express Card

Edge Fingers

LVDS

Bus Loop

PCI Express x1

Cable Connector

PCI Express x1

Cable Connector

LatticeSC Device

This board features a LatticeSC FPGA with a 1.2V core supply. It can accommodate all pin compatible LatticeSC

devices in the 1152-ball fpBGA (1mm pitch) package. A complete description of this device can be found in the Lat-

ticeSC/M Family Data Sheet.

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

Note: The connections referenced in this document refer to the LFSCM3GA80 device. Available I/Os and associ-

ated sysIO™ banks may differ for other densities within this device family.

Applying Power to the Board

The LatticeSC PCI Express x4 Evaluation Board is ready to power on. The evaluation board can be supplied with

power from an AC wall-type transformer power supply shipped with the board. Or it can be supplied from a bench-

top supply via terminal screw connections. It also has provisions to be supplied from the PCI Express edge fingers

from a host board.

To supply power from the factory-supplied wall transformer, simply connect the output connection of the power cord

to J3 and plug the wall transformer into an AC wall outlet.

Power Supplies

(see Appendix A, Figure 9)

The evaluation board incorporates an alternate scheme to provide power to the board. The board is equipped to

accept a main supply via the TB1 connection. This connection is provided to use with a bench-top supply adjusted

to provide a nominal 12V DC.

All input power sources and on-board power supplies are fused with surface mounted fuses and have green LEDs

to indicate power GOOD status of the intermediate supplies

Table 1. Board Power Supply Fuses- (see Appendix A, Figure 9)

F1 1.0V/1.2V Fuse

F2 3.3V Fuse

F3 1.5V Fuse

F4 1.2V Fuse

F5 2.5V Fuse

F6 1.8V Fuse

Table 2. Board Power Supply Indicators- (see Appendix A, Figure 9)

D14 1.0V/1.2V VCC Core Source Good Indicator

D15 1.5V Source Good Indicator

D16 1.8V Source Good Indicator

D12 2.5V Source Good Indicator

D13 3.3V Source Good Indicator

D17 1.2V Source Good Indicator

Alternatively, external power can be connected rather than the wall transformer power pack.

Table 3. Board Supply Disconnects- (see Appendix A, Figure 9)

TB1 Screw terminal for 12V DC Pin1(square PCB pad) -> +12V DC Pin2 -> Ground

PCI Express Power Interface

(see Appendix A, Figure 10)

Power can be sourced to the board via the PCB Edge Finger (CN1). This interface allows the user to provide power

from a PCI Express host board.

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

Programming/FPGA Configuration

(see Appendix A, Figure 7)

A programming header is provided on the evaluation board, providing access to the LatticeSC JTAG port.

Note: An ispDOWNLOAD®Cable is included with each ispLEVER®design tool shipment. Cables may also be pur-

chased separately from Lattice.

ispVM Download Interface

J2 is a10-pin JTAG connector used in conjunction with the ispVM System software and ispDOWNLOAD Cable to

program and control the device.

Table 4. JTAG Programming Connector (see Appendix A, Figure 7)

Pin 1 VCC

Pin 2 TDO

Pin 3 TDI

Pin 4 PROGRAMN

Pin 5 NC

Pin 6 TMS

Pin 7 GND

Pin 8 TCK

Pin 9 DONE

Pin 10 INITN

Programming Daisy Chain

This board includes two Lattice programmable devices that can be programmed in a daisy chain. A jumper setting

of J93 controls the chain. Both devices are in the programming chain from the JTAG header J2 with jumpers across

Pins{1-2} and Pins{3-4}. If the user desires to only program U1, only a jumper should be across Pins{2-4}.

Download Procedures

Requirements

• PC with ispVM System v.14.3 (or later) programming management software, installed with appropriate drivers

(USB driver for USB Cable, Windows NT/2000/XP parallel port driver for ispDOWNLOAD Cable). Note: An option

to install these drivers is included as part of the ispVM System set-up.

• ispDOWNLOAD Cable (HW-USBN-2A, HW-DLN-3C, etc.)

JTAG Download

The LatticeSC device can be configured easily via its JTAG port. The device is SRAM-based; it must remain pow-

ered on to retain its configuration when programmed in this fashion.

1. Connect the ispDOWNLOAD cable to the appropriate header. J2 is used for the 1x10 cable.

Important Note: The board must be un-powered when connecting, disconnecting, or reconnecting the isp-

DOWNLOAD Cable. Always connect the ispDOWNLOAD Cable's GND pin (black wire), before connecting any

other JTAG pins. Failure to follow these procedures can in result in damage to the LatticeSC FPGA device and

render the board inoperable.

2. Connect the LatticeSC Evaluation Board to the appropriate power sources and power up the board.

3. Start the ispVM System software.

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

4. Press the SCAN button located in the toolbar. The LatticeSC device should be automatically detected.

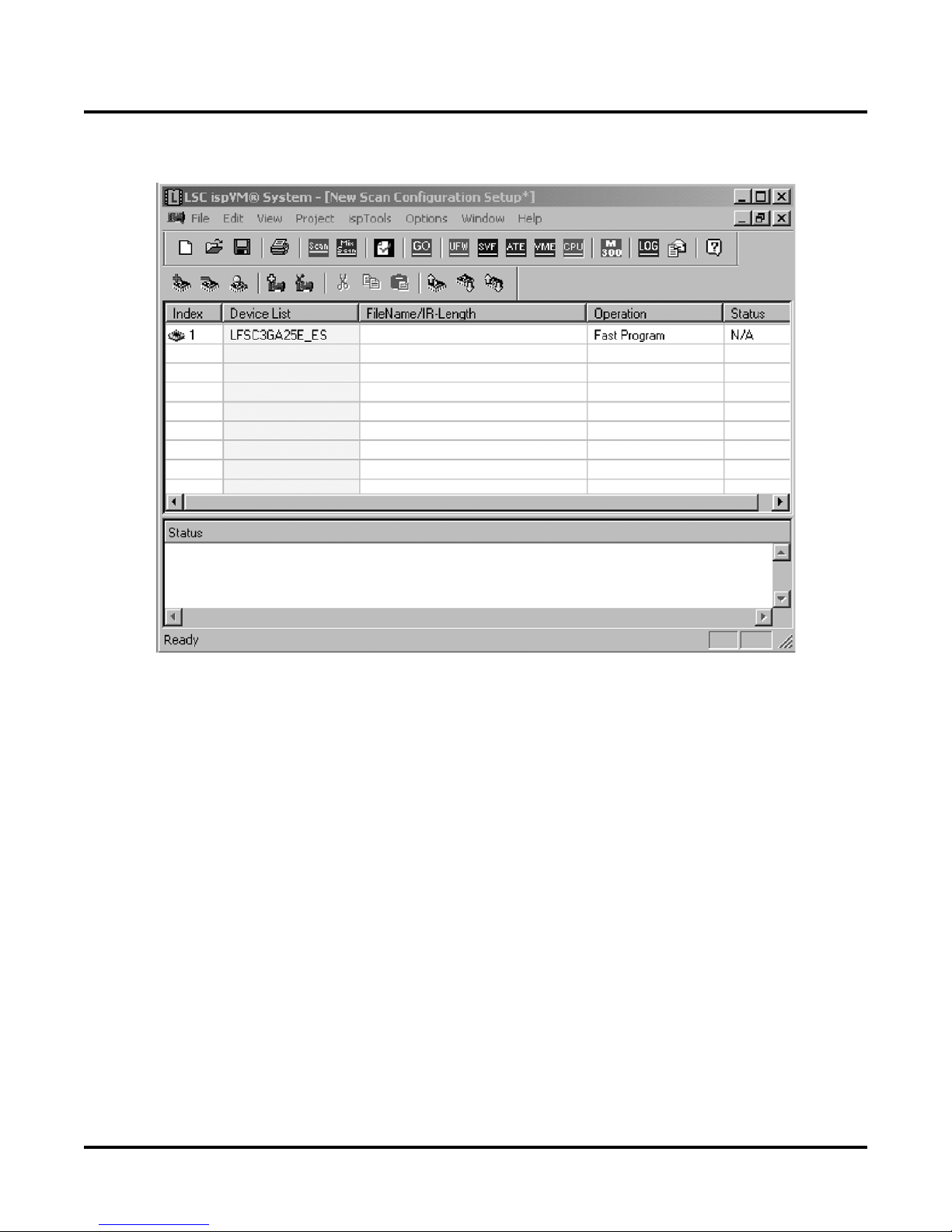

Figure 3. ispVM Main Window

5. Double-click the device to open the device information dialog. In the device information dialog, click the Browse

button located under Data File. Locate the desired bitstream file (.bit). Click OK to both dialog boxes.

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

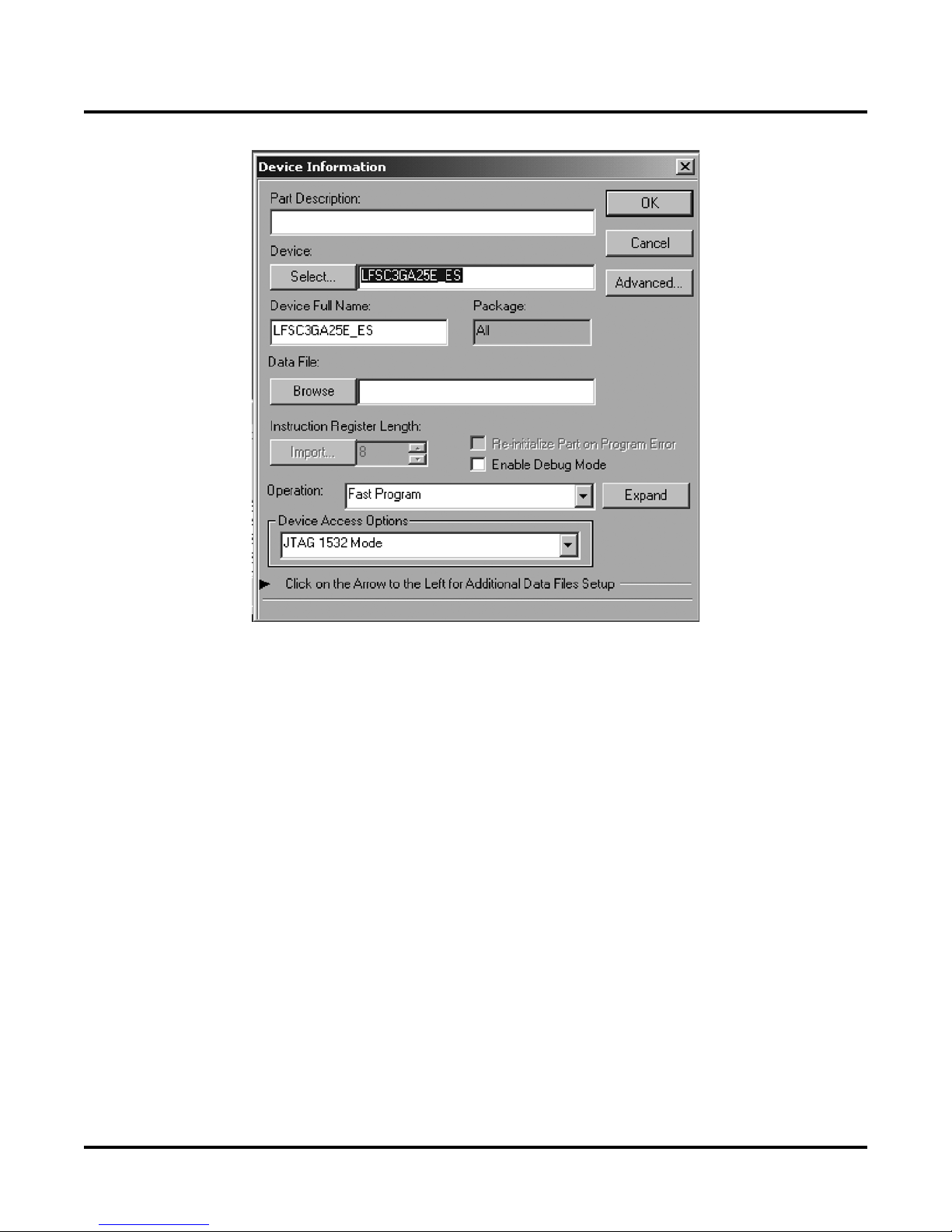

Figure 4. Device Information Dialog Box

6. Click the green GO button. This will begin the download process into the device. Upon successful download, the

device will be operational.

Configuration Status Indicators

(see Appendix A, Figure 7)

These LEDs indicate the status of configuration to the FPGA.

• D1 illuminated (red) – This indicates that the programming was aborted or reinitialized driving the INITN output

low.

• D4 illuminated (green) – This indicates the successful completion of configuration by releasing the open collector

DONE output pin.

• D11 illuminated (green) – Flashes to indicate TDI activity.

• D21 illuminated (red) – This indicates that PROGRAMN is low.

• D23 illuminated (red) – This indicates that GSRN is low.

PROGRAMN & RESETN

(see Appendix A, Figure 7)

These push-button switches assert/de-assert the logic levels on the PROGRAMN (SW5) and RESETN (SW4).

Depressing the button drives a logic level “0” to the device.

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

MODE [3:0]

(see Appendix A, Figure 7)

The FPGA MODE pins are set on the board for a particular programming mode via the SW6 DIP switch. JTAG pro-

gramming is independent of the MODE pins and is always available to the user. Pushing in (depressing) the switch

is ON and sets the value to 0.

LatticeSC devices support many configuration modes. Listed below are the configuration modes supported on this

board. The modes are either directly supported or emulated using the CPLD on board.

Table 5. Configuration Mode Selections

MODE3 SW6-4 MODE2 SW6-3 MODE1 SW6-2 MODE0 SW6-1 Configuration Mode

0 (ON) 1 (OFF) 0 (ON) 1 (OFF) SPI Flash

1 (OFF) 0 (ON) 0 (ON) 0 (ON) Master Serial

1 (OFF) 1 (OFF) 1 (OFF) 1 (OFF) Slave Serial

1 (OFF) 1 (OFF) 0 (ON) 0 (ON) Master Parallel

0 (ON) 1 (OFF) 1 (OFF) 0 (ON) Master Byte

1 (OFF) 0 (ON) 0 (ON) 1 (OFF) Slave Parallel

X (don’t care) X (don’t care) X (don’t care) X (don’t care) ispJTAG

Bank1 VCCIO

(see Appendix A, Figure 8)

VCCIO1 can be selected on the board to be either 3.3V or 2.5V using J107.

A jumper shunt placed between pin 1 and pin 2 will connect 2.5V. A jumper shunt between pin 2 and pin 3 will con-

nect 3.3V. The user must pay attention to the design and select the correct supply for VCCIO1.

On-Board Flash Memory

(see Appendix A, Figure 7)

Three memory devices (U3 and U22) are on board for non-volatile configuration memory storage. SW3 is used to

control writing and reading from the memory. U3 is an 8M, 8-pin SOIC Flash device and U22 is a 64M, 16-pin

TSSOP Flash device. U22 is located on the bottom side (secondary) of the PCB.

Refer to TN1100, SPI Serial Flash Programming Using ispJTAG in LatticeSC Devices for recommended proce-

dures and software usage.

To use both SPI Flash devices to program the LatticeSC device, the user must write to the Flash devices individu-

ally. This is accomplished by setting SW3 accordingly. Writing to Flash #1 (U22), close 3 and 5 switch positions

(ON) and open all others.

Writing to Flash #2 (U3), close 2 and 4 switch positions (ON) and open all others.

For reading from the Flash devices individually, use the same switch settings as described for writing. For reading

from both Flash devices in a cascading format, close switch positions (1, 3, 4, 5, 8).

FPGA Clock Management

(see Appendix A, Figure 14)

The evaluation board includes various features for generating and managing on-board clocks. The clocks are gen-

erated from either input provided from SMAs (see Ta bl e 6) or from crystal oscillators (Y1 and Y3). Y1 is socketed

for interchangeability and Y3 is a 312.5MHz surface-mount with an enable/disable jumper (J102). Y4 and Y5 also

can be selected using J108 to disable Y5.

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

When Y3 or Y5 are enabled, the user should remove Y1 or Y4 respectively to eliminate contention issues between

the clock sources.

There are several resistor stuffing options that may be needed based on the user’s requirements, R183 and R184

are left OPEN by factory default allowing connection to SMA inputs via R181 and R182. R181 and R182 are factory

populated with 0-ohm resistors. To utilize the Y1 or Y3 oscillators, the user should move the 0-ohms resistors from

R183 and R184 to R181 and R182.

This scenario is the same for R208 and R209 with R212 and R213 respectively.

A 100-ohm termination is optionally available and needs to be added to R185 and R186 if the SMA clock input are

not used. R185 and R186 are left OPEN at the factory and provide input termination to the B and A SERDES

Quads respectively.

Table 6. Reference Clock Input SMA Connections

J91 Reference + Input PCS361

J92 Reference - Input PCS361

J110 Reference + Input PCS360

J111 Reference - Input PCS360

A 100.0MHz surface-mounted oscillator (Y2) is also provided and fanned-out to three general-purpose FPGA

inputs.

SERDES

(see Appendix A, Figure 10)

SERDES Reference Clock

The 50-ohm terminated SMA connectors provide the supply reference clocks directly to the LatticeSC device. This

device will drive clocks to both SERDES quads via 100-ohm LVDS signaling. On-board clock oscillators mentioned

in the previous sections can be chosen to drive the same SERDES reference clocks.

SERDES Channels

Surface Mounted SMA Connections

(see Appendix A, Figure 10)

DC coupled top-mounted SMA connectors connect to the SERDES Tx and Rx channels of Quad B SERDES on

the left side (PCS 361). These pins are directly coupled to the designated SMA connector creating a path for both

input and output differential data.

Table 7. SERDES Connectors (see Appendix A, Figure 10)

J11 B_HDINN0_L

J6 B_HDINP0_L

J20 B_HDINN1_L

J16 B_HDINP1_L

J27 B_HDINN2_L

J23 B_HDINP2_L

J31 B_HDINN3_L

J28 B_HDINP3_L

J10 B_HDOUTN0_L

J5 B_HDOUTP0_L

LatticeSC PCI Express x4 Evaluation Board

Lattice Semiconductor User’s Guide

PCI Express x1 Cable Connectors

PCI Express x1 Cable Connectors (CON1 and CON2) are provided to demonstrate cable capabilities of the

SERDES channels. These cable connectors conform with the PCI Express Cable Specifications. A simple cable

loopback connected between the connectors can be used to evaluate this feature.

SERDES SMPTE Channels

(see Appendix A, Figure 10)

A single-channel 75-ohm SERDES channel is connected to BNC edge connectors. These connections are pro-

vided to connect to SMPTE video equipment. The channels include the appropriate passive components for

interoperability to SMPTE devices.

Table 8. SERDES SMPTE BNC Connectors (see Appendix A, Figure 10)

J9 A_HDINN1_L

J4 A_HDINP1_L

J21 A_HDOUTN1_L

J14 A_HDOUTP1_L

SERDES PCI Express Channels

(see Appendix A, Figure 10)

This board is equipped to communicate directly as an add-on card to a PCI Express host. It is designed with edge-

fingers (CN1) to fit directly into an x4 host receptacle. Power can be supplied directly from the PCI Express host via

the edge-finger connections.

FPGA Test Pins

General-purpose FPGA pins are available for user applications. FPGA pins are connected to switches and LEDS

designated according to the following table.

Table 9. FPGA Test Pins (see Appendix A, Figure 7)

Switch BGA Netname LED BGA NetName

SW2D A20 Switch1 D2 A19 RED1

SW2C K22 Switch2 D5 J21 YELLOW1

SW2B K21 Switch3 D7 H21 GREEN1

SW2A G20 Switch4 D9 B18 BLUE1

SW1D F20 Switch5 D3 A18 RED2

SW1C J22 Switch6 D6 H20 YELLOW2

SW1B H22 Switch7 D8 H19 GREEN2

SW1A B19 Switch8 D10 E19 BLUE2

Note: LEDs will illuminate if connected to an un-programmed FPGA pin. It is recommended that a pull-down be

programmed on FPGA output pins.

J19 B_HDOUTN1_L

J15 B_HDOUTP1_L

J26 B_HDOUTN2_L

J22 B_HDOUTP2_L

J30 B_HDOUTN3_L

J28 B_HDOUTP3_L

Indice

Altri manuali Lattice Semiconductor Scheda madre

Lattice Semiconductor

Lattice Semiconductor ECP5-5G Manuale utente

Lattice Semiconductor

Lattice Semiconductor LatticeXP2 Manuale utente

Lattice Semiconductor

Lattice Semiconductor CrossLink-NX Manuale utente

Lattice Semiconductor

Lattice Semiconductor ECP5 Versa Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO3 Manuale utente

Lattice Semiconductor

Lattice Semiconductor mVision AR0234 Manuale utente

Lattice Semiconductor

Lattice Semiconductor iCE40 UltraLite Manuale utente

Lattice Semiconductor

Lattice Semiconductor iCE40LP8K-USBC-EVN Manuale utente

Lattice Semiconductor

Lattice Semiconductor LatticeSC PCI Express x1 Manuale utente

Lattice Semiconductor

Lattice Semiconductor ispClock5400D Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO Manuale utente

Lattice Semiconductor

Lattice Semiconductor HDMI-VIP-IB-EVN Manuale utente

Lattice Semiconductor

Lattice Semiconductor LatticeECP3 Versa Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO3-940 Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO 2280 Manuale utente

Lattice Semiconductor

Lattice Semiconductor CrossLink LIF-MD6000 Manuale utente

Lattice Semiconductor

Lattice Semiconductor iCE40 UltraPlus Series Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO5-NX Development Kit Manuale utente

Lattice Semiconductor

Lattice Semiconductor iCE40 Ultra Manuale utente

Lattice Semiconductor

Lattice Semiconductor CrossLink-NX Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO2280 Breakout Board Manuale utente

Lattice Semiconductor

Lattice Semiconductor MachXO3D Manuale utente

Lattice Semiconductor

Lattice Semiconductor POWR607 Manuale utente

Lattice Semiconductor

Lattice Semiconductor ASC Bridge Board Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
