LEGRAND Galion TV - R- SAT Manuale utente

87045 Limoges Cedex

Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88

Technical data sheet:F03020EN/00 Updated:28/10/2019 Created: 10/28/2019

GalionTM

TV - R- SAT Cat. No(s): 2 824 59/59m

1. USE

Single cable entry.

(Supplied with M3.5 screws for BS boxes. Flush mounting or surface

mounting.)

TV/R/SAT: for receiving TV, radio and satellite signals.

UHD (ultra high definition) compatible.

Class A shielded star sockets LTE Ready (4G protected).

Recommended coaxial cable 17/19 VATC.

2. RANGE

Colours

- Front: white/rose golden/champagne/dark silver

- Rear: white/rose golden/champagne/dark silver

X XXX XX White

X XXX XX-C Matt black

X XXX XX-C1 Rose golden

X XXX XX-C2 Champagne

X XXX XX-C3 Dark silver

2 824 59/59m

Designation

TV - R- SAT 60.1

2 824 59/59m

Cat. No. Weight

(g)

Characteristics

1/2

CONTENTS

1. Use.......................................1

2. Range...................................1

3. Prepa ratio n.... ..... ..... ..... ..... .1

4. Overall dimensions.................1

5. Connection...........................1

6. Technical characteristics......2

7. Cleaning.................................2

8. Conformity - Approvals..................2

4. OVERALL DIMENSIONS

3. PREPARATION

3.1 General preparation

- Flushing

mounting

box:

- Surface

mounting

box:

27.5

9.1

12.4

Profile Size: 86×88 mm

Distance of installation hole: 60.3 mm

Minimum depth of the box>35mm

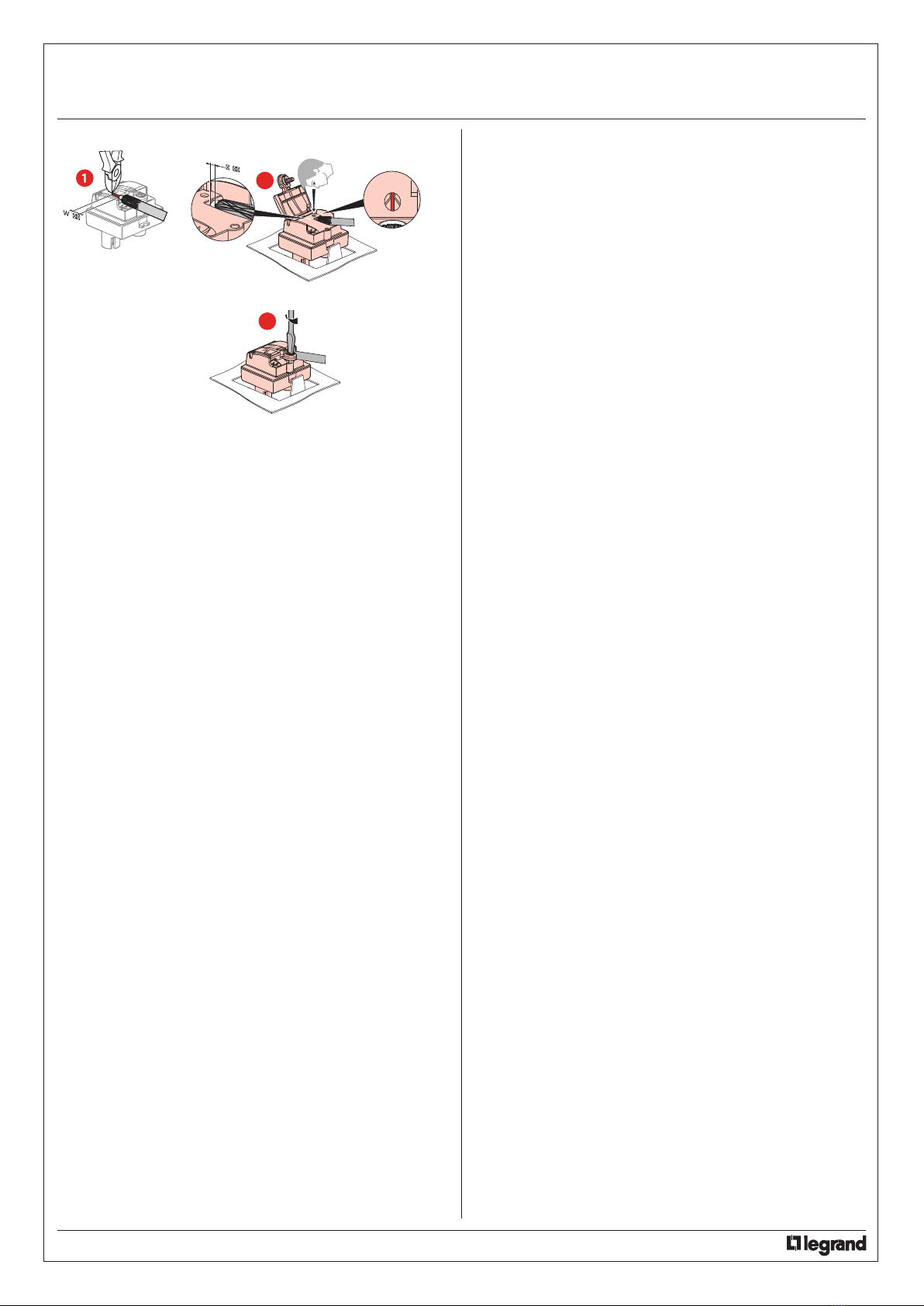

5. CONNECTION

5.1 Wiring

17 / 19 VATC A 17 / 19 VATC A

10mm 8mm 8mm

2mm 2mm

20mm

By restricting deformation of the coaxial cable,

the rear connection avoids impedance discon-

tinuity, thereby sustaining performance.

Technical data sheet: Updated:28/10/2019 Created: 10/28/2019

2/2

6. TECHNICAL CHARACTERISTICS

6.1 Material characteristics

Cover: ABS

Plate: Polycarbonate

Frame: Polycarbonate

Self-extinguishing:

+ 850° C / 30 s for insulating parts holding live parts in place

+ 650° C / 30 s for other parts made of insulating materials

6.2 Electrical characteristic

6.3 Climatic characteristics

Storage temperatures: -10℃ to +70℃

Operating temperatures: -5℃ to +50℃

6.4 Mechanical characteristics

Impact test: Ik04

Protection against liquids: Ip20

7. CLEANING

Surface cleaning with a soft, slightly damp cloth.

Do not use: acetone, tar remover, trichloroethylene

8. CONFORMITY – APPROVALS

Compliant with installation and manufacturing standards.

See e-catalogue.

- Male connector Φ 9.52 mm (TV)

- Female connector (Radio)

- Female F screw-type connector (SAT)

Characteristic impedance: 75 ohm

Class A shielding efficiency (class A shielding is necessary to

prevent interference

caused by using new 3 and 4 G phone signals, as these unwanted

signals can result in pixellation on screen or adversely affect the

sound track).

Frequency bands: TV: 5-68 / 120-862 MHZ

R: 87.5-108 MHz

SAT: 950-2400 MHZ

Attenuation : < 1.5 dB maximum

TV - R- SAT

GalionTM

Cat. No(s): 2 824 59/59m

F03020EN/00
