LEGRAND 5 742 52 Manuale utente

LE11948AA

Wireless motion sensor

5 742 52

This product is a connected accessory which requires you to buy and install the «... with

Netatmo» connected starter pack and "... with Netatmo" connected power outlets, switches

(with dimmer option) and/or connected lighting micromodules rst.

Pack contents:

x1 Wireless

motion sensor

x2 AA batteries

Frequency bands: 2.4 to 2.4835 GHz

Power level: <10mW

2 x AA - 1.5 V

+ 5°C /+ 45°C

PIR

2 - 8 m

5 to 1000 LUX

from 15 s to 15 min

IP 44

Specifications

This product can control up to 20

connected switches (with dimmer

option), micromodules, cable outlets

and power outlets "... with Netatmo".

2 Start the wireless motion sensor configuration

Press the middle of the wireless master switch until its light briey turns green, and then

stop pressing. The indicator lights on the products which you have wired will turn green.

1 Open the front cover







Do not x the motion sensor to the wall now.

The installation will be nalized on step 6.

Do not insert the batteries now

3 Insert the batteries in the wireless motion sensor









The motion sensor light will ash

green and then switch o.

Nota: If the motion sensor ashes green green red, then remove the batteries and

restart on step .

4 Pair the wireless motion sensor to a wired connected product

To pair a wireless motion sensor with a connected light switch, go to step 4.1.1.

To pair a wireless motion sensor with a connected micromodule, go to step 4.2.1.

To pair a wireless motion sensor with a connected power outlet, go to step 4.3.1.

4.1.1 Pair a wireless motion sensor with a connected light switch

Phase A: Press the ON button on the wireless switch you wish to pair, while tapping it three

times onto the light switch you wish to control.

Phase B: The indicator lights on the two products will ash blue rapidly.

Phase C: The indicator lights on the two products will briey turn blue and stop ashing.

Phase D: The light on the wired product will turn green again and the light on the wireless

motion sensor will switch o. The pairing was successful.

Make sure that the indicator lights on the wired products are green and not

ashing. If not, go back to step 2and then come back to step 4.

OFF

4.1.2 Check the correct pairing

4.2.1 Pair a wireless motion sensor with a connected micromodule

Phase A: Press the ON button on the wireless switch you wish to pair, while tapping it three

times onto the light switch you wish to control.

Phase B: The indicator lights on the two products will ash blue rapidly.

Phase C: The indicator lights on the two products will briey turn blue and stop ashing.

Phase D: The light on the wired product will turn green again and the light on the wireless

motion sensor will switch o.

Press the ON and OFF buttons of the wireless motion

sensor to check if the light turns on and o correctly.

If it doesn’t, come back to step 4.1.1.

4.2.2 Check the correct pairing

4.3.1 Pair a wireless motion sensor with a connected power outlet

Phase A: Press the ON button on the wireless switch you wish to pair, while tapping it three

times onto the power outlet you wish to control.

Phase B: The indicator lights on the two products will ash blue rapidly.

OFF

Press the ON and OFF buttons of the wireless motion

sensor to check if the light turns on and o correctly. If it

doesn’t, come back to step 4.1.1.

5 Complete the configuration

To complete your installation,

briefly press the middle of the wireless master switch.

All the indicator lights on the products switch off.

Multiple pairing

You can control several connected switches, micromodules and power outlets by repeating

the step 4on each product you wish to control.

4.3.1 Pair a wireless motion sensor with a connected power outlet

Phase C: The indicator lights on the two products will briey turn blue and stop ashing.

Phase D: The light on the wired product will turn green again and the light on the wireless

motion sensor will switch o.

7 Fix the motion sensor

For optimal use, the motion detector should be placed at a height of approximately 2.50m

from the ground.

60 mm

Ø 3.5 mm max.

Ø 6.5 mm

6Recommended places

2,5

m60

8 Set up the motion sensor

By default, the motion detector is set to a minimum delay (15 seconds), a maximum light

sensitivity (1000 lux) and a maximum sensor sensitivity (8 meters). If you want to change

these settings, follow the steps below.

8.1 Adjust the ambient light sensitivity

To increase the time that the associated product remains ON (eg, light), turn the screw

(potentiometer) dockwise.

Time delay

Ambient light sensitivity

Movement sensitivity

8.2 Adjust the ambient light sensitivity

In order for the sensor to detect only when it is dark, turn the screw (potentiometer)

counterclockwise.

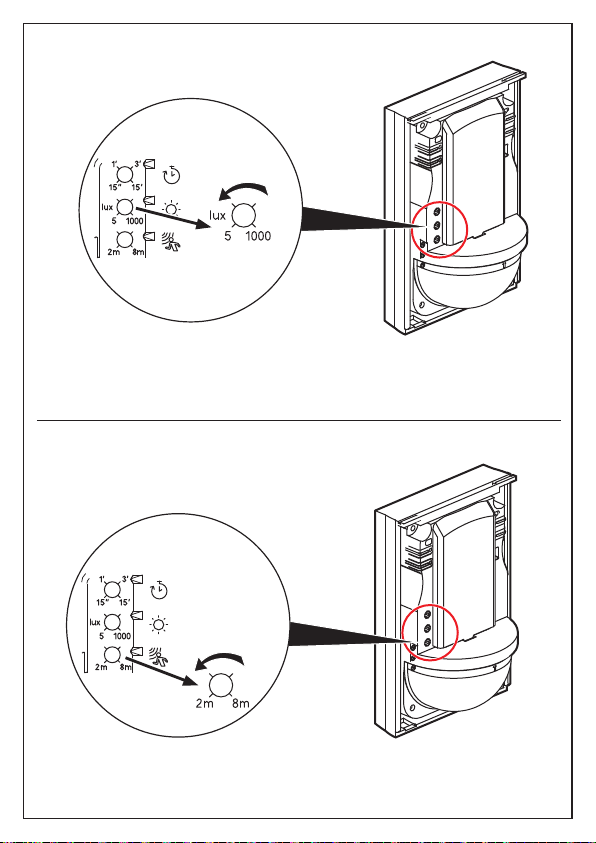

8.3 Adjust the motion sensor sensitivity

To reduce the sensitivity of the motion sensor, turn the screw (potentiometer)

counterclockwise. The detection will then be at a shorter distance.
