LEGRAND PRO 21 7756 45 Manuale utente

PRO 21™

Radio scenario switch

7756 45

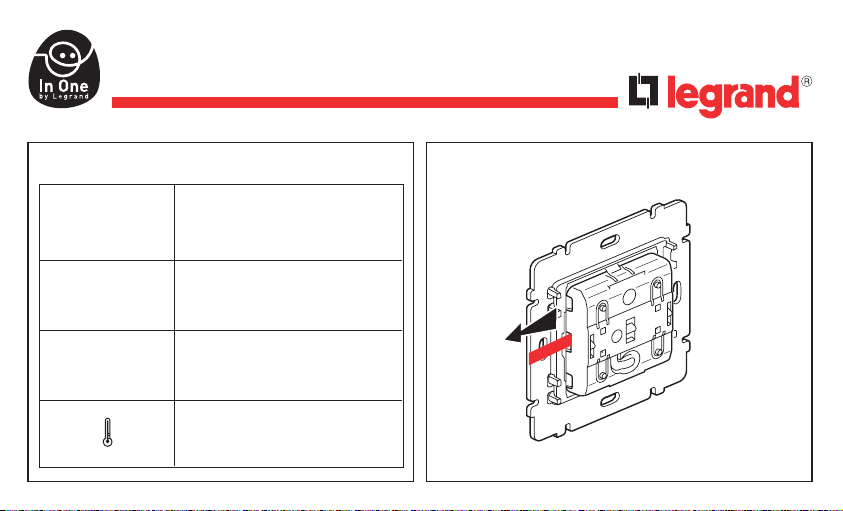

Characteristics

Connection

N0064HA6/00

Power supply 1 lithium battery CR 2032

Radio frequency 868,3 Mhz

Range approx. 200 m in free field

+ 5°C to + 45°C

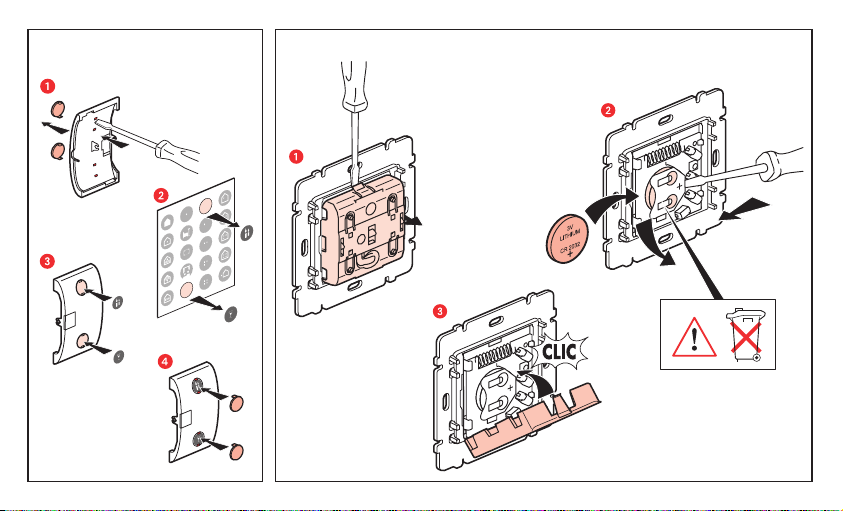

Pictogram fitting onto rocker

plates

Battery replacement

1 / 2 3 / 4

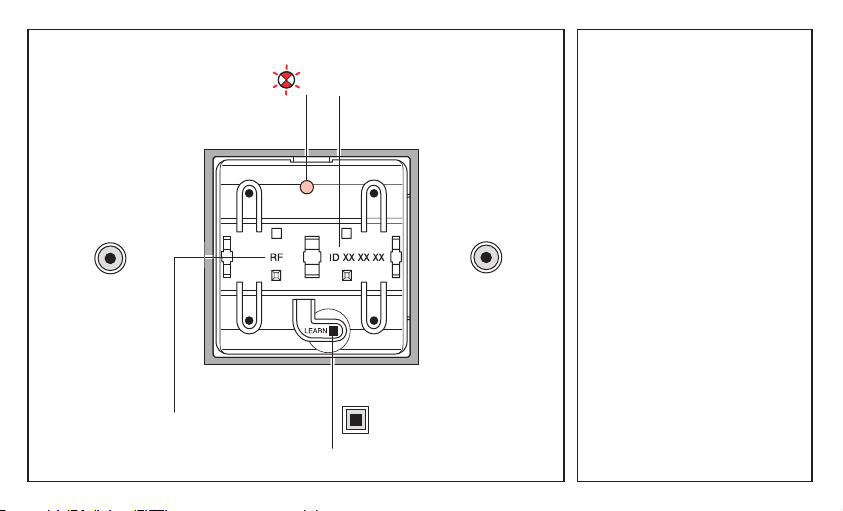

Description

LEARN indicator light

Control buttonsControl buttons

Identification No.

LEARN key

Communication media

RF => Radio Frequency

Factory settings

When first powered up, pressing

the buttons 1, 2, 3 or 4 does not

control any product of the “In One

by Legrand” installation.

Operation

The radio scenario switch can simultaneously control groups of products (actors) linked to it during the learning(1) using

its buttons 1, 2, 3 or 4; it is then the scenario leader(2).

The radio scenario switch is always the central control point (leader) of a scenario. It can control either lighting or opening

or heating points.

It can control either radio or mains borne signalling products through the RF / PCL interface Cat. No. 03606.

(1) Learning: action of linking products to be controlled simultaneously from a central point. This linking is performed

by applying the scenario learning procedure on page 5.

(2) Scenario: corresponds to all the products (actors) that are linked to a control button.







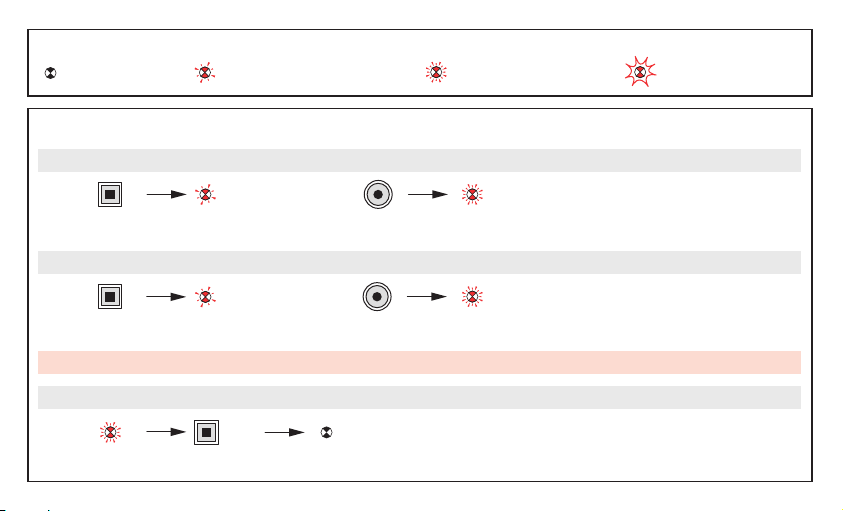

Learn scenario

Key

The indicator lamp

goes off

Press LEARN Press the command key that is to

control the scenario

Press LEARN

Press the command key that is to be

associated with the leader

The indicator lamps of all the products go off.

The scenario is recorded.

Step 1 : Start the learn phase (on the LEADER)

Step 2 : Add an actor to the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

To add a number of products to the scenario, repeat operations and for each actor.

The indicator lamp

blinks slowly

The indicator lamp

blinks quickly

The indicator lamp

flashes









Modification of a scenario

Press LEARN Press the command key

that controls the scenario

The indicator lamps of all the product

in the scenario blink.

Press the command key

that is to be associated

Step 1: Open the scenario (on the LEADER)

Press LEARN

To remove the product from the

scenario, go to step 3

Step 2 : Modify the state of an actor in the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

Press LEARN

The indicator lamps of all the products go off.

The scenario is recorded.



Clearing a scenario

Press LEARN

The scenario is cleared

Press the command key

and hold it down for 10 s

Clear all the scenarios linked with the command key (on the LEADER)

Press LEARN

Return the product to

factory configuration

Press LEARN and hold

down for 10 s

Clear all the scenarios linked to this product (on the LEADER)

5 s

DECLARATION DE CONFORMITE

Nous déclarons que les produits satisfont aux dispositions de :

We declare that the products satisfy the provisions of :

La Directive 1999/5/CE du Parlement européen

et du Conseil du 9 mars 1999 "R&TTE"

sous réserve d'une utilisation conforme à sa destination on condition that they are used in the manner

et/ou d'une installation conforme aux normes en vigueur intended and/or in accordance with the current

et/ou aux recommandations du constructeurinstallation standards and/or with the manufacturer's

recommandantions

Ces dispositions sont assurées pour la directive 1999/5/CEE par la conformité aux normes suivantes :

These provisions are ensured for directive 1999/5/CEE by conformity to the following standards :

EN 60669-2-1

EN 300220-3

PRO 21™

Funk- Zentral Szenarioschalter

7756 45

Technische Daten

Anschlüsse

Spannungsversorgung

1 x Lithiumbatterie CR 2032

Funkfrequenz 868,3 Mhz

Reichweite ca. 200 m freies Feld

+ 5°C bis + 45°C

Anbringen von Piktogram-

men auf den Tasten

Auswechseln der Batterie
