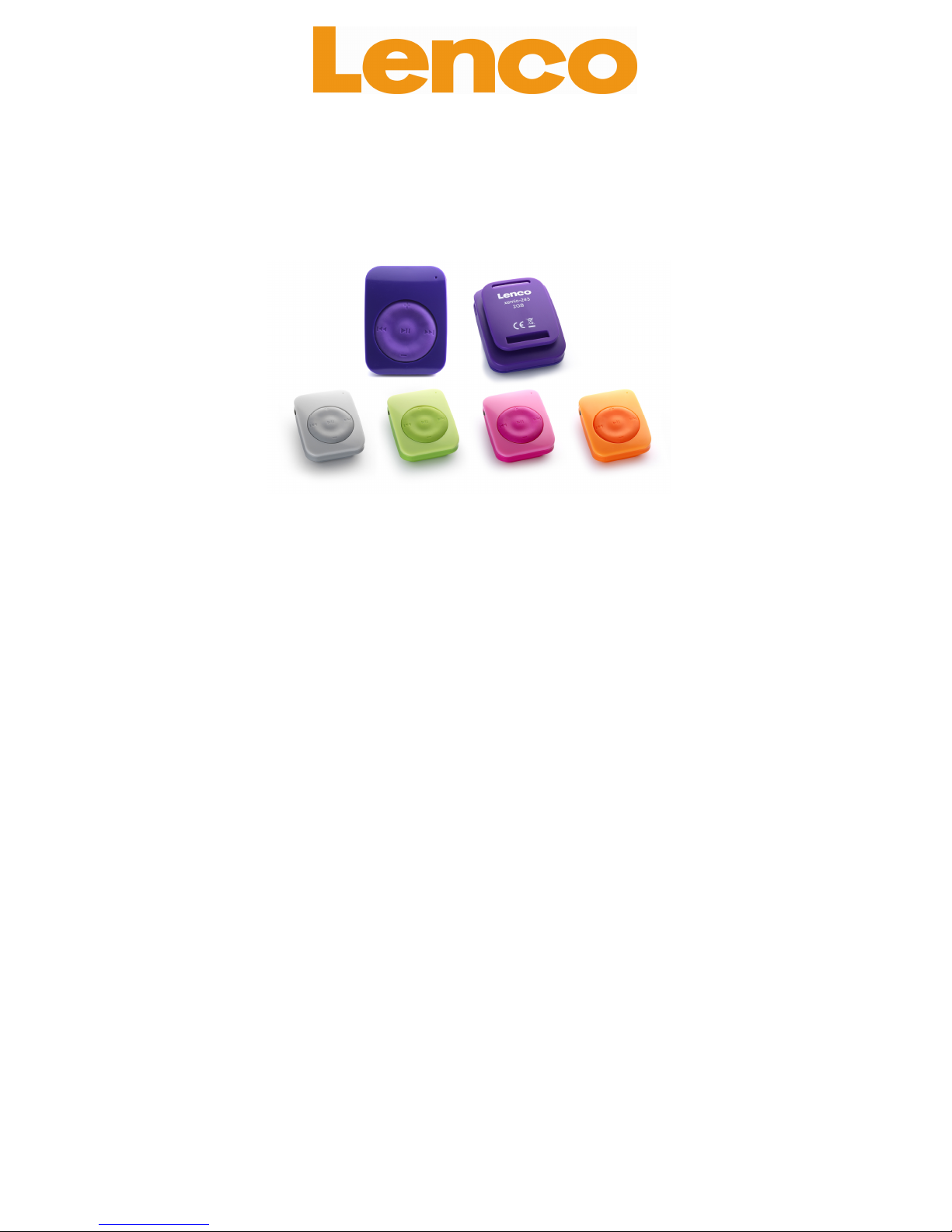

LENCO XEMIO-253 Manuale utente

XEMIO-253

MP3-Player

User manual

www.lenco.com

XEMIO-243/253

USER MANUAL

Special Features

•Elegant appearance and easy to use.

•Multi-Code Player - Supporting MP3, WMA, formats.

•Driver Free U Disk - You may manage your files directly through “Portable

Device” in “My Computer” on Windows 2000 Operating System or above

without driver.

Brief View of Player

A. About player’s battery

Player has an internal, non–user-replaceable rechargeable lithium battery. For best

results, the first time you use the player, let it charging for about 1 - 2 hours or until

the charging LED lights go Off before you use it.

Charging the Battery

You can charge the Player’s battery in two ways:

1. Connect player to your computer. Or,

2. Use the USB power charger. (available separately)

B. Key function of buttons

Appearance

XEMIO-243/253

USER MANUAL

•button: To Play / Pause, On / Off.

•button: To previous song or fast-backward.

•button: To the next song or fast-forward.

•button: To increase volume level.

•Button: To decrease volume level.

•USB: For PC connection and charge function

C. Getting start player

1 Turn On / Off

1.1 Plug in earphone set into player’s jack

1.2 Press and hold button, for about 3 - 4 second, the player will turn

On and the music will play directly.

1.3 Press and hold button, for about 3 - 4 second, to turn Off the

player.

2 Play / Pause Music

2.1 Press button to pause the playing music, press it again to play.

2.2 If player is in pause state for 3 minutes, it will be turned to Off

automatically.

3 Adjust Volume

3.1 Pressing

button

to increase or decrease volume level.

3.2 Press and hold

button

to increase or decrease volume level

faster.

3.3 For hearing protection; a beep warning will be heard from earphone

every time you increase the volume level and reach to the default

setting level, which may exceed 85dB. Press button to accept the

warning and press / button again to increase the level until to

maximum level.

4 Play Next / Previous Music

XEMIO-243/253

USER MANUAL

4.1 In playing mode, press button to select next music.

4.2 Press button to select previous music.

5 Play Fast-Forward / Fast-Backward

5.1 In playing mode, press and hold button to enter fast-forward

mode.

5.2 Press and hold button to enter fast-backward mode.

D. USB mode

1 Connect player to computer

1.1 Connect player to computer with the USB cable, then a “USB Mass

Storage Device” is detected and related driver is installed by you

computer. (Windows 2000 / XP System or about)

1.2 A removable disk drive will be shown in “My computer” folder, now you

can start Read / Write operation. And the battery is charging in

background.

1.3 In connection mode, the player can be play music if you press or

pressing the play button. However, the player may stop or start playing

if removing the PC connection.

2 Remove player from computer:

Please safety to removes the player in computer, otherwise, the data stored in

the Player might loss.

2.1 If you’re using a Windows PC, you can disconnect the player in My

Computer or by clicking the “Safely Remove Hardware” icon in the

Windows system tray.

2.2 If you’re using a Mac, you can also disconnect player by dragging the

player icon on the desktop to the Trash.

XEMIO-243/253

USER MANUAL

2.3 And now, is safe to disconnect the player with your computer, unplug

the USB connector from player and then your computer.

2.4 If you’re accidentally disconnect player without disconnect it,

reconnect it to your computer.

2.5 At power ON mode, after remove the PC connection, the player will

auto-play the music directly.

E. Indicator light function

•Playing Mode: Red light flashing once per second.

•Pause Mode: Red light bright.

•PC Connecting Mode: Red light bright. (Charging in background)

•Recharging Mode: Red light bright.

•Recharge complete: Red light will turn OFF

F. Troubleshooting

Play cannot turn ON •Check whether battery have enough energy.

No sound is heard •Check whether Volume is set to “minimum”

and connect the headphone plugs firmly.

•Check whether the headphone plug is dirty.

•Corrupted WMA / MP3 may make a static

noise and the sound may cut off. Make sure

that the music files are not corrupted.

•Check whether music files format are support.

Download of music files fails. •Check whether player’s USB connector is

connected with computer properly.

•Check whether driver is installed correctly.

•Check whether the player’s memory is in full.

XEMIO-243/253

USER MANUAL

G. Specification

Dimension 45.5 mm (H) x 35 mm (W) x 18 mm (D)

Weight 15g

PC Connection USB 2.0 (High Speed)

Earphone Impedance 32 Ohm

Internal Memory Flash memory: Xemio-243 2GB

Xemio-253 4GB

Battery Built-in Rechargeable Lithium battery (3.7V 110mA)

Playing Time: about 6 – 7 Hours

Supports Music Format

MP3 32kbps - 320kbps

WMA 32kbps – 384kbps

Audio

Earphone Output Power

L: 275mVrms + R: 275mV

(32 Ohm)

Frequency Response 20Hz – 20,000Hz

SNR 80dB

Operation Temperature

-0

℃

- 40

℃

Operation Systems Windows 98/SE/ME2000/XP/Vista, MAC 9.2 or above

Note: Product design and specification are subject to change without prior notice.

XEMIO-243/253

USER MANUAL

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE.

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

CAUTION: TO PREVENT AN ELECTRICAL SHOCK, DO NOT

REMOVE ANY COVER SCREWS. THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REQUEST A QUALIFIED SERVICE

PERSON TO PERFORM SERVICING.

This symbol indicates that there are important operating maintenance

instructions in the user manual accompanying this MP3.

This symbol indicates that dangerous voltage is present within this

MP3, constituting a risk of electric shock or personal injury.

Keep these instructions in mind:

Do not use this device near water.

Clean only with a slightly damp cloth.

Do not cover or block any ventilation opening. When placing the device on a

shelf, leave 5 cm (2”) free space around the whole device.

Install in accordance with the supplied user manual.

XEMIO-243/253

USER MANUAL

Don’t step on or pinch the power cord. Be very careful, particularly near the

plugs and the cable’s exit point. Do not place heavy items on the power cord,

which may damage it. Keep the entire device out of children’s reach! When

playing with the power cable, they can seriously injure themselves.

Unplug this device during lightning storms or when unused for a long period.

Keep the device away from heat sources such as radiators, heaters, stoves,

candles and other heat-generating products.

Avoid using the device near strong magnetic fields.

ESD can disturb normal usage of this device. If so, simply reset and restart the

device following the instruction manual. During file transmission, please

handle with care and operate in a static-free environment.

Safety instructions - continued

WARNING! NEVER INSERT AN OBJECT INTO THE PRODUCT THROUGH

THE VENTS OR OPENINGS. HIGH VOLTAGE FLOWS THRU THE

PRODUCT AND INSERTING AN OBJECT CAN CAUSE ELECTRIC SHOCK

AND/OR SHORT CIRCUIT INTERNAL PARTS. FOR THE SAME REASON,

DO NOT SPILL WATER OR LIQUID ON THE PRODUCT.

Do NOT use in wet or moist areas such as bathrooms, steamy kitchens or

near swimming pools.

Do not use this device when condensation may occur.

This MP3 is produced according to all current safety regulations. The following

safety tips should safeguard users against careless use and dangers involved with

such use.

Although this device is manufactured with the utmost care and checked

several times before leaving the factory, it is still possible that problems may

occur, as with all electrical appliances. If you notice smoke, an excessive

XEMIO-243/253

USER MANUAL

build-up of heat or any other unexpected phenomena, you should disconnect

the plug from the main power socket immediately.

This device must be well ventilated at all time!

This device must operate on a power source as specified on the specification

label. If you are not sure of the type of power supply used in your home,

consult your dealer or local power company.

The socket outlet must be installed near the equipment and must be easily

accessible.

Do not overload AC outlets or extension cords. Overloading can cause fire or

electric shock.

Keep away from rodents. Rodents enjoy biting on power cords.

Always hold the plug when pulling it out of the main supply socket. Do not pull

the power cord. This can cause a short circuit.

Avoid placing the device on any surfaces that may be subject to vibrations or

shocks.

When the device is not in use for long periods, unplug the AC power cable for

safety reasons.

To clean the device, use a soft dry cloth. Do NOT use solvents or petrol based

fluids. To remove severe stains, you may use a damp cloth with dilute

detergent.

The supplier is not responsible for damage or lost data caused by malfunction,

misuse, modification of the device or battery replacement.

If the device will not be used for an extended period, please charge the battery

at least once per month to maintain battery life.

XEMIO-243/253

USER MANUAL

Safety instructions - continued

Charge the battery if:

a) The battery level icon displays (An empty battery)

b) The device switches off automatically when restarted.

Do not interrupt the connection when the device is formatting or transferring

files. Otherwise, data may be corrupted or lost.

WARNING: Prolonged exposure to loud sounds from personal music

players may lead to temporary or permanent hearing loss.

BEFORE SENDING YOUR DEVICE TO LENCO DO NOT FORGET TO

BACKUP YOUR DATA. SUPPLIER IS NOT LIABLE FOR ANY DATA

LOSS.

Do not distribute copyright-protected material without the permission of

the content owners. Doing this may violate copyright laws. The

manufacturer is not liable for any legal issues caused by the user’s

illegal use of copyrighted material.
