LevelOne

GSW-1641

16-Port Gigabit with 1-Port SFP

Web Smart Switch

User Manual

Version 1.0-0604

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received; including interference that may cause undesired

operation.

CE Mark Warning

This equipment complies with the requirements relating to electromagnetic compatibility, EN

55022 class A for ITE, the essential protection requirement of Council Directive 89/336/EEC

on the approximation of the laws of the Member States relating to electromagnetic

compatibility.

Company has an on-going policy of upgrading its products and it may be possible that

information in this document is not up-to-date. Please check with your local distributors for

the latest information. No part of this document can be copied or reproduced in any form

without written consent from the company.

Trademarks:

All trade names and trademarks are the properties of their respective companies.

Table of Contents

UNPACKING INFORMATION....................... 5

INTRODUCTION ............................................... 5

GENERAL DESCRIPTION ............................................................................5

KEY FEATURES .........................................................................................5

THE FRONT PANEL....................................................................................6

THE REAR PANEL......................................................................................7

INSTALLATION................................................. 8

DESKTOP INSTALLATION...........................................................................8

RACK-MOUNT INSTALLATION ...................................................................8

INSTALLING NETWORK CABLES................................................................9

NETWORK APPLICATION ...........................................................................9

FUNCTIONAL DESCRIPTION..................... 10

JUMBO FRAME.........................................................................................10

FLOW CONTROL AND BACK PRESSURE ...................................................10

MIRROR...................................................................................................10

VLAN.....................................................................................................10

TRUNK (AGGREGATION) .........................................................................10

QUALITY OF SERVICE (QOS)...................................................................10

SNMP.....................................................................................................10

MANAGEMENT GUIDE.................................. 11

ACCESS THE SWITCH...............................................................................11

HOMEPAGE..............................................................................................12

SYSTEM...................................................................................................13

PORT .......................................................................................................14

VLAN.....................................................................................................15

PVID ......................................................................................................16

AGGREGATION/ TRUNK CONFIGURATION ...............................................17

QUALITY OF SERVICE..............................................................................18

MIRROR...................................................................................................22

RATE LIMIT.............................................................................................23

SNMP.....................................................................................................24

DISCOVERY.............................................................................................25

STATISTICS OVERVIEW ...........................................................................26

DETAILED STATISTICS.............................................................................26

WARM RESTART .....................................................................................27

FACTORY DEFAULT.................................................................................27

SMART BOOT ..........................................................................................27

SOFTWARE UPLOAD................................................................................28

PRODUCT SPECIFICATIONS..................... 29

Unpacking Information

Thank you for purchasing GSW-1641 Gigabit Web Smart Switch. Before you start,

please verify that your package contains the following items:

1. One GSW-1641 Web Smart Switch

2. One AC power cord

3. Rack-mount brackets

4. Stackable kit

5. Manual CD

Introduction

General Description

Easily boosting your networking throughput, LevelOne GSW-1641 provides you 16

10/100/1000Mbps gigabit ports that lead you to a real gigabit connection. Users are

now able to transfer high bandwidth-demanded files faster and get a real efficiency

improvement with the user-friendly web-based management interface. This product

also equips one mini GBIC slot for your flexible fiber connection. Use of the

mini-GBIC port disables the connection of 16th copper port automatically.

The management functionalities provide efficient network usage. VLAN reduces the

collisions from widely broadcasting. Port aggregation enlarges the bandwidth of

backbone connection. QoS is supported to secure the bandwidth for some

bandwidth-demanded applications including VoIP or videoconference. The 802.3x

and backpressure flow control mechanisms are also supported to ensure the

correctness of data transmitting.

Key Features

 16 fixed 10/100/1000Mbps gigabit ethernet ports for easy network connecting

application.

 Equips one SFP port for optional fiber connection.

 Provide auto-discovery function for easy network management.

 Provide 8K MAC address entries and 16 groups VLAN table

 Support port mirror.

 Support up to 8 ports and 8 groups port aggregation.

 Support QoS for better communication quality.

 Support full duplex flow control and half duplex back pressure

 Store-and-forward forwarding scheme

 Error packet filtering

 Support Jumbo frame 9K bytes

 Supports 340K bytes buffer memory

 Support web-based management interface.

 FCC Class A, CE, Meet RoHS.

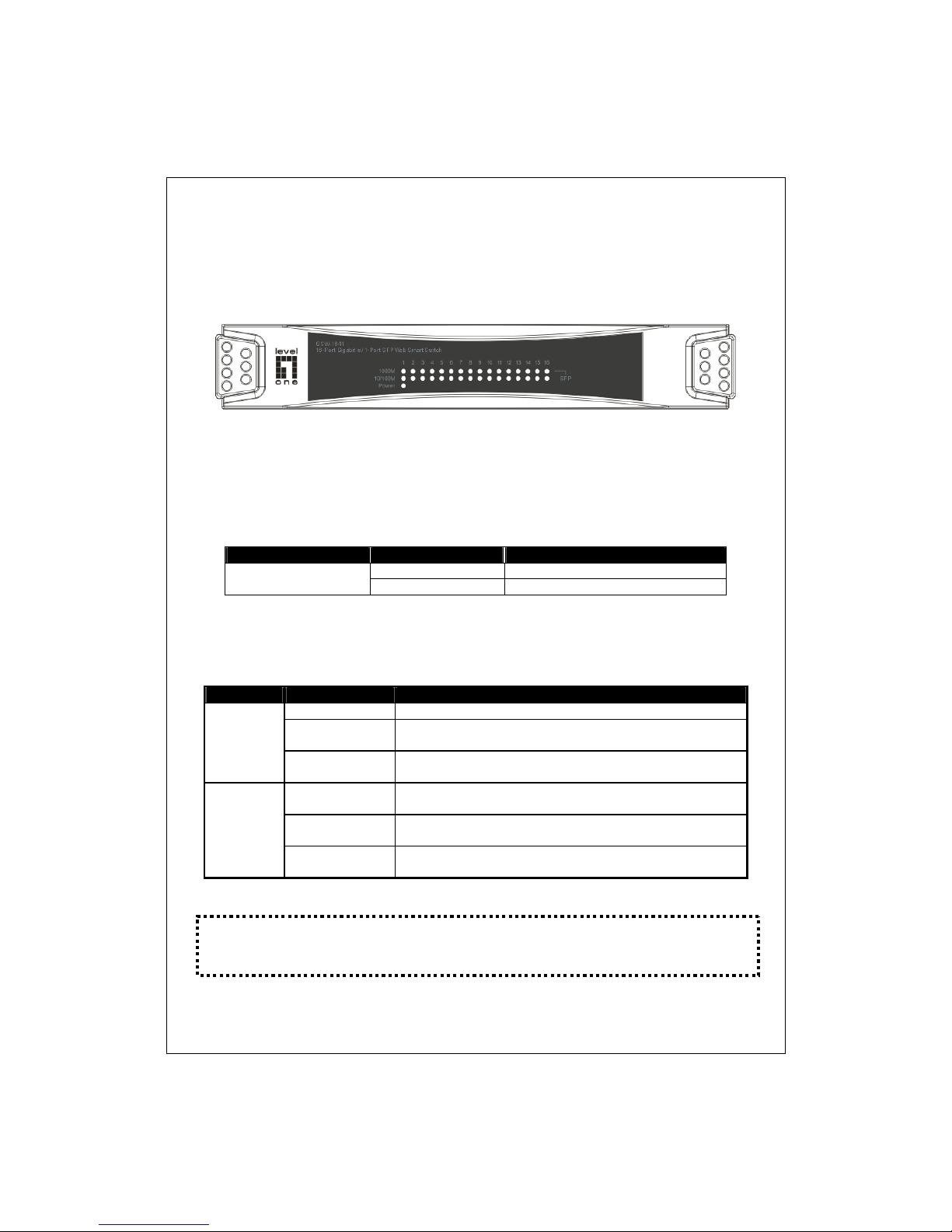

The Front Panel

The front panel consists of LED indicators. Please refer to the following paragraph for

information.

LEDs Definition

System LED

The switch provides a power LED for the device.

LED Status Operation

Steady Green The switch is powered on

Power Off The switch is powered off

Port LEDs

The switch provides one “1000M” LED and one “10/100M” LED for each port.

LED Status Operation

Green The port is connected at 1000 Mbps

Blinking Green A valid link is established, and there is data

transmitting/receiving.

1000M

Off No valid link on this port or the Port is connected at 10/100

Mbps

Steady Green Avalid link is established, and there is no data

transmitting/receiving.

Blinking Green A valid link is established, and there is data

transmitting/receiving.

10/100M

Off No valid link on this port or the port is connected at 1000

Mbps

Attention：The Mini GBIC slot shares the same LED indicator with the

last RJ-45 (copper) port.

The Rear Panel

The rear panel of the switch:

Port Operation

The auto-negotiation feature allows those ports running at one of the following

operation modes:

Media Speed Duplex Mode

Full Duplex

10Mbps Half Duplex

Full Duplex

100Mbps Half Duplex

10/100/1000Mbps(copper)

1000Mbps Full Duplex

1000Mbps(Fiber)

(mini GBIC required) 1000Mbps Full Duplex

Note: For the last port, when both the fiber and cooper interfaces are connected, the

system adapts the fiber interface and disables the relevant cooper port automatically.

Reset Button

You can use this button to reset the switch or restore factory default settings. To reset

the switch, press the button once.

To restore factory default settings, press and hold the button for three seconds.

Power Receptacle

To be compatible with the electric service standards around the world, the switch is

designed to afford the power supply in the range from100 to 240VAC, 50/60Hz.

Please make sure that your outlet standard to be within this range.

To power on the switch, please plug the female end of the power cord firmly into the

receptacle of the switch and the other end into an electric service outlet. After the

power cord installation, please check if the power LED is lit for a normal power status.

Installation

This switch can be placed on your desktop directly, or mounted in a rack. Please refer

to the instructions for installation.

Before installing the switch, we recommend:

1. The switch is placed with appropriate ventilation environment. A minimum 25mm

space around the unit is recommended.

2. The switch and the relevant components are away from sources of electrical

noise such as radios, transmitters and broadband amplifiers.

3. The switch is away from environments beyond recommend moisture.

Desktop Installation

1. Install the switch on a level surface that can support the weight of the unit and

the relevant components.

2. Plug the switch with the female end of the provided power cord and plug the

male end to the power outlet.

Rack-mount Installation

The switch may be standalone, or mounted in a rack. Rack mounting facilitate to an

orderly installation when you are going to install series of networking devices.

Procedures to rack-mount the switch:

1. Disconnect all the cables from the switch before continuing.

2. Place the unit the right way up on a hard, flat surface with the front facing you.

3. Locate a mounting bracket over the mounting holes on one side of the unit.

4. Insert the screws and fully tighten with a suitable screwdriver.

5. Repeat the two previous steps for the other side of the unit.

6. Insert the unit into the rack and secure with suitable screws (optional).

7. Reconnect all the cables.

Installing Network Cables

1. Crossover or straight-through cable: All the ports on the switch support

auto-MDI/MDI-X functionality. Both straight-through or crossover cables can be

used as the media to connect the switch with PCs as well as other devices like

switches, hubs or router.

2. Category 3,4,5 or 5eUTP/STP cable: To make a valid connection and obtain the

optimal performance. An appropriate cable that corresponds to different

transmitting/receiving speed is required. To choose a suitable cable, please refer

to the following table.

Media Speed Wiring

10Mbps Category 3,4,5 UTP/STP

100Mbps Category 5 UTP/STP

10/100/1000Mbps

copper 1000Mbps Category 5,5e UTP/STP

1000Mbps Fiber

(Mini GBIC required) 1000Mbps

The cable type differs from the

mini-GBIC you choose. Please refer to

the instruction came with your

mini-GBIC.

Network Application

Functional Description

Jumbo Frame

With Jumbo Frame supported, it is allowed for the switch to transport identical data in

fewer frames. Hence helps to ensure fewer overheads, shorten processing time, and

reduce interrupts.

Note: To enable Jumbo Frame, Flow Control should be enabled in advance.

Flow Control and Back Pressure

Flow control and Back Pressure both contributes for lower and higher speed devices

to communicate to each other hence ensures the correctness of data transmitting.

The 802.3x Flow Control and Back Pressure mechanisms work respectively for full

and half duplex modes. Flow control can be enabled or disabled on a per-port basis.

Mirror

The Mirror function provides network administrator to monitor the traffic. By

forwarding a copy of the packets that received or transferred by the monitored port,

the sniffer port received all the packets and hence is able to monitor the traffic of the

specified port.

VLAN

With VLAN supported, the network can be segmented in groups to reduce the

collisions from widely broadcasting. The device supports both port-based VLAN and

802.1Q tag-based VLAN. Port-based VLAN classifies incoming packets to VLANs

according to their ingress port. The 802.1Q based VLAN add a tag to the header of

the packet to classify their VLANs.

Trunk (Aggregation)

The Trunk functionality integrates several ports to enlarge the bandwidth that helps to

boost the backbone connectivity. The switch allows the Maximum 8 group and 8

members for each group.

Quality of Service (QoS)

The QoS service classifies packets into different precedence. The packets are

transmitted and received by their classified priorities. This mechanism helps high

bandwidth demanded applications such as VoIP to get an unobstructed connection.

SNMP

This device is SNMP(Simple Network Management Protocol)-management

supported. This allows this product to be monitored or inspected by a SNMP

management station.

Indice

Altri manuali LevelOne Interruttore

LevelOne

LevelOne KVM-0261 Manuale utente

LevelOne

LevelOne FGL-2870 Manuale utente

LevelOne

LevelOne OfficeCon GSW-2420 Manuale utente

LevelOne

LevelOne GEP-2821 Manuale utente

LevelOne

LevelOne GES-1650 Manuale utente

LevelOne

LevelOne Infinity IES-0920 Manuale utente

LevelOne

LevelOne GSW-1601TX Manuale utente

LevelOne

LevelOne FSW-2470 Manuale utente

LevelOne

LevelOne ProCon GSW-1656 Manuale utente

LevelOne

LevelOne GTL-2872 Manuale utente

LevelOne

LevelOne FSW-0507TX Manuale utente

LevelOne

LevelOne TURING Industrial Series Manuale utente

LevelOne

LevelOne GSW-2472TGX Manuale utente

LevelOne

LevelOne GSW-0508 Manuale utente

LevelOne

LevelOne GTP-5281 Manuale utente

LevelOne

LevelOne POH-1260 Manuale utente

LevelOne

LevelOne OfficeCon FSW-0822 Manuale utente

LevelOne

LevelOne POH-1250 Manuale utente

LevelOne

LevelOne HDSpider Series Manuale utente

LevelOne

LevelOne IES-0600 Manuale utente

LevelOne

LevelOne GSW-5270 Manuale utente

LevelOne

LevelOne GEL-5271 Manuale utente

LevelOne

LevelOne FGP-1000 Manuale utente

LevelOne

LevelOne GSW-2457 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
