Parts Catalog Guide

Parts Catalog 7-1

5024-001

Parts Catalog

How to Use this Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are shown on the same list. Common parts

are shown by one index number. Parts peculiar to one or the

other of the assemblies are listed separately and identified by

description.

•AR: (As Required) in the Units column indicates that the

quantity is not the same for all machines.

•NP: (Non-Procurable) in the Units column indicates that the part

is non-procurable and that the individual parts or the next higher

assembly should be ordered.

•NR: (Not Recommended) in the Units column indicates that the

part is procurable but not recommended for field replacement,

and that the next higher assembly should be ordered.

•R: (Restricted) in the Units column indicates that the part has a

restricted availability.

•NS: (Not Shown) in the Ref column indicates that the part is

procurable but is not pictured in the illustration.

•PP: (Parts Packet) in the Description column indicates that the

part is contained in a parts packet.

•A part reference within a circle indicates an assembly or a bill-

of-material. An assembly is complete. A bill-of-material contains

unassembled parts.

•NA: Not available/not referenced.

Parts Catalog 7-2

Assembly 1:

Parts Catalog 7-3

5024-001

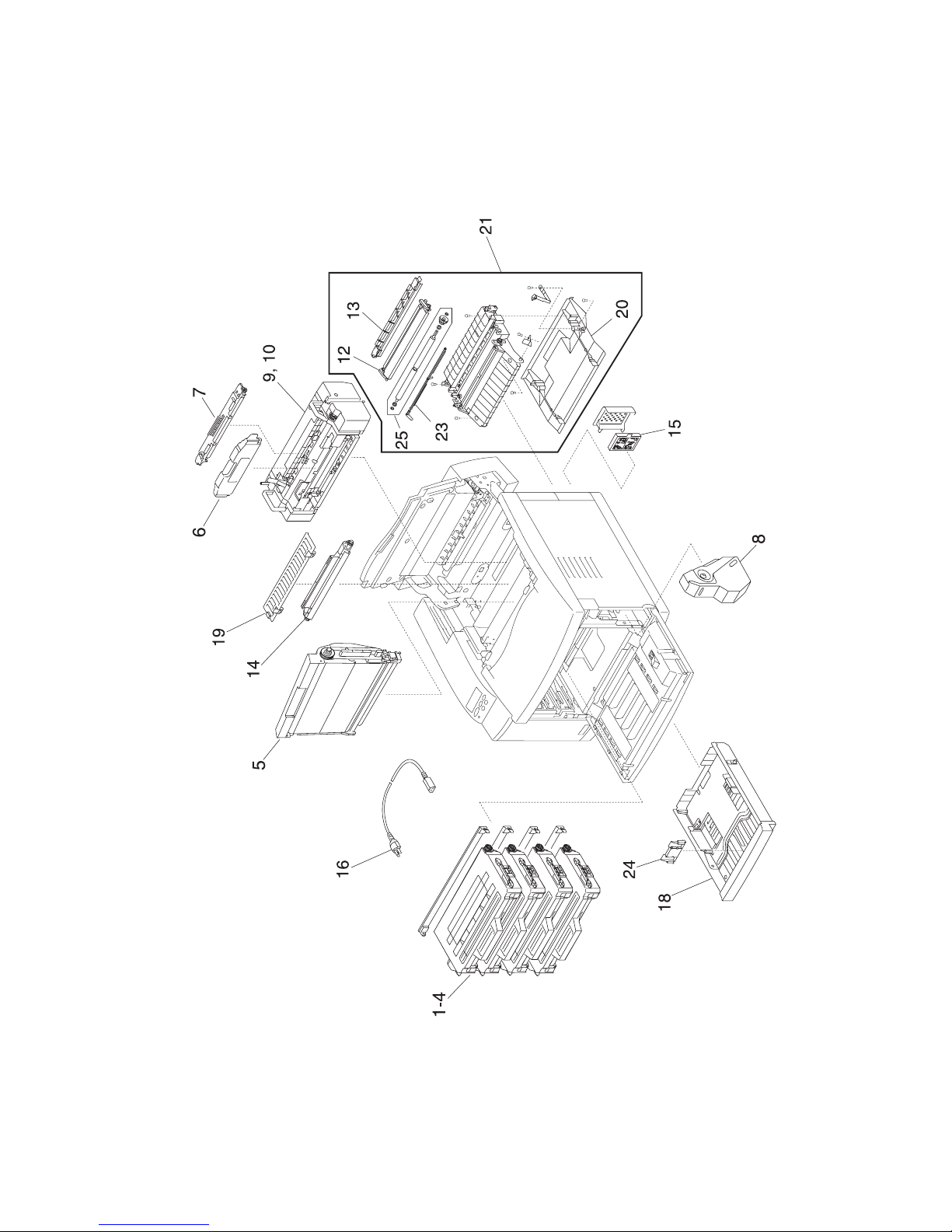

Assembly 1:

Ref Part

Number Units Description

1 - 1 1 Toner Cartridge -Y

(Supply, customer order only)

Toner Cartridge -M

(Supply, customer order only)

Toner Cartridge -C

(Supply, customer order only)

Toner Cartridge -K

(Supply, customer order only)

OPC Belt Cartridge

(Supply, customer order only)

Fuser Oil Bottle

(Supply, customer order only)

Fuser Cleaner

(Supply, customer order only)

Waste Toner-P

(Supply, customer order only)

Fusing Unit (110V)

(Supply, customer order only)

10 1 Fusing Unit (220V)

(Supply, customer order only)

12 12G7004 1 Transfer Roller

13 12G7005 1 Paper Discharger

14 12G7006 1 Drum Cleaner

15 12G7007 1 Ozone Filter

16 12G7008 1 Power Cord (U.S.)

16 1339517 1

Power Cord, LV U.S., APG, Bolivia,

Canada, Columbia, Costa Rica, Ecuador,

EL Salvador, Guatemala, Honduras,

Mexico, Nicaragua, Panama, Peru,

Venezuela

16 1339518 1 Power Cord, HV, Argentina

Parts Catalog 7-4

Assembly 1 (cont.):

Parts Catalog 7-5

5024-001

Assembly 1 (cont.):

Note: Reference the foldout wiring diagram, in the back of this

manual, for cable replacement detailed information. Then go to

Assembly 6 for parts ordering information.

Ref Part

Number Units Description

1 - 16 1339520 1 Power Cord, HV, Brazil

16 1339524 1 Power Cord, HV, Chili

16 1339528 1 Power Cord, HV, UK, Ireland

16 1339529 1

Power Cord, HV, Austria, Belgium, EURO

English, Finland, France, Germany,

Greece, Netherlands, Norway, Poland,

Portugal, Russia, Slovakia/Czech/Hungary

Spain, Sweden, Turkey

16 1339530 1 Power Cord, HV, Israel

16 1339531 1 Power Cord, HV, Switzerland French,

Switzerland German, Switzerland Italian

16 1339532 1 Power Cord, HV, South Africa

16 1339533 1 Power Cord, HV, Italy

16 1339534 1 Power Cord, HV, Denmark

18 12G7010 1 Paper Cassette

18 12G7232 1 Paper Cassette (250 sheet legal)

19 12G7011 1 Cleaner Cover

20 12G7012 1 Transfer Unit Cover

21 12G7013 1 Transfer Unit (includes 12, 13, 20, 23, 25)

23 12G7014 1 PT1 Sensor Lever

24 12G7159 1 Paper Cassette Paper Stop

25 12G7160 1 Registration Roller Assembly

12G7341 1 Parts Packet, Screws

12G7340 1 Parts Packet, Cable Clamps, Retainers,

Miscellaneous

Parts Catalog 7-6

Assembly 2:

Parts Catalog 7-7

5024-001

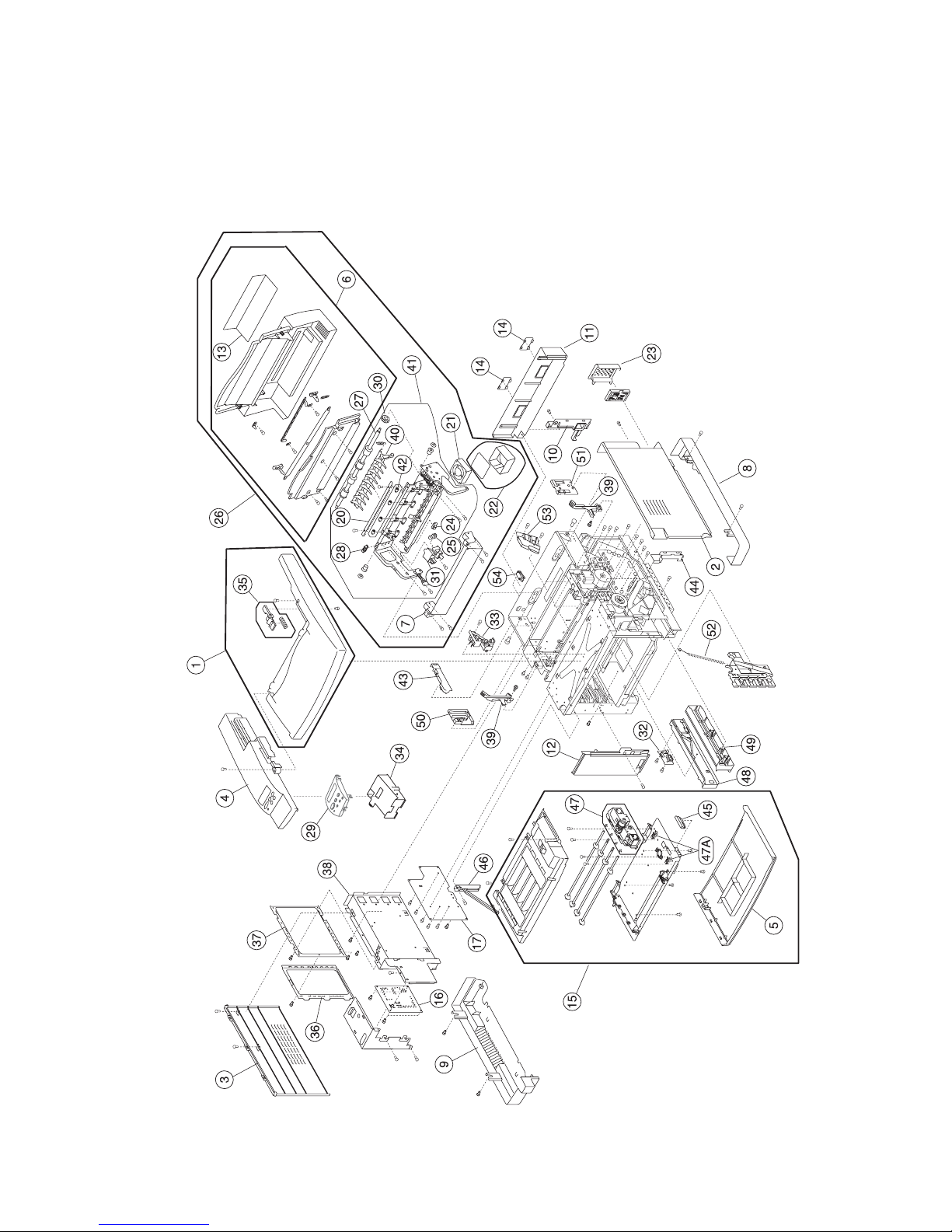

Assembly 2:

Ref Part Number Units Description

2 - 1 12G7015 1 Top Cover Assembly (includes 35)

2 12G7016 1 Side Cover (R)

3 12G7017 1 Side Cover (L)

4 12G7018 1 Upper Side Cover (L)

5 12G7019 1 Front Cover

6 12G7020 1 Paper Exit Unit Cover (includes 13)

7 12G7021 1 Paper Exit Front Cover

8 12G7022 1 Base Cover (R)

9 12G7023 1 Base Cover (L)

10 12G7024 1 Rear Cover

11 12G7025 1 Rear Cover (U)

12 12G7026 1 Side F Cover (L)

13 12G7027 1 Paper Exit Upper Cover

14 12G7028 2 Rear Cover (U) Cap

15 12G7029 1 Front Cover Unit (includes 5, 45, 47)

16 12G7030 1 Main Engine (MCTL P.W.B.) Board

17 12G7031 1 High Voltage Unit

20 12G7032 1 Discharge Brush

21 12G7033 1 Cooling Fan (HFAN)

22 12G7034 1 Paper Exit Filter (with Case)

23 12G7035 1 Ozone Filter Cover

24 12G7036 1 Paper Sensor (PT2)

25 12G7037 1 Paper Sensor (FCL)

26 12G7038 1 Paper Exit Unit (includes 6, 7, 13, 20, 21,

22, 24, 25, 27, 28, 30, 31, 40, 42)

Parts Catalog 7-8

Assembly 2 (cont.):

Parts Catalog 7-9

5024-001

Assembly 2 (cont.):

Ref Part Number Units Description

2 - 27 12G7039 1 Paper Exit Roller

28 12G7037 1 Paper sensor (PFUL)

29 12G7360 1 Operator Panel Assembly

30 12G7041 1 Paper Exit Gear Z19

31 12G7042 1 FCS Cover Assembly

32 12G7043 1 Paper Size Sensor

33 12G7044 1 BC Terminal 2

34 12G7161 1 Control Panel Base

35 12G7162 1 Paper Exit Button

36 12G7163 1 Shield Cover B

37 12G7164 1 Shield Cover A

38 12G7165 1 Shield Case Assembly

39 12G7166 1 BC Lock Lever (set)

40 12G7167 1 Paper Exit Switch Guide

41 12G7168 1 Paper Exit Frame Assembly

(includes 7,10,24,25,27,28,30,31,40,42)

42 12G7169 1 Paper Exit Idle Roller Set

43 12G7170 1 Paper Exit Harness Cover

44 12G7171 1 IOD Harness Guide

45 12G7172 1 Front Cover Latch

46 12G7173 1 Front Cover/Door Arm Assembly

47 12G7174 1 DE Solenoid Assembly (also order 47A)

47A 12G7036 1 Cam Sensor, DE Solenoid GPH1, GPH2

48 12G7175 1 Front Paper Cassette Guide (L)

49 12G7176 1 Front Paper Cassette Guide (R)
