Life Span SP-880 Manuale utente

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

SP-880 OWNER’S MANUAL

SP-880

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. EXPLODED DIAGRAM 5

3. PARTS LIST 6

4. ASSEMBLY INSTRUCTION 8

5. ADJUSTMENT INSTRUCTIONS 12

6. COMPUTER OPERATION 13

7. EXERCISE GUIDE 16

8. WARRANTY 18

SP-880

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to

regularly maintain your machine may void your warranty.

Please keep this manual with you at all times

a. It is important to read this entire manual before assembling and using the equipment. Safe and

effective use can only be achieved if the equipment is assembled, maintained and used properly.

Please note: It is your responsibility to ensure that all users of the equipment are informed of all

warnings and precautions.

b. Before starting any exercise program you should consult your doctor to determine if you have any

medical or physical conditions that could put your health and safety at risk, or prevent you from

using the equipment properly. Your doctor’s advice is essential if you are taking medication that

affects your heart rate, blood pressure or cholesterol level.

c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop

exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular

heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If

you do experience any of these symptoms, you should consult your doctor before continuing with

your exercise program.

d. Keep children and pets away from the equipment. This equipment is designed for adult use only.

e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To

ensure safety, the equipment should have at least 0.5 meters of free space all around it.

SP-880

f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any

unusual noises coming from the equipment during use and assemble, stop immediately. Do not

use the equipment until the problem has been rectified.

g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get

caught in the equipment or that may restrict or prevent movement.

h. This equipment is designed for indoor and family use only.

i. Care must be taken when lifting or moving the equipment so as not to injure your back.

j. Always keep this instruction manual and assembly tools at hand for quick reference.

k. The equipment is not suitable for therapeutic use.

SP-880

2. EXPLODED DIAGRAM

SP-880

3. PARTS LIST

NO NAME QUANTITY SPEC

1L PEDAL L 1 JD-304V（9/16"）L

1R PEDAL R 1 JD-304V（9/16"）R

2 END CAP3 4 120*40*35

3 BOLT 1 4 GB/T 12-1988 M10*55

4 REAR STABILIZER 1 WELDING

5 FLAT WASHER 4

GB/T 95-2002 10

6NUT 4 GB/T 802-1988 M10

7NUT 4

GB/T 41-2000 M8

8 BOLT 2 2 GB/T 5780-2000 M8*40

9 BEARING 4 608ZZ

10 VERTICAL SEAT POST 1 WELDING

11 BOLT 8 1 GB/T77-2007 M6*6

12 SEAT POST 1 WELDING

13 SEAT 1 DD-004

14 STOPPER 4 φ60*36/(M8X25)

15 FRONT STABILIZER 1 WELDING

16 MAIN FRAME 1 WELDING

17 HANDLEBAR POST 1 WELDING

18 HANDLE BAR 1 WELDING

19 L SHAPE KNOB 1 M10*25

20 FLAT WASHER 1 1 φ45*φ10.5*4

21 PLASTIC SLEEVE PCS 80*40

22 BOLT 3 4 GB/T 70.1-2000 M6*20

23 WASHER 4 GB/T 859-1987 6

24 FLAT WASHER 3

GB/T 95-2002 12

25 SCREW 5 2

GB/845-85 ST4.8X19

26 END CAP1 2 80*40*1.5

27 BOLT 1 4 GB/T 70.2-2000 M8*15

28 NUT 2 M12X1.25 H=8MM

29 CRANK END CAP 2 φ28*6.5

30 KNOB 1 φ60*86

31 NUT 7 GB/T 889.1-2000 M8

32 Twist The Fixings 1 φ20*34

33 LEFT CRANK 1 170*15

34 CRANK COVER 1 φ56*28

35 BEARING 2 6004ZZ

36 RIGHT CRANK 1 170*15

37 ADJUSTING METAL 1 φ1.5

38 NUT 2 M12X1.25

SP-880

NO NAME QUANTITY SPEC

39 FIXING BOLT 2 M6*54

40 NUT 2 GB/T 889.1-2000 M6

41 BOLT 6 10 GB/T 845-1985 ST4.2*19

42 L SHAPE KNOB 2 M16X30

43 SCREW 3 7

GB/845-85 ST4.8X13

44 OUTER CHAIN COVER 1 714*301*60

45 LITTLE CHAIN COVER 1 108*37*3 (7g)

46 AXIS 1 φ20*162

47 LONG FIXING TUBE 1 φ25*φ20.5*41

48 SHORT FIXING TUBE 1 φ25*φ20.5*9

49 INNER CHAIN COVER 1 454*288*6

50 BELT 1 5PK53

51 BELT WHEEL 1 φ200*24

52 FIXING NUT 1 16X16X5 (M10）

53 CLAMP SLEEVE 2 1 φ14*15

54 BRAKE PLATE 1 δ5

55 BOLT 7 1 GB/T 2672-2000 M6*30

56 PU WHEEL 2 φ69*23

57 NUT 2 M12X1.25 H=6

58 FRONT COVER 1 143*118*54

59 FIXING TUBE 1 φ16*φ12.1*35

60 BEARING 2 6001ZZ

61 FLYWHEEL 1 φ453*20(25KG)

62 FLYWHEEL SHAFT 1 φ12*160

63 FLAT WASHER 1

GB/T 95-2002 6

64 BOLT 2 1 GB/T 70.1-2000 M6*25

65 THE MOVABLE ROD 1 φ12.5*25

66 FIXING NUT 2 27*M20*1（5mm）

67 CLAMP SLEEVE 1 φ10*5.5

68 drawbar 1 φ12*132

69 WOOLLY BLOCK 1 112*22.5*10

70 BLOCK 1 115*39*25

71 SPRING 1 φ14*24

72 COMPUTER 1 JY-81477

73 BOLT 3 4 GB/T 5780-2000 M5*10

74 B0TTLE HOLDER 1 φ6

75 B0TTLE 1 φ73*215

76 PULSE 2 LT13

77 SCREW 5 2

GB/845-85 ST4.2X25

78 SENSOR 1 SR-202

SP-880

4. ASSEMBLY INSTRUCTIONS

STEP 1: PREPARATION

A. Before assembling make sure that you will have enough space around the item.

B. Use the present tooling for assembling.

C. Before assembling please check whether all needed parts are available (at the above of this

instruction sheet you will find an explosion drawing with all single parts (marked with numbers) which

this item consists of.

STEP 2:

1. Attach the Front Stabilizer (pt.15) to the

Main Frame (pt.16) using two sets of Ø8

Flat Washers (pt.5), M10 Domed Nut

(pt.6) and M10*55 Carriage bolt (3).

2. Attach the Rear Stabilizer (pt.4) to the

Main Frame (pt.16) using two sets of Ø10

Flat Washers (pt.5), M10 Domed Nut

(pt.6) and M10*55 Carriage bolt (3).

3. Secure the bottle holder (pt.74) to the

main frame (pt.16) with the screw (pt.43).

4. Slide the bottle (pt.75) into the bottle

holder (pt.74)

SP-880

STEP 3:

1. Slide the Vertical Seat Post (pt.10) into

the seat post housing on the main frame

(pt.16).

2. Slide the Seat Post (pt.12) into the

Vertical Seat Post (pt.10),then Secure

using a flat washer 1 (20) and L Shape

knob (19).You will have to slacken the

knurled section of the L Shape Knob

(pt.42) and pull the knob back to select

the desired height. Release the knob and

retighten the knurled portion.

3. Secure the Seat (pt.13) to the Seat Post

(pt.12) as shown, and tighten the bolts

around the screws under the seat.

SP-880

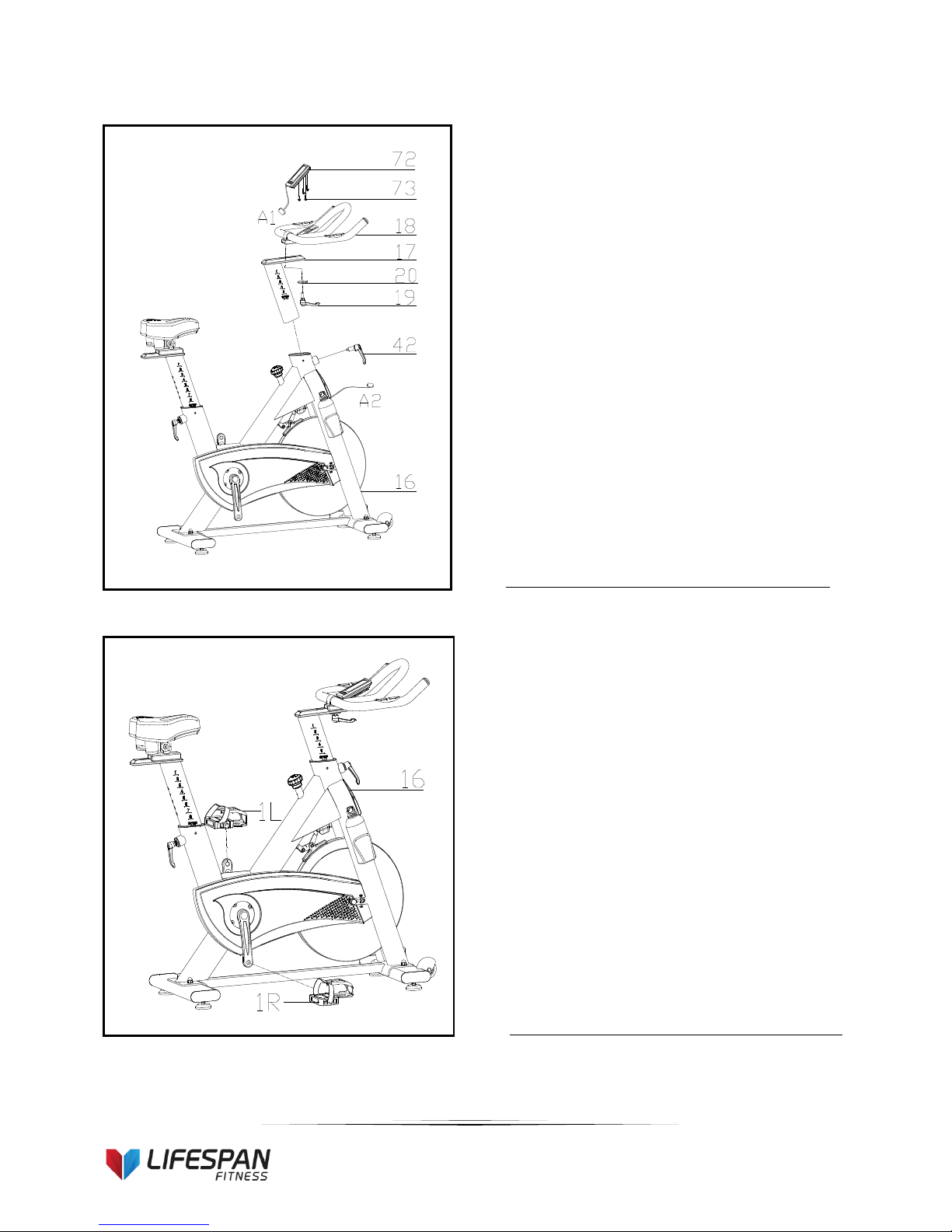

STEP 4:

STEP 5:

1. Slide the Handlebar Post (pt.17) into the

handlebar post housing on the main

frame (pt.16).

2. Follow the same procedure as in (STEP

3, 2) to secure the Handlebar (pt.18) with

a flat washer 1 (20) and L Shape knob

(19).

ATTENTION: ENSURE THE HANDLEBAR IS

SECURED TIGHTLY

3. Attach the Computer (pt.72) onto the

Computer Holder with bolt (pt.73). Then

connect the plug (A1&A2)

1. The Pedals (pt.1 L & pt.1 R) are marked

"L" and "R" - Left and Right. Secure them

to their appropriate crank arms. The right

crank arm is on the right- hand side of the

cycle as you sit on it.

Note that the Right pedal should be threaded on

clockwise and the Left pedal anticlockwise.
