Life Span Pursuit Max Treadmill Manuale utente

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product.

Retain this owner’s manual for future reference.

NOTE:

This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary

from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available

through our website at www.lifespanfitness.com.au

Pursuit Max Treadmill

USER MANUAL

TABLE OF

CONTENTS

I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03

II. Important Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05

III. Important Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 06

IV. Assembly Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08

VI. Folding and Unfolding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

VII. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

VIII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

IX. Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

X. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

XI. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

XII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

| TABLE OF CONTENTS

3IMPORTANT SAFETY INSTRUCTIONS |

I. IMPORTANT SAFETY

INSTRUCTIONS

WARNING: Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

DANGER

To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD:

DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS OR IN ANY

WAY MODIFY THE CORD SET.

•Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

•Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

•Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of the

treadmill and any fixed object.

•Place your unit on a solid, level surface when in use.

•When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should you

fall or move too far back on the treadmill.

•Keep hands away from all moving parts.

•Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

•Keep the cord away from heated surfaces.

•Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous environment.

•Never drop or insert any object into any openings.

4| IMPORTANT SAFETY INSTRUCTIONS

•The treadmill is intended for in-home use only and is not suitable for commercial environments.

•To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

•The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

•Use the handrails provided; they are for your safety.

•Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

•Before undertaking any type of exercise program, it is recommended that you consult a doctor.

•Injuries to health may result from incorrect or excessive training.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

•WARNING: Heart rate monitoring systems may be inaccurate. If you feel faint stop exercising

immediately.

•Children should not be allowed on or around the equipment, even when not in use.

•Children should be supervised to ensure that they do not play with this machine.

•Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.

•Training shoes should be worn when using the equipment.

•Equipment must be used on a level and stable surface.

•All fixings should be checked before the equipment is used.

•All literature relating to the use of the equipment should be retained for future reference.

•Recommended operating temperature: 5-40°C.

Remove the safety key after use to prevent unauthorized

treadmill operation.

5IMPORTANT ELECTRICAL INFORMATION |

II. IMPORTANT ELECTRICAL

INFORMATION

•Route the power cord away from any moving part of the treadmill including the elevation mechanism

and transport wheels.

•NEVER remove any cover without first disconnecting AC power.

•NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near

a pool, or in any other high humidity environment.

•This is a high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

WARNING!

6| IMPORTANT OPERATING INSTRUCTIONS

III. IMPORTANT OPERATING

INSTRUCTIONS

•Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the display console and release the adjustment key. The display will obey the command gradually.

•Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in the

centre of the belt; which may result in serious injury.

•This unit starts with at a very low speed. It is recommended to stand on the side rails and only step

on the treadmill as it is moving on a slow speed. This will prolong the life of your motor and run the

belt smoothly.

•Always hold on to handrail while making control changes.

•A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

•Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

•Replace any defective components immediately. The machine must be kept out of use until repaired.

•Belt wear-in period: all treadmills make a certain type of thumping noise due to the belt riding over

the rollers, especially new treadmills. This noise will diminish over time, although may not completely

go away. The belt will stretch over time, causing it to ride smoother over the rollers.

IV. ASSEMBLY HARDWARE

5# Hexagon wrench 5mm 1pcs.

Wrench w/Screwdriver = 13, 14, 15 1pcs.

ASSEMBLY TOOLS:

Do not connect power before completing assembly.

NOTE:

PARTS LIST

ASSEMBLY HARDWARE |

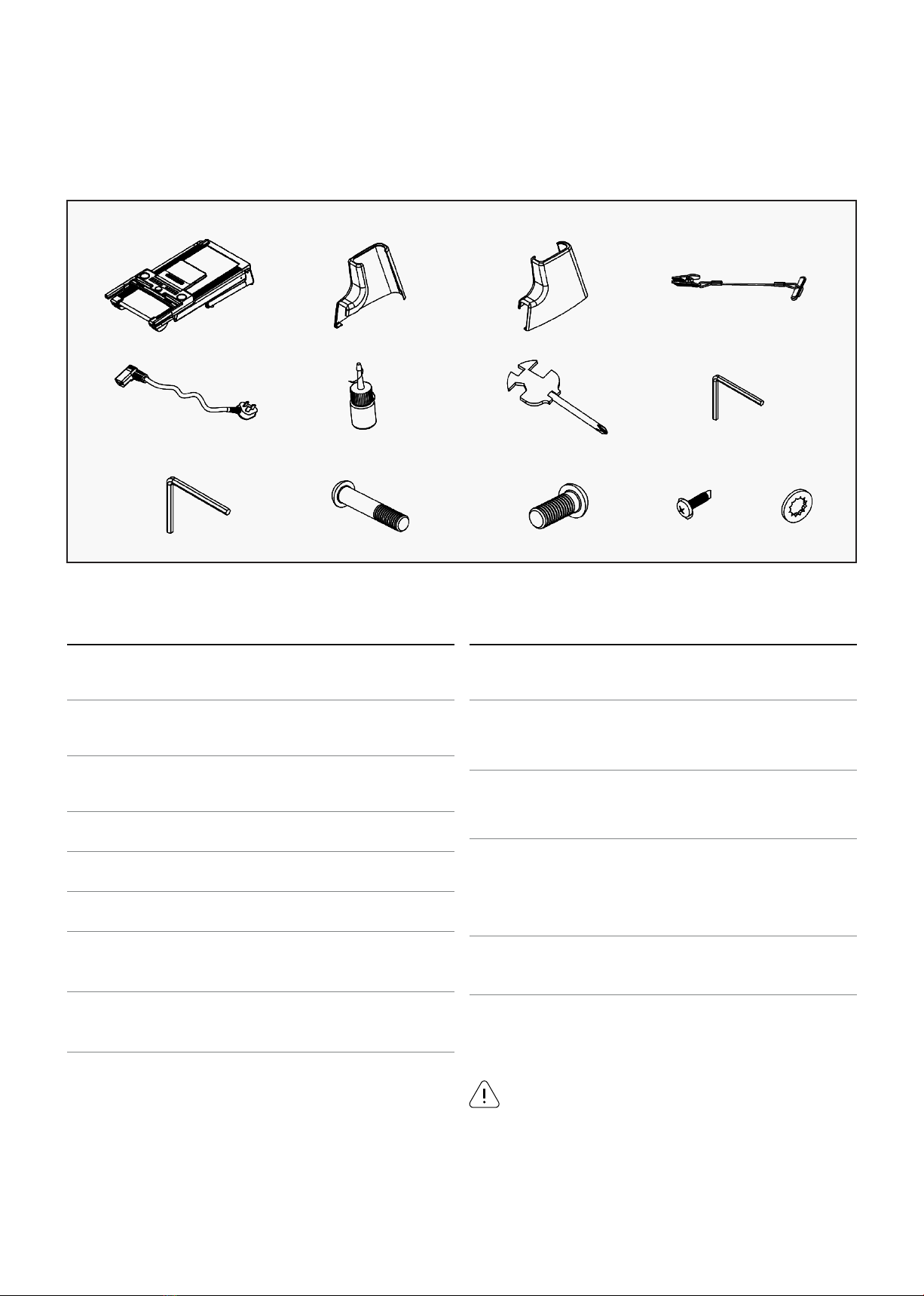

The following figure shows the scatter diagram of the parts installed in the whole machine table.

Open the packaging box, and you can remove the following parts from the box.

21 22 43

54 55 56 57

58 73 74 79 90

Key No. Description Specs Qty.

1Main Frame

Assembly 1

21 Left Bottom Side

Cover 1

22 Right Bottom Side

Cover 1

43 Security Keylock 1

54 Power Line 1

55 Oil Bottle 1

56 Wrench w/

Screwdriver

S = 13, 14,

15 1

57 5# Hexagon

Wrench 5mm 1

Key No. Description Specs Qty.

58 6# Hexagon

Wrench 5mm 1

Inner Hexagonal

Flat Round Head

Screw

M8*42 2

Inner Hexagonal

Flat Round Head

Screw

M8*16 4

Cross Groove Disc

Head with Cushion

Self-attack Drill

Screw

ST4.2*19 2

61 Internal Serrated

Lock Washer 86

8| ASSEMBLY HARDWARE

1. Open the carton and remove the above parts from the box.

2. Place the main frame onto level ground.

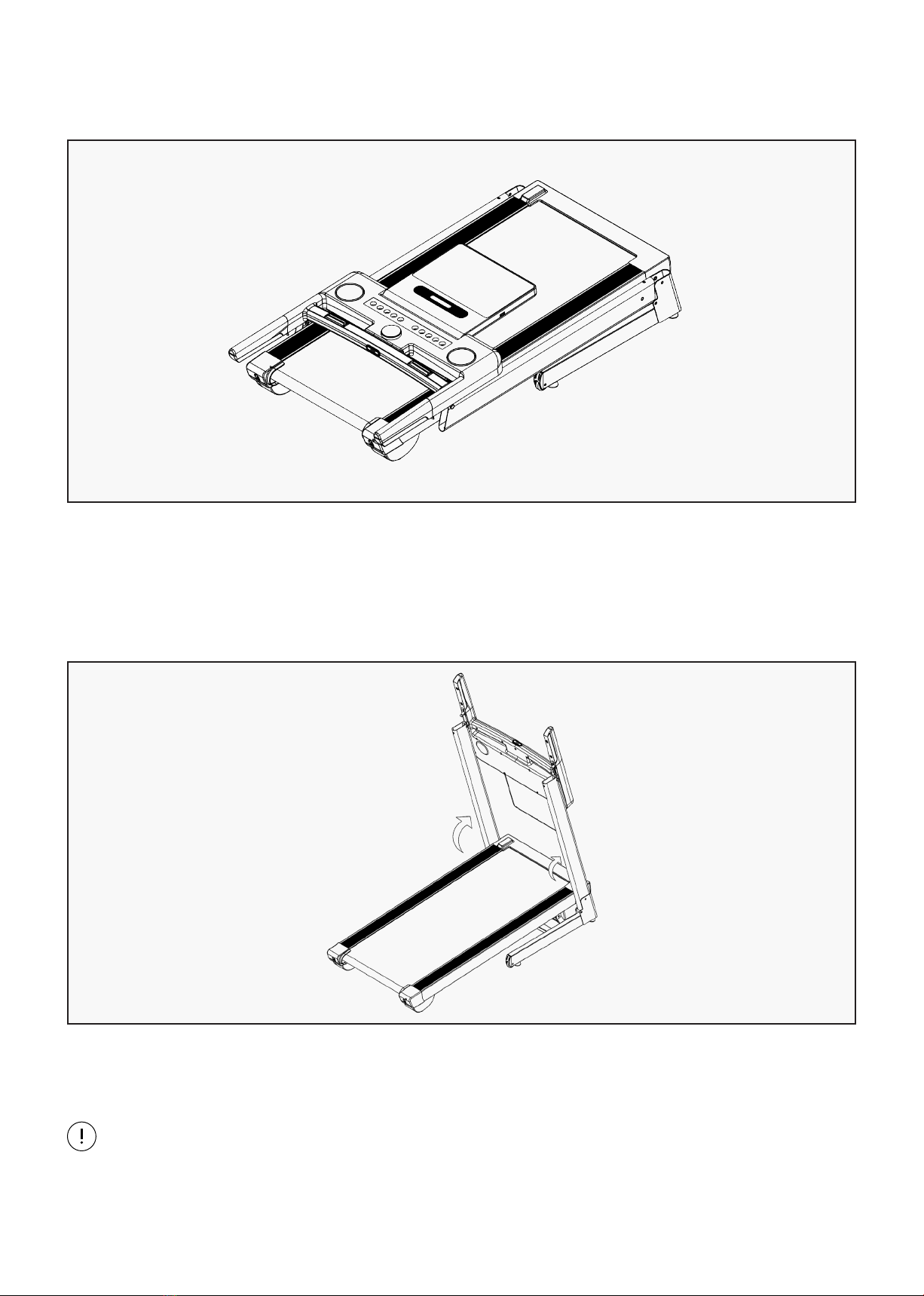

STEP 1

V. ASSEMBLY INSTRUCTIONS

1. Raise the display and the upright columns up, as shown in image.

STEP 2

NOTE: Support the upright with your hands to prevent it falling and causing injury.

9ASSEMBLY INSTRUCTIONS |

1. Use 5# hexagon wrench to secure M8*42

hexagon round head screw (73) and internal

sawtooth lock gasket (90) on the upright

column to the main frame base.

2. Use 5# hexagon wrench to secure M8*16

hexagon round head screw (74) and inner

sawtooth lock washer (90) on the upright

column to the main frame base.

3. Repeat the installation step on the other

side.

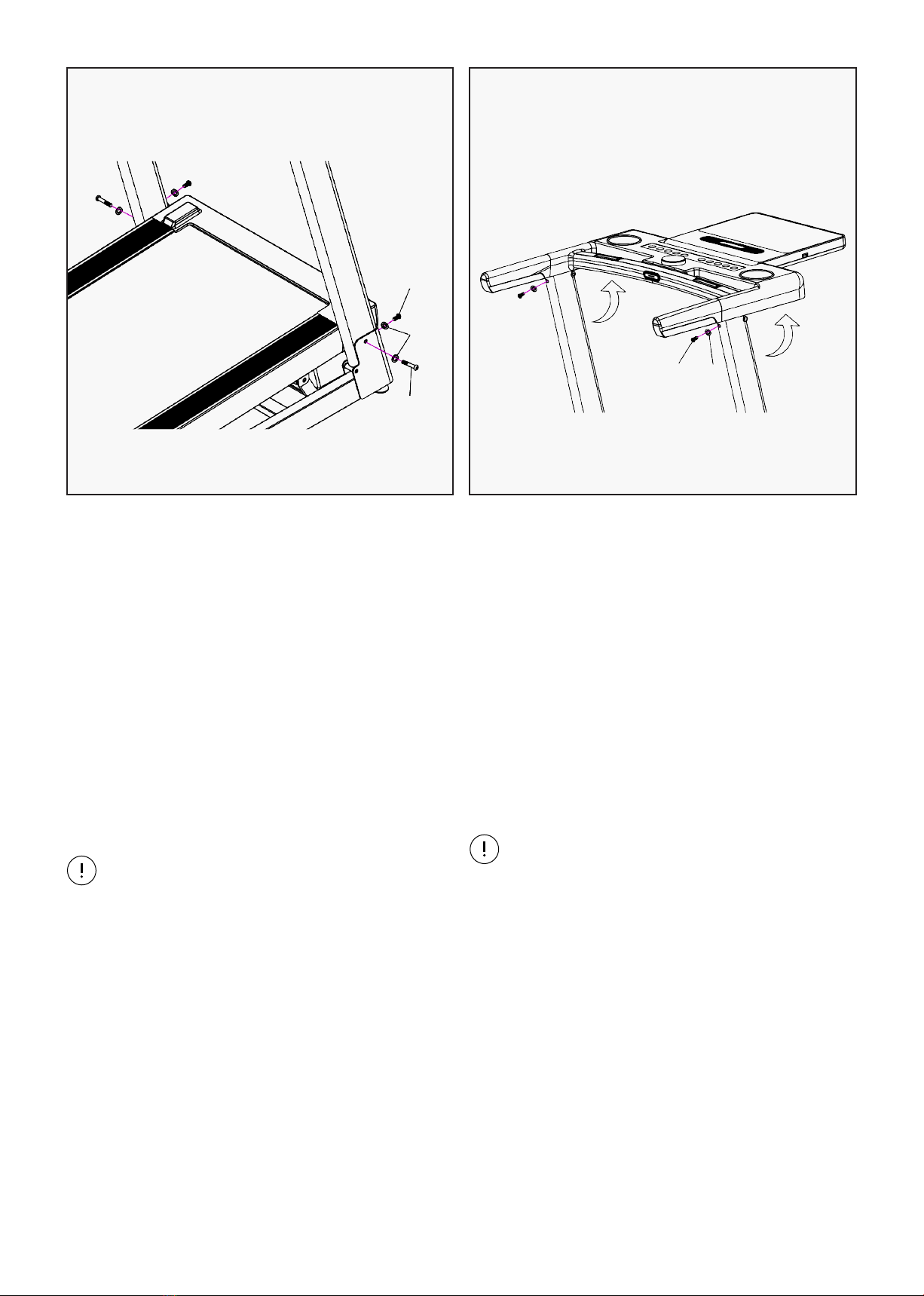

STEP 3

1. Carefully raise the display into the position as

pictured.

2. Do not damage the display wire when doing so.

3. Using a 5# inner hexagon wrench, secure

M8*16 hexagon round head screw (74) and inner

sawtooth lock washer (90) on the upright

column and display.

4. Repeat the same steps on the other side.

STEP 4

NOTE:

Support the upright with your hands to

prevent it falling and causing injury.

NOTE:

When un-folding, do not press the cable

line inside the column and check whether

the wire is well connected. Lock the screw

by hand first to avoid the column and the

display from falling down.

74 90

10 | ASSEMBLY INSTRUCTIONS

1. First secure the armrest cover (28) into the

display and lock with drill screw (79) with the

cross wrench.

2. Repeat the step on the other side.

3. Push the left and right base cover (21/22)

from the top to the column base.

4. Check all the bolts are fully tightened.

STEP 5

1. Place the safety lock (43) onto the display safety

key slot.

2. Then plug power cord (54) to a main power point

and you can now use the treadmill.

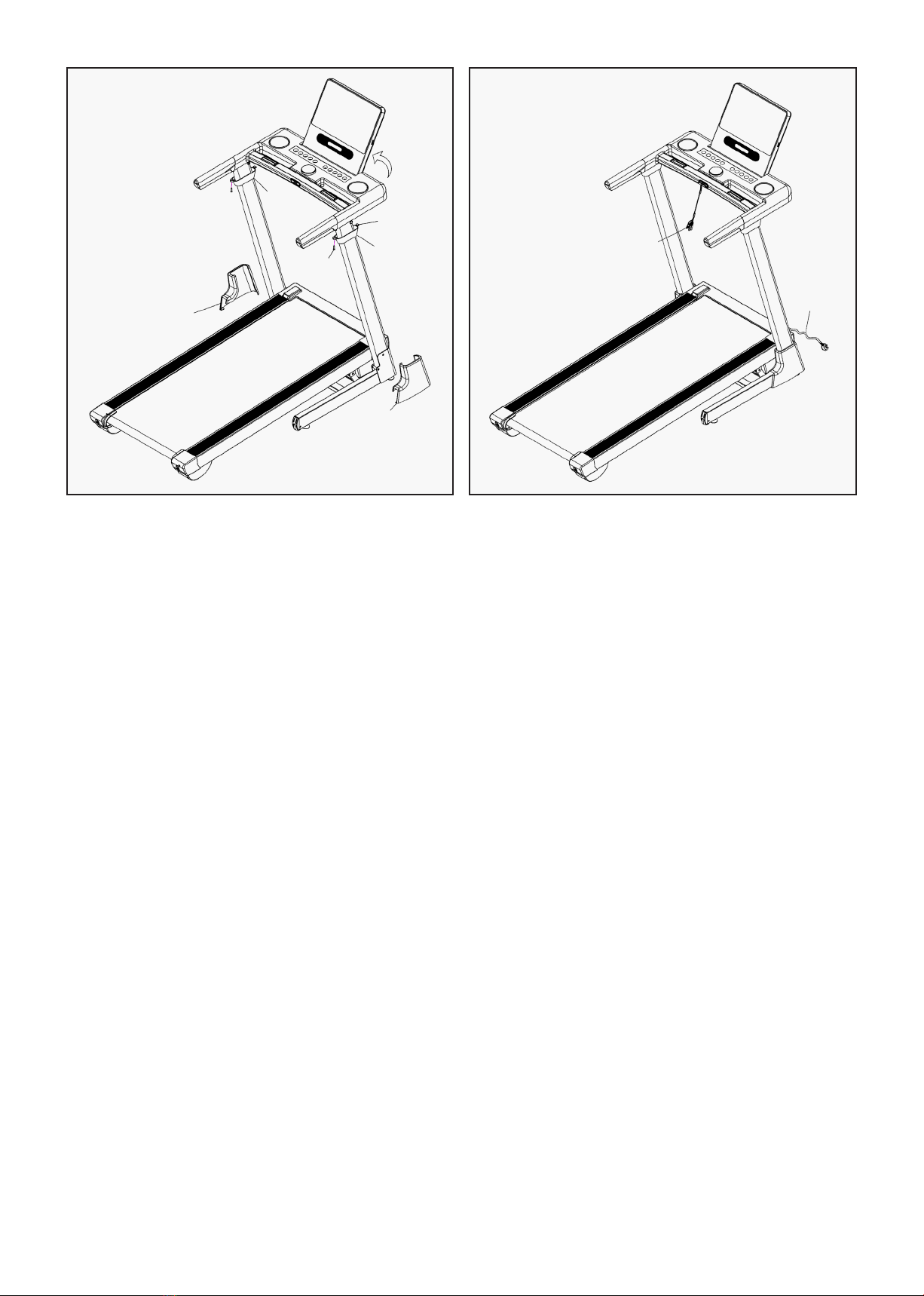

STEP 6
