Lightolier Lytespan 24MHT45RF Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan® Track Lighting System 24MHT45RF

Page 1 of 2 Mini HID T4.5 Flood Reflector

Features

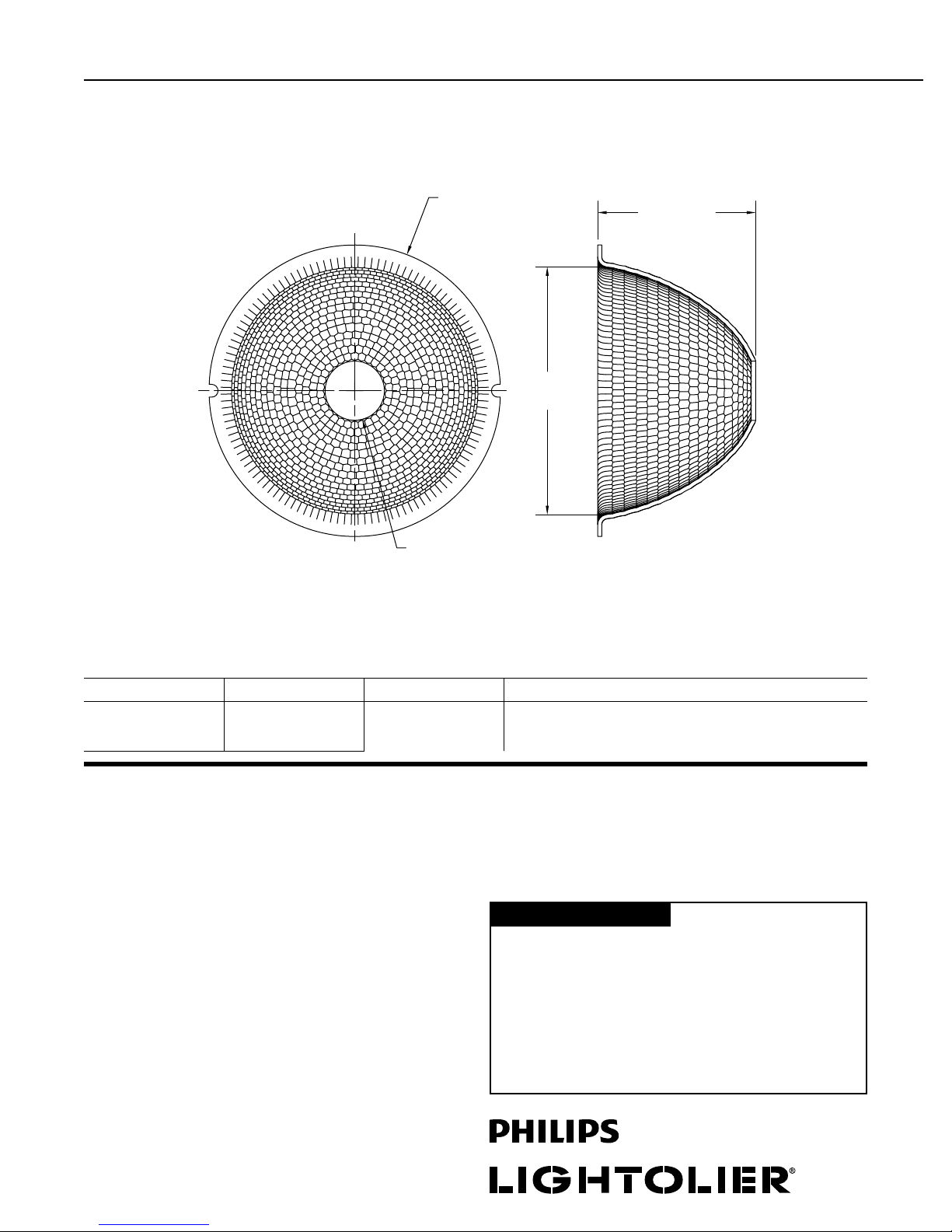

1. Flood Reflector: Aluminum, faceted, specular, anodized and sealed.

Finish

Specular Anodized and Sealed.

Labels

UL, cUL

Ordering Information

Catalog No. Finish Lamps For Use With Luminaires

24MHT45RF

24MHT45RFCCZ

24MHT45RFWRM

Anodized

Champagne Bronze

Incandescent Warm

T4.5 8114, 8115

3 5/32 in

[80.0 mm]

5/8 in

[16.3 mm]

1 23/32 in

[43.4 mm]

2 11/16 in

[68.1 mm]

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan® Track Lighting System 24MHT45RF

Page 2 of 2 Mini HID T4.5 Flood Reflector

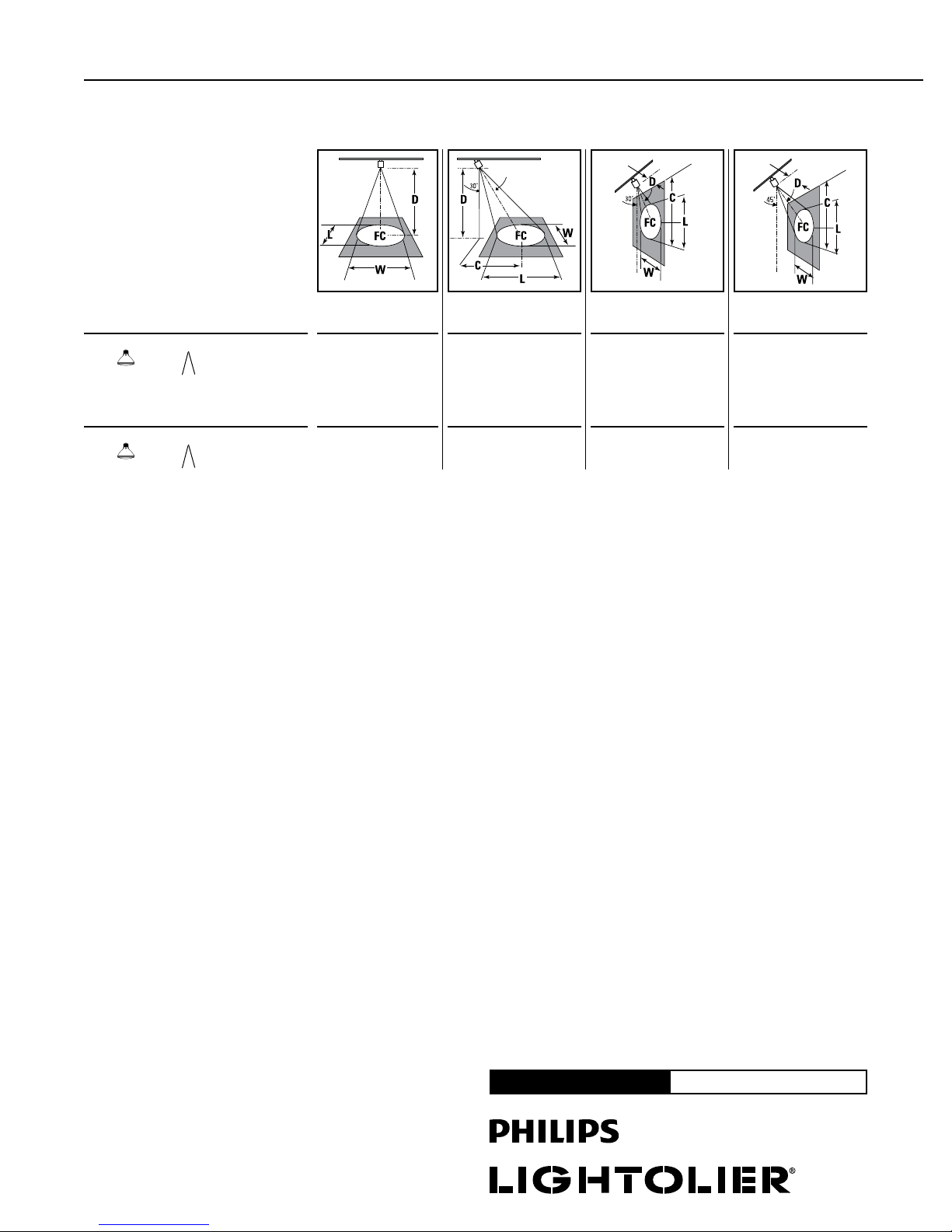

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width A Aiming Angle

C Distance to center beam FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

D FC L W D C FC L W D C FC L W D C FC L W

3639 10000

24MHT45RF

39W T4, FL 38°

8114

6 3.5 66 5.7 4.8

7 4.0 48 6.7 5.6

8 4.6 37 7.6 6.4

9 5.2 29 8.6 7.2

2 3.5 114 8.6 2.8

3 5.2 51 12.8 4.1

4 6.9 28 17.1 5.5

5 8.7 18 21.4 6.9

3 3.0 143 4.7 2.9

4 4.0 80 6.3 3.9

5 5.0 51 7.8 4.9

6 6.0 36 9.4 5.8

6 101 4.1 4.1

7 74 4.8 4.8

8 57 5.5 5.5

9 45 6.2 6.2

6914 10000

24MHT45RF

70W T4, FL 38°

8115

6 3.5 125 5.7 4.8

7 4.0 92 6.7 5.6

8 4.6 70 7.6 6.4

9 5.2 55 8.6 7.2

2 3.5 216 8.6 2.8

3 5.2 96 12.8 4.1

4 6.9 54 17.1 5.5

5 8.7 35 21.4 6.9

4 4.0 153 6.3 3.9

5 5.0 98 7.8 4.9

6 6.0 68 9.4 5.8

7 7.0 50 10.9 6.8

7 141 4.8 4.8

8 108 5.5 5.5

9 85 6.2 6.2

10 69 6.9 6.9

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.

For Incandescent Warm (WRM), multiply FC values by 0.85.
