Task Lighting F7100

Page 1 of 2 Portable Ambient

Features

Housing: High purity extruded aluminum, a portion from recycled material.

F7100: Rectangular shape.

Housing end: Die-cast aluminum, welded to the housing.

Finish: Powder coat baked enamel. Standard colors: white or aluminum.

Shielding: Perforated pierced pattern louver.

Lamp: 2x39 watt T5HO lamps (included).

Ballast: Electronic and meets ANSI starting, end of life protection, THD and

sound rating specifications.

Switching: On/off switch on stem. Optional cord switch available.

Wiring: 3-wire cord with grounded low profile plug. Minimum length 9 feet.

Listing: UL/cUL listed.

6 3/4"

171mm

1 5/8"

41mm

Ordering Information

Style Lamps Length Wattage Voltage Type Color Mounting

F71 = Rectangle 2= Lamps 3= 3 Foot 7= 39W 1= 120V 1= Solid AL = Aluminum F= Floor Stand

8= 39W 2= Pattern WH = White P= Panel Bolt-on

Dimming Pierced E= Expandable Bracket

B= Binder Bin

F71 2 3 1

Example = F7123712ALF

6.750

1.750

1.557 1.932

2. Pattern Pierced

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Task Lighting F7100

Page 2 of 2 Portable Ambient

5 5/8"

Adjustable

10" to 13"

Adjustable

10" to 13"

Adjustable

10" to 13"

5 5/8"

Adjustable

55" to 75"

20"

508mm

12"

305mm

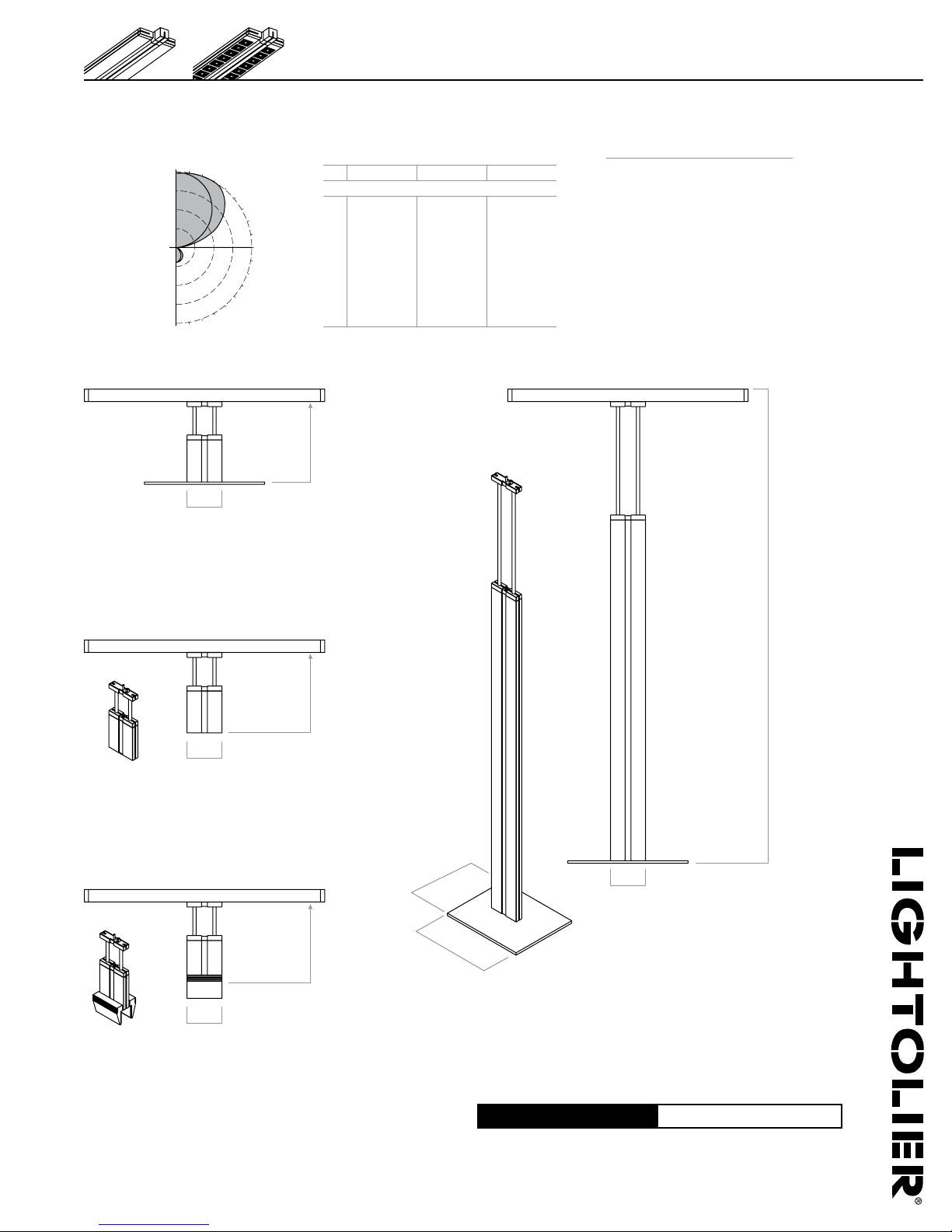

Floor Stand

5 5/8"

Binder Bin Mount

Weighted Base

Weighted base allows fixture to sit atop

shelves or overhead cabinets.

Not recommended for use in seismic areas.

Panel Mount (Bolt-On)

Bolts to the top of furniture systems or short walls.

A small steel bracket is bolted though the top cap.

The stem assembly slides onto this bracket and is

held in place with hidden set screws.

Expandable Bracket

This adjustable bracket clamps onto

furniture systems ranging from 2" to 4" thick.

Zonal Lumen Summary

Zone Lumens % Barelamp % Luminaire

0-90 594 8.5 10.3

90-180 5162 73.7 89.7

0-180 5756 82.2 100.0

2100

1575

1050

525

100

110

120

130

140

150

160

170

180

Coefﬁcients of Utilization

% Effective Ceiling Cavity Reﬂectance

80 70 50

% Wall Reﬂectance

50 30 10 50 30 10 50 30 10

0 59 59 59 51 51 51 37 37 37

1 52 49 47 45 43 42 32 31 30

2 45 42 39 39 37 34 29 27 25

3 40 35 32 35 31 29 25 23 21

4 35 31 27 31 27 24 22 20 18

5 31 26 23 27 23 21 20 17 15

6 28 23 20 24 20 18 18 15 13

7 25 20 17 22 18 15 16 14 12

8 22 18 15 20 16 13 15 12 10

9 20 16 13 18 14 12 13 11 9

10 19 14 12 16 13 11 12 10 8

Candlepower Curve

Report No:

ITL54675.IES.MOD

Catalog No:

F7123712xxx

Lamps:

2-F39T5/HO

Lumens:

3500 each

Efﬁciency:

82.2%
