Lightolier DISCUS FIXTURES Guida

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

INSTRUCTION SHEET NO.

IS:6700

A0100 Page 1 of 1

INSTRUCTIONS FOR INSTALLATION OF DISCUS FIXTURES

1. Twist DIFFUSER counterclockwise and remove.

2. Partially thread supplied MOUNTING SCREWS into OUTLET BOX.

3. While supporting FIXTURE HOUSING, make electrical

connections: black fixture lead or fixture lead without tracer

marks to hot (black) supply lead; white fixture lead or fixture lead

with tracer to neutral (white) supply lead. Green fixture wire is a

ground and must be connected to grounding terminal or ground

lead inside OUTLET BOX. Use WIRE NUTS (local hardware item).

Push connections back into OUTLET BOX.

4. Position FIXTURE HOUSING over MOUNTING SCREWS and allow

heads of MOUNTING SCREWS to come through KEYHOLE SLOTS

in FIXTURE HOUSING. Turn FIXTURE HOUSING until SCREWS

fully engage in narrow portion of KEYHOLE SLOTS and secure in

place by tightening MOUNTING SCREWS.

5. Install recommended lamp(s).

6. Re-install DIFFUSER to FIXTURE HOUSING. Align the three

bracket tabs with details in DIFFUSER, then rotate clockwise.

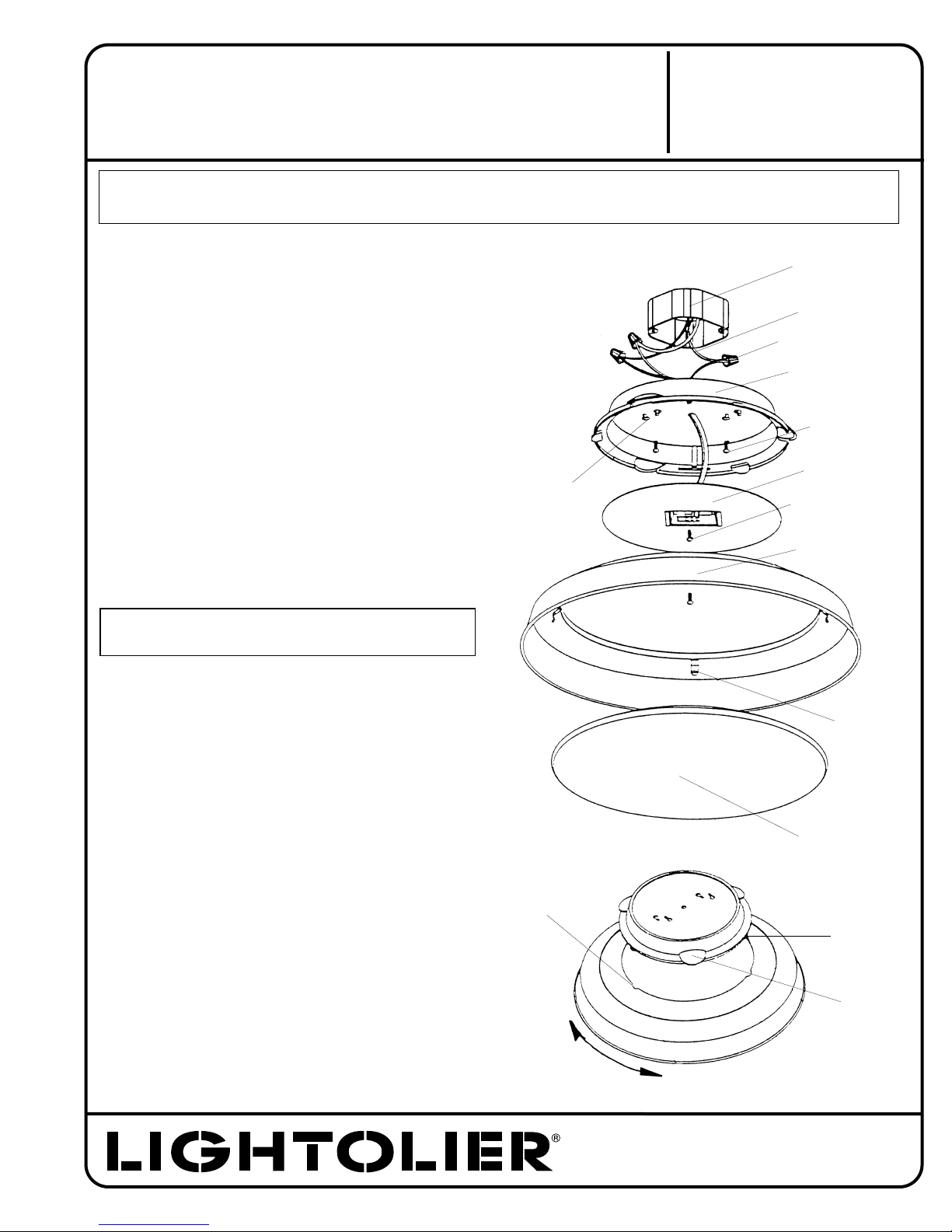

Fig. 2

Fig. 1

OUTLET BOX

GROUND WIRE

WIRE NUT

FIXTURE HOUSING

MOUNTING SCREWS

REFLECTOR ASSEMBLY

REFLECTOR SCREW

SHADE (IF PROVIDED)

DIFFUSER

RETAINING

CLIP

DIFFUSER

MOUNTING

TAB

PROTRUSION

DIFFUSER

NOTCH

OPEN

LOCK

KEYHOLE SLOT

CAUTION: MAXIMUM WATTAGE AS MARKED ON

FIXTURE MUST NOT BE EXCEEDED.
