Lightolier Pre-wired, compact fluorescent electronic... Manuale utente

IS: 6113V

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

B0201 Page 1 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

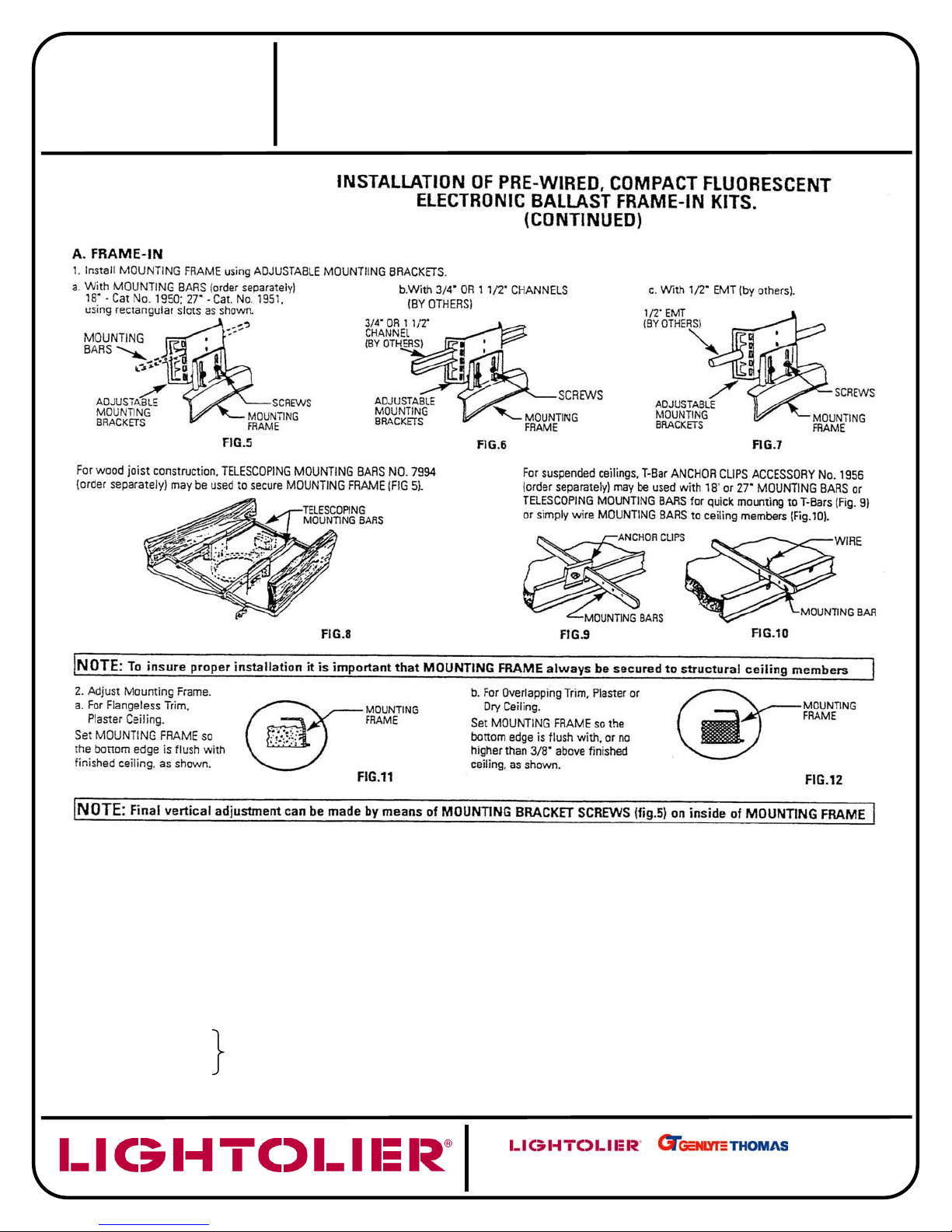

IS: 6113V

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

B0201 Page 2 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

B. WIRE-IN

For non-dimming ballast: Bare copper and / or green Insulated wire(s)

must be connected to supply ground. Connect white ballast lead(s) to

neutral (white) supply lead. Connect black ballast lead(s) to hot supply

lead. Use wire nuts (local hardware item)

For dimming ballast, see wiring diagram marked on ballast label and follow

dimmer instruction sheet.

C. CLOSE-IN

Close in ceiling, as required.

D. INSTALL REFLECTOR TRIM

See separate reflector trim instruction sheet.

* Lamp 2 is for 2 lt. fixtures

B. WIRE-IN

For non-dimming ballast: bare copper and / or green insulated wire(s)

must be connected to supply ground. Connect white ballast lead(s) to

neutral (white) supply lead. Connect black ballast lead(s) to hot supply

lead. Use wire nuts (local hardware item).

For dimming ballast, see wiring diagram marked on ballast label and

follow dimmer instruction sheet.

C. CLOSE-IN (Fig.2)

Close in ceiling as required.

D. SNAP-IN (Fig.3)

See separate reflector trim instruction sheet.

E. PUSH-IN (Fig.4)
