INSTRUCTION MANUAL

66-CMR618CSE

CMD6182X/6186X3.6 N/P

D/N VANDAL RESISTANT ATR 700TVL VARI-FOCAL DOME CAMERA

CMR6182X/6186X3.6 N/P

D/N VANDAL RESISTANT ATR 700TVL VARI-FOCAL IR DOME CAMERA

IMPORTANT SAFEGUARDS

GRAPHIC SYMBOL EXPLANATION

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure

that may be of sufficient magnitude to constitute a risk of electric

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

shock to persons.

accompanying the unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

(CMR6182X/6186X3.6N/P)

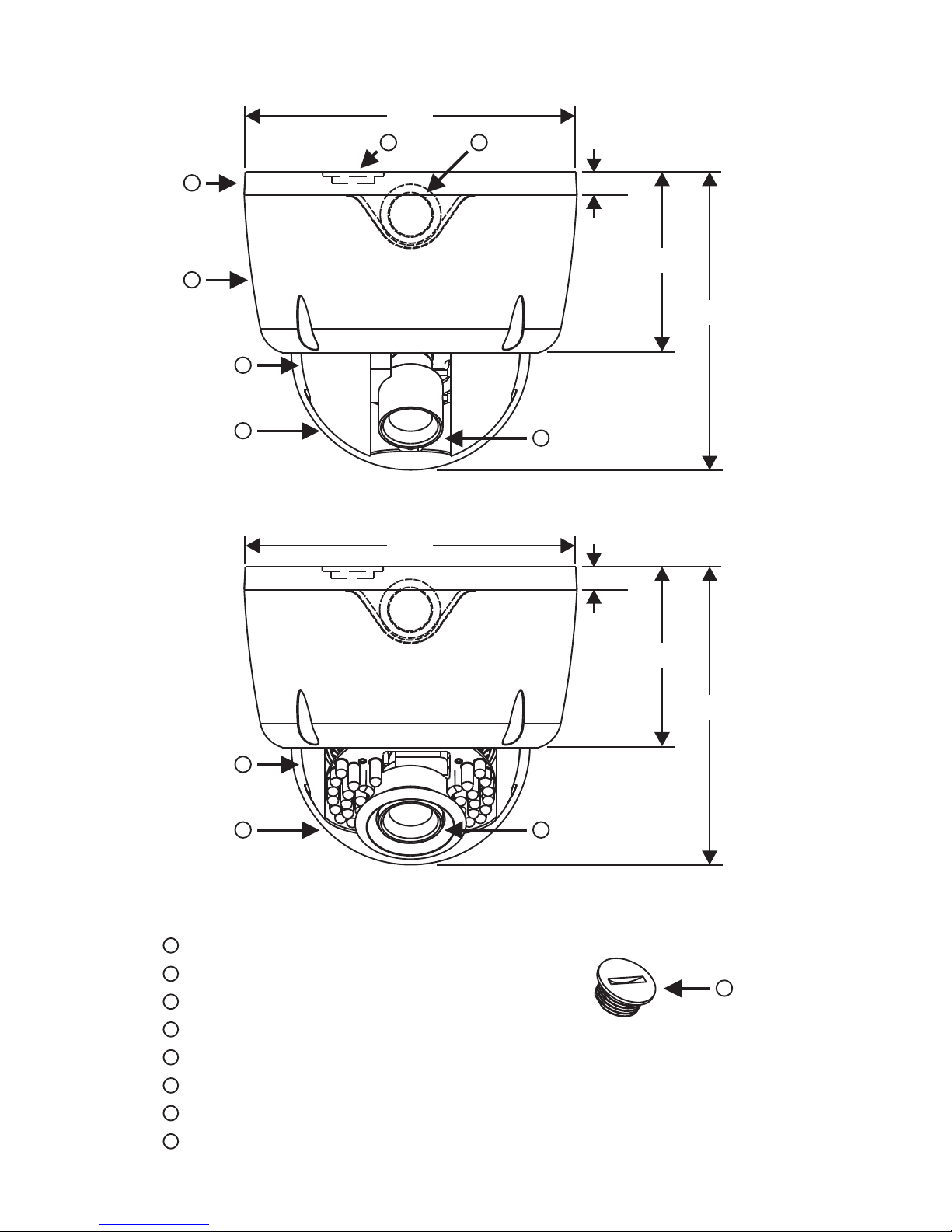

PART DESCRIPTION & DIMENSION

BOTTOM CHASSIS

TOP COVER

BOTTOM HOLE

SIDE HOLE

INNER COVER

DOME COVER

LENS

HOLE PLUG

Unit: mm

145.0

3 4

10.0

78.7

130.0

10.0

78.7

130.0

145.0

6 7

(CMD6182X/6186X3.6N/P)

(CMR6182X/6186X3.6N/P)

INSTALLATION

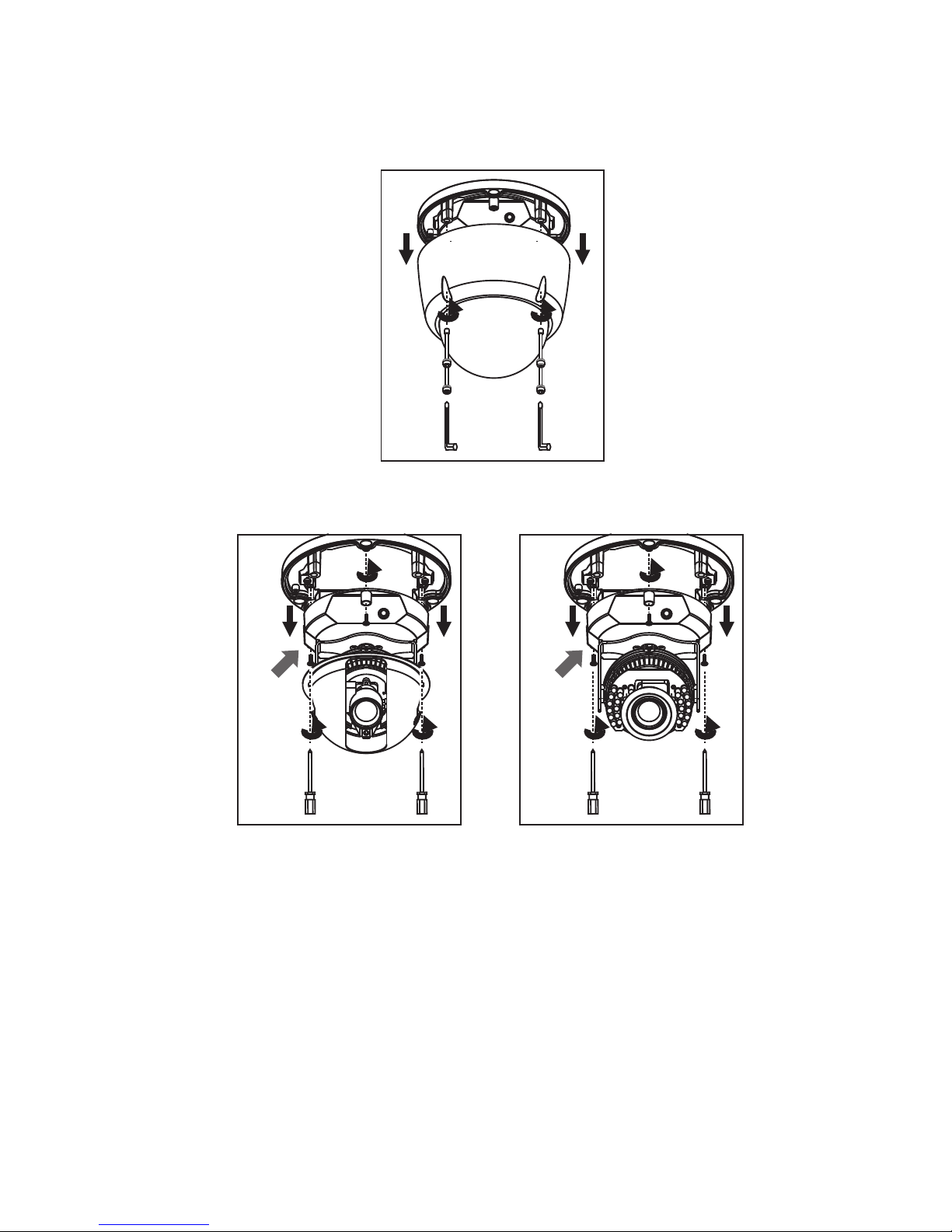

1. Please use the enclosed hexagon screw driver to untighten the 4 screws on the top cover

(FIG.1).　

3. Fix the safety rope on the bottom chassis with screw driver (FIG.4). Put the provided

screws (M3.0x25, wooden screw) through the holes marked as “a”, and fix the bottom

chassis in the desired area (FIG.5 & FIG.6).

FIG.1

2. Using screw drive to untighten the 3 screws on the camera module (FIG.2 & FIG.3).

FIG.2 FIG.3

Camera Module

(CMD6182X/6186X3.6N/P)

FIG.4

FIG.5 FIG.6

66mm

120°

a a

4. Firstly, put video cable and power cable through a pipe with 1/2" PT at one end (FIG.7),

and then screw the pipe to the side hole or bottom hole (FIG.8, please make sure the

connection between the pipe and the side hole or bottom hole is watertight.).

NOTE: Pipe is not provided.

FIG.7 FIG.8

5. Using the screw driver to screw camera module into bottom chassis (FIG.9 & FIG.10).

CMD6182X3.6N/P

CMR6182X3.6N/P

CMD6186X3.6N/P

CMR6186X3.6N/P

( )( )

(CMR6182X/6186X3.6N/P)(CMD6182X/6186X3.6N/P)

FIG.9 FIG.10

Camera Module

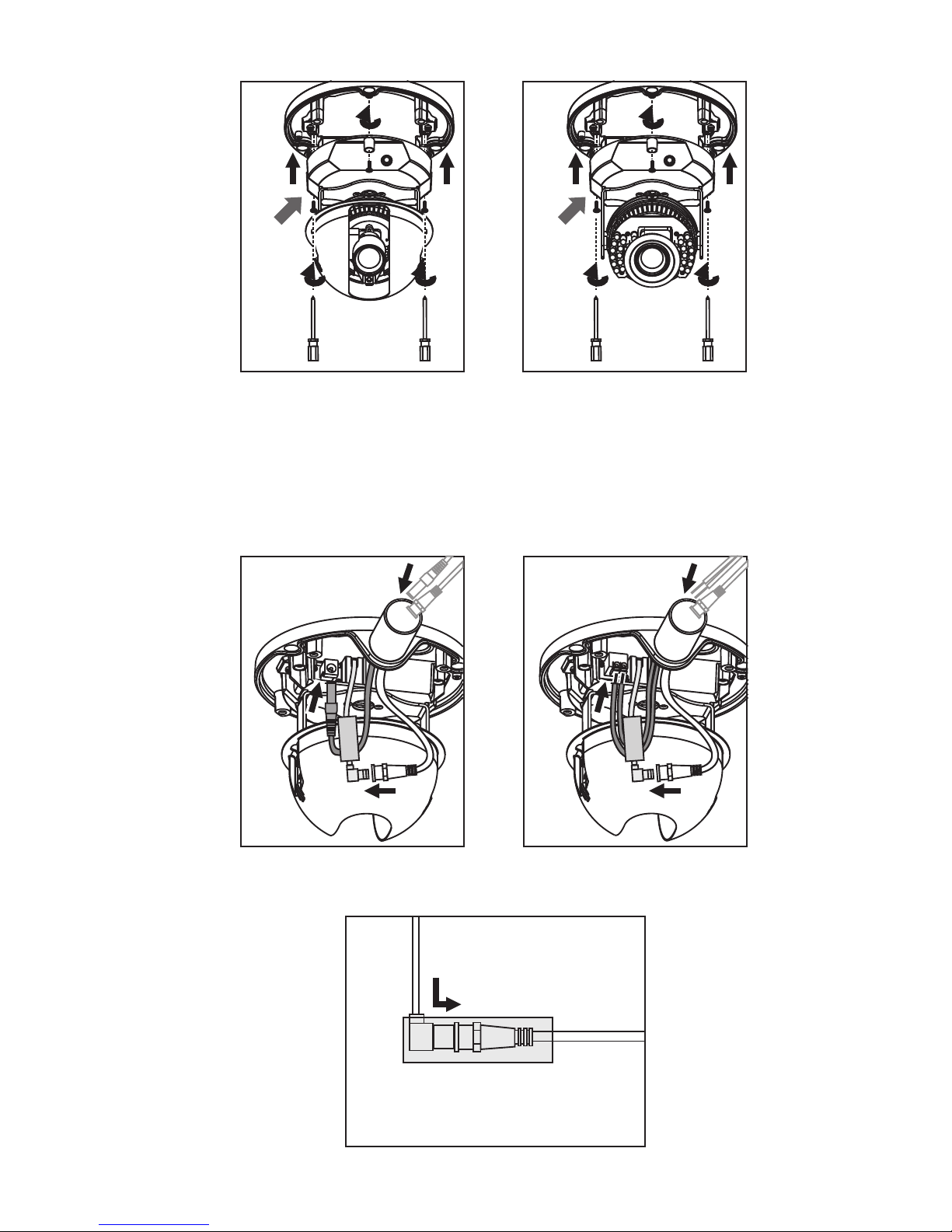

6. Plug and fix the power cable to the jack or terminal block and plug the video cable to video

output of the camera (FIG.11 & FIG.12). For the safety reason, when plug video cable to

video output, please use the cable tubing to cover the bare part to avoid danger of electric

shock or electric leakage (FIG.13).

Video Output Video Cable

FIG.11

FIG.13

FIG.12

(CMR6182X/6186X3.6N/P)(CMD6182X/6186X3.6N/P)

(CMD6182X/6186X3.6N/P) (CMR6182X/6186X3.6N/P)(CMD6182X/6186X3.6N/P)

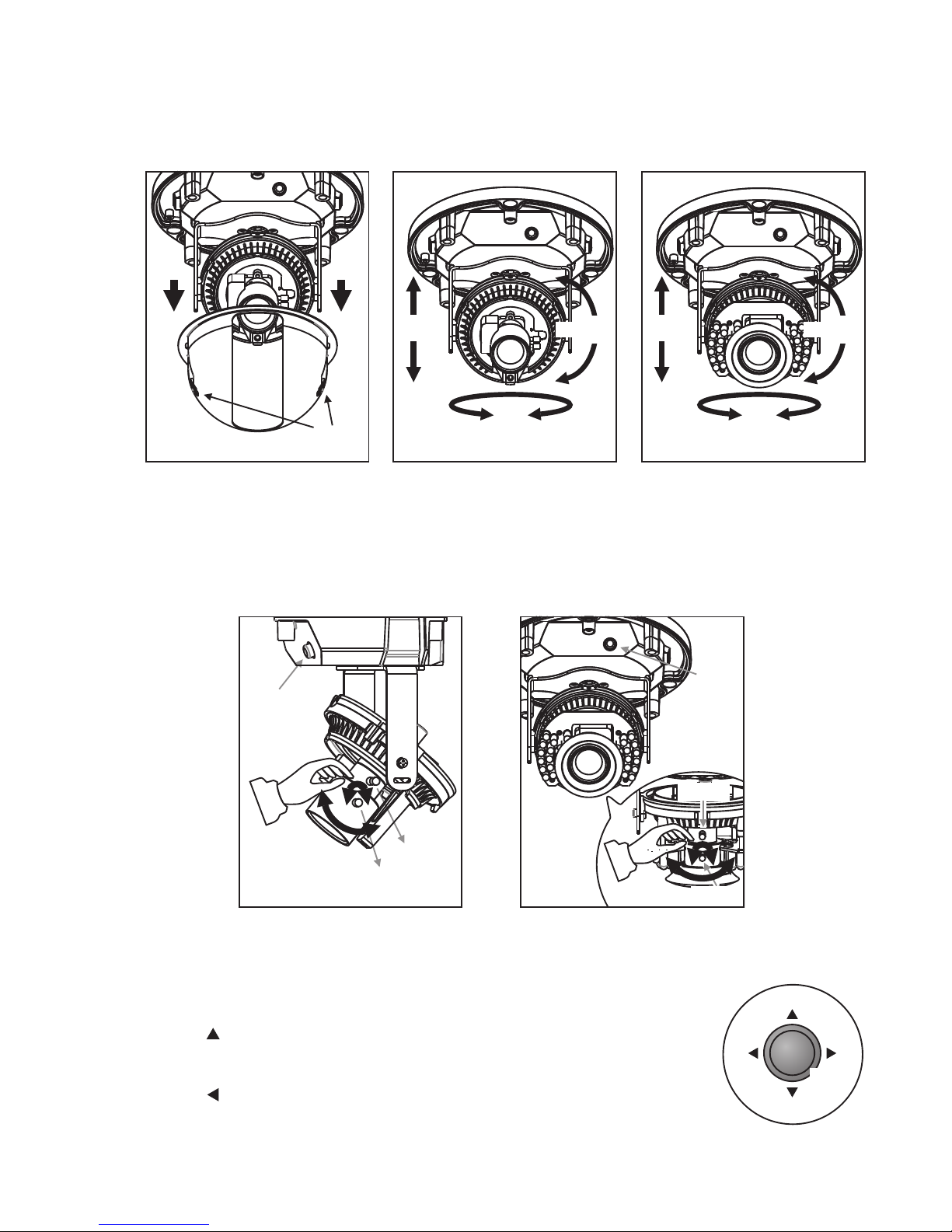

7. Take down the inner cover from the camera module (FIG.14, CMD6182X/6186X3.6N/P),

and then adjust the direction of the lens through the adjustable Pan/Tilt bracket and

rotatable round bracket for Azimuth (FIG.15 & FIG.16).

FIG.15 FIG.16FIG.14

TILT

PAN

Press inward

and pull down.

TILT

PAN

AZIMUTH AZIMUTH

8. Adjust the lens on focus and zoom to form the optimal video image after that tighten the

screws (FIG.17 & FIG.18). Then adjust the OSD menu to form the optimal image. Please

refer to Page 8 ~ Page 10.

FIG.17 FIG.18

FO C U S

ZO O M

OSD

KEY

OSD

KEY

ZO O M

FO C U S

8-1. USER OSD SETTING

Setting switches and Functions.

A. (UP)

B. (LEFT)

: Press to move the cursor upwards or to select

items.

: Press to move the cursor to the left and to select

or adjust the parameters of the selected item.

The parameters changes each time this button is pressed.

RIGHT

LEFT

DOWN

SET

(CMD6182X/6186X3.6N/P) (CMR6182X/6186X3.6N/P)(CMR6182X/6186X3.6N/P)

C. (RIGHT)

D. (DOWN)

E. SET : Executes selections and displays a submenu for an

item with the mark.

: Press to move the cursor to the right and to select or adjust the

parameters of the selected item. The parameters changes each time

this button is pressed.

: Press to move the cursor downwards or to select items.

9. Put on the inner cover (FIG.19, CMD6182X/6186X3.6N/P). Adjust the position of the inner

cover inside the dome cover, so that the opening of the inner cover align with the direction

of the lens (FIG.20 & FIG.21, CMR6182X/6186X3.6N/P).

FIG.19 FIG.20 FIG.21

Press and turn

10. Fix the safety rope on the top cover with screw driver (FIG.22). Replace the top cover

and tighten the screws (FIG.23).　

FIG.22 FIG.23

Alternative Cabling positions

1. Untighten the hole plug on the bottom hole of the bottom chassis and screw it to the side

hole.　

2. Put the video cable and power cable through the bottom hole. Then connect them to

video output and power input of the camera. Please refer to INSTALLATION Step 4 for

water resistant installation.

CONFIGURATION OF THE MENU

SETUP

LENS

SHUTTER/

AGC

AUTO

MANUAL

HIGH LUMINANCE

LOW LUMINANCE

MODE SHUT+AGC－

SHUTTER 1/60(1/50) 1/100(1/120) 1/250~1/10000－/ /

AGC 6.00 12.00 18.00 24.00 30.00 36.00 42.00 44.80－///////

MODE

MODE AGC OFF－/

BRIGHTNESS(000~255)

BRIGHTNESS x0.25 x0.50 x0.75 x1.00－/ / /

AUTO IRIS/ SHUT+AUTO IRIS

SHUT(NOTES*2)

MODE AUTO OPEN CLOSE－/ /

SPEED(000~255)

TYPE DC－

(NOTES*1)

WHITE BAL

ATR

PICT ADJUST

BACKLIGHT BLC HLC OFF－/ /

ATW

OFF

MIRROR OFF/ ON－

B-GAIN(000~255)

LUMINANCE LOW MID HIGH－/ /

SPEED(000~255)

PUSH

BRIGHTNESS(000~255)

CONTRAST(000~255)

SHARPNESS(000~255)

HUE(000~255)

GAIN(000~255)

R-GAIN(000~255)

CONTRAST LOW MIDLOW MID MIDHIGH HIGH－/ / / /

DELAY CNT(000~255)

USER 1

USER 2

ANTI CR

MANUAL LEVEL(000~255)－

PUSH LOCK

ATW FRAME x0.50 x1.00 x1.50 x2.00－/ / /

ENVIRONMENT INDOOR OUTDOOR－/
