Lilliput BM230 Manuale utente

User Guide

IMPORTANT SAFETY INSTRUCTIONS

The device has been tested for conformance to safety

regulations and requirements, and has been certified for

international use. However, like all electronic equipment, the

device should be used with care. Please read and follow the

safety instructions to protect yourself from possible injury and to

minimize the risk of damage to the unit.

 Please do not place the display screen towards the ground to avoid

scratching the LCD surface.

 Please avoid heavy impact.

 Please do not use chemical solutions to clean this product. Simply wipe

with a clean soft cloth to maintain the brightness of the surface.

 Please do not block any vent hole.

 Please follow the instructions and trouble-shooting to adjust the product.

 Internal adjustments or repairs must be performed by a qualified

technician.

 Please keep user guide for future reference.

 Please unplug the power and remove the battery if long-term no-use, or

thunder weather.

FEATURES

 Support multiple signal inputs 3G-SDI, HDMI, DVI and VGA.

 Multiple View Display supports quad view split from different input singles

simultaneously.

 Ultra HD 4K screens containing 8.3 million pixel (3840×2160), so the

resolution is four times that of Full HD.

 3D LUT for Accurate Color Reproduction and Color space display

(Native/Rec.709/User1~User3).

 Support to upload 3D LUT table via USB port.

 Equip HDR function.

 Image flip offers great convenience for user’s user to place the monitor

with various mounting methods under different conditions. Users can view

the monitor normally no matter what mounting angles.

 Perfect size for both suitcase and rack mount.

 Wireless HDMI function for optional.

Contents

1. PRODUCT DESCRIPTION .......................................................................... 3

2. SUN SHADE INSTALLATION ...................................................................... 8

3. MENU SETTING .......................................................................................... 9

4. ACCESSORIES ....................................................................................... 24

5. PARAMETERS ........................................................................................ 27

6. TROUBLE SHOOTING ............................................................................ 28

1. PRODUCT DESCRIPTION

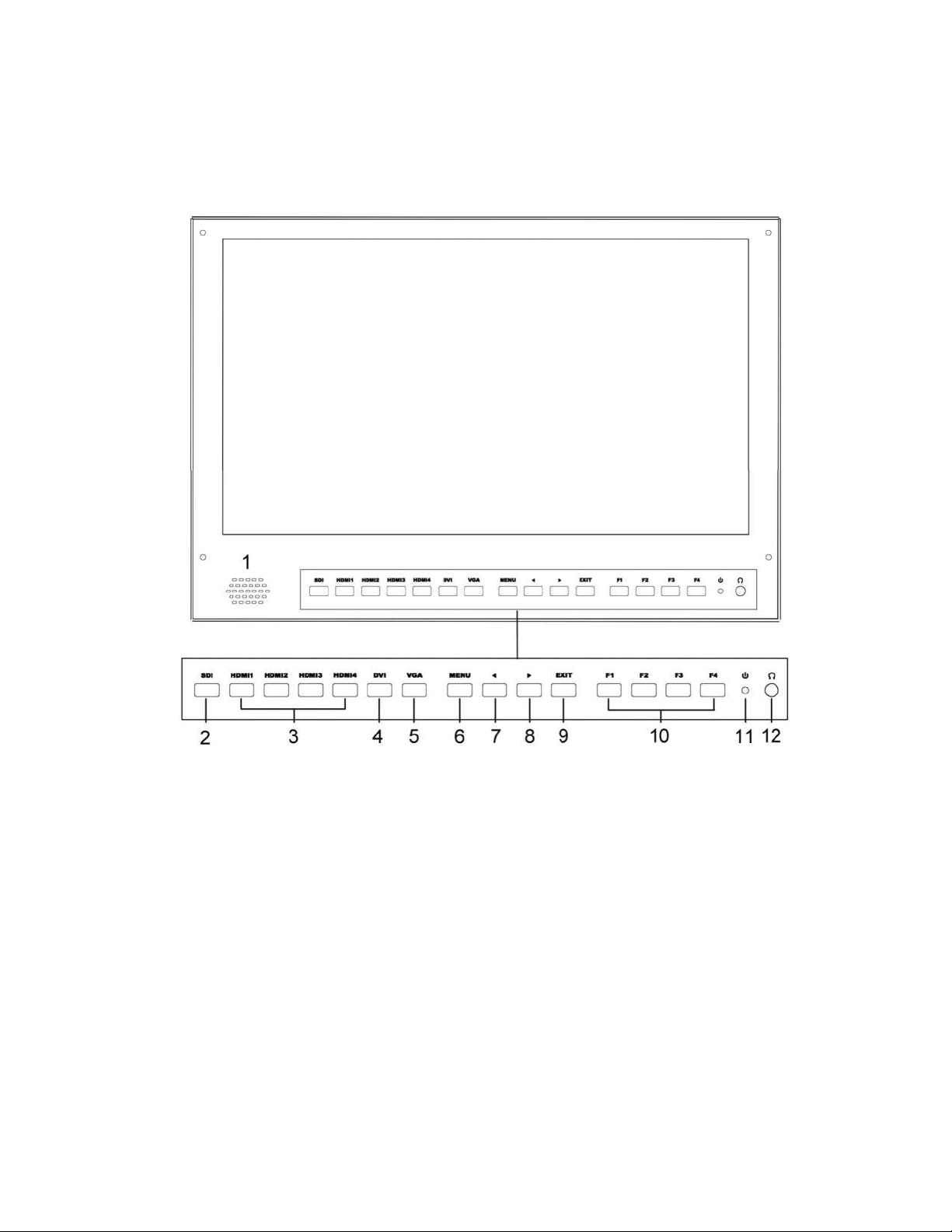

Front

1. Speaker

2. SDI

Signal switch to SDI mode when light on.

3. HDMI 1 ~ 4

Signal switch to HDMI mode when light on.

4. DVI

Signal switch to DVI mode when light on.

5. VGA

Signal switch to VGA mode when light on.

6. MENU

Press to enter menu.

Press to enter option in the menu.

7. ◄

Select option in the menu.

Decrease the option value.

Before enter the menu, single press to activate volume, press again to

decrease the volume.

8. ►

Select option in the menu.

Increase the option value.

Before enter the menu, single press to activate volume, press again to

increase the volume.

9. EXIT

Back or exit.

10. F1~F4 User definable buttons

Default function options：

F1：Color Space F2：Display Mode

F3：Safety Marker F4：Aspect

（functions can be customized by long keep pressing any one of the

4 buttons）

11．Power indicating light (green light: working).

12．Earphone jack

Back

1. Handle (Only available for BM230/BM280)

2. VESA 75×75 & VESA 100×100 mounting port

3. USB port

4. TALLY port

5. VGA input port

6. DVI input port

7. HDMI input port×4。

HDMI 1 & HDMI 2 : HDMI2.0, support 4K 60Hz

HDMI 3 & HDMI 4: HDMI1.4, support to 4K 30Hz

NOTE: HDR is only available under HDMI 1 signal input.

8. Audio L/R

9. SDI input/output ports

10. DC IN (XLR) terminal

Connects the DC power supply to the monitor.

Pin number Signal

①

GND

②③

……...

④

+15V

11. Power switch

"II" is battery power, "o" is power off, "I" is DC power.

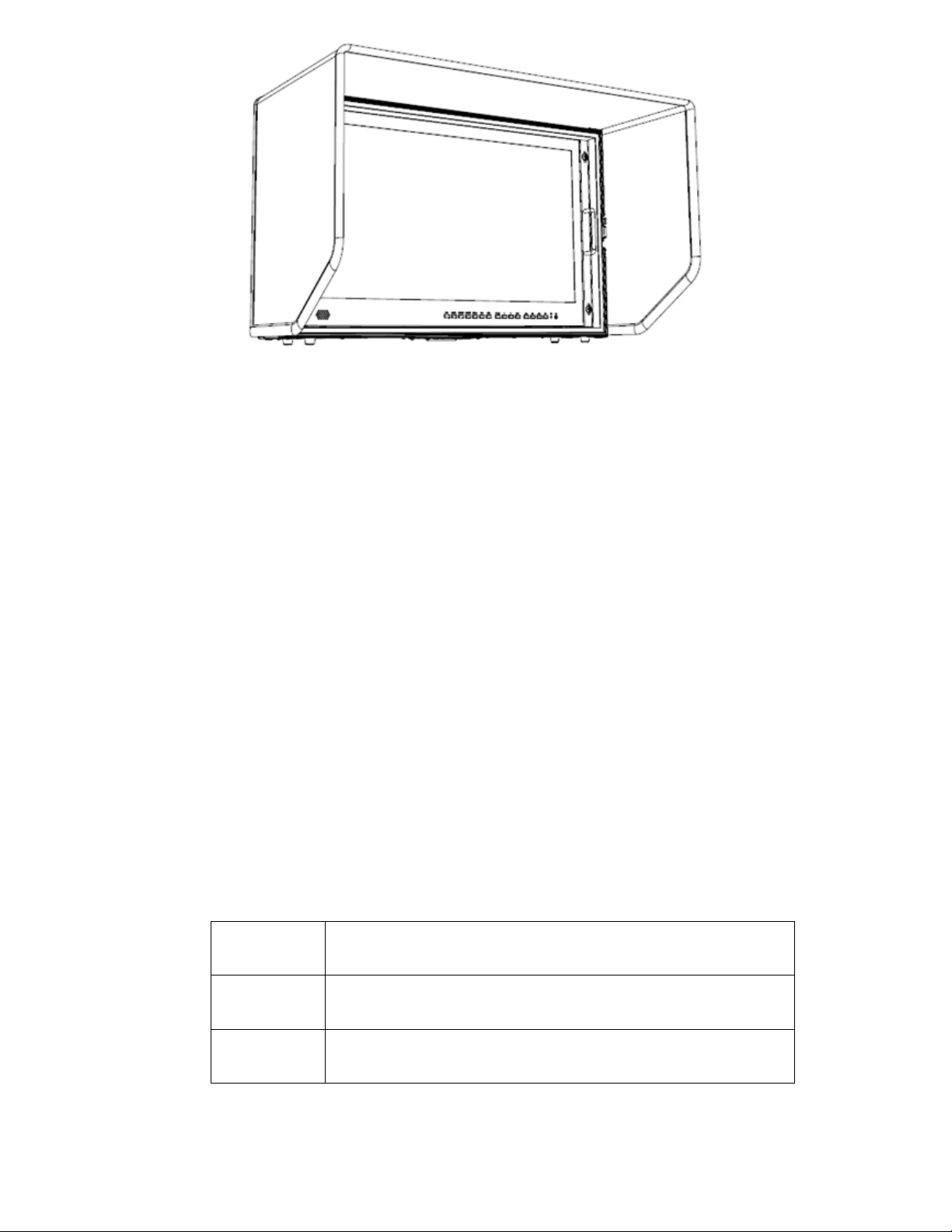

2. SUN SHADE INSTALLATION

1. Put the sun shade on the suitcase, and match the magnets on both sides.

2. As shown below after finished.

3. MENU SETTING

Please check whether the device is connected well or not.

3-1. F1~F4 user definable shortcut buttons

Long keep pressing any one of the 4 buttons for 3-5 seconds to activate

shortcut menu setting. Option selected will be highlighted as white. option

will be highlighted as yellow, unavailable option will be highlighted as gray.

Select option via "◄/►" buttons.

Then press "MENU" button to confirm to set as default option.

Shortcut functions can be customized to meet user’s needs as following:

NO. Shortcut Menu when long press any F shortcut button

1 Center Marker

2 Safety Marker
