Low Profile 32-Bit PCI

4 Port Serial Card

(16C950 128FIFO)

User Manual English

LINDY No. 51274

www.lindy.com

Introduction

This PCI Host Adapter is a PCI controller board which can upgrade your desktop computer

to provide multiple RS232 (UART) ports.

The board supports a 32-bit 33 MHz PCI bus revision 3.0, RS232 transfer rate of 920

Kbps.

The low profile form factor can support both low profile and standard expansion slots.

It comes with drivers for Windows 98, ME, 2000, NT4.0, XP, VISTA &7.

Features

PCI Interface

Compliant with PCI Specification, revision 3.0 and PCI Power Management

Specification 1.1

32 Bit/33MHz fully compliant PCI host interface

3.3V Operation

Low Profile PCI Form Factor

Includes low profile & regular size PCI brackets

RS232 (UART) Serial Port

Multiple 16C950 high-performance RS232 UART DB9 channels

Superset and backward compatible to 16C550, 16C650, 16C750 and 16C850

128-byte FIFO per transmitter and receiver

Supports 5V DC output on Pin9 of each DB9 connector (Total 2A, 5V DC supply from

the card) for POS application

5V DC output can be individually enabled / disabled for each DB9 Port

Supports data transfer rate up to 920 Kbps

128 Rx interrupt thresholds

128 Tx interrupt thresholds

128 flow control thresholds

Supports Windows 98, ME, 2000, NT4.0, XP, VISTA, 7 and Linux

Package Contents

RS232 PCI Adapter Card

This manual

Low Profile & Standard PCI Brackets

Driver CD

Breakout cable (for 4 Port and 8 Port cards only)

5V Jumper Settings for each RS232 Port

DC5V on Pin9 of DB9 Connector =

Short

Normal RI function on Pin9 of DB9 Connector =

Short

Installation

After driver installation, for proper operation, please setup the correct Data Rate to

14.745MHz frequency or by automatic frequency detection

Windows 2000 / XP installation

1. Power off the system. Remove the case covers and carefully insert the PCI Card into an

available PCI slot.

2. Replace the case covers, power up the system, and insert the driver CD into your

CD-ROM/DVD drive.

3. Windows will displaythe Found New Hardware Wizard, Click Next.

4. Select Search for a suitable driver for my device (Recommended) and click Next.

Make sure the Driver CD is in your CD-ROM/DVD.

5. Ensure Specify a location is checked and click Next.

6. Type in E:\ (where ‘E’ refers to your CD-ROM/DVD drive ) and click Browse.

7. Specify the driver location, e.g. E:\PCI IO Host \OXmPCI \Windows, and click OK.

8. When the wizard indicates that it has found a driver for the device click Next, then click

Finish.

9. Repeat Steps 3 – 8 until all the relevant files have been installed.

Verifying correct installation (Windows 2000 and XP)

Follow the instructions in this section to verify that the controller was installed

correctly.

1. Click Start and then select Control Panel. Double click System then select the

Hardware tab. Click on the Device Manager button.

2. Double click Multifunction adapters. If there is no yellow “!” or “?” in front of

OX16PCI954 PCI UARTs

OX16PCI95x PCI bridge

the driver has been installed correctly.

3. Double click Ports, if there is no yellow “!” or “?” in front of

PCI Communications Port (COM3)

PCI Communications Port (COM4)

PCI Communications Port (COM5)

PCI Communications Port (COM6)

the driver has been installed correctly.

4. To view information about the devices attached to the controller, right click the PCI

Communications Port (COM3) and select Properties from the context menu.

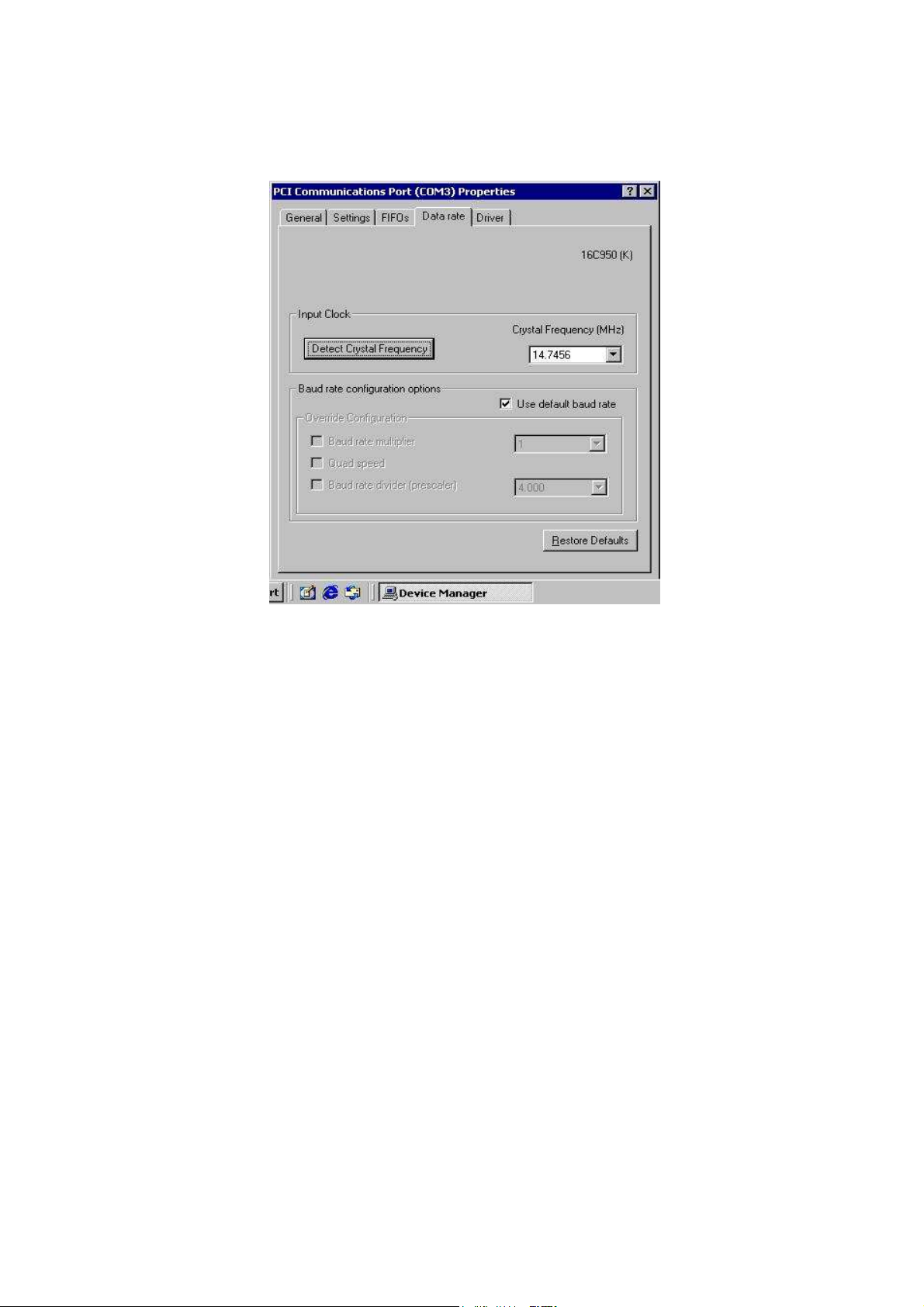

5. Select the tab labeled Data rate. Select Crystal Frequency at 14.745MHz or select

Detect Crystal Frequency for automatic selection.

6. Select Use default baud rate under Baud rate configuration options.

7. Repeat Step 4 - 6 for the setting of COM4, COM5 and COM6.

Windows 98 / ME installation

1. Power off the system. Remove the case covers and carefully insert the PCI Card into an

available PCI slot. Replace the covers and power up the system.

2. The Hardware wizard will display the Found New Hardware Wizard. Select Specify

the location of the driver (Advanced) and insert the driver CD into your

CD-ROM/DVD drive. Click Next.

3. Make sure the Search for the best driver for your device (Recommended), and

Specify a location options are both selected, uncheck the other boxes, and type in E:\

(If your CD-ROM/DVD is E:\) and click Browse.

4. Specify the driver location, example E:\PCI IO Host \OXmPCI\Windows. Click OK, and

click Next. (If your CD-ROM/DVD drive is E:)

5. When the wizard indicates that it found a driver for the device, click Next. Then click

Finish to exit the wizard.

6. Repeat Steps 2 – 5 until all the relevant files have been installed.

7. When the driver installation is complete, remove the driver CD and click Yes to restart

your computer.

Verifying installation (Windows98andME)

Follow the instructions in this section to verify that the controller was installed

correctly.

1. Right click on the My Computer icon, select Properties, left click on the Device

Manager tab.

2. Double click Multifunction adapters, If there is no yellow “!” or “?” in front of

OX16PCI954 PCI UARTs

OX16PCI95x PCI bridge

the driver has been installed correctly.

3. Double click Ports, If there is no yellow “!” or “?” in front of

PCI Communications Port (COM3)

PCI Communications Port (COM4)

PCI Communications Port (COM5)

PCI Communications Port (COM6)

the driver has been installed correctly.

4. To view information about the devices attached to the controller, right click the PCI

Communications Port (COM3) and select Properties from the context menu.

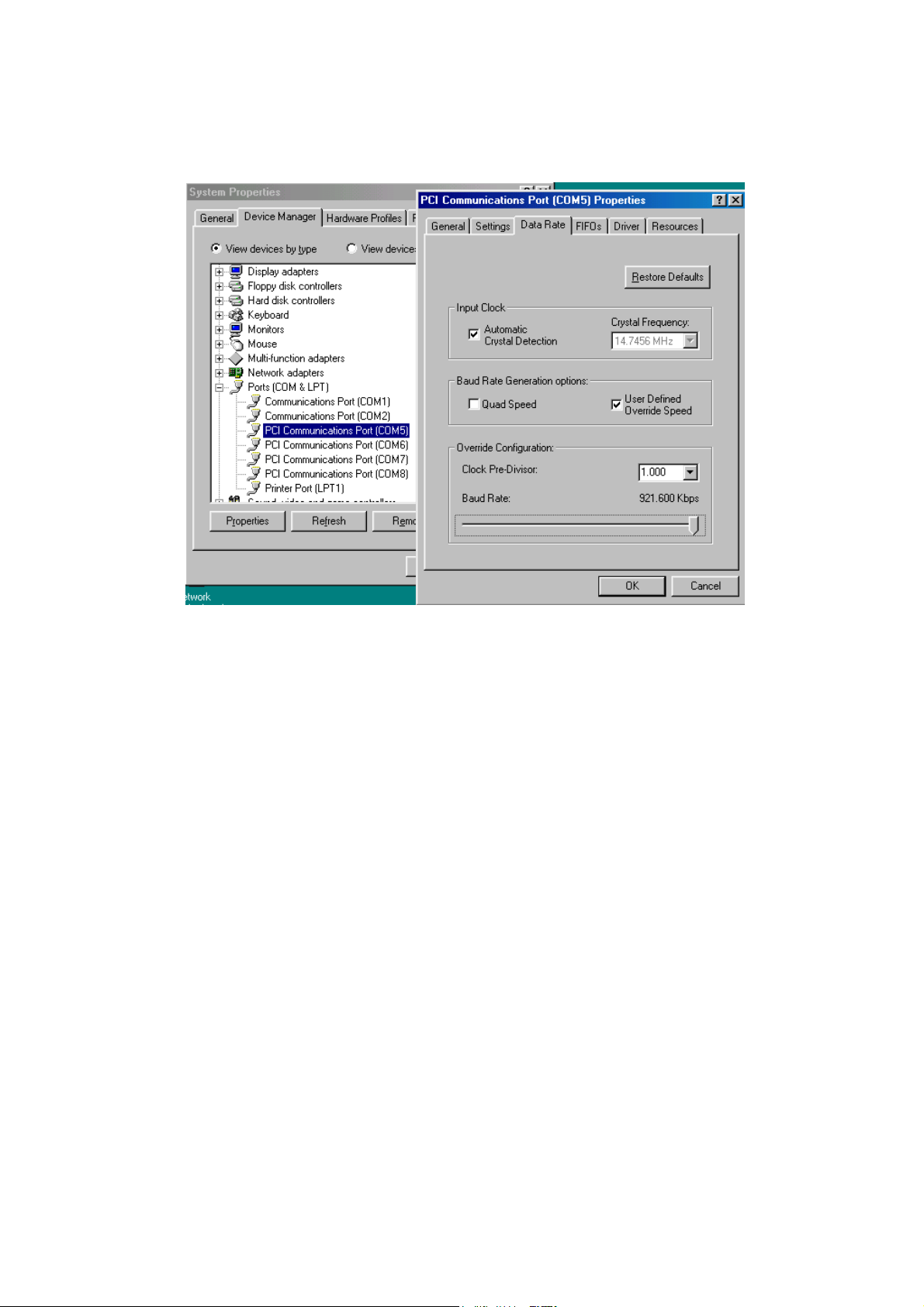

5. Select the tab labeled Data Rate. Select Crystal Frequency at 14.7456MHz or Select

Automatic Crystal Detection for automatic selecttion.

6. Select User Defined Override Speed under Baud Rate Generation options.

7. Drag the speed bar to the correct baud rate.

8. Repeat steps 4-7 for the settings of COM4, COM5 and COM6.

Windows NT4.0 installation

1. Power up the system, and insert the driver CD into your CD-ROM/DVD drive.

2. Browse the driver CD, and specify the driver location, example:

E:\PCI IO Host\OXmPCI \Windows exe \NT4_Serial.

3. Double click on the Install_Serial icon.

4. The wizard will display Windows NT4 Device Installer. Click Next.

5. The wizard will display OxSer.INF. Select Install and click Next then Yes

9. When the wizard displays The operation was completed successfully and the

driver has been started, click Exit.

Verifying installation (WindowsNT4.0)

Follow the instructions in this section to verify that the controller was installed

correctly.

1. Right click on the Start icon. Select Settings then Control Panel.

2. Double click Ports and select COM Port, example “COM3”.

The driver has started correctly.

LINUX Installation Procedures

For Linux Kernel 2.4.18 and above (including RedHat V8.0), IO-104 serial ports can be

automatically detected and installed. The following descriptions show the necessary steps

to double check that the IO-104 serial ports have been configured correctly by the Linux

platform:

1. Plug in the IO-104 card and start the system. After boot up, log in as supervisor, or use

'su' as shown below:

[test@lnx test]$ su

Password:

2. Check the PCI device status:

[root@lnx test]# lspci -v

....

00:0d.0 Serial controller: Oxford Semiconductor Ltd OX16PCI954 (Quad 16950

UART function 0 (prog-if 06 [16950])

Subsystem: Oxford Semiconductor Ltd: Unknown device 0000

Flags: medium devsel, IRQ 9

I/O ports at c400 [size=32]

Memory at dfffc000 (32-bit, non-prefetchable) [size=4K]

I/O ports at c000 [size=32]

Memory at dfffb000 (32-bit, non-prefetchable) [size=4K]

Capabilities: [40] Power Management version 2

....

If output of the lspci -v shows something like above, your PCI IO-104 card has been

correctly detected by the system.

3. Next we will check that the available serial ports reside in the system:

[root@lnx test]# more /proc/tty/driver/serial

serinfo:1.0 driver revision:

0: uart:16550A port:000003F8 irq:4 tx:0 rx:0

1: uart:16550A port:000002F8 irq:3 tx:0 rx:0

2: uart:16450 port:0000CC00 irq:9 tx:0 rx:0

3: uart:16450 port:0000CC08 irq:9 tx:0 rx:0

4: uart:16C950/954 port:0000C400 irq:9 tx:0 rx:0

5: uart:16C950/954 port:0000C408 irq:9 tx:0 rx:0

6: uart:16C950/954 port:0000C410 irq:9 tx:0 rx:0

7: uart:16C950/954 port:0000C418 irq:9 tx:0 rx:0

[root@lnx test]#

Listed as the UART 4~7 now are the serial ports from IO-104, and are assigned as

ttyS4 ~ ttyS7. The number may vary depending upon how many serial ports you

have originally installed.

The four IO-104 UARTs are now ready to use.

MS-DOSinstallation

This is a DOS command line program that sets the PCI IO card's UART/parallel

address to available COM/LPT ports.

To start the setup automatically, add SETIO.EXE to autoexec.bat file and copy SETIO.EXE

to c:\. Simply delete the SETIO.EXE line in the autoexec.bat file if you later decide not to

run it automatically.

To run the program manually, after bootup, type SETIO at the command prompt and hit

enter key.

Usage: setio [/option]

Options:

none :no parameters, set up system COM/LPT ports

Set PCIIO card's uart/parallel ports to available COM/LPT slots.

/u x :set uart starting address, x=io address in hex.

Assign uarts' starting address before setting up the COM ports.

eg. c:\>setio /u c400

/c :show card's config. info.

Display card's PCI bus information, IRQ, its port address and

mapping to system COM/LPT.

/s :show seg40 system resources.

Show system COM/LPT ports' address.

/h, /?:display help message.
