DEMO MANUAL

DC981A/DC981B

Description

LTC4263

Main Board, Single Port

Autonomous PSE/Daughter Card PSE

Demonstration circuits 981A and 981B feature the

LTC

4263 in single port Power over Ethernet (PoE) power

sourcing equipment (PSE) midspan and endpoint solu-

tions. TheLTC4263isanautonomoussingle-channelPSE

controller for use in IEEE802.3af compliant PoE systems.

It includes an onboard planar power MOSFET, internal

inrush, current limit, and short-circuit control, powered

device (PD) detection and classification circuitry, and

selectable AC or DC disconnect sensing. Onboard control

algorithmsprovidecompletePSEcontroloperationwithout

theneedof a microcontroller.TheLTC4263 simplifies PSE L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

performance summary

Quick start proceDure

implementation, needing only a single 48V supply and a

small number of passive support components. Other op-

tions shown on the DC981A include legacy PD detection

enable,midspanbackofftimerenable,powerclassenforce

mode, and power management enable. An LED for each

port is driven by the respective LTC4263 to indicate the

state of the port.

Design files for this circuit board are available at

http://www.linear.com/demo/DC981A

Table 1. Typical DC981, Specifications are at TA= 25°C

PARAMETER CONDITION VALUE

Supply Voltage Voltage for IEEE802.3af Compliance at Port Output 46V to 57V

Midspan Mode Detection Backoff Midspan Enabled, Failed Detection 3.2s

Detection Range Valid IEEE802.3af PD Detection 17kΩ to 29.7kΩ

Set Maximum Allocated Power Power Management Enabled, RPM = 12.4kΩ 17W

Ethernet Powered Pairs Pinout Endpoint PSE, Alternative A (MDI)

Midspan PSE, Alternative B 1/2(+), 3/6(–)

4/5(+), 7/8 (–)

Demonstration circuits 981A and 981B are easy to set

up to evaluate the performance of the LTC4263. Refer to

Figure 1 for proper measurement equipment setup and

follow the procedure below.

1. Place jumpers in the following positions:

JP1 EN

JP2 EN

JP3 DIS

JP4 AC

JP5 AC

JP6 EN

2. Insert daughter card (DC981B) to main board

(DC981A) at polarized connector J3.

3. Apply 48V across VDD48 and VSS.

4. Connect a scope probe at VOUT_MD and VOUT_EP

both referenced to positive rail VDD48.

5. Connect a valid PD to either midspan PSE or

endpoint PSE.

6. Connect a second PD to the open port.

dc981abf

DEMO MANUAL

DC981A/DC981B

operating principles

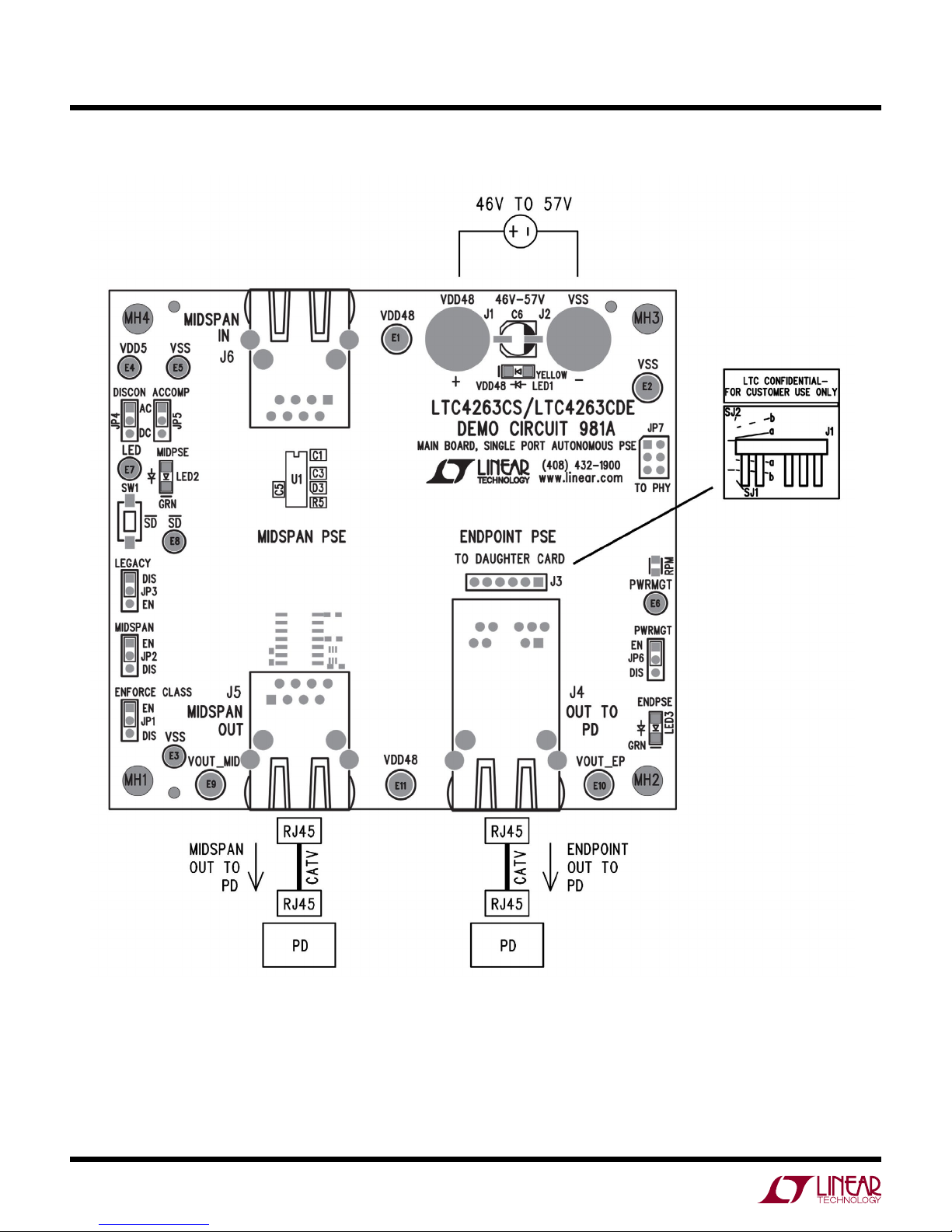

Figure 1. Basic DC981A/DC981B Equipment Setup

dc981abf

DEMO MANUAL

DC981A/DC981B

The DC981 provides two implementations of a PSE con-

trolled by the LTC4263, a midspan PSE and an endpoint

PSE. A single 48V supply is all that is required to power

the board. This in turn provides power to the midspan PSE

and endpoint PSE outputs. On each solution, an LTC4263

providesdetection,classification,powermanagement,safe

power on, port current limit, and disconnect detection.

Midspan PSE

In the midspan solution, a legacy device (router, switch,

etc.) that does not have PoE is connected to MIDSPAN

IN. Data is passed through to MIDSPAN OUT along with

PoE which goes out to a PD. Power is applied directly

to Ethernet pairs 4/5 and 7/8. The LTC4263 circuitry is

located in a small layout area behind the RJ45 connec-

tor and switches power on the negative rail. To show the

different functions of the LTC4263, jumpers allow for the

user to select the options of AC or DC disconnect, legacy

detection, midspan backoff timing, and class enforce-

ment. An LED that shows the status of the port is driven

by a switcher in the LTC4263 to improve efficiency when

VDD5 is provided internally. Push button switch SW1 ties

the shutdown pin to ground to disable the LTC4263 in the

midspan solution.

A PSE implementing alternative B pin out must back off

from detection for at least two seconds after a failed at-

tempt. This is to avoid conflict of detection, for example,

should a potential endpoint PSE and midspan PSE be

connected to the same PD. To enable this feature, set JP2

to DIS. JP2 ties the MIDSPAN pin to VDD5 to enable the

LTC4263 backoff timer or to VSS to disable. A 3.2s delay

occurs after every failed detect cycle unless the result is

open circuit. If held at VSS, no delay occurs after failed

detect cycles.

Endpoint PSE

The endpoint solution is primarily shown on a small

daughter card (DC981B). This card is the same height

and width as the integrated RJ45 connector that it slides

behind on the main board (DC981A). The RJ45 includes

Ethernet magnetics and common mode termination. A

layout option shows the same components can be placed

underthesameRJ45connector.Theminimumconnections

to the daughter card are VSS, VDD48 and VOUT. Power is

switched over from the daughter card out to the Ethernet

data pairs (1/2 and 3/6). A PHY can be connected to the

TO PHY connector to pass data through to the data pairs

along with PoE. LED drive and power management pins

are also brought out for additional board functions. The

board is set up for AC disconnect, but can be reworked

for DC disconnect by removing components and replac-

ing with shorts in certain locations. Tw osolder jumpers

also provide selectable options for legacy detection and

class enforce.

Power Management

The midspan and endpoint PSEs, although separate solu-

tions on the DC981, are tied together at the PWRMGT pin

for demonstration of the LTC4263 power management

capability. Programmable onboard power management

circuitry allows multiple LTC4263s to allocate and share

powerinmultiportsystems, allowing maximumutilization

of the 48V power supply – all without the intervention of

a host processor.

The LTC4263 sources current (IPM) at the PWRMGT pin

proportional to the class of the PD that it is powering. The

voltage of this pin (VPM) is checked before powering the

port (Table 2). The port will not turn on if this pin is more

than 1V above VSS. The PWRMGT pins of the LTC4263s

are tied together and connect to a resistor (RPM) and

capacitor (CPM) in parallel to VSS to implement power

management. This resistor is selected with the following

equation:

RPM = 213kΩ • W/PFULL_LOAD

On the DC981A, the default RPM is 12.4kΩ for a full load

power of 17W.

Table 2. Power Management Voltage

PD CLASS POWER

REQUEST

IPM (TYP) VPM*

Class 1 4W 19μA 236mV

Class 2 7W 33μA 409mV

Class 0, 3, or 4 15.4W 73μA 905mV

*RPM = 12.4kΩ

operating principles

dc981abf

DEMO MANUAL

DC981A/DC981B

Table 3. Powered Device Combinations

PD COMBINATION 1ST PD 2ND PD

Class 1 / Class 1 Powered Powered

Class 1 / Class 2 Powered Powered

Class 1 / Class 3** Powered Power Denied

Class 2 / Class 2 Powered Powered

Class 2 / Class 3** Powered Power Denied

Class 3 **/ Class 3** Powered Power Denied

**Class 3 substitutable with Class 0 or 4.

If power management is not used, move JP6 to DIS to tie

the PWRMGT pins to VSS and disable this feature.

Class Enforce Mode

ENFORCE CLASS jumper JP1 ties the ENFCLS pin of the

LTC4263 to either VDD5 or VSS to respectively enable or

disable class enforce current limits. If held at VDD5, the

LTC4263 will reduce the ICUT threshold for Class 1 or

Class 2 PDs. If ENFCLS is held at VSS, ICUT remains at

375mA (typical) for all classes.

Table 4. Port Current Limit According to Class

PD CLASS CURRENT THRESHOLD (TYPICAL)

Class 1 100mA

Class 2 175mA

Class 0, 3, 4, or Class

Enforce Disabled 375mA

LED Drive

An LED pin indicates the state of the port controlled by

the LTC4263. When the port is powered, the LED is on;

when disconnected or detecting, the LED is off. If an

invalid signature is detected or a fault occurs, the LED

will flash a pattern that the user or host system can read

to indicate the nature of the problem. When run from a

single 48V supply, the LED pin can operate as a simple

switching current source to reduce power dissipation in

the LED drive circuitry.

VDD5 Option

Thelogic5Vpowersupplycanbesuppliedfromtheinternal

LTC4263 5V supply or an external 5V supply when above

the internal supply. If the internal regulator is used, this

pin should only be connected to the bypass capacitor and

to logic pins of the LTC4263 held at VDD5.

AC and DC Disconnect

ACandDC disconnectaretwo different methodsofdetect-

ing whether a valid PD is present and requires power. AC

disconnect is the default method for the DC981 but can

be converted to DC disconnect in the midspan solution

through two jumpers. Moving DISCON (JP4) to DC will

shorttheACCOUTpintoVSSandconfiguretheLTC4263to

DC disconnect. Moving jumper setting for ACCOMP (JP5)

to DC bypasses the AC blocking diode and removes the

RC used for AC disconnect from the main circuit.

Legacy Detection

LEGACY jumper JP3 controls whether legacy detect is

enabled. If the LEGACY pin is held at VDD5 (EN selected),

legacy detect is enabled and testing for a large capacitor

is performed to detect the presence of a legacy PD on

the port. If held at VSS (DIS selected), only IEEE 802.3af

compliant PDs are detected. If left floating (no jumper),

theLTC4263entersforce-power-onmodeandanyPD that

generatesbetween 1Vand 10V when biased with 270μA of

detection current will be powered as a legacy device. This

mode is useful if the system uses a differential detection

scheme to detect legacy devices. Warning: Legacy modes

are not IEEE 802.3af compliant.

operating principles

dc981abf

DEMO MANUAL

DC981A/DC981B

operating principles

Figure 2. DC981 Options

dc981abf

DEMO MANUAL

DC981A/DC981B

Dc981a layout

Top Silkscreen

Layer 1

dc981abf

DEMO MANUAL

DC981A/DC981B

Dc981a layout

Layer 2

Layer 3

dc981abf

DEMO MANUAL

DC981A/DC981B

Dc981a layout

Layer 4

Silkscreen Bottom

dc981abf

DEMO MANUAL

DC981A/DC981B

Top Layer

Top Silkscreen

Dc981B layout

dc981abf

DEMO MANUAL

DC981A/DC981B

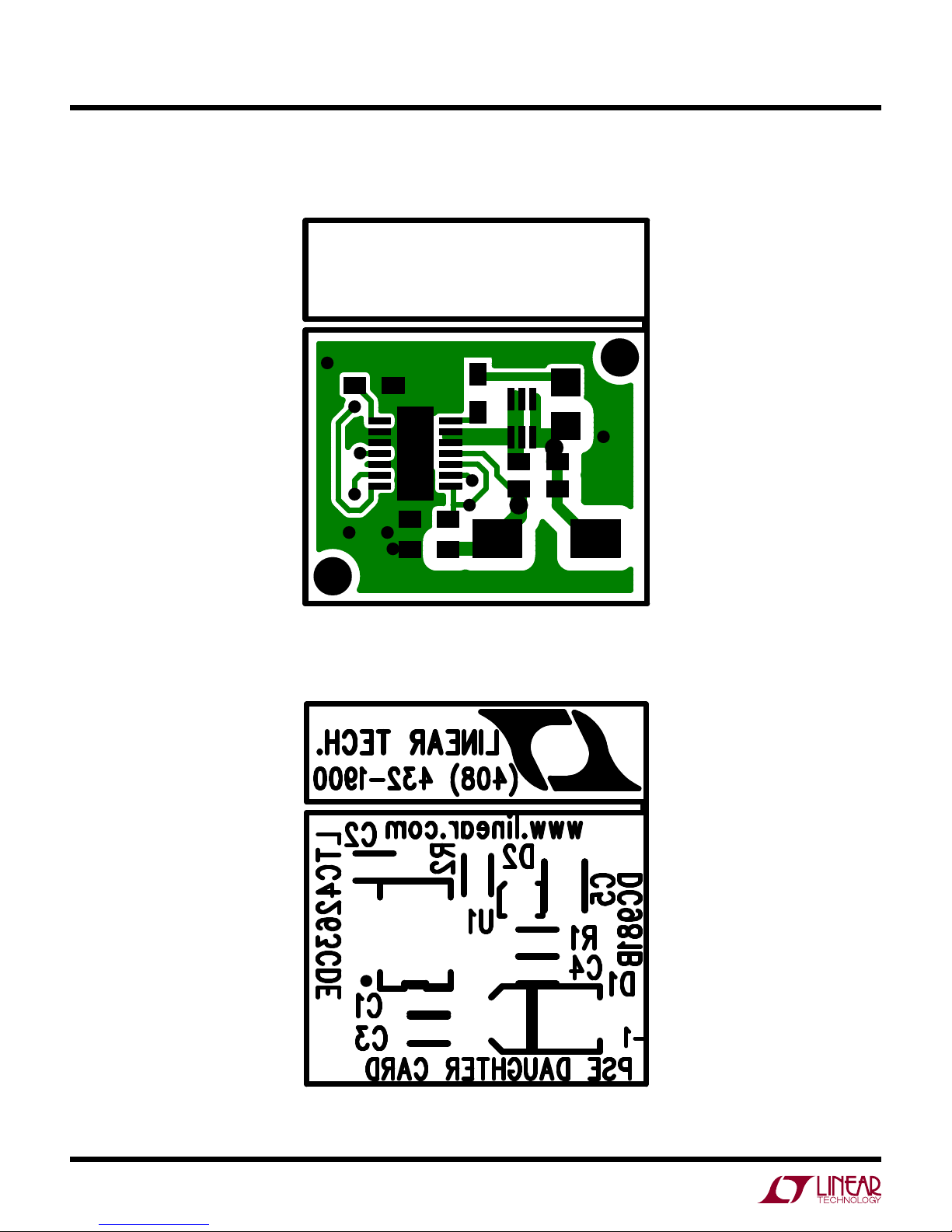

Dc981B layout

Bottom Layer

Bottom Silkscreen

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Linear Technology Scheda madre

Linear Technology

Linear Technology DC1216A-A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1734A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1485A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1999A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1732 Series Guida rapida alla configurazione

Linear Technology

Linear Technology DC2025A Guida rapida alla configurazione

Linear Technology

Linear Technology DC826C-A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2049A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1281A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2003A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1962C Guida rapida alla configurazione

Linear Technology

Linear Technology DC1472A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2518A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2257A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2007A-A Guida rapida alla configurazione

Linear Technology

Linear Technology LT3460ESC6 Manuale utente

Linear Technology

Linear Technology LTC5584 Manuale utente

Linear Technology

Linear Technology DC823B-A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2197A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2566A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1794A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1818A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2461A Manuale utente

Linear Technology

Linear Technology Analog Devices DC2688A Guida rapida alla configurazione

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
