Introduction

The LKS-SR16/LKS-SR24 10BASE-T/100BASE-TX Switches which are

high-performance Fast Ethernet switches designed for the network core. It

provides 16/24 10BASE-T/100BASE-TX ports that can significantly improve

the performance of your network’s backbone, and deliver the throughput

needed to support a broad range of advanced network applications. With

LKS-SR16/LKS-SR24 high performance bandwidth, it provides the quickest

solution to meeting the growing demands on your network’s limited

resources.

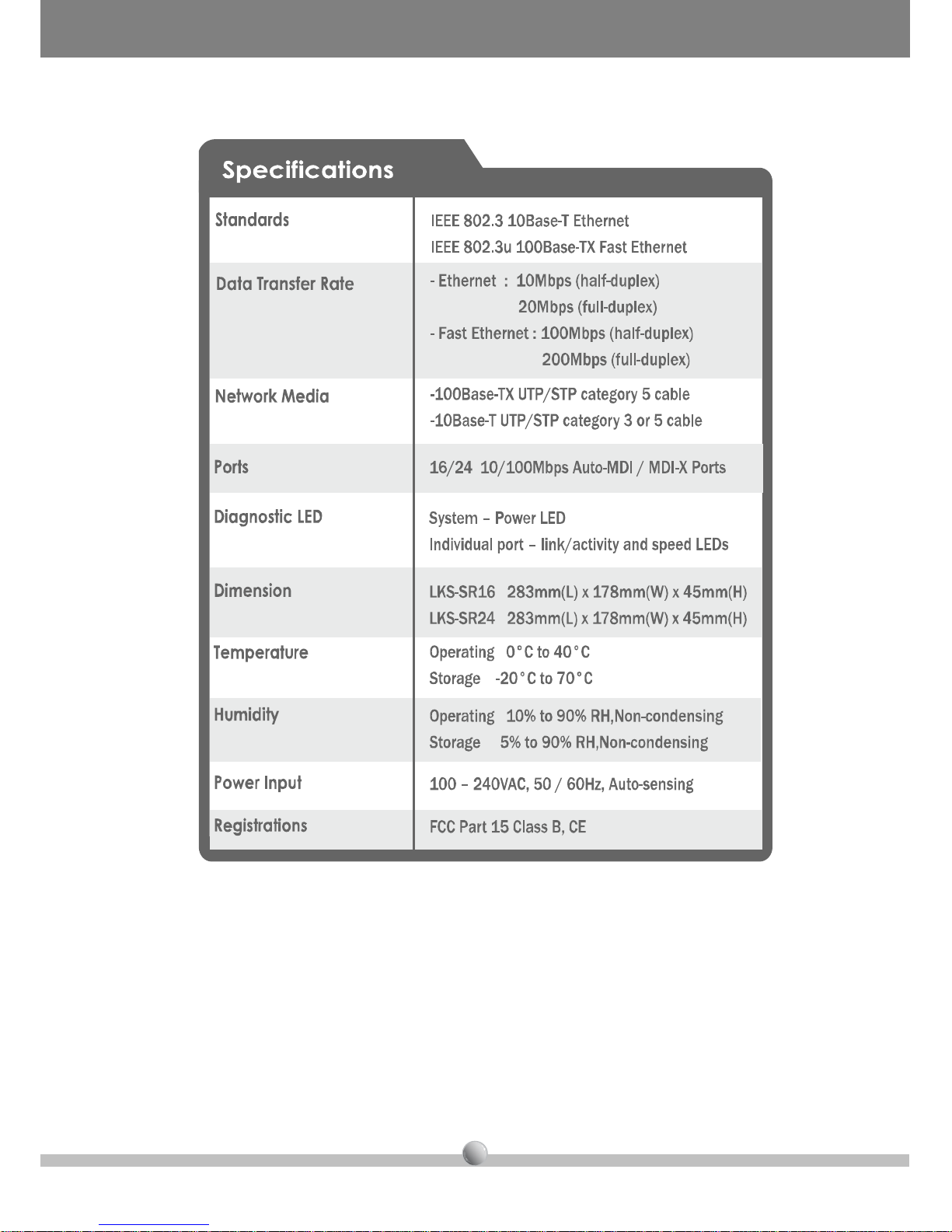

Features

zComplies with the IEEE 802.3 10Base-T Ethernet and IEEE 802.3u

100Base-TX Fast Ethernet standard.

z16/24-port 10/100Mbps Auto-Negotiation.

zHalf/Full duplex capability for each port.

zSupport TP interface Auto-MDI/MDI-X function for auto TX/RX swap.

zAutomatic Source MAC Address Learning and Aging.

zSupport up to total 4K unicast addresses entries.

zSupport up to 2Mbits data buffer.

zSupport Store & Forward architecture and performs forwarding and

filtering.

LKS

SR16

Rev.B

zBroadcast Storming Filter.

zRunt and CRC Filtering eliminates erroneous packets to optimize the

network bandwidth.

zSupport to handle up to 1522 bytes packet.

zLED indicators for simple diagnostics and management.

zInternal switching power supply.

zPlug and Play.

Package Contents

zRackmount Kit.

zUser guide.

zPower cord.

zLKS-SR16/LKS-SR24 10/100Mbps Fast Ethernet Switch.

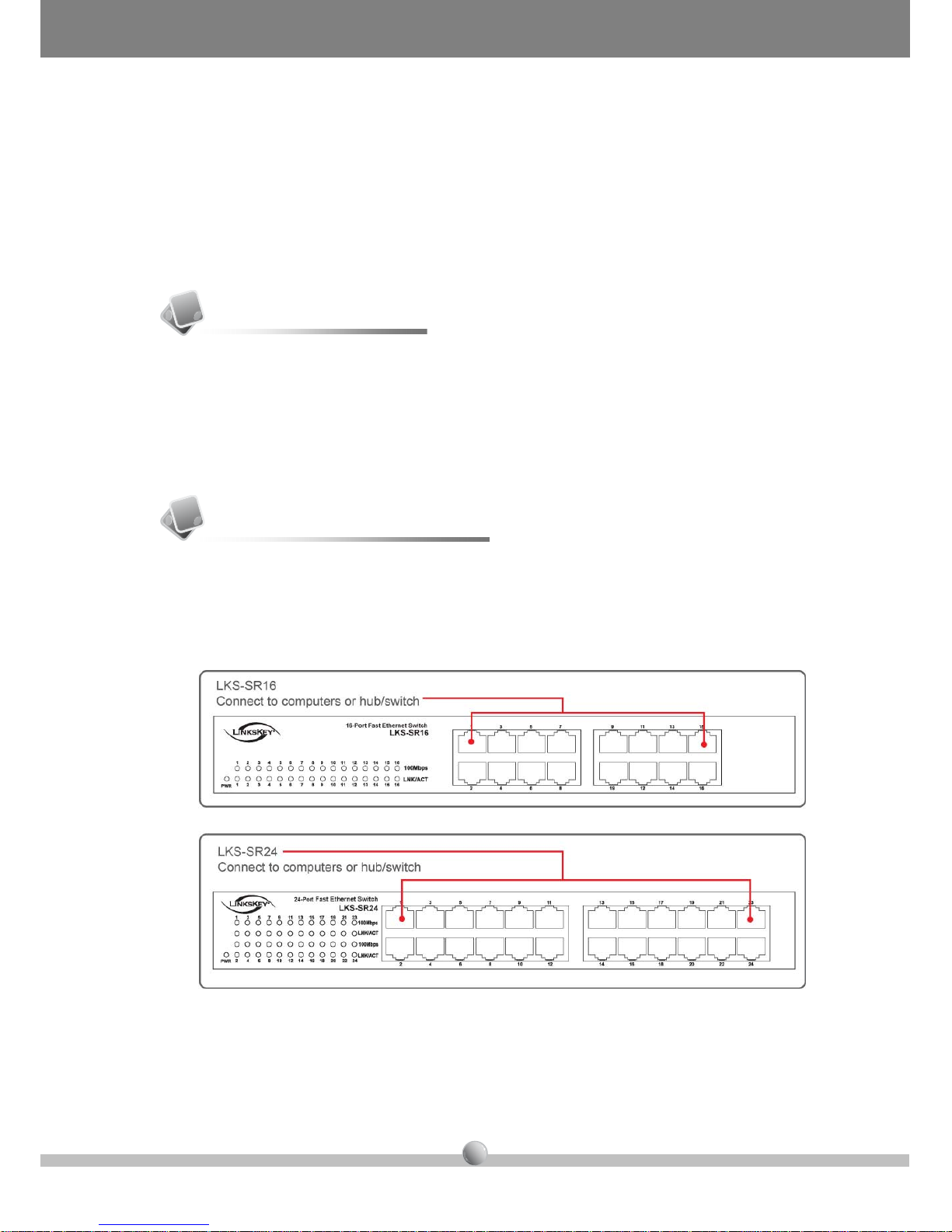

Hardware Introduction

4.1 Front Panel

The unit front panel provides a simple interface monitoring the

Switch. See the chart in section 4.2 for the status of each LED

denotes.

LKS

SR16

Rev.B

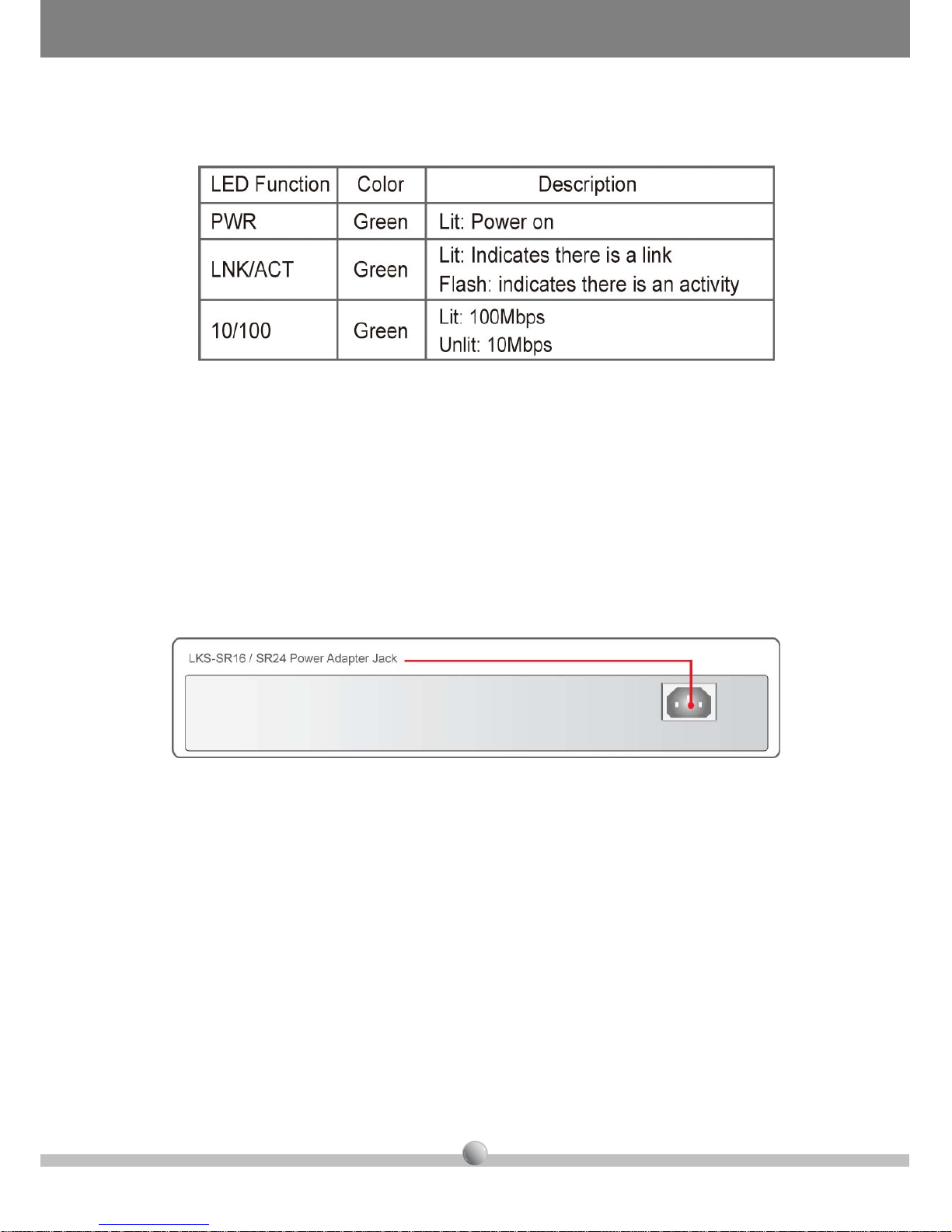

4.2 LED Displays

4.3 Rear Panel

The rear panel of the 16/24-port Fast Ethernet Switch indicates an

AC inlet, which accepts 100-240VAC 50-60Hz power input.

LKS

SR16

Rev.B

LKS

SR16

Rev.B

FCC Warning

This ations

equipment has been tested and found to comply with the regul

for a Class B digital device, pursuant to Part 15 of the FCC Rules. Thes

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with this

user’s guide, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the

interference at his own expense.

zReorient the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit in a different room

that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.
