Linksys WAPPOE12 Manuale utente

A Division of Cisco Systems, Inc.

WIRED

Model No.

WAPPOE12

Adapter Kit

12 Volt Power Over Ethernet

User Guide

12 Volt Power Over Ethernet Adapter Kit

Specifications are subject to change without notice.Linksys is a registered trademark or trademark of Cisco Systems,

reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

How to Use this Guide

Your guide to the 12 Volt Power Over Ethernet Adapter Kit has been designed to make understanding networking

with the Power Over Ethernet Adapter Kit easier than ever. Look for the following items when reading this Guide:

In addition to these symbols, there are definitions for technical terms that are presented like this:

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like

this:

Figure numbers and descriptions can also be found in the “List of Figures” section.

This exclamation point means there is a caution or warning and is something

that could damage your property or Power Over Ethernet Adapter Kit.

This question mark provides you with a reminder about something you

might need to do while using the Power Over Ethernet Adapter Kit.

This checkmark means there is a note of interest and is something you should

pay special attention to while using the Power Over Ethernet Adapter Kit.

word: definition.

Figure 0-1: Sample Figure Description

WAPPOE12-UG-41105NC JL

WARNING: This product contains chemicals, including lead, known to the State of California to cause

cancer, and birth defects or other reproductive harm. Wash hands after handling.

12 Volt Power Over Ethernet Adapter Kit

Table of Contents

Chapter 1: Introduction 1

Welcome 1

What’s in this Guide? 3

Chapter 2: Getting to Know the 12 Volt Power Over Ethernet Adapter Kit 5

Overview 5

The Injector 5

The Splitter 7

Chapter 3: Connecting the 12 Volt Power Over Ethernet Adapter Kit 9

Overview 9

Powering on a Device that Uses a Standard Power Adapter 10

Powering on a Device that Uses Inline Power 12

Appendix A: Glossary 13

Appendix B: Specifications 21

Appendix C: Warranty Information 23

Appendix D: Regulatory Information 25

Appendix E: Contact Information 27

12 Volt Power Over Ethernet Adapter Kit

List of Figures

Figure 2-1: Injector’s First Side Panel 5

Figure 2-2: Injector’s Second Side Panel 6

Figure 2-3: Injector’s LED 6

Figure 2-4: Splitter’s First Side Panel 7

Figure 2-5: Splitter’s Second Side Panel 7

Figure 2-6: Splitter’s LED 8

Figure 3-1: Power Over Ethernet Kit Used with a Switch and Access Point 9

Figure 3-2: Connect the Ethernet Cable to the Injector 10

Figure 3-3: Connect the Ethernet Cable to the Splitter 10

Figure 3-4: Barrel Jack Adapter (optional) 11

Figure 3-5: Connect Power to the Injector 11

Figure 3-6: Connect the Ethernet Cable to the Injector 12

Figure 3-7: Connect Power to the Injector 12

12 Volt Power Over Ethernet Adapter Kit

Chapter 1: Introduction

Welcome

Chapter 1: Introduction

Welcome

Thank you for choosing the Linksys 12 Volt Power Over Ethernet Adapter Kit. It will let you put your wireless

access point or other network device almost anywhere, by eliminating the need for a nearby electrical outlet.

The best place for an access point is usually on the ceiling, in the center of the area that needs wireless

coverage, and the second best place would be high up on a wall. With the Power Over Ethernet Adapter Kit, you

don’t have to run power up to your access point.

How does the Power Over Ethernet Adapter Kit do this? It delivers power over a Category 5 Ethernet cable. The

PowerOver Ethernet AdapterKit includes two devices, the Injector andthe Splitter. The Injector sends power and

data over the Ethernet cable to the Splitter. Then the Splitter separates the data and power back into two cables

and delivers them to the remotely located access point—or other network device. The Injector can also be used

by itself with any Power Over Ethernet (POE)-enabled network device that accept 48 volts directly on a POE port.

Use the 12 Volt Power Over Ethernet Adapter Kit to send power and data to any Linksys product that requires a

12-volt power input. (If your Linksys product uses a 5-volt power input, then you should use the 5-volt kit, model

number: WAPPOE.)

Which Linksys products work with the 12 Volt Power Over Ethernet Adapter Kit? This is a list of the compatible

products, alphabetized by model number:

• ADSLMUE1 (all versions) - ADSL Modem with USB & Ethernet

• AG041 - ADSL Gateway with 4-Port Switch

ethernet: an IEEE standard network

protocol that specifies how data is

placed on and retrieved from a common

transmission medium.

access point: a device that allows

wireless-equipped computers and other

devices to communicate with a wired

network. Also used to expand the range

of a wireless network.

poe (power over ethernet): a technology

enabling an Ethernet network cable to

deliver both data and power.

NOTE: This list is subject to

change as Linksys

introduces new products.

12 Volt Power Over Ethernet Adapter Kit

2Chapter 1: Introduction

Welcome

• BEFCMU10 (all versions) - Cable Modem with USB and Ethernet Connections

• BEFCMUH4 - Cable Gateway

• BEFDSR41W - ADSL Gateway

• BEFSX41 (versions 1 and 2) - Broadband Firewall Router with 4-Port Switch/VPN Endpoint

• BEFW11S4 (version 4) - Wireless-B Broadband Router

• RT31P2 - Broadband Router with 2 PhonePorts

• WAG54G (versions 1.2 and 2) - Wireless-G ADSL Gateway

• WAP54G (version 2) - Wireless-G Access Point

• WCG200 (all versions) - Wireless-G Cable Gateway

• WGA54G - Wireless-G Game Adapter

• WPS54GU2 - Wireless-G PrintServer for USB 2.0

• WRK54G - Wireless-G Broadband Router

• WRT54G - Wireless-G Broadband Router

• WRT54GS - Wireless-G Broadband Router with SpeedBooster

• WRT54GP2- Wireless-G Broadband Router with 2 Phone Ports

Use the instructions in this User Guide to help you connect the Power Over Ethernet Adapter Kit. These

instructions should be all you need to get the most out of the Power Over Ethernet Adapter Kit.

12 Volt Power Over Ethernet Adapter Kit

Chapter 1: Introduction

What’s in this Guide?

This guide covers the steps for installing the Power Over Ethernet Adapter Kit.

• Chapter 1: Introduction

This chapter describes the Power Over Ethernet Adapter Kit’s application and this User Guide.

• Chapter 2: Getting to Know the 12 Volt Power Over Ethernet Adapter Kit

This chapter describes the physical features of the Power Over Ethernet Adapter Kit.

• Chapter 3: Connecting the 12 Volt Power Over Ethernet Adapter Kit

This chapter explains how to connect the Power Over Ethernet Adapter Kit to your network.

• Appendix A: Glossary

This appendix gives a brief glossary of terms frequently used in networking.

• Appendix B: Specifications

This appendix provides the technical specifications for the Power Over Ethernet Adapter Kit.

• Appendix C: Warranty Information

This appendix supplies the warranty information for the Power Over Ethernet Adapter Kit.

• Appendix D: Regulatory Information

This appendix supplies the regulatory information regarding the Power Over EthernetAdapter Kit.

• Appendix E: Contact Information

This appendix provides contact information for a variety ofLinksys resources, including Technical Support.

12 Volt Power Over Ethernet Adapter Kit

4Chapter 1: Introduction

What’s in this Guide?

12 Volt Power Over Ethernet Adapter Kit

Chapter 2: Getting to Know the 12 Volt Power Over Ethernet Adapter Kit

Overview

Chapter 2: Getting to Know the 12 Volt Power Over Ethernet

Adapter Kit

Overview

The Power Over Ethernet Adapter Kit iscomprised of two devices, the Injectorand Splitter. Use theKit so you can

move your access point, wireless bridge, or other network device to a remote location that is far from an

electrical outlet.

The Injector

The Injector’s built-in cable and ports are located on side panels.

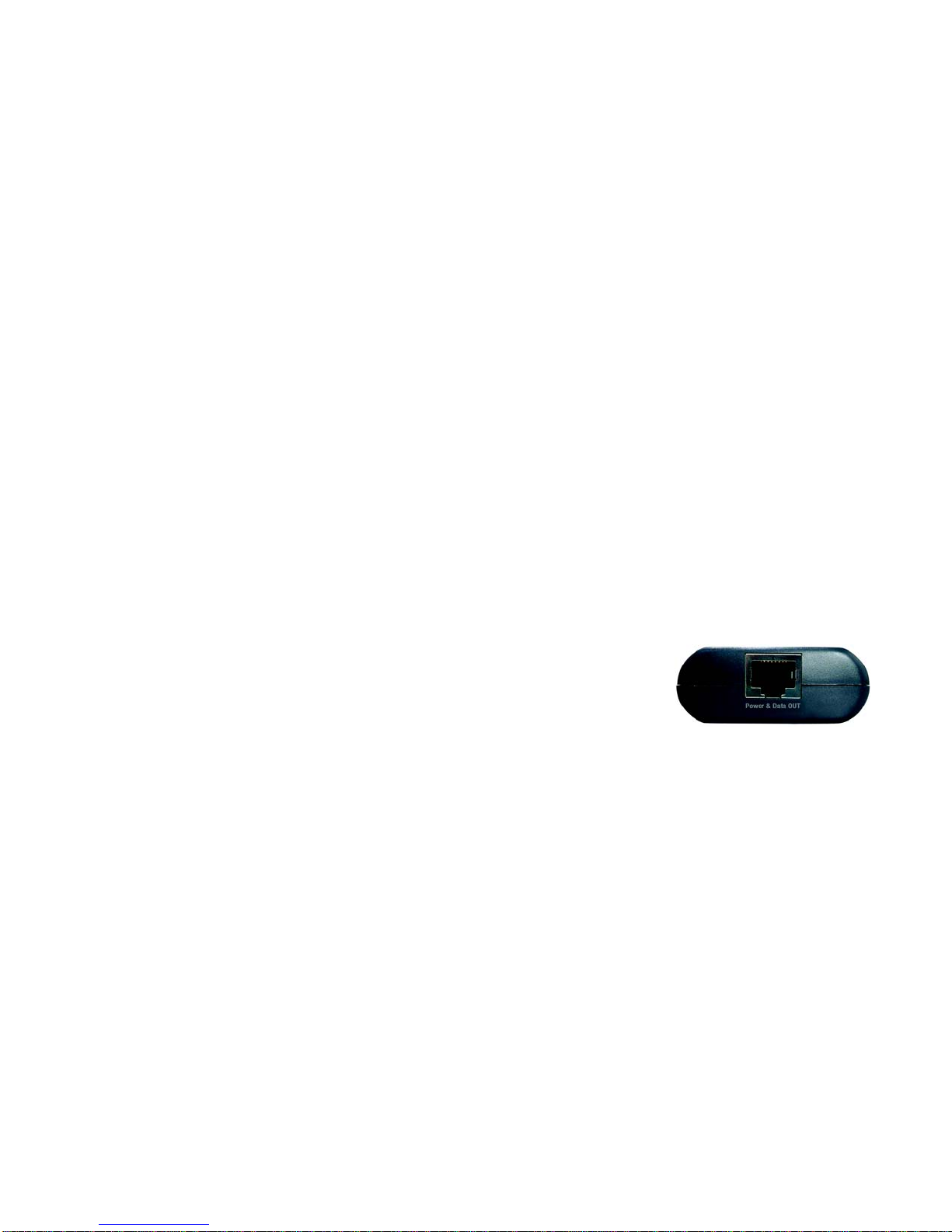

The Injector’s First Side Panel

The Power & Data OUT port is located on the Injector’s first side panel.

Power & Data OUT This port allows you to connect the Injector to the Splitter or a network device that supports

inline power. (You will use the included Ethernet network cable to make this connection.) Figure 2-1: Injector’s First Side Panel

12 Volt Power Over Ethernet Adapter Kit

6Chapter 2: Getting to Know the 12 Volt Power Over Ethernet Adapter Kit

The Injector

The Injector’s Second Side Panel

The built-in Ethernet network cable and Power port are located on the Injector’s second side panel.

Ethernet IN The Injector has a built-in Ethernet network cable. You will connect this cable to one of the

Ethernet network ports on your router or switch.

Power The Power port is where you will connect the included adapter.

The Injector’s LED

The Power LED is located on the top of the Injector.

Power LED Green. The Power LED lights up when the Injector is powered on and ready for use.

Figure 2-2: Injector’s Second Side Panel

Figure 2-3: Injector’s LED
