Linksys EG1064 Manuale utente
A Division of Cisco Systems, Inc.
®
Model No.
WIRED Network Adapter
Gigabit
EG1064
User Guide
10/100/1000
10/100/1000 Gigabit Network Adapter
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2003 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
How to Use this Guide
Your guide to the Gigabit Network Adapter has been designed tomake understanding networking with the Gigabit
Network Adapter easier than ever. Look for the following items when reading this guide:
In addition to these symbols, there are definitions for technical terms that are presented like this:
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.
This exclamation point means there is a Caution or
warning and is something that could damage your
property or the Gigabit Network Adapter.
word: definition.
This checkmark means there is a Note of interest and
is something you should pay special attention to while
using the Gigabit Network Adapter.
Thisquestionmark providesyou with a reminder about something
you might need to do while using the Gigabit Network Adapter.
Figure 0-1: Sample Figure Description
EG1064_V2-UG-31016NC JL
10/100/1000 Gigabit Network Adapter
Table of Contents
Chapter 1: Introduction 1
Welcome 1
What’s in this Guide? 1
Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter 3
Port and LEDs 3
Chapter 3: Installing the 10/100/1000 Gigabit Network Adapter in Your PC 4
Hardware Installation 4
Chapter 4: Installing the Driver for Windows XP 5
Overview 5
Instructions for Installing the Driver 5
Instructions for Uninstalling the Adapter 6
Chapter 5: Installing the Driver for Windows 2000 7
Overview 7
Instructions for Installing the Driver 7
Instructions for Uninstalling the Adapter 9
Chapter 6: Installing the Driver for Windows Millennium or 98SE 10
Overview 10
Instructions for Installing the Driver 10
Instructions for Uninstalling the Adapter 12
Chapter 7: Configuring the 10/100/1000 Gigabit Network Adapter in
Windows XP or 2000 13
Overview 13
Instructions for Accessing the Adapter’s Configuration 13
Adapter Configuration 13
Chapter 8: Configuring the 10/100/1000 Gigabit Network Adapter in
Windows Millennium or 98SE 16
Overview 16
Instructions for Accessing the Adapter’s Configuration 16
Adapter Configuration 16
Appendix A: Troubleshooting 19
Common Problems and Solutions 19
10/100/1000 Gigabit Network Adapter
Appendix B: Windows Help 23
Appendix C: Glossary 24
Appendix D: Specifications 30
Appendix E: Warranty Information 31
Appendix F: Regulatory Information 32
Appendix G: Contact Information 33
10/100/1000 Gigabit Network Adapter
List of Figures
Figure 2-1: Port and LEDs 3
Figure 3-1: Insert the Adapter into the PCI Slot 4
Figure 3-2: Set the Adapter Firmly in Place 4
Figure 3-3: Connect the Ethernet Network Cable 4
Figure 4-1: Welcome 5
Figure 4-2: Search This Location 5
Figure 4-3: Driver Installation Complete 5
Figure 4-4: Device Manager for Windows XP 6
Figure 4-5: Confirm Device Removal 6
Figure 5-1: Welcome 7
Figure 5-2: Install Hardware Device Drivers 7
Figure 5-3: Locate Driver Files 7
Figure 5-4: Driver Location 8
Figure 5-5: Driver Files Search Results 8
Figure 5-6: Driver Installation Complete 8
Figure 5-7: Computer Management for Windows 2000 9
Figure 5-8: Confirm Device Removal 9
Figure 6-1: Add New Hardware Wizard 10
Figure 6-2: Enter Location of Driver 10
Figure 6-3: Driver Files Search Results 10
Figure 6-4: Driver Installation Complete 11
Figure 6-5: Restart Computer 11
Figure 6-6: Device Manager for Windows Me or 98SE 12
Figure 6-7: Confirm Device Removal 12
Figure 6-8: System Settings Change 12
Figure 7-1: Device Manager for Windows XP or 2000 13
Figure 7-2: General Tab for Windows XP or 2000 13
Figure 7-3: Advanced Tab for Windows XP or 2000 14
10/100/1000 Gigabit Network Adapter
Figure 7-4: Driver Tab for Windows XP or 2000 14
Figure 7-5: Confirm Device Removal 14
Figure 7-6: Resources Tab for Windows XP or 2000 15
Figure 7-7: Power Management Tab for Windows XP or 2000 15
Figure 8-1: Device Manager for Windows Me or 98SE 16
Figure 8-2: General Tab for Windows Me or 98SE 16
Figure 8-3: Driver Tab for Windows Me or 98SE 17
Figure 8-4: Resources Tab for Windows Me or 98SE 17
Figure 8-5: Power Management Tab for Windows Me or 98SE 18
1
Chapter 1: Introduction
Welcome
10/100/1000 Gigabit Network Adapter
Chapter 1: Introduction
Welcome
Thank you for choosing the 10/100/1000 Gigabit Network Adapter. Built to run the fastest video, publishing, and
database network applications, the Gigabit Network Adapter is a high performance network adapter for PCI local
bus computers. Boasting an incredible maximum data throughput of 2000 megabits-per-second in full duplex
mode, it includes a 10BaseT/100BaseTX/1000BaseTX port, which means that you can begin integrating Gigabit
now—even if you don't plan on upgrading to a 1000Mbps network right away.
The Gigabit Network Adapter is Windows Plug-and-Play compatible. Wake-On-LAN support is built in—you can
wake up your workstations from anywhere on the network! Built-in support for the widest range of PCI mother-
boards, networking hardware, and software means you don't have to worry about compatibility.
Use the instructions in this Guide to help you install the Gigabit Network Adapter in your PC, install itsdriver, and
configure it. These instructions should be all you need to get the most out of the Gigabit Network Adapter.
What’s in this Guide?
This user guide covers the steps for installing the Adapter, installing its driver, and configuring it.
• Chapter 1: Introduction
This chapter describes the Adapter’s applications and this User Guide.
• Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter
This chapter describes the physical features of the Adapter.
• Chapter 3: Installing the 10/100/1000 Gigabit Network Adapter in Your PC
This chapter instructs you on how to install the Adapter inside your PC.
• Chapter 4: Installing the Driver for Windows XP
This chapter explains how to install the Windows XP driver for the Adapter.
• Chapter 5: Installing the Driver for Windows 2000
This chapter explains how to install the Windows 2000 driver for the Adapter.
• Chapter 6: Installing the Driver for Windows Millennium or 98SE
This chapter explains how to install the Windows Millennium or 98SE driver for the Adapter.
Full duplex: theabilityofanetworking
device to receive and transmit data
simultaneously.
2
Chapter 1: Introduction
What’s in this Guide?
10/100/1000 Gigabit Network Adapter
• Chapter 7: Configuring the 10/100/1000 Gigabit Network Adapter in Windows XP or 2000
This chapter instruct you on how to configure the Adapter in Windows XP or 2000.
• Chapter 8: Configuring the 10/100/1000 Gigabit Network Adapter in Windows Millennium or 98SE
This chapter instruct you on how to configure the Adapter in Windows Millennium or 98SE.
• Appendix A: Troubleshooting
This appendix describes some potential problems and solutions regarding use of the Adapter.
• Appendix B: Windows Help
This appendix describes how you can use Windows Help for instructions about networking, such as installing
the TCP/IP protocol.
• Appendix C: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
• Appendix D: Specifications
This appendix provides the technical specifications for the Adapter.
• Appendix E: Warranty Information
This appendix supplies the warranty information for the Adapter.
• Appendix F: Regulatory Information
This appendix supplies the regulatory information regarding the Adapter.
• Appendix G: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.
3
Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter
Port and LEDs
10/100/1000 Gigabit Network Adapter
Chapter 2: Getting to Know the 10/100/1000 Gigabit Network
Adapter
Port and LEDs

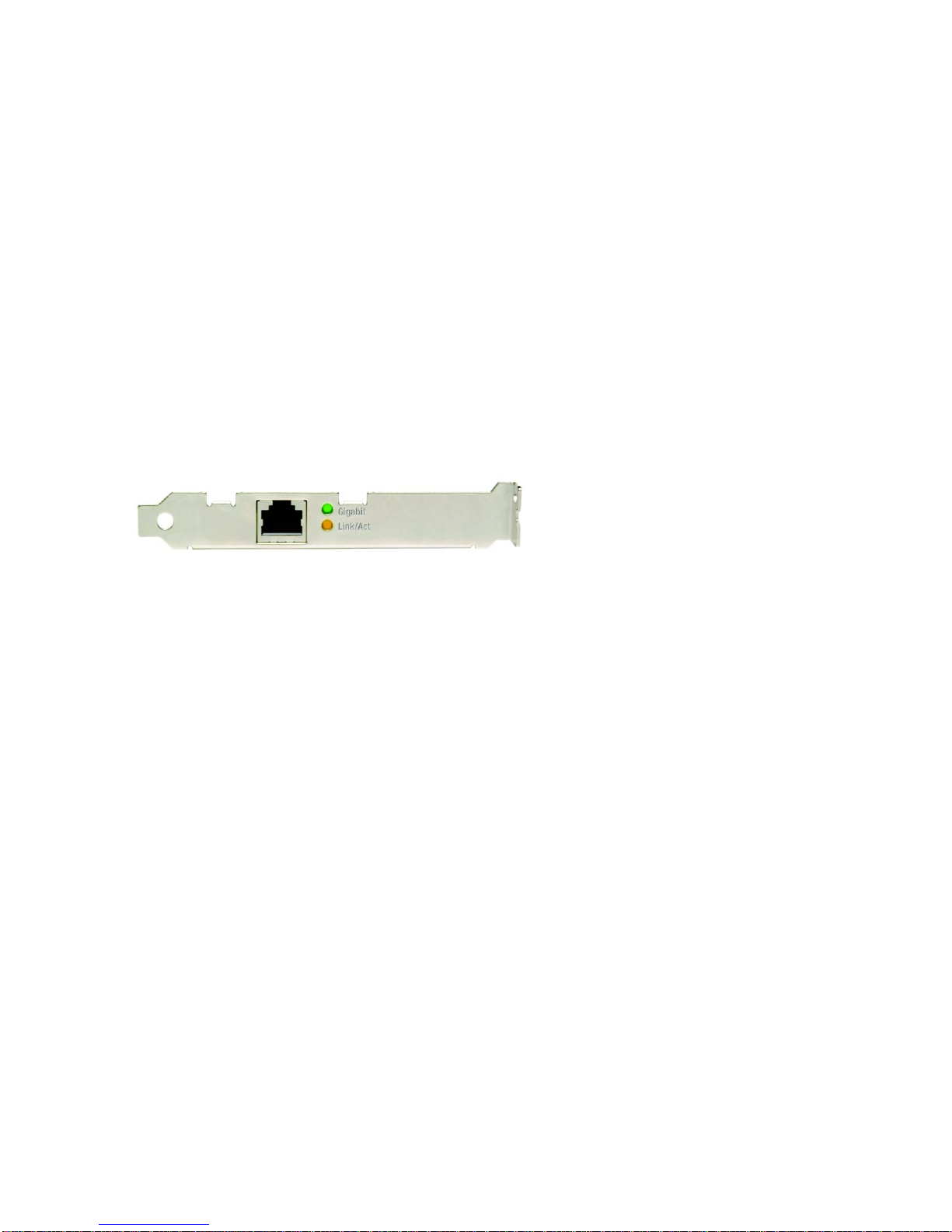

The Adapter’s port and LEDs are located on the metal panel.
RJ-45 Port The RJ-45 port is where you will connect your Ethernet network cable.
Gigabit LED Green. The Gigabit LED lights up when the Adapter is operating at 1000Mbps. If the Gigabit
LED is not lit and the PC is powered on, the Adapter has automatically determined that your
network is operating at a slower speed and adjusted accordingly.
Link/Act LED Orange. The Link/Act LED lights up when the Adapter is connected to a network. It flashes
when there is network activity.
Figure 2-1: Port and LEDs
4
Chapter 3: Installing the 10/100/1000 Gigabit Network Adapter in Your PC
Hardware Installation
10/100/1000 Gigabit Network Adapter
Chapter3:Installingthe10/100/1000GigabitNetworkAdapter
in Your PC
Hardware Installation
1. Power off your PC and any peripheral equipment attached to it. Unplug your PC’spower cord.
2. Open your PC’s case, and locate an available PCI slot on the motherboard. Check with your computer
manufacturer if you need instructions.
3. Remove the metal PCI slot cover on the back of the PC.
4. Insert the Adapter into the PCI slot. Make sure that all of its pins are touching the slot’s contacts. You may
have to apply a bit of pressure to slide the Adapter all the way in.
5. After the Adapter is set firmly in place, secure its fastening tab to your PC’s chassis with a mounting screw.
Then close your PC’s case.
6. Connect one end of the Ethernet network cable to the RJ-45 port of the Adapter. (Category 5e or better
Ethernet network cabling is required for Gigabit transmission speeds.)
7. Connect the other end of the Ethernet network cable to your network’s Gigabit hub or switch port.
8. Reconnect your PC’s power cord, and then power on your computer.
Now that the hardware installation is complete, you will install the appropriate Windows driver for the Adapter.
Proceed to the chapter for your PC’s operating system.
For Windows XP, go to “Chapter 4: Installing the Driver for Windows XP.”
For Windows 2000, go to “Chapter 5: Installing the Driver for Windows 2000.”
For Windows Millennium or 98SE, go to “Chapter 6: Installing the Driver for Windows Millennium or 98SE.”
Figure 3-1: Insert the Adapter into the PCI Slot
Figure 3-2: Set the Adapter Firmly in Place
Figure 3-3: Connect the Ethernet Network Cable
NOTE: For best results, Linksys recommends using
Category 5eor better Ethernet networkcabling.Thisis
the only cabling that will work for Gigabit transfer
speeds. (You can use Category 5 Ethernet network
cabling for 100Mbps or lower speeds.) The cable run
from the Adapter to the network hub or switch should
not exceed 328 feet (100 meters).
