Linksys Instant PowerLine PLEBR10 Istruzioni operative originali

PLEBR10

System Requirements

•Existing Ethernet/Fast Ethernet

Network or an Existing

Ethernet/Fast Ethernet Network

Adapter and Network Cable

•TCP/IP Protocol

•CD-ROM Drive

•Windows 98, 2000, ME, NT, or XP

for Initial Setup

Included with the Linksys

PLEBR10 PowerLine EtherFast®

10/100 Bridge

• Instant PowerLine PowerLine

EtherFast 10/100 Bridge (1)

• One Power Cord (2)

• One Setup Utility CD-ROM (3)

• One User Guide (4)

• Quick Installation (this document)

and Registration Card (not shown)

Note: A Windows 95 workstation

cannot be used to set up the

PowerLine EtherFast 10/100

Bridge.

Installation Process

For more detailed instructions, please refer to the User Guide.

A. Insert the Setup Utility CD-ROM

into the computer’s CD-ROM

drive. The Setup Utility CD-ROM

should run automatically. If it does

not, click the Start button and

choose Run. In the box that

appears, enter D:\setup.exe (if “D”

is the letter of your CD-ROM

drive).

B. To install the PowerLine EtherFast

10/100 Bridge software, click Next.

C. Enter your User Name and

Organization Name. SelectAnyone

who uses this computer (all users)

to install a shortcut to the Security

Configuration Utility on every

user’s desktop (This selection is

not available for Windows 98 and

ME users). Then click the Next

button.

D. Click the Install button to begin

installation of the Security

Configuration Utility.

Windows 2000 users:Windows will

inform you that there was no digi-

tal signature found. Click the Yes

button to proceed with the installa-

tion.

Windows XP users:Windows will notify you that the driver has not

passed Windows Logo testing. Click the ContinueAnyway button.

PPoowweerrLLiinnee

EEtthheerrFFaasstt®®1100//110000

BBrriiddggee

Instant PowerLine

This Quick Installation is meant to help you install the 10/100 Bridge quickly and easily. For detailed

instructions on installation and configuration and further setup options, please consult the User Guide.

Installing the PowerLine

EtherFast 10/100 Bridge

WWW.LINKSYS.COM

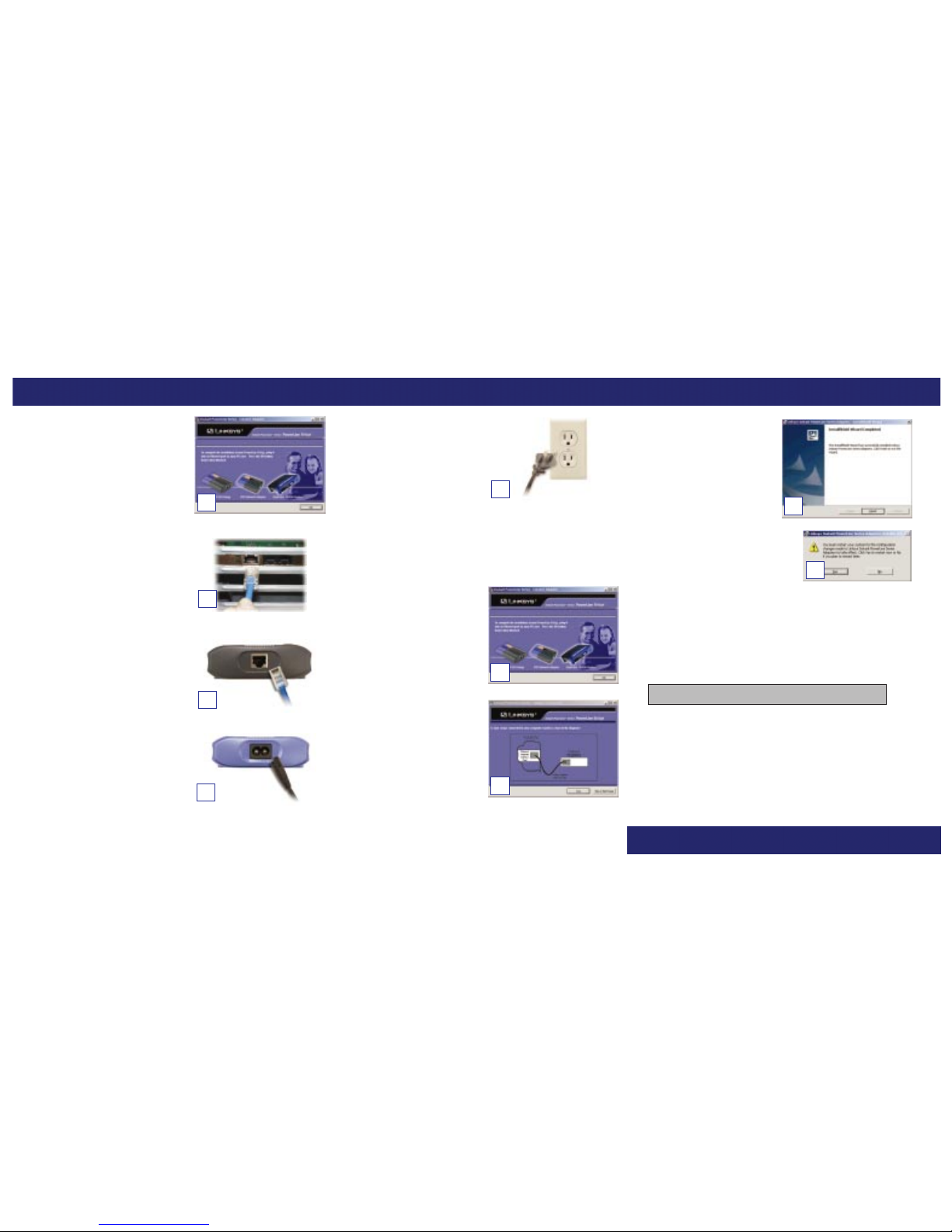

E. When you see the screen shown in

Figure E, stop at this screen.

Proceed to the next step to install

the PowerLine EtherFast 10/100

Bridge hardware.

F. Plug the UTP Category 5 cable

(network cable) into the computer’s

RJ-45 network adapter port

(shown in Figure F).

G.Plug the other end of the UTP

Category 5 cable into the RJ-45

port on the PowerLine EtherFast

10/100 Bridge.

H.Plug the power cord into the power-

line port on the PowerLine

EtherFast 10/100 Bridge.

Note: Use only the supplied power

cord to connect the PowerLine

EtherFast 10/100 Bridge to the power

outlet.

I. Plug the other end of the power

cord into a power outlet on the wall.

Note: For highest performance, plug the EtherFast 10/100 Bridge’s

power cord directly into a power outlet on the wall. Do not plug the

device into a UPS or power strip with surge protection.The PowerLine

EtherFast 10/100 Bridge has its own power filter for protection against

surges.

J. After connecting the PowerLine

EtherFast 10/100 Bridge to your

PC, click the OK button.

K.Click the Yes button when this

screen (Figure K) appears.

G.Click the Finish button to exit.

H.You will be asked to restart your com-

puter. Click the Yes button to restart

now, or click the No button to restart

later.

I. Eject the Setup Utility CD-ROM from the CD-ROM drive.

After you restart your computer, your PC will now be able to commu-

nicate with any computers using powerline adapters, if theTCP/IP

Protocol (used for communications) is set up properly on the Ethernet

and powerline adapters.

WWW.LINKSYS.COM

Your installation is complete. For setup information or any

other questions, refer to the User Guide.

QI-PLEBR1-012802NC-JL
