Linksys EA6900 Manuale utente

0

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Linksys Wireless Router

(EA6900) Setup User’s Guide

1

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

1 Get to know Linksys (EA6900) Router................................................................................2

A. Tech Specs - Connections and Expansion .................................................................2

B. Minimum System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000).2

2 Connecting the Linksys router.............................................................................................3

3 Switching your broadband Internet service to HKBN..........................................................7

4 Factory default reset of Linksys Router...............................................................................9

2

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Get to know the Linksys

(EA6900) Router

1 Get to know Linksys (EA6900) Router

A. Tech Specs - Connections and Expansion

B. Minimum System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000)

To ensure that you have a fast and stable network, please refer to the following as a

recommended minimum system requirement.

Central Processing Unit (CPU)

Intel Core2 Duo P8700/2.5 (3 GHz or above)

System Memory

4GB or above

Hard disk

64GB SATA II SSD (Min. I/O speed of 200MB/s)

Network Adaptor

100/1000M Network Adaptor

USB Port Internet Port

Ethernet Port

AC Socket

3

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Connecting the Linksys Router

2 Connecting the Linksys router

Make sure you have a LAN cable connected from the HKBN wall plate/ONT to the Internet

port of your Linksys Router (EA6900). Using a second LAN cable, connect it from the Router

LAN port to the computer LAN port. Once finished, switch on the power supply for the router

and turn on the computer.

Open your Internet browser, and input [http://192.168.1.1] into the address-bar then press

[Enter]. Linksys Smart Wi-Fi Setup will start automatically, choose [I have read and accepted

the License Terms for using this software], click [Next]

4

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Connecting the Linksys Router

2Connecting the Linksys router

Create a [2.4GHz Network Name] and [Network Password]. Linksys Router (EA6900)

supports both 2.4GHz and 5GHz wireless connections, it is recommended that you tick the

box [Make network names the same] then click [Next] to continue.

After creating the network name and network password, create a [Router password], then

click [Next] to continue.

5

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Connecting the Linksys Router

2Connecting the Linksys router

Confirm all settings displayed are correct then click [Next]

Tick the box [No thanks] then click [Next]

6

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Connecting the Linksys Router

2Connecting the Linksys router

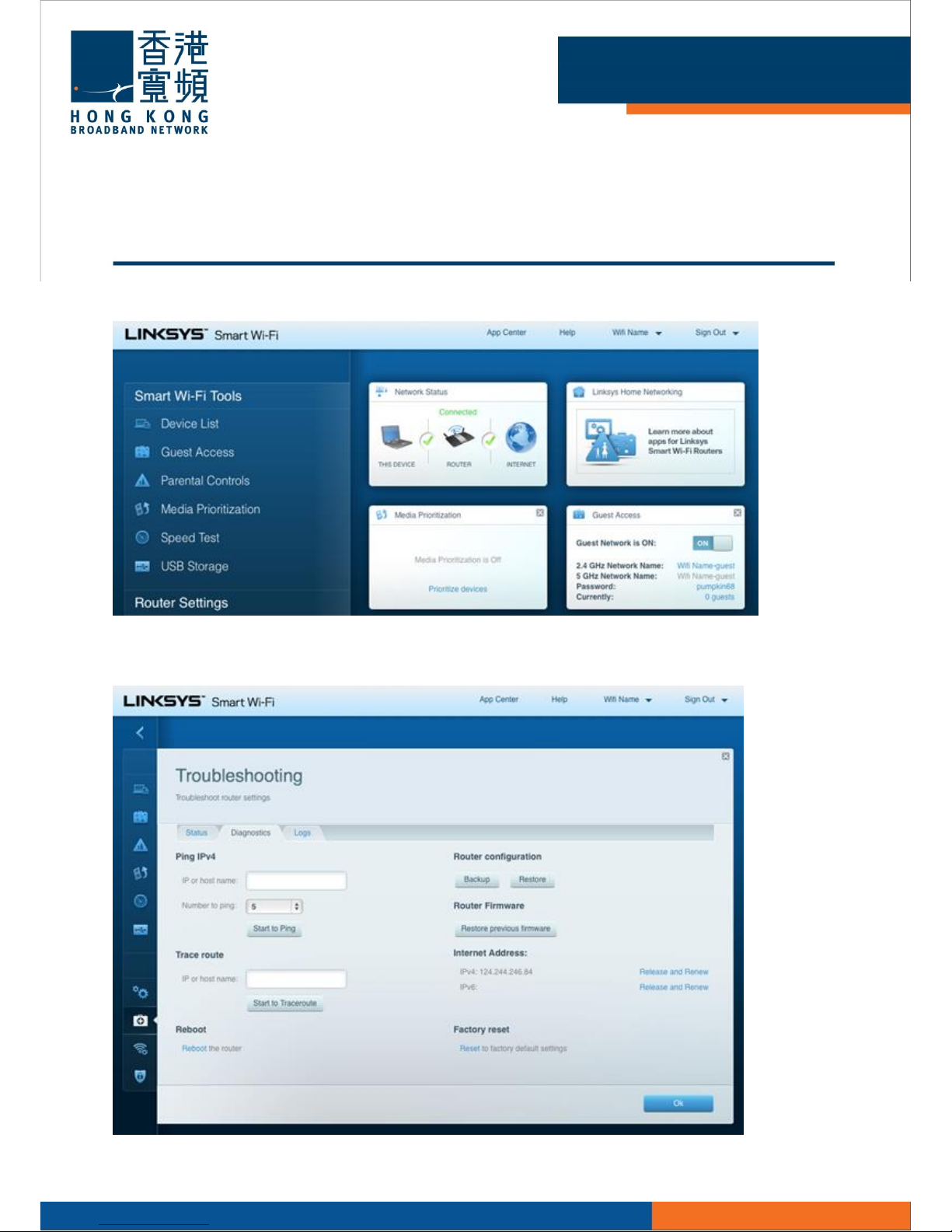

The [Network Status] under the [Router Settings Home Page] will show [Connected] with

green checkmarks displayed between [THIS DEVICE], [ROUTER] AND [INTERNET].

Select [Troubleshooting] under [Router Settings] and the IPv4 address will display under

[Internet address] in the [Diagnostics] page.

7

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Switching your broadband

Internet service to HKBN

3 Switching your broadband Internet service to HKBN

After logging in to the router through your browser, select [Connectivity] under [Router

Settings].

Choose [Automatic Configuration –DHCP] under [Connection Type] then click [Apply].

8

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Switching your broadband

Internet service to HKBN

3 Switching your broadband Internet service to HKBN

Click [OK] to apply the changes.

Wait for the device to restart, this will normally take several minutes.

Once the device has restarted, select [Troubleshooting] under [Router Settings] and the IPv4

address will display under [Internet address] in the [Diagnostics] page.

9

HKBN_SETUP_ROUTER_LINKSYS_ENG_230315

Factory default reset of

Linksys Router

4 Factory default reset of Linksys Router

Login to the router setting page, select [Troubleshooting] under [Router Settings].

Click [Reset to factory default settings] in the [Diagnostics] page.
