Lionel LionMaster SD-80 Manuale utente
75-2347-250
12/04
SYSTEM
and
Lionel
LionMaster SD-80
Diesel Locomotive
Owner’s Manual
Congratulations!
Congratulations on your purchase of the LionMaster SD-80 diesel locomotive! On the
outside, this locomotive features numerous prototypical details and expert decoration in
your favorite livery. Inside the body, this locomotive is equipped with some of the most advanced
sounds and controls in model railroading. The LionMaster SD-80 locomotive is ready for duty
on your layout.
Features of this locomotive
• TrainMaster Command Control equipped—able to run in the TrainMaster
Command Control environment or in the conventional environment with
only a standard transformer
• RailSounds sound system with CrewTalk communication and TowerCom
announcements
• Odyssey System for speed control with ON/OFF switch
• Directional lighting including front and rear headlights
• Two ElectroCouplers
• Dual powerful maintenance-free motors with momentum flywheels
• Four traction tires
• Fan-driven smoke unit
• Lighted marker lights
• Lighted cab interior
• Minimum curve: O-31
2
The following Lionel marks may be used throughout this instruction manual and are protected under law.
All rights reserved.
Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™,
StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote Controller,
PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®, Wireless Tether™,
LionMaster®
The name FasTrack®is used with permission from Pitsco, Inc.
Table of contents
Quick Start
Transformer operations 4
TrainMaster Command Control operations 4
Conventional transformer operations
Conventional operations 5
Operating your locomotive in the conventional environment 6
Locking your locomotive into a single direction 7
Uncoupling your locomotive in the conventional environment 8
RailSounds sound system operations
RailSounds sound system operations 9
Installing the battery 10
Using the RailSounds sound system in the conventional environment 11
Installing a Lionel Sound Activation Button for conventional operation 12
Using the RailSounds sound system in the TrainMaster Command Control environment 13
Odyssey System operations
Odyssey System operations 14
Activating the Odyssey System in the conventional environment 15
Turning off the Odyssey System in the conventional environment 16
Odyssey System Command Control operation 16
TrainMaster Command Control operations
TrainMaster Command Control operations 17
Operating your locomotive in the Command Control environment 17
CAB-1 Remote Controller commands 18
CAB-1 Remote Controller numeric keypad commands 19
Tuning your locomotive’s performance 20-21
Assigning your locomotive a new ID# 22
Building a lash-up 23
Reprogramming your locomotive to restore features 24
Maintaining and servicing your locomotive
Adding fluid to your locomotive’s smoke generator 25
Lubricating your locomotive 26
Replacing your locomotive’s LEDs and lamps 27
Replacing the traction tires 27
Limited Warranty/Lionel Service 28
3
Quick Start
Transformer operations
1. Place your locomotive on Lionel or Lionel-compatible O-31 or larger
track. To operate your locomotive with speed control, slide the Odyssey System switch to the
ODY position and refer to pages 15 and 16.
2. Power your locomotive at 8-18 volts with your alternating current (AC)
transformer.
Do not power your locomotive with a direct-current (DC) transformer. Damage to
sensitive electronic components may occur.
3. Wait three to eight seconds as your locomotive determines whether it is in
a conventional environment or a TrainMaster Command Control
environment.
4. Move ‘em out! Press the DIRECTION button on your transformer, then
throttle up.
TrainMaster Command Control operations
To operate your locomotive in the Command Control environment, you need a Command
Base (available separately, 6-12911) and a CAB-1 Remote Controller (available separately,
6-12868). These products are available together in the TrainMaster Command Set (available
separately, 6-12969).
1. Turn off track power and plug-in the Command Base.
2. Place your locomotive on Lionel or Lionel-compatible O-31 or larger
track.
3. Increase track voltage to full power (19 volts AC).
Do not power your locomotive with a direct-current (DC) transformer. Damage to
sensitive electronic components may occur.
4. Press ENG and 1 to address your locomotive with your CAB-1 Remote
Controller.
5. Throttle up and move ‘em out.
4
Note!
Note!
Conventional transformer operations
Conventional operations
Your locomotive is capable of operating in the conventional environment with nothing more
than a standard Lionel alternating-current (AC) transformer.
In the conventional environment, your locomotive cycles through a repeating pattern of
operations: forward, neutral, reverse, neutral, and so on. To advance to the next operation, press
the DIRECTION button on your transformer. Alternately, you could use the throttle to briefly
turn off track power so that the locomotive advances to the next operation when power is
restored.
Once you cycle the locomotive into forward or reverse, you control your locomotive’s speed
by varying track voltage with the transformer’s throttle. To increase the speed of the locomotive,
you increase track voltage. To decrease the speed, you decrease track voltage. To stop the
locomotive and to change directions (or to enter neutral), track voltage is turned off or
interrupted.
Use the HORN and BELL buttons on your transformer (or separate buttons if your
transformer is not equipped with these controls) to activate these features.
To experience all of your locomotive’s features, we recommend operating in the TrainMaster
Command Control environment. With a simple one-wire connection, you can use the CAB-1
Remote Controller to access all of the functions of your locomotive. Refer to page 17 to see how
to operate your locomotive in the TrainMaster Command Control environment.
5
6
Conventional transformer operations
Operating your locomotive in the conventional environment
1. Place your locomotive on Lionel or Lionel-compatible O-31 or larger
track.
2. Power your locomotive at 8-18 volts with your alternating current (AC)
transformer.
Power your locomotive with an alternating-current (AC) transformer only.
Powering your locomotive with a direct-current (DC) transformer may result in
damage to sensitive electronic components.
3. Wait three to eight seconds as your locomotive determines whether it is in
a conventional environment or a TrainMaster Command Control
environment.
When the locomotive has determined that a TrainMaster Command Base is not connected to
the track, the locomotive’s headlight will illuminate and the RailSounds sound system will
start. You are ready for operation in the conventional environment.
4. Move ‘em out!
Press the DIRECTION button on your transformer to sequence your locomotive through
the repeating pattern of operations: forward, neutral, reverse, neutral, and so on. You may
also briefly turn off track power to advance the locomotive to the next operating state. Adjust
the throttle until your locomotive moves at your desired speed.
When placing your locomotive on your layout for the first time, it will start out in
neutral. Thereafter, it will start in forward after every power interruption lasting five
seconds or longer.
Use the HORN and BELL buttons on your transformer to activate those features. Refer to
page 12 if your transformer is not equipped with those buttons. Adjust the volume using the
volume control knob located inside the locomotive. Refer to Figure 3 on page 10.
Note!
Caution!
Conventional transformer operations
Locking your locomotive into a single direction
When the Command reverse unit switch is in the RUN position, your locomotive sequences
through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on.
To “lock” your locomotive into a single direction (for example, to operate in forward only),
you can deactivate the Command reverse unit’s sequencing function. Refer to Figure 1 for the
location of the Command reverse unit switch.
1. Use your transformer’s DIRECTION button or interruptions in track power to get your
locomotive moving in the desired direction or into neutral.
2. Slow the locomotive down without stopping (reduce the throttle without turning off track
power).
3. Slide the Command reverse unit switch to the PRG position. At this point, the locomotive is
“locked” into your chosen direction.
To restore the forward-neutral-reverse sequence, just slide the Command reverse unit switch
back to the RUN position.
Your locomotive will “reset” to forward after any power interruption lasting five
seconds or longer, regardless of the direction you set.
7
Note!

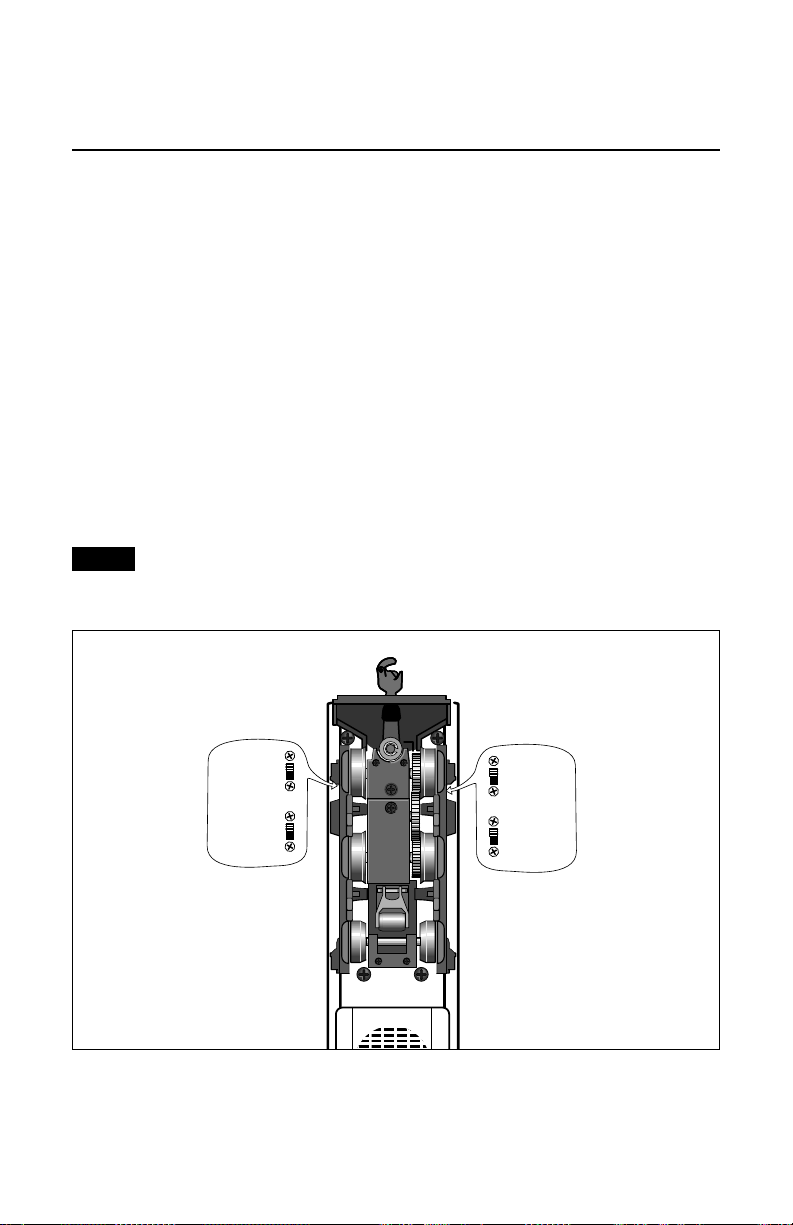

Figure 1. Switch locations
SND
NO SND
ODY
NO ODY
RUN
SMK
PGM
NO SMK
RailSounds sound
system switch
Odyssey System switch
Smoke unit switch
(see page 25 for details)
Command reverse unit
switch
Conventional transformer operations
Uncoupling your locomotive in the conventional environment
Your locomotive features two ElectroCouplers that are released by remote control at any
point around your layout in the TrainMaster Command Control environment.
In the conventional environment, the ElectroCouplers will not open manually or by using a
Remote-Control Track section. To couple your locomotive in the conventional environment, you
must rely on a piece of rolling stock equipped with a magnetic coupler. Simply release the
magnetic coupler and couple the rolling stock to the locomotive, even if the ElectroCoupler is
closed.
Keep in mind that you may still make use of Lionel Remote-Control Track sections (6-65530
for O gauge; 6-12746 and 6-65149 for O-27 gauge; and 6-12020 for FasTrack layouts) with the
magnetic couplers on the rolling stock. Place the trigger disc on the magnetic coupler over the
central coil on the Remote-Control Track section, then press UNCOUPLE on the track section’s
controller. As illustrated in Figure 2, the magnetic field pulls the disc downward, releasing the
coupler.
8
Figure 2. Magnetic coupler operation
Remote-Control
Track Section
9
RailSounds sound system operations
RailSounds sound system operations
Your locomotive is equipped with the Lionel RailSounds sound system, the most realistic
model railroad sound system in the world. The RailSounds sound system brings the sounds
of the railroad to your layout through high quality digital samples of real locomotives.
When you operate your locomotive in the conventional environment, you get the realistic
sounds of the diesel engine, which automatically rev up as the speed of the locomotive
increases. You can sound the locomotive’s horn or activate the ringing of the mechanical bell.
When you are through with operations and power down the track, your locomotive’s RailSounds
sound system starts a realistic diesel shutdown sequence. A nine-volt alkaline battery is
required.
When you operate your locomotive in the TrainMaster Command Control environment, you
get full control of the RailSounds sound system. In addition to the horn and bell sounds, the
locomotive’s RPM sounds automatically rev up, but you can also set a particular RPM sound
using your CAB-1 Remote Controller. In the Command Control environment, the release of the
ElectroCouplers is accompanied by a coupler release sound. Use the BRAKE button, and listen
for the sound of squealing metal. You can also trigger CrewTalk communication and TowerCom
announcements, which simulate the interaction between the locomotive crew and the
yardmaster. Whenever you choose to shutdown your locomotive, the realistic shutdown sequence
commences. A nine-volt alkaline battery is required if track power is turnd off.
RailSounds sound system operations
Installing the battery
While the RailSounds sound system is powered through the track, we recommend that you
install a nine-volt alkaline battery to prevent the sound system from shutting down
during track power interruptions (for example, at a switch or a dirty section of track). Follow
these steps and refer to Figure 3 as you install the battery.
If the RailSounds sound system turns off during interruptions in track power, you
may need to replace the battery.
1. Carefully unsnap and remove the rear roof-top hatch.
2. Remove the protective cover from the battery harness.
3. Snap the battery harness onto the nine-volt alkaline battery’s terminals.
4. Slide the battery into the battery clip.
5. Replace the hatch.
10
Note!
Figure 3. Battery installation and volume control knob location
Radiator hatch
Battery harness
Battery holder
Volume control knob
Indice
Altri manuali Lionel Modello di treno
Lionel
Lionel 2545WS N&W Space-Freight Manuale utente
Lionel
Lionel H-7 Class 2-8-8-2 Manuale utente
Lionel
Lionel 2-8-2 Mikado Manuale utente
Lionel
Lionel QVC Soo Line Transportation O-27 Manuale utente
Lionel
Lionel USRA 0-8-0 Yard Goat Manuale utente
Lionel
Lionel GP-7 diesel locomotive Manuale utente
Lionel
Lionel NJ Transit Manuale utente
Lionel
Lionel 4-12-2 Manuale utente
Lionel
Lionel 267W O Gauge Flying Yankee Outfit Manuale utente
Lionel
Lionel Pennsylvania flyer Manuale utente
Lionel
Lionel Grand Central Express Manuale utente
Lionel
Lionel ALCo PA A-A Diesel Locomotive Set Manuale utente
Lionel
Lionel The Polar Express Streamliner Manuale utente
Lionel
Lionel Pepsi-Cola Manuale utente
Lionel
Lionel Cascade series Manuale utente
Lionel
Lionel Neiman Marcus Holiday Express Manuale utente
Lionel
Lionel Amtrak Manuale utente
Lionel
Lionel UPS Centennial Manuale utente
Lionel
Lionel Holiday Tradition Special Manuale utente
