Listen AmpConnect621 Manuale utente

PN: 8072 Rev 042622

AMPCONNECT 621 USER MANUAL

Rev 042622

AmpConnect 621TM Instruction Manual Contents i

Contents

Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Front Panel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Back Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Test Connections and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Microphone Array - Power Averaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Single Loudspeaker Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Two Loudspeaker Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Microphone Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Hardware and Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

SoundCheck Hardware Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Latency Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

AmpConnect 621 Hardware Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Listen Hardware Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SoundCheck Calibration Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Self Test Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Amplifier Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Microphone Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

AmpConnect 621 Message Step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

USB Control Via SoundCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

AmpConnect 621 Message Step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Digital I/O Message Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Digital I/O Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Digital I/O Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Digital I/O Write Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Digital I/O Read Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Contents

ii Contents AmpConnect 621TM Instruction Manual

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Equipment Ratings and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

CE Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Important Safety Precautions And Symbol Explanations . . . . . . . . . . . . . . . . . . . 43

Vigtige Sikkerhedsforskrifter Og Symbolforklaringer . . . . . . . . . . . . . . . . . . . . . . 45

Explications Importantes des Symboles et des Précautions de Sécurité . . . . . . 47

Wichtige Sicherheitsvorkehrungen und Symbol-erklärungen . . . . . . . . . . . . . . . 49

Información de Seguridad y Símbolos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Listen Software License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

AmpConnect 621™ Manual Limited Warranty iii

Limited Warranty

LISTEN, Inc., a Massachusetts Corporation, having its principal place of business at 580 Harrison Ave,

Suite 3W, Boston, MA 02118 (Manufacturer) warrants its AmpConnect 621TM products (the Products) as

follows:

1. Limited Warranty.

Manufacturer warrants that the Products sold hereunder will be free from defects in material and

workmanship for a period of one (1) year from the date of purchase. If the Products do not conform to this

Limited Warranty during the warranty period (as herein above specified), Buyer shall notify Manufacturer in

writing of the claimed defects and demonstrate to Manufacturer satisfaction that said defects are covered

by this Limited Warranty. If the defects are properly reported to Manufacturer within the warranty period,

and the defects are of such type and nature as to be covered by this warranty, Manufacturer shall, at its own

expense, furnish, replacement Products or, at Manufacturer's option, replacement parts for the defective

Products. Shipping of the replacement Products or replacement parts shall be at Buyer's expense.

2. Other Limits.

THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT

NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Manufacturer does not warrant against damages or defects arising out of

improper or abnormal use of handling of the Products; against defects or damages arising from improper

installation (where installation is by persons other than Manufacturer), against defects in products or

components not manufactured by Manufacturer, or against damages resulting from such non-Manufacturer

made products or components. Manufacturer passes on to Buyer the warranty it received (if any) from the

maker thereof of such non-Manufacturer made products or components. This warranty also does not apply

to Products upon which repairs have been effected or attempted by persons other than pursuant to written

authorization by Manufacturer.

3. Exclusive Obligation.

THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Manufacturer shall be to repair or

replace the defective Products in the manner and for the period provided above. Manufacturer shall not

have any other obligation with respect to the Products or any part thereof, whether based on contract, tort,

strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise,

shall Manufacturer be liable for incidental, special, or consequential damages.

4. Other Statements.

Manufacturer's employees or representatives' ORAL OR OTHER WRITTEN STATEMENTS DO NOT

CONSTITUTE WARRANTIES, shall not be relied upon by Buyer, and are not a part of the contract for sale

or this limited warranty.

5. Entire Obligation.

This Limited Warranty states the entire obligation of Manufacturer with respect to the Products. If any part

of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and

effect.

iv Limited Warranty AmpConnect 621™ Manual

page intentionally left blank

AmpConnect 621™ Manual Product Overview 1

Product Overview

AmpConnect 621™ simplifies your multichannel audio test in a single USB-connected unit. With sample

rates up to 192kHz, it is ideal for the measurement of high resolution audio devices.

6 inputs with independent control of microphone power for each channel

2 Line Outputs

Single amplifier output with switchable binding posts

Unique high accuracy impedance measurement independent of your input channels

Digital I/O

Plug-and-play setup with SoundCheck and TEDS support

Error-free operation with all control via SoundCheck - no buttons!

Clear visual level indications on front panel

Excellent ground loop immunity compared to discrete components

Rugged and rack-mountable for demanding production environments

2 Product Overview AmpConnect 621™ Manual

Front Panel Indicators

AmpConnect 621 must be connected to a computer running SoundCheck as all control and audio interface

functions are made via the USB 2.0 (minimum) connection.

When Inputs 1 through 6 are routed to the internal audio interface channels the front panel level indicators

show the signal state at those inputs. This gives you a visual indication to show if the input is overloaded or

underloaded (low signal level that is too close to the noise floor of the system).

See AmpConnect 621 Message Step on page 21. Also see Max FSD In in the SoundCheck manual.

Back Panel Connections

Saved State: The state of AmpConnect 621 is saved every 30 seconds. This allows the device to power on

in it's last used state. Note that this will be overwritten by Hardware Startup Defaults set in the System

Hardware.

AmpConnect 621™

Power

Input Levels Output Levels Amplifier

Output Enabled Level

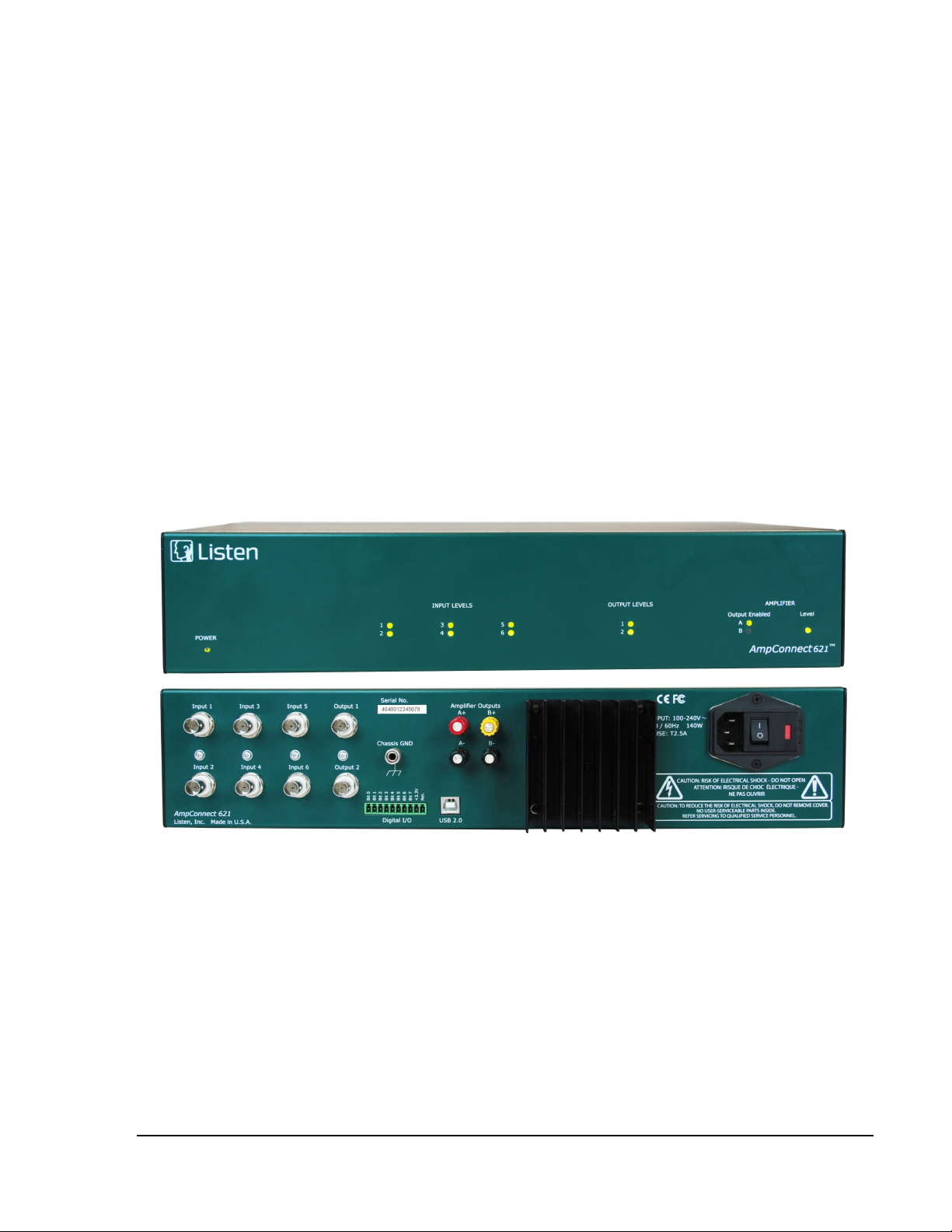

Figure 1-1: Front Panel Level - Monitors the peak signal level and state of the amplifier output (All

values are nominal)

• Green indicates amplifier output level is >45 mVrms

• Yellow indicates amplifier output level is >13Vrms

Error Indicator - A blinking red Level LED indicates that the amplifier has

shut off due to an over-temperature or over-current event. The unit needs to

be power-cycled to clear the error state.

Input and Output Levels

• Indicator turns Green when level is > -50 dBFS

• Indicator turns Yellow when level is -6 dBFS

• Indicator turns Red when level is -1 dBFS

Output Enabled

• Shows the status of the back panel amp

binding posts

• Green indicates active

A+

A-

B+

B-

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO

USER-SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL .

Input 1

Input 2

Digital I/O

Input: 110-240V~

50 /60Hz 200W

Fuse: T2.5A

Bit 0

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

+3.3V

Ret.

Amplifier Output

Chassis GND

AmpConnect 621™

Listen, Inc. Made in U.S.A.

Serial No.

USB 2.0

Input 3

Input 4

Input 5

Input 6

Output 1

Output 2

CAUTION: RISK OF ELECTRICAL SHOCK – DO NOT OPEN

ATTENTION: RISQUE DE CHOC ÉLECTRIQUE –

NE PAS OUFRIR

Figure 1-2: Back Panel

Inputs

• Six Inputs,

Single Ended

BNC connectors

Outputs

• Two Outputs,

Single Ended

BNC connectors

Amplifier

• Mono power amp can be switched

to either Output A, Output B,

A and B or Toggle Outputs

Digital I/O

• send or receive signals with external devices

• See Digital I/O Operation on page 27

AmpConnect 621™ Manual Installation 3

Installation

Requirements

SoundCheck 18.1 (or later) is required in order to control AmpConnect 621™ via USB

The SoundCheck computer must have an available USB 2.0 connection

Note: It is recommended that AmpConnect 621 be mounted in a ventilated rack mount enclosure for

proper cooling.

USB Connections

AmpConnect 621 should be connected directly to the SoundCheck host computer USB Port. High quality,

powered USB 3 and USB-C hubs may work but should be tested for stability with AmpConnect 621. The

use of USB 2 hubs should be avoided.

Physical Installation

Power Requirements:

100-240 VAC, 50 or 60 Hz, 140W

Fuse: Requires 2: T2.0A, 250V 5x20 mm Time Lag glass fuses. Suggested replacement: Eaton/

Bussman BK/S506-2.0-R

Connecting AmpConnect 621 to the AC mains supply

AmpConnect 621 must be connected to a 50 or 60 Hz AC mains supply, with an operating voltage within

100 to 240 Vrms. The mains supply is connected to your AmpConnect 621 via the power entry module

located on the back panel. A 3-wire grounded power cord is supplied.

Ground the Instrument

Install SoundCheck first!

Before connecting AmpConnect 621 with the provided USB cable to the SoundCheck host computer,

SoundCheck must be installed. The AmpConnect 621 ASIO driver installation is part of the SoundCheck

software install process.

Windows will indicate that new hardware has been found, which shows that the driver has been

successfully installed. This may be displayed as “AmpConnect 621” or as “New HID Device”.

Caution! Airflow around the heat sink must remain unobstructed during use. DO NOT install

AmpConnect 621 inside an enclosure without a ventilation fan. When installed in a

rack, AmpConnect 621 units should not be installed on top of each other. Leave

airspace for cooling.

Warning! A grounding-type power plug is included with AmpConnect 621. The chassis and

cover must be connected to an electrical ground to minimize shock hazard. The

ground pin must be firmly connected to an electrical ground (safety ground) terminal

at the power outlet. Any interruption of the protective (grounding) conductor or

disconnection of the protective earth terminal will cause a potential shock hazard

that could result in personal injury.

4 Installation AmpConnect 621™ Manual

System Settings

The following settings are recommended to prevent Windows system sounds from inadvertently playing

through a device under test or artificial mouth. A transducer could be damaged by loud system sounds.

Windows Audio Devices

Note: For more information on computer system setup please refer to the main

SoundCheck instruction manual.

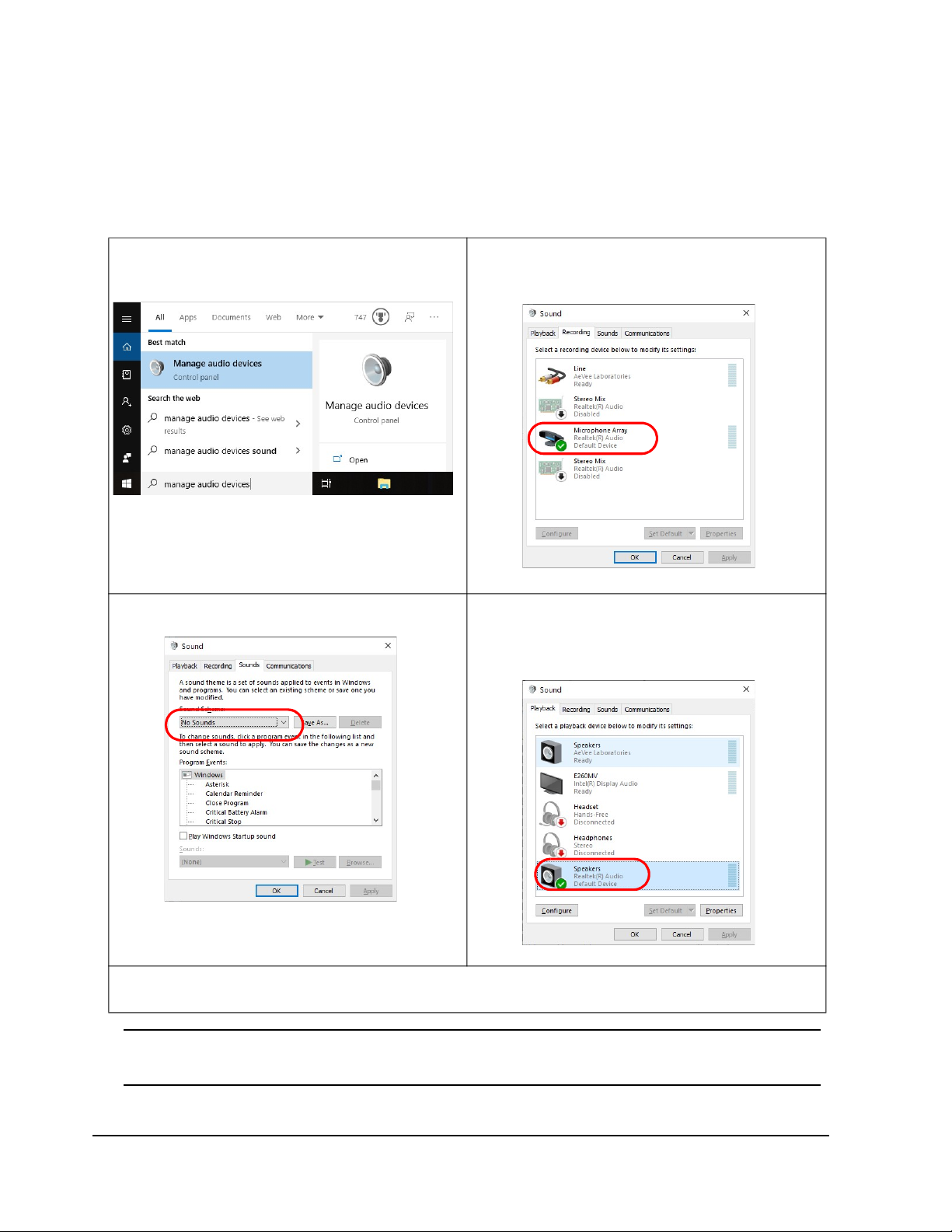

1. Click Start and type “Manage Audio Devices” in

the search bar and select Manage Audio Devices

3. Select the Recording tab and set the default record-

ing device to the motherboard sound card or any other

device that is not part of the measurement system

2. Click the Sounds tab and set the Sound Scheme to

No Sounds

4. Select the Playback tab and set the default

Windows playback device to the motherboard

audio interface or any other device that is not part

of the measurement system

5. Click OK and close the remaining Control Panel windows

Indice

Altri manuali Listen Apparecchiature di prova

Listen

Listen AmpConnect ISC Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
