Setting up the transmitter
1
2
3

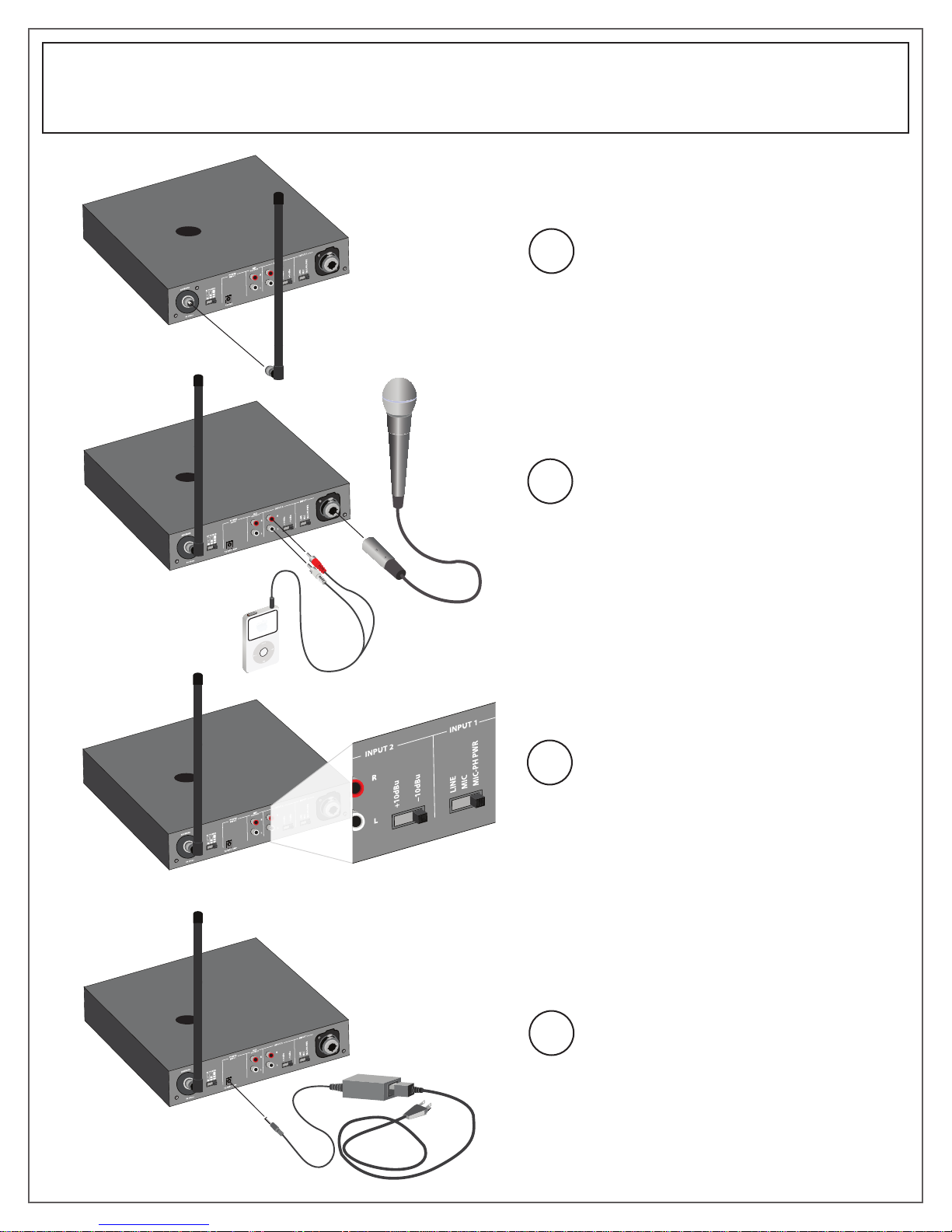

Connect AC power to the unit.
Plug audio source into back of the
transmitter.
The LT-803-072 accepts a balanced
XLR or 1/4” (TRS), an unbalanced pair of
RCA (phono) connectors or both.
Set input switches to match input gain.
Input 1 accepts either a line, mic, or mic
with phantom power. Input 2 can be
adjusted to match the audio level
coming in (-10 dBU or + 10 dBU).
Plug antenna into back of the transmitter.
4
LP-3CV-072 Package Contents
1 LT-803-072 Stationary 3-Channel FM Transmitter
1 LA-207 12 VDC Power Supply and Line Cord
1 LA-123 90° Helical Antenna (72 MHz)
4 LR-200-072 Standard 3-Channel FM Receiver
4 LA-161 Single Ear Bud
1 LA-304 Assistive Listening Notication Signage Kit
72
72
72
STANDARD RECEIVER
Alkaline
Battery Select
Channel Select
NiMH
Alkaline
Battery Select
Channel Select
NiMH
Setting up the receivers
Adjusting the transmitter
5 6 8
For further details regarding advanced options for your Listen products
please visit our website at www.listentech.com Resources/Support/Manuals.
11
12
9
7

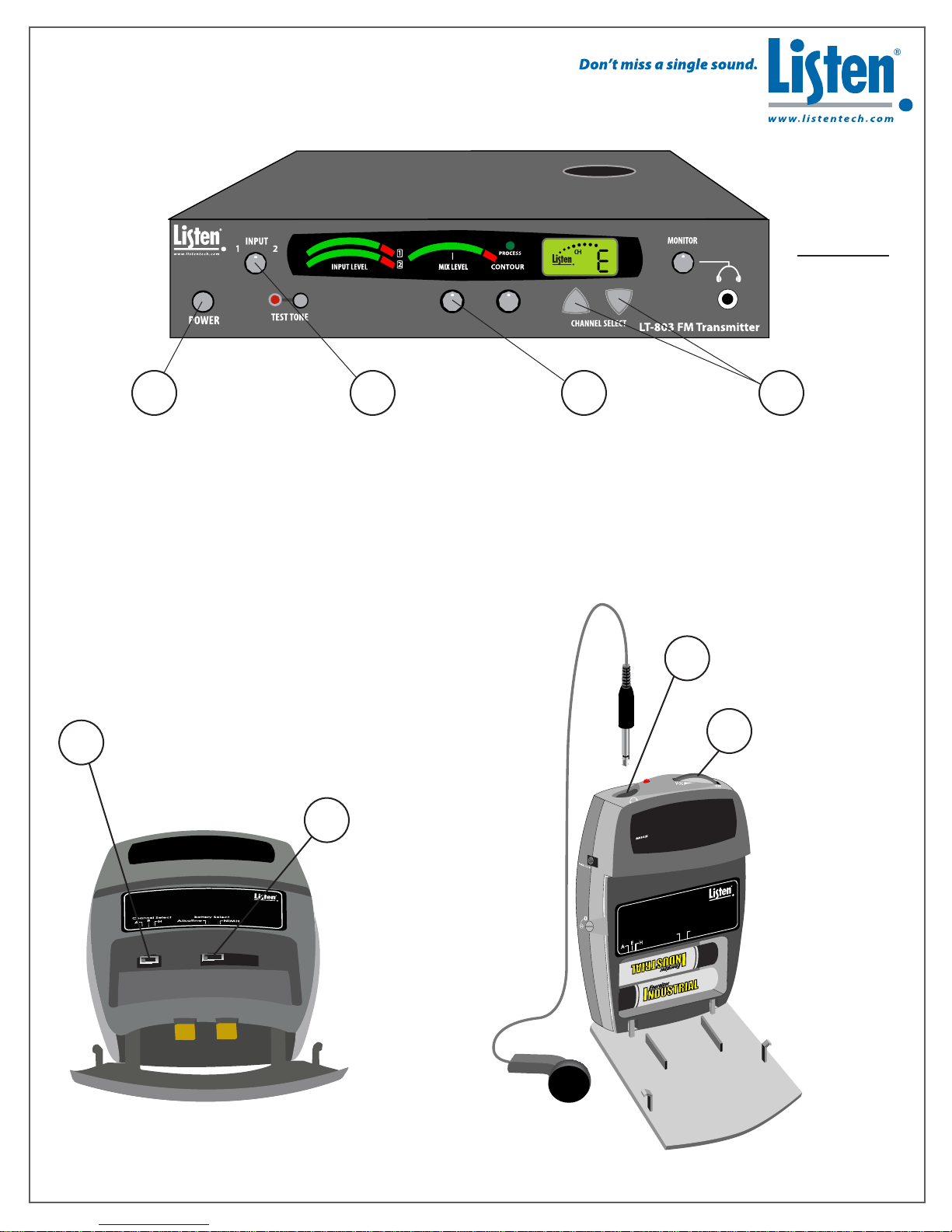

Press power button
to turn unit “ON”.
Turn to adjust the audio
level of input 1,2 or both.
Turn to adjust the
“Mix Level”.
Push the channel up/down
buttons to select a channel for
use. Press and hold channel
up button for 3 seconds to lock
on/off channel. Press and hold
the down button for 10 seconds
to activate program mode. To
toggle process on and off while
in program mode, press up.
Set receiver channel switch.
Transmitter and receiver must
be on the same channel.
Turn wheel to power
unit and adjust
receiver volume.
Plug the LA-161 earphone
into the receiver jack.
Frequencies
A= 72.1 MHz
E= 72.9 MHz
H= 75.9 MHz
10 Insert Batteries.
Requires two (2)
Alkaline or NiMH
batteries. Set battery
select switch to
appropriate battery type.
Listen Technologies Corporation
14912 Heritagecrest Way
Bluffdale, Utah 84065-4818, U.S.A.
+1.801.233.8992
+1.800.330.0891 North America
+1.801.233.8995 fax
www.listentech.com
© 2008 Listen Technologies Corporation®All Rights Reserved 040408
