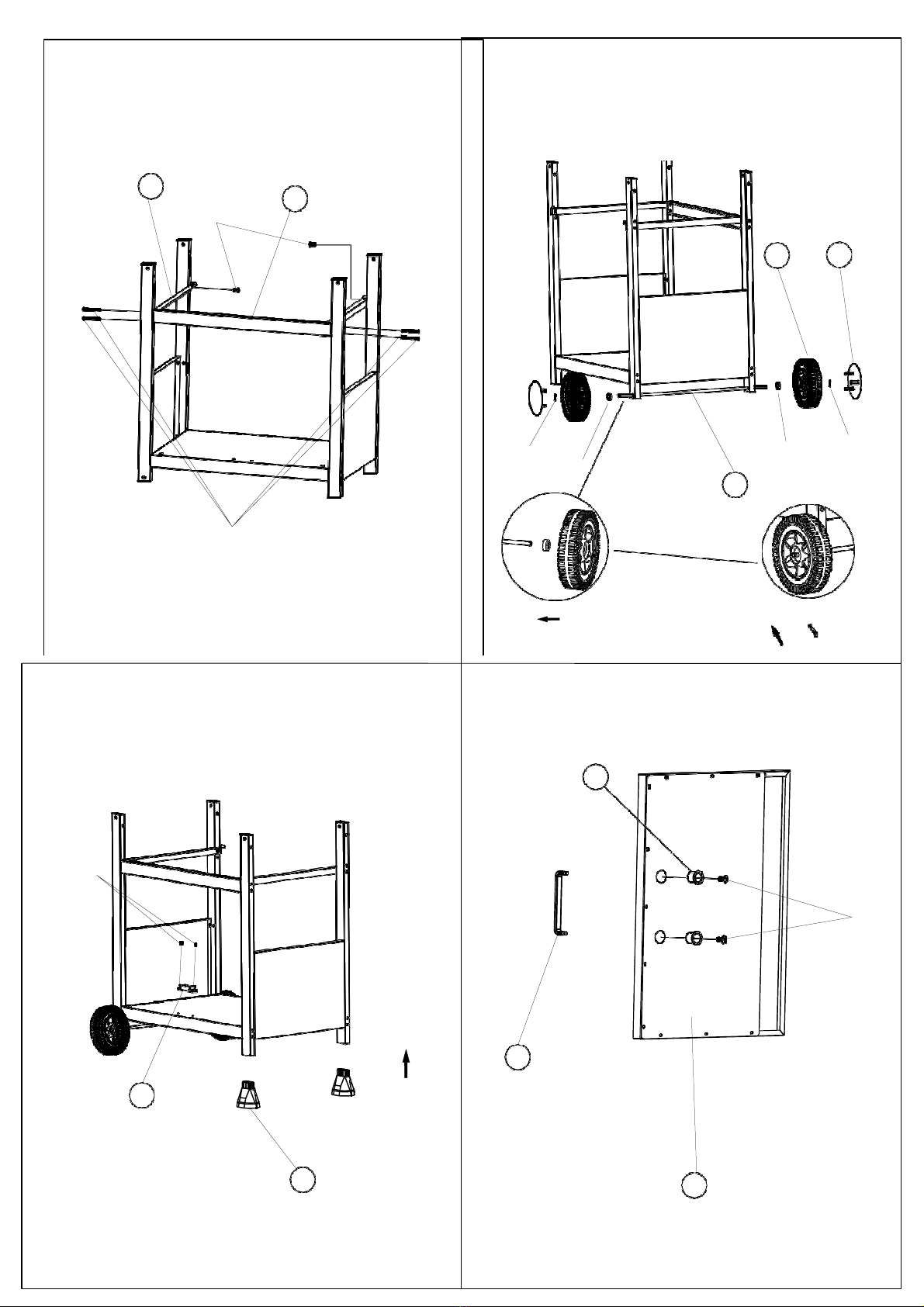

Assembly instructions

1. B M5*12 4PCS 2. B M5*12 4PCS

10 11 9 8

B B

3. A M5*55 4PCS 4. A M5*55 4PCS

Fix the left front leg and left back leg to the

left board

with 4pcs M5*12

Fix the right front leg and right back leg to the

right board with 4pcs M5*12

Connect the bottom board and the side trolley

parts

Connect the bottom board and the side trolley

parts

B M5*12 2PCS

A M5*55 4PCS

D 2PCS

E 2PCS

12 21

24 25

E D E

7. F M4*12 2PCS 8. C M4*8 4PCS

23 14

Install the wheel

Attach the door handle to the door

Attach the beams to the legs

9. 10. B M5*12 4PCS

A M5*55 4PCS

11. 12. B M5*12 20PCS

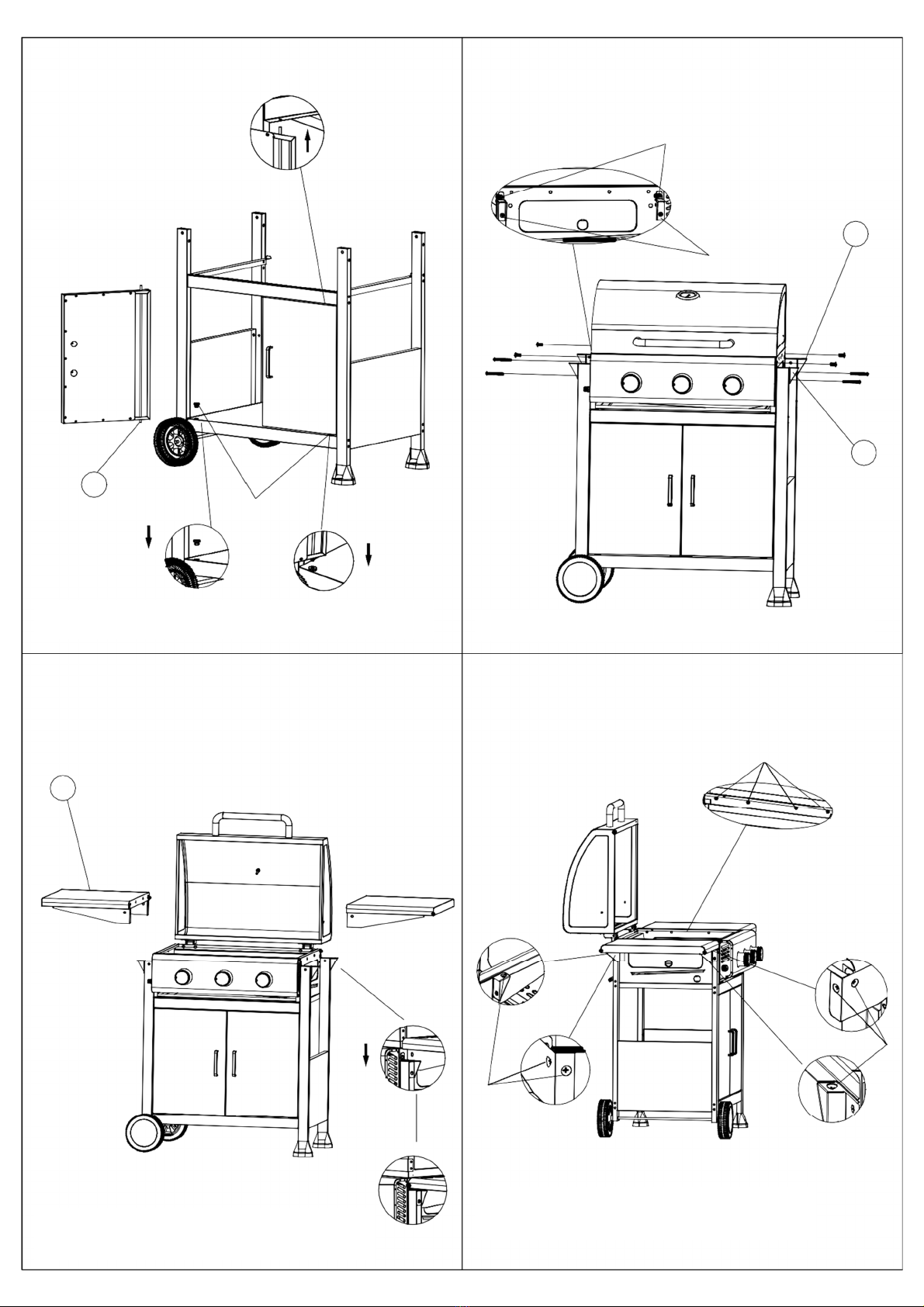

Install the door

Install the

firebox on trolley

Install the side tables

Fix the side tables

13. 14.

15. 16.

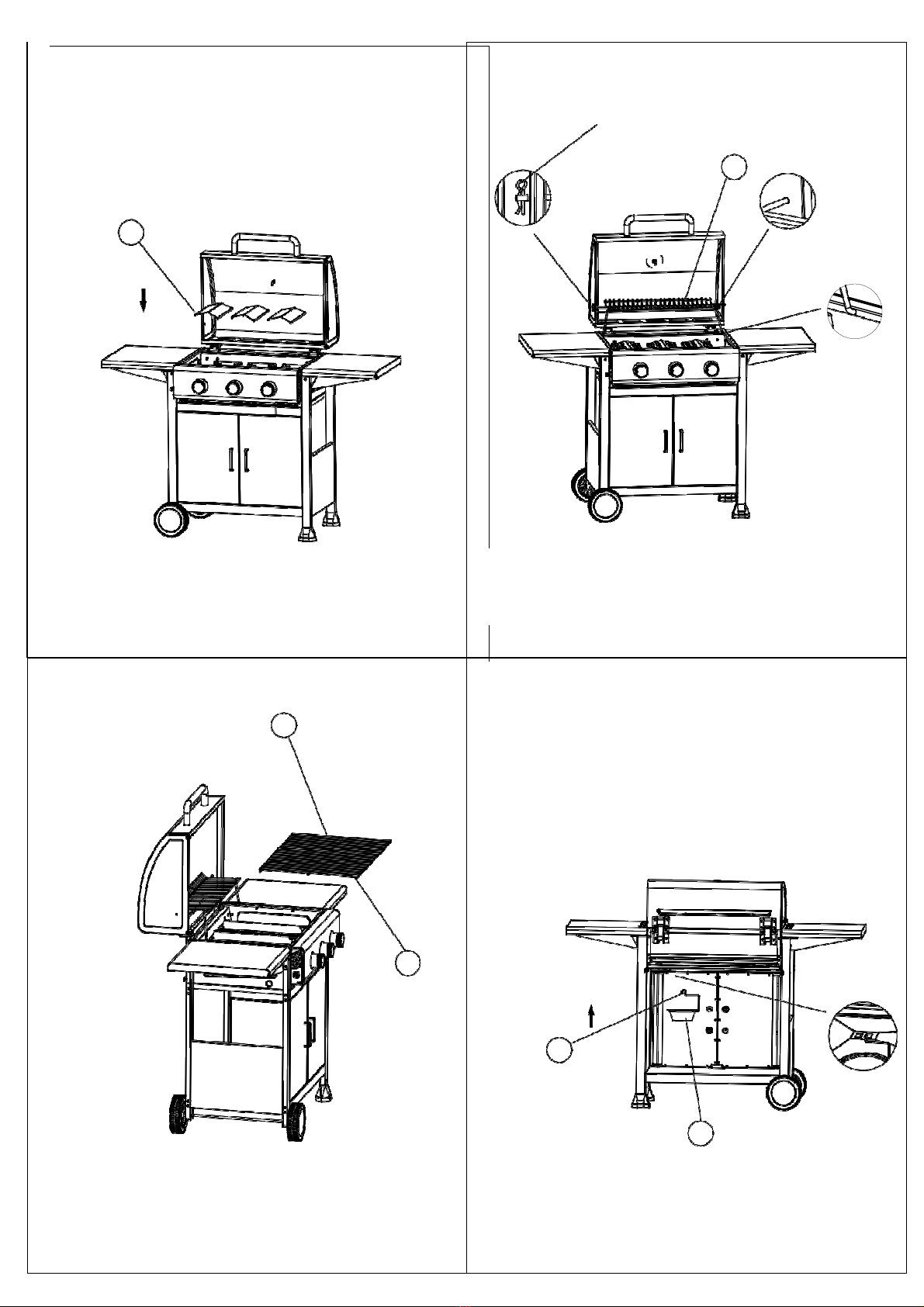

Place the flame tamers into the trolley.

Place the warming rack onto the trolley

make sure the warming rack is flat and

stable.

Place the cooking grills into the trolley. Attach the grease cup to the grease tray.

The grease cup needs to be under the

grease drip hole.

17. 18.

Instruction Manual

WWW.LIVOO.FR

Reference : DOC279

Version : 1.5

Language : nglish

Plancha gaz station 3

burners

Instruction Manual

You have purchased a product LIVOO brand and we thank you. We take great care in design, ergonomics

and ease of use of our products. We hope that this product will give you complete satisfaction.

This instruction manual is also available on our website www.livoo.fr

Model.

DOC27

CS Number

CS 117884

Description:

Plancha gaz station 3 burners

Max power

9kW

( 654g/h)

2575-21

Pin: 2575DM30340

Category of gaz : I

3+(28-30/37)

3B/P(30)

3B/P(50)

3B/P(37)

Types of gas : Butane

(654g/h)

Propane

(642g/h)

LPG GAS MIXTURES (654 g/h)

Gas pressure :

30 mbar

37 mbar

30 mbar

50mbar

mbar

Injector size :

6 mm

Injector mark :

0.86

0.76

0.82

Number and code

20211125

Year

2021

To be used only outside the premises

This appliance must be installed in accordance with current regulations and used in a well-

ventilated area

Consult the instructions before use

Caution: accessible parts can be very hot, keep away from young children

This appliance must be kept away from flammable materials during use

Do not move the appliance during use

Close the gas container valve after use. Do not modify the appliance

D STINATION LAND

3+(28-30/37)

：

BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI.

3B/P(30)

：

BE, CY, DK, EE, FI,FR, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT.

3B/P(50)

：

AT, CH, DE, SK

Instruction Manual

General Safety Instructions

1. PL AS R AD TH FOLLOWING INSTRUCTIONS CAR FULLY

B FOR USING TH APPLIANC AND K P TH M FOR

FUTUR

2. C UTION: This appliance will become very hot. Do

not move it during use.

3. Do not move the unit while in use.

4. C UTION: Do not leave the appliance within the

reach of children and pets.

5. Never leave the appliance unattended during use.

6. Do not allow children to use or play with the appliance.

7. Use the appliance only for its intended purpose.

8. W RNING! Do not use in closed or confined spaces.

Make sure it is placed in a well ventilated area.

9. The appliance is intended for outdoor use only and in

accordance with local regulations.

10. Incorrect use or action and non-compliance with the safety

instructions in this manual can result in serious injury or

3B/P(37)

：

DELTA - BP61071 - 67452 Mundolsheim - FRANCE

Instruction Manual

death.

11. Incorrect use or action and failure to observe the safety

instructions in this manual may result in fire or explosion,

causing serious material damage.

12. Carry out a leak test every year and whenever the gas

cylinder is changed or disconnected. Check that the gas

hose connections are tight and in good condition.

13. The appliance must be installed on a flat, level, stable and

heat-resistant surface or floor before and during use.

14. Do not obstruct the ventilation openings of the

barbecue/plancha.

15. Do not use near flammable materials or substances. Do not

store unplugged gas cylinders or aerosol cans near this

appliance. Do not use within 1.5 metres of combustible

material.

16. No ignition products should be used with this appliance.

17. Do not lean over the appliance during lighting or cooking.

18. This appliance is for private use only. Do not use at events

or in public places.

19. Do not modify the appliance. This gas grill must be

assembled according to the assembly instructions provided.

If the appliance has been assembled in a shop, make sure

that the assembly has been carried out correctly and carry

out a leak test before using the grill. Incorrect assembly of

the appliance can be dangerous.

20. Do not use the barbecue/plancha in strong winds.

21. Do not use the barbecue/plancha if all parts are not in place.
