ZONE VIBE 125

Setup Guide

Guide d'installation

CONTENTS

English . . . . . . . . . . . . . . . . .3

Français . . . . . . . . . . . . . . . 12

Español . . . . . . . . . . . . . . . . 21

Português . . . . . . . . . . . . . . 30

KNOW YOUR PRODUCT

Front view:

Back view:

Microphone boom

Music controlbutton

(play/ pause/

nexttrack)

USB-A receiver

Call button

(answer/end/ reject calls)

Volume up/ down

3English

Bottom view:

3-position switch

(power/Bluetooth®

pairing)

Mute button

USB-C port

LED light

4English

USB-A USB-C

USB-CUSB-A

BOX CONTENT

1. Zone Vibe 125 wireless headphones

2. Charging cable

3. USB-A receiver

4. USB-C adapter

5. Travel bag

6. User documentation

POWER ON/OFF

1. Slide the switch in the arrow’s direction

tothemiddle to power on the headphones.

2. Once powered on, the LED light will slightly

turnwhite.

3. There will be a voice prompt that tells you

thebattery status.

5English

CONNECT YOUR HEADPHONES

a. Connect via USB-A receiver

1. Insert the receiver into the computer USB-A port.

Or insert the USB-A receiver with the USB-C

adapter to the USB-C port.

2. Zone Vibe 125 is already paired to the receiver

itships with.

3. Once successfully paired, the LED light on

thereceiver will turn solid white.

b. Connect via BLUETOOTH®

1. Slide the switch to the bottom in the arrow’s

direction for 2 seconds to initiate pairing.

2. The LED light will ash white rapidly.

3. Open Bluetooth®settings on your device.

4. Select Logi Zone Vibe 125 in discoverable devices.

5. Once successfully paired, the LED light will turn

solid white.

LOGI Zone

Vibe 125

2 sec.

USB-A

USB-C

ADJUSTING HEADPHONES

1. Adjust the headphones by sliding earcups up

anddown the extended part of the headband.

2. It may be easier to adjust the headphones on

your head. Slide the earcups up and down the

headband until they sit comfortably on your ears.

6English

L L L

HEADPHONES CONTROLS

Note:

- Media control functionality depends on the type of application.

- Call activities are always the rst priority. When two devices are connected, the Bluetooth®

connection will be prioritized over the receiver.

Tip: Music EQ controls available on Logi Tune.

UC version:

Usage Button Action

Call controls Answer / End call Call button Short press

Reject call 2 sec. press

Music controls Play / Pause Music control button Short press

Track forward Double press

Volume Volume up "+" Short press

Volume down "-"

Connectivity Bluetooth®pairing Power button 2 sec. press

Voice notications indicate

when the microphone is on/

o mute.

Mute

"Mute on"

"Mute o"

MUTE

There are 2 ways to mute your microphone.

Press the button to mute. Flip up or down the mic

boom to mute or unmute.

7English

HEADPHONES LIGHT INDICATOR

RECEIVER LIGHT INDICATOR

Note:

- User-triggered behaviors, such as Bluetooth®pairing or link lost, will be prioritized then revert back to its previous status

once the behavior is completed.

Category Status Light

White

Power

Power ON Turn solid white and then dim

Battery charging Breathing

Battery fully charged Solid

Connectivity

Bluetooth®pairing Fast blinking

Bluetooth®/ receiver connected Turn solid white and then dim

Link lost Dim white

Calls Active call Solid

Incoming call Slow blinking

Red Calls Mute Solid

Power Low battery (< 10%) Slow blinking

Factory reset Fast blink from red to white for

three times then LED turn o

Category Status Light

White

Connectivity

Pairing Fast blinking

Receiver connecting O

Receiver connected Solid

Receiver disconnected O

Calls

Active call Solid

Incoming call Repeat "fast blinking 3 times then

LED o"

Red Calls Mute Solid

Pairing mode

Paired

Incoming call

Mute on

8English

CHARGING

To conserve battery life, headphones automatically

power o after 30 minutes without usage.

Sleep timer could be adjusted in Logi Tune.

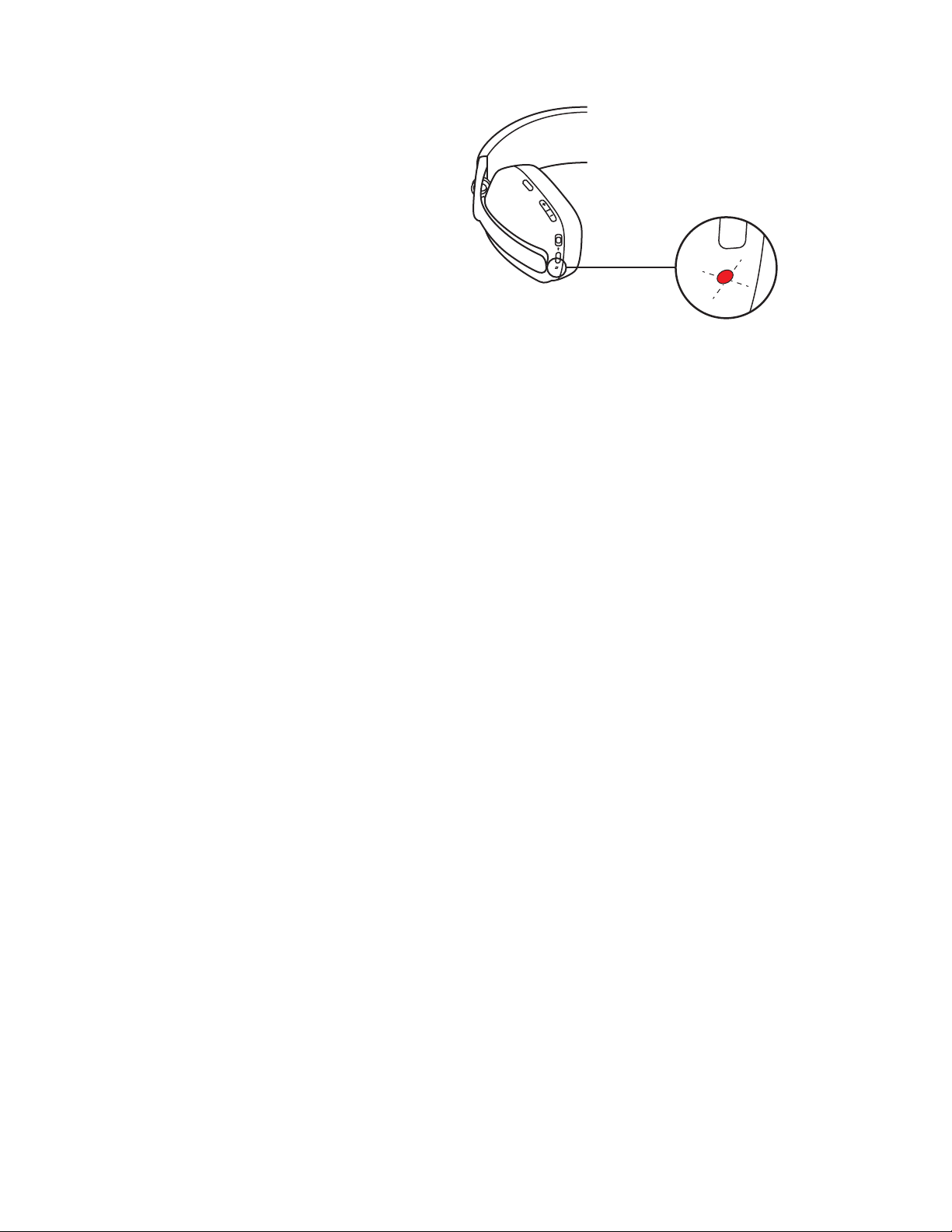

The LED light on the headphones will blink slowly

inRED when the battery is low.

Charging via USB cable

1. Plug the USB-C cable end into the USB-C port on

thebottom of the earcup.

2. Plug the USB-A end into the USB-A charging port on

your computer or AC adapter.

3. The LED light will start breathing white when charging.

4. The LED light will turn solid white when fully charged.

–2 hours will fully charge the battery.

– 5 minutes will give you 1 hour of playback.

Battery life may vary based on user, environment,

andcomputing conditions.

5. The headphones can be used with the receiver

andBluetooth®paired while charging.

LOGI TUNE

Logi Tune helps boost your headphones performance

withperiodic software and rmware updates.

It is recommended to update both your headphones

and receiver. To do so, download Logi Tune from

www.logitech.com/tune

9English

ADJUSTING SIDETONE

Sidetone lets you hear your own voice during conversations

so you are aware of how loud youaretalking. In Logi Tune,

select the sidetone feature, andadjust the dial accordingly.

 A higher number means you hear more external sound.

 A lower number means you hear less external sound.

AUTO SLEEP TIMER

By default, your headphones will automatically power o

when not in use for 30 minutes. Adjust the sleep timer in

Logi Tune. To wake up your headphones, try sliding o/on

the power switch again.

RESET YOUR HEADPHONES

1. Power the headphones on.

2. Press and hold the call button and volume ’–’ button

for5seconds.

3. The LED light will quickly blink from red to white

for3timesand then turns o when your headphones

aresuccessfully reset.

4. The headphones will turn o after reset.
