Logitech A50 X Manuale utente

A50 X

Wireless Headset

SETUP GUIDE

ENGLISH . . . . . . . . . . . 3

DEUTSCH . . . . . . . . . . 26

FRANÇAIS. . . . . . . . . . 49

ITALIANO . . . . . . . . . . 72

ESPAÑOL . . . . . . . . . . 95

PORTUGUÊS . . . . . . . . 118

NEDERLANDS . . . . . . . 141

SVENSKA . . . . . . . . . . 164

DANSK. . . . . . . . . . . .187

NORSK . . . . . . . . . . . 210

SUOMI. . . . . . . . . . . .233

ΕΛΛΗΝΙΚΆ . . . . . . . . . .256

ПО-РУССКИ . . . . . . . . .279

PO POLSKU. . . . . . . . 302

MAGYAR. . . . . . . . . . .325

ČESKÁ VERZE. . . . . . . 348

SLOVENČINA . . . . . . . . 371

УКРАЇНСЬКА . . . . . . . . .394

EESTI. . . . . . . . . . . . .417

LATVISKI. . . . . . . . . . 440

LIETUVIŲ . . . . . . . . . 463

БЪЛГАРСКИ . . . . . . . . 486

HRVATSKI . . . . . . . . . 509

SRPSKI. . . . . . . . . . . .532

SLOVENŠČINA . . . . . . .555

ROMÂNĂ . . . . . . . . . .578

TÜRKÇE . . . . . . . . . . . 601

624. . . . . . . . . . . . . ةيبرعلا

647 . . . . . . . . . . . . .תירבע

3ENGLISH

WHAT’S IN THE BOX

• A50 X Wireless Headset

• A50 X HDMI Base Station

• 1x USB-C to USB-A Cables

• 1x USB-C to Dual USB Combo (Y) Cable

• 1x USB-C Power Adapter and Plug Head

• Dolby Atmos Info Card

4ENGLISH

Additional Items (not included) that may be needed:

• HDMI cables are not included with A50 X.

• A minimum of 2 HDMI cables and 1 USB cable are needed

to connect one game console with the A50 X to the TV.

• A50 X supports HDMI connectivity with 2 game consoles,

doing so requires 3 HDMI cables, you may have received

1 HDMI cable from each console at time of purchase.

2 USB-A to USB-C cables are also needed.

• For optimal video performance and passthrough

ofHDMI2.1 features such as Variable Refresh Rate,

make sure all HDMI cables used are certied for

HDMI 2.1 Ultra High Speed and/or rated for 48Gbps.

5ENGLISH

PRODUCT OVERVIEW

1 Flip-to-Mute Boom

2 Magnetic Ear Cushions

3 Power Switch and LED indicator

4 PLAYSYNC button

5 Bluetooth Button

6 Game/Voice Balancer

7 Volume Control

8 USB-C port

HEADSET

6ENGLISH

1 Headset Battery Indicator

2 Bluetooth Indicator

3 3 Systems Indicator

HDMI BASE STATION

FRONT

REAR

PSXBOX HDMI OUT

4 Inputs for XBOX

5 Inputs for PlayStation

6 Output to 4K TV

7 Input for PC and 5v Power Supply

7ENGLISH

1 To Power Adapter

2 To PC - USB Audio

3 To Base Station

1 To Base Station USB

2 To Game Console

1 5v DC Power Out

USB COMBO Y CABLE

USBC TO A CABLE

POWER ADAPTER

8ENGLISH

Rule the game with A50 X, the ultimate console gaming headset. Connect to XBOX Series X|S, PS5, and PC simultaneously

and easily switch between all three right from the headset. PRO-G GRAPHENE audio drivers achieve unprecedented clarity

and response. Pro-grade LIGHTSPEED enables the highest levels of wireless audio performance. HDMI 2.1 passthrough

delivers 24 bit audio and 4K 120 Hz for high performance console gaming.

GETTING STARTED

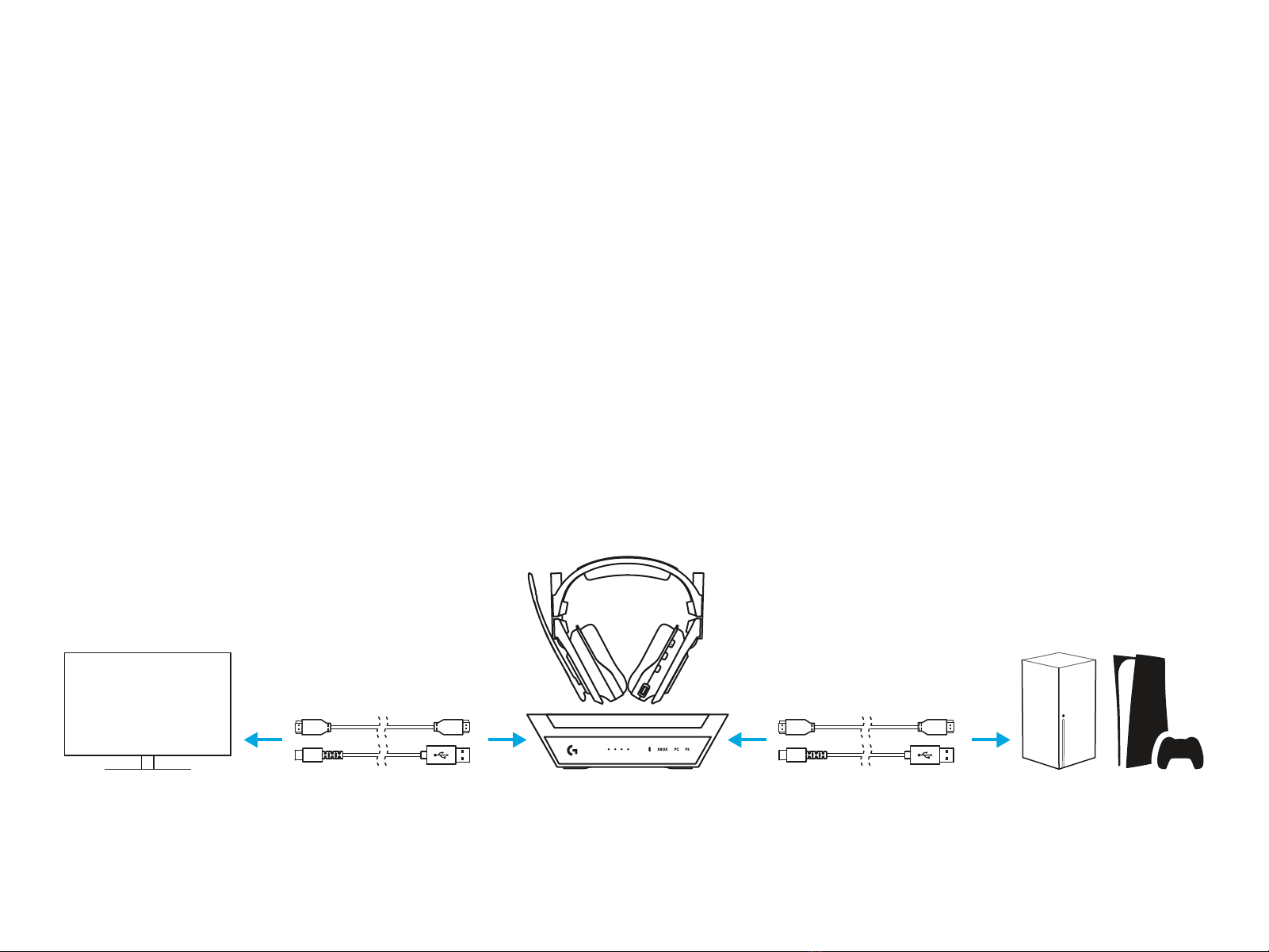

CONSOLES: For the best experience, the recommended setup method uses both HDMI and USB connectivity.

TheA50Xsits between your console and the TV/Display; one HDMI and one USB cable are needed to connect

theA50XBase Station to a Game Console. Then another HDMI cable is needed to connect the Base Station to your TV.

• When using HDMI and USB cables, Audio and Voice Chat mix is adjustable using the Game/Voice Balancer controls on

the headset, for both XBOX and PlayStation consoles. Make sure both HDMI and USB cables are plugged into the same

group of ports for each platform. See section 3.7 for more details about A50 X HDMI capabilities.

3.1 SETUP RECOMMENDATIONS

9ENGLISH

For PC - The A50 X connects with a Windows machine using USB-Audio with multiple USB-Audio endpoints. This allows you

to route media audio to a primary endpoint and voice chat apps to another endpoint, allowing you to balance the Game/

Voice audio mix on–the-y with headset controls.

About Bluetooth Audio - The A50 X features a Bluetooth receiver integrated in the Base Station. This allows you to connect

a secondary device such as a smartphone or tablet for music and calls. The A50 X headset needs to be within range of

theBase Station for all audio playback, including Bluetooth. The Bluetooth feature will not be available if the headset is out

of range of the Base Station. Bluetooth volume can be adjusted directly from the Bluetooth source device. For more info,

please see section 4.5 for details on connecting Bluetooth.

The A50 X also features a StreamPort, this allows you to send (stream) a mix of audio signals that you hear on your headset

to another application (for recording or broadcasting). By using Logitech G soware G HUB, you can also include/exclude/

adjust each audio signal independently.

Device USB-Audio Type Descriptor Stereo / Mono Max Bit / Sample Rate

Playback/Output Headphones A50 X Game Stereo 24bit / 48kHz

Playback/Output Headset Earphone A50 X Voice Stereo 16bit / 48kHz

Recording/Input Headset Microphone A50 X Voice Mono 16bit / 48kHz

Recording/Input Line A50 X StreamPort Stereo 16bit / 48kHz

10ENGLISH

1 Insert an HDMI Cable (not included) from the Base Station

HDMI Out to your TV’s HDMI input.

• To use features or experience performance available

with HDMI 2.1, the TV, HDMI Cable, and source system

must all be rated for HDMI 2.1. While using alower

spec HDMI cable will not block video and audio

signals, it will downgrade your experience. Please use

connections that match your equipment capabilities.

• For optimal experience and compatibility, it is NOT

recommended to connect the A50 X to an HDMI

switch, signal repeater, Audio/Video Receivers,

orSound Bars. Please connect A50 X directly to

aconsole and the TV.

• If you are using a soundbar or external speakers with

your TV’s HDMI ARC/eARC port, it is recommended

to connect the A50 X Base Station to another

HDMI 2.1 input.

3.2 CONNECTING TO TV AND POWER

PSXBOX HDMI OUT
