Package contents and dimensions

• 4K Ultra HD Security DVR

• Power adapter

• Ethernet cable

• USB mouse

• HDMI cable

12.6” / 320mm

10” / 254mm

2.3”

57mm

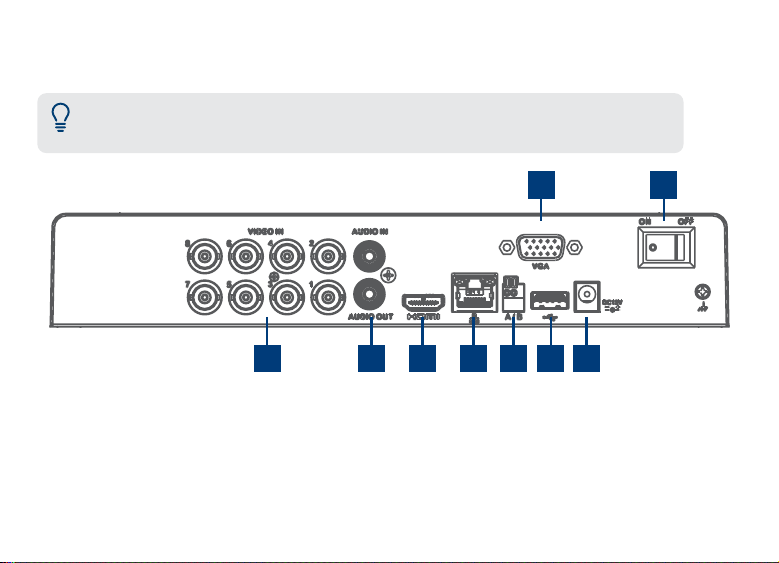

Back panel overview

1 2 3

6 9

754 8

1. Video Inputs: Connect cameras*

2. Audio In/Out: Connect microphone/speaker*

3. HDMI port: Connect monitor*

4. LAN Port: Connect router*

5. RS-485: Connect Pan-Tilt-Zoom cameras*

Note:

The 8 channel DVR recorder in this guide is for illustration only. Your recorder may appear

different, with all the same ports in different locations.

*Not included/sold separately.

6. VGA Port: Connect monitor*

7. USB Port: Connect mouse or USB stick*

8. Power Port: Connect power

9. Power Switch: Power on/off

BNC connector Video input

Power adapter

Setup step 1 — Connect cameras

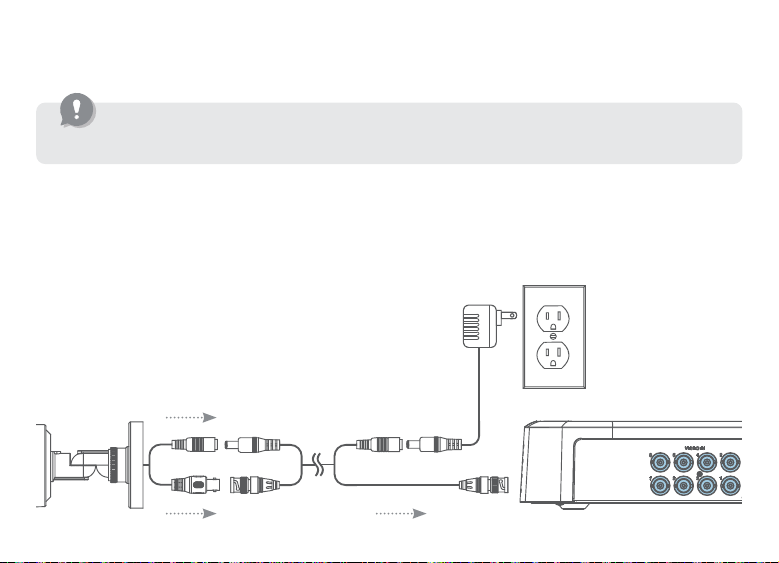

To connect cameras directly to the DVR:

1. Connect the extension cable’s male power head and BNC connector to the camera.

2. Then connect the other end of the BNC connector to a video input on your DVR.

3. Connect the female power head to the included power adapter.

IMPORTANT: Test your cameras prior to selecting a permanent mounting location by

temporarily connecting the cameras and cables to your DVR.

Notes:

• The extension cable must be a single stretch of cable between the

recorder and camera. You cannot connect multiple extension cables to

each other.

• This guide covers connecting cameras to your security recorder only.

For full instructions on installing your cameras and mounting tips,

please refer to your camera’s documentation at lorex.com.

Setup step 2 — Connect router

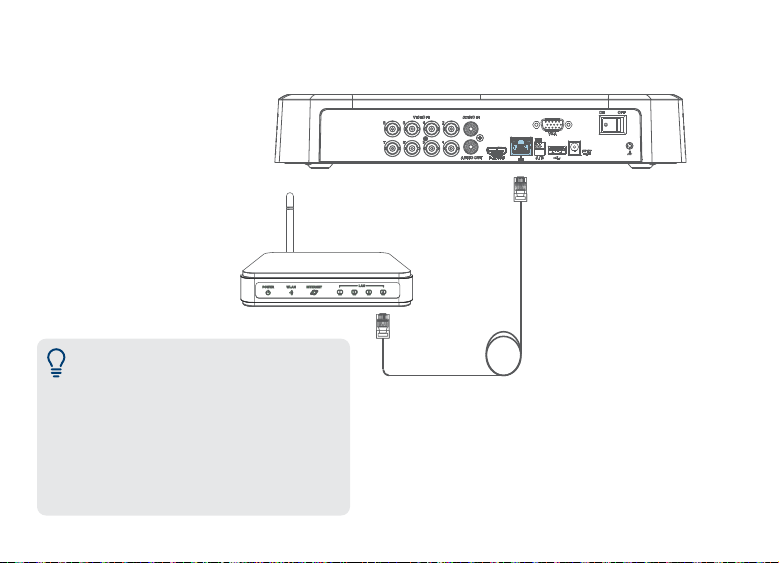

Connect the recorder

to your router using the

included Ethernet cable.

Note: To receive automatic rmware

updates and access your system remotly

with mobile apps, a high speed Internet

connection is required. Minimum upload

speed of 5Mbps required for 4K viewing;

3.5Mbps for lower resolutions. All other

system features can be used without an

Internet connection.

Setup step 3 — Connect mouse

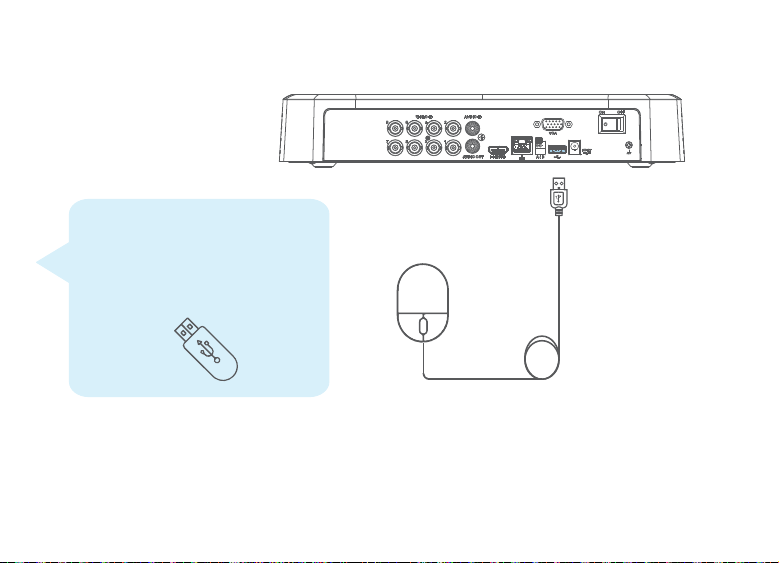

Connect the included USB

mouse to the USB port on

the recorder.

To copy your video recordings

and to perform a rmware

upgrade, connect a USB stick

or ash drive to the USB port on

the front panel of the recorder.

Setup step 4 — Connect monitor/TV

Connect the recorder to

a monitor/TV using the

included HDMI cable or a

VGA cable (not included).

The HDMI port supports up

to 4K resolution, and VGA

supports up to 1080p.

Note: To optimize picture

quality, set the recorder’s

video output to match

the resolution of your

monitor. See ‘Changing

the recorder’s output

resolution’ page 19 for

details.
