Lowrance Elite-4m HD Manuale utente
Installation & Operation
manual
Elite-4m HD
Operation manual
Copyright © 2013 Navico
All rights reserved.
Lowrance® and Navico® are registered trademarks of Navico.
Fishing Hot Spots® is a registered trademark of Fishing Hot Spots Inc.
Navionics® is a registered trademark of Navionics, Inc.
Navico may nd it necessary to change or end our policies, regulations and special oers at any time. We reserve
the right to do so without notice. All features and specications subject to change without notice.
Compliance Statements
Lowrance Elite 4m HD
• complies with CE under RTTE directive 1999/5/EC
• complies with the requirements of level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2008
The relevant Declaration of Conformity information is available on the this unit’s product page at www.lowrance.com.
WARNING: When a GPS unit is used in a vehicle, the vehicle operator is solely responsible for operating
the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving or
boating conditions at all times. An accident or collision resulting in damage to property, personal injury or
death could occur if the operator of a GPS-equipped vehicle fails to pay full attention to travel conditions
and vehicle operation while the vehicle is in motion.
PB 1
Table of Contents | Elite-4m HD Table of Contents | Elite-4m HD
Introduction...................................... 3
Unit Controls............................................3
Basic Operation............................... 5
Setup wizard............................................5
Pages ......................................................5
Page menus ............................................5
Dialogs.....................................................7
Entering text ............................................7
Cursor......................................................7
Goto cursor..............................................8
Advanced Mode ......................................8
Restore defaults ......................................8
Pages................................................ 9
Steer Page...............................................9
Chart Page ..............................................9
Overlay Data..........................................10
Chart Operation ............................. 12
Waypoints, Routes, Trails...................... 13
Routes Screen.......................................15
Trails Screen .........................................19
Orientation.............................................21
Overlay Data..........................................21
Table of contents
2PB
Table of Contents | Elite-4m HD Table of Contents | Elite-4m HD
Settings..................................................21
Chart Settings........................................22
Navigation Settings ...................................23
AIS................................................... 25
AIS Setup ..............................................25
Target symbols ......................................26
Viewing AIS target information ..............27
Settings .......................................... 28
Settings menu........................................28
System...................................................28
Saving Screenshots...............................30
Alarms ..................................................30
Specications ................................ 32
Index ............................................... 33
PB 3
Introduction | Elite-4m HD Introduction | Elite-4m HD
Getting Started
Turn unit
on/o
To turn on/o the unit, press and hold
the LIGHT/POWER key for three
seconds.
Man
Overboard
waypoint
Press the ZOOM IN and ZOOM OUT
keys at the same time to set a Man
Overboard waypoint. Your system will
automatically create an active route
back to the MOB waypoint. You must
cancel navigation to terminate the
function.
Adjusting
the
backlight
This unit has 11 backlight levels. Press
the LIGHT/POWER key to switch
backlight levels.
Muting
Audio
Select Audio from the System menu.
Select Mute and press ENTER.

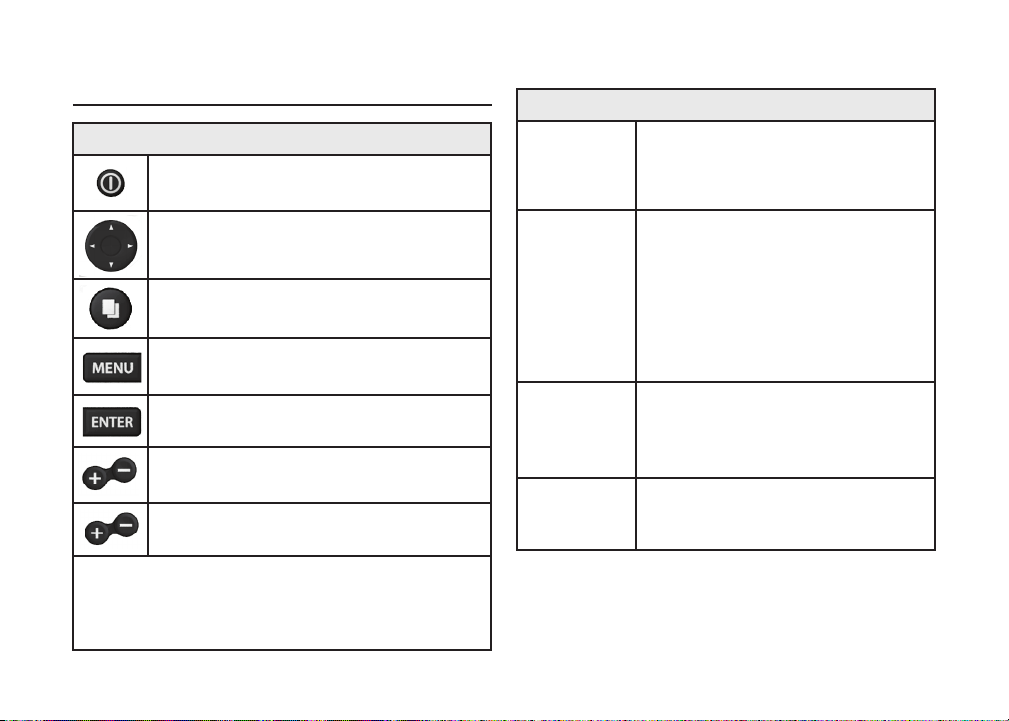

Unit Controls
LIGHT/POWER: controls backlight level
and turns unit on/o
KEYPAD: controls cursor & selects items
on menus
PAGES: allows you to select a page to view
MENU: opens settings, context and page
menus
ENTER: nalizes menu selections; save
waypoint at cursor position
MOB: press and hold both Zoom keys to
create a Man Overboard waypoint
ZOOM KEYS: (+) used to zoom in; (-)
used to zoom out
microSD slot: insert a blank microSD card to save
screen captures, sonar logs, waypoints, routes and
trails; or insert a microSD mapping card to use
mapping data
Introduction
4PB
Introduction | Elite-4m HD Introduction | Elite-4m HD

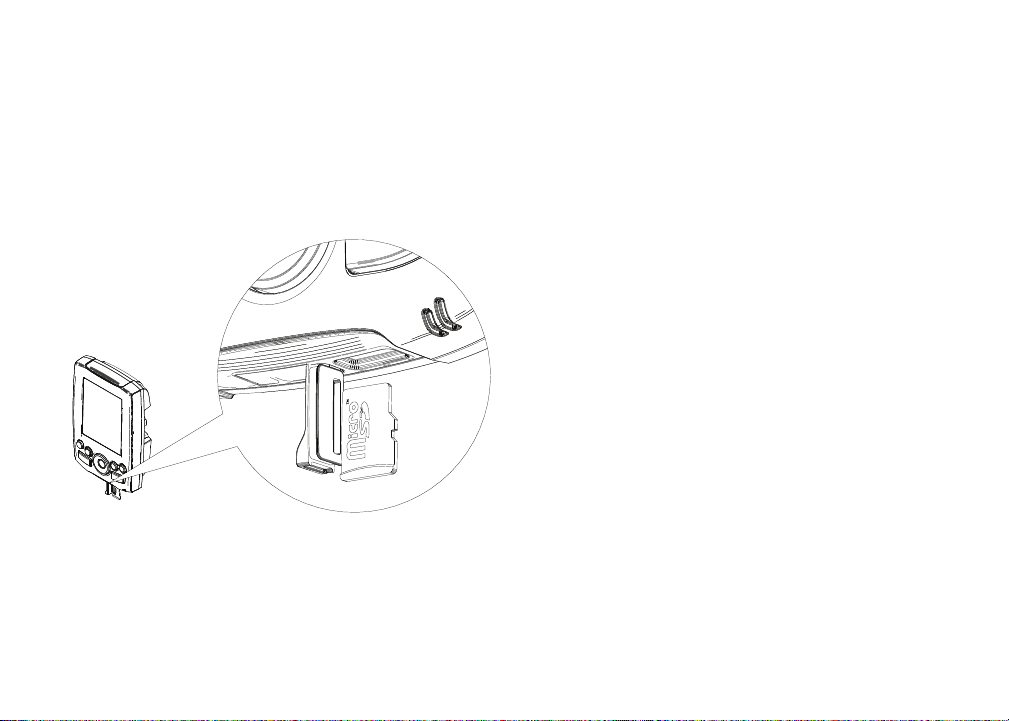

Inserting microSD cards
Carefully slide the microSD card into the slot until
it clicks into place.
To remove, carefully push in the card until it clicks
out of place.
PB 5
Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

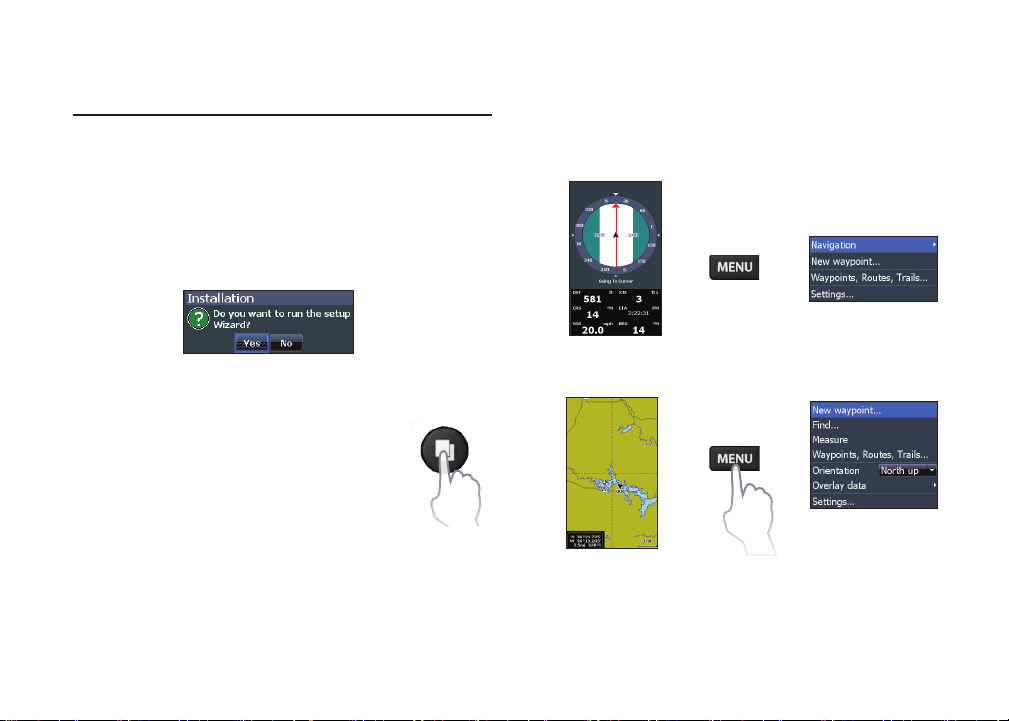

Page menus
The Steer and Chart pages have menus that can
only be accessed when those pages are displayed.
Setup wizard
The Setup wizard will appear when the unit is
turned on for the rst time. To choose your own
settings, do not run the setup wizard. To restart the
Setup wizard, restore defaults.
Pages
This unit has two pages: Steer and
Chart. Press the PAGES key to switch
pages.
Steer page
Steer menu
Basic Operation
Chart page
Chart menu
67
Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

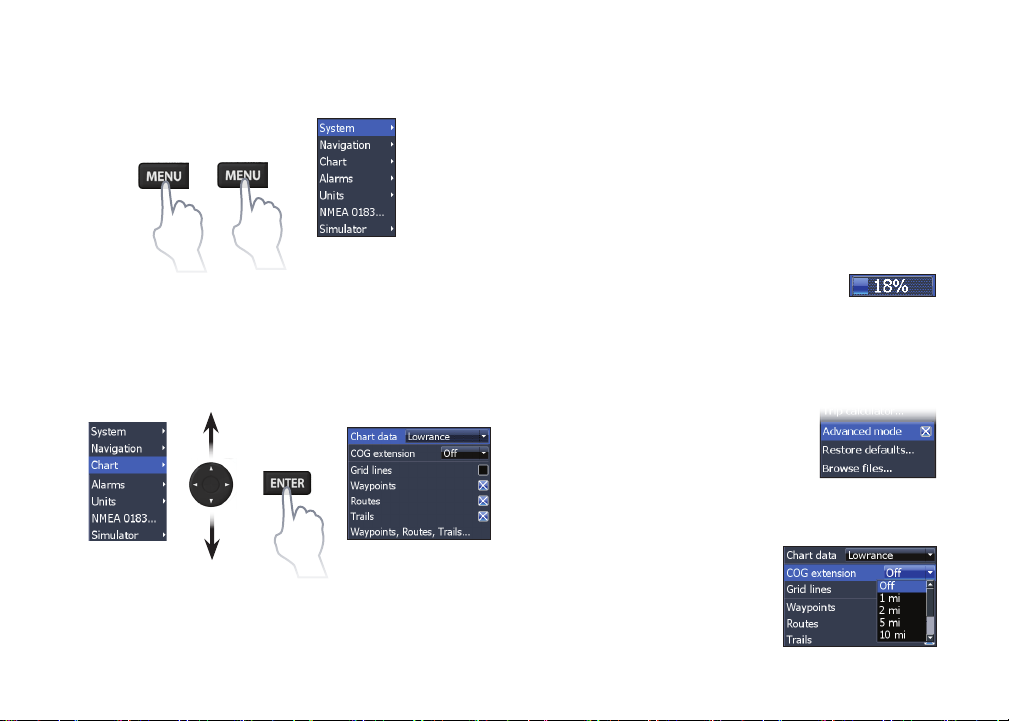

Accessing the Settings menu
Accessing menu items
The keypad and ENTER key are used to select
menu items and open submenus. Use the keypad
to highlight the desired item and press ENTER.
Working with menus
There are several menu types used to make
adjustments to options and settings, including
scrollbars, on/o features and dropdown menus.
Scrollbars
Select the scrollbar and press the
keypad left (decrease) or right
(increase).
On/Off features
Select the on/o menu item and
press ENTER to turn it on/o.
Dropdown menus
Access the dropdown menu
and press the keypad up/down
to select the desired item and
press ENTER.
67
Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD
Cursor
The keypad moves the cursor around the display,
allowing you to scroll the map and select map
items.
Press MENU and select Return to vessel or Exit
cursor mode to clear the cursor.
Dialogs
Dialogs are used for user input or
for presenting information to the
user. Depending on the type of
entry, dierent methods are used
to conrm, cancel or close dialogs.

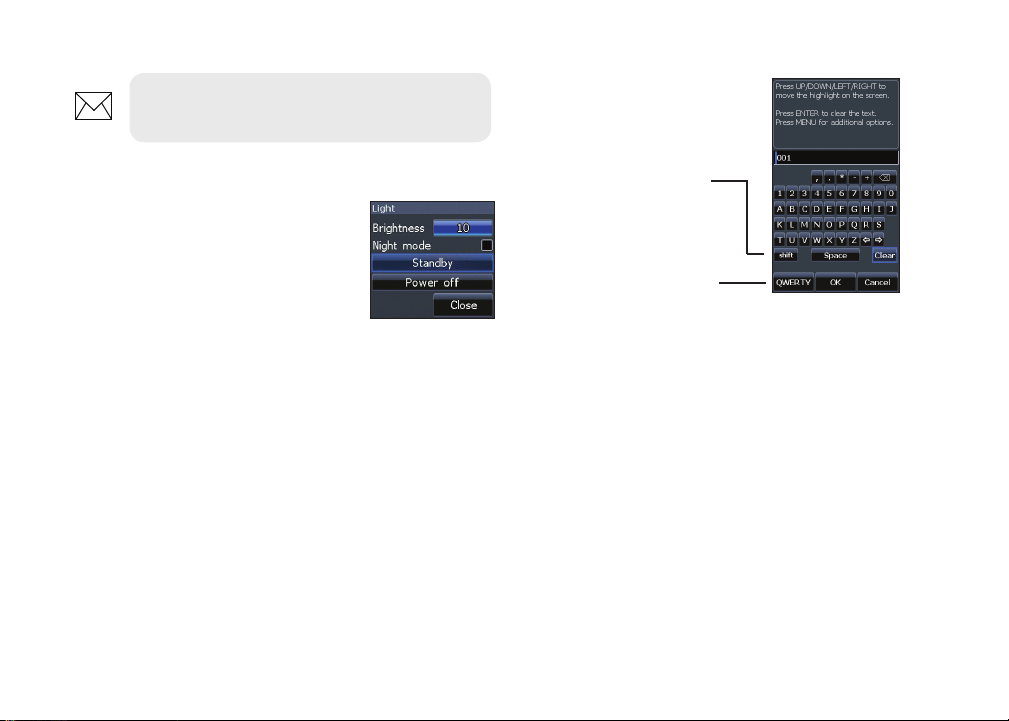

Entering text
Some functions, like naming a waypoint, route or
trail, will require you to input text.
To input text:
1. Use the keypad to select the desired
character and press ENTER.
2. Repeat Step 1 for each character.
3. When entry is completed, highlight OK
and press ENTER.
NOTE: Press the MENU key to exit
menus.
Switches keyboard
between ALPHA and
QWERTY layout
Switches letters
to uppercase/
lowercase
8PB
Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

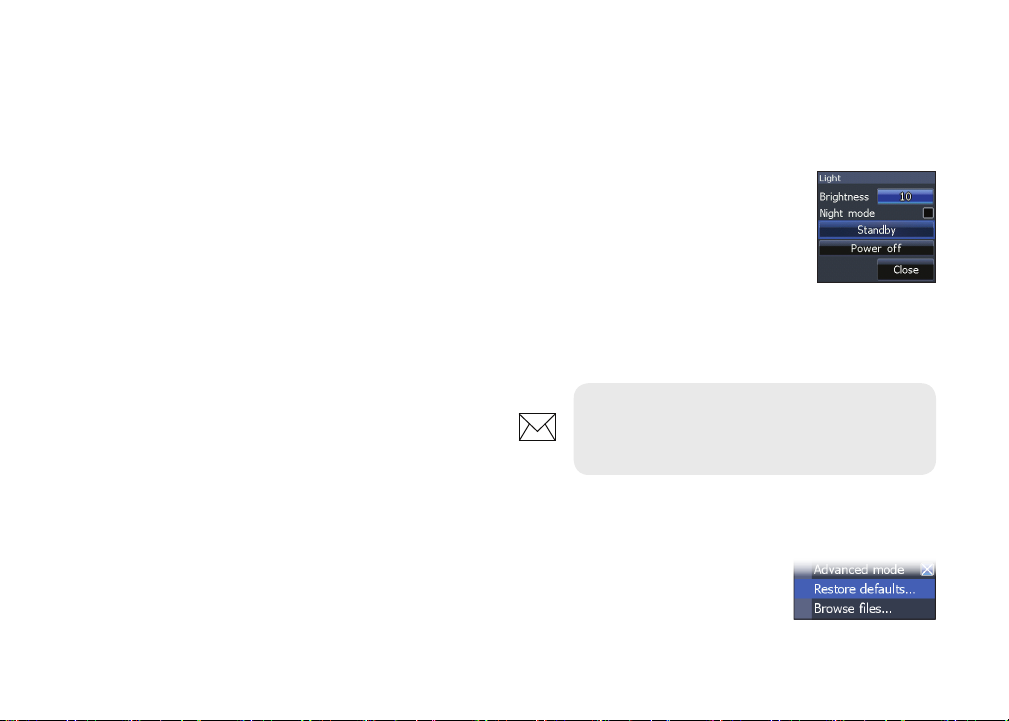

Standby mode
Lowers power consumption by turning o sonar
and the display.
1. Press the PWR/LIGHT
key to access the
Backlight dialog.
2. Select Standby and
press ENTER.
3. Press any key to resume normal
operation.
Restore defaults
Sets unit options and settings
to default values.
Goto cursor
Used to navigate to the cursor.
1. Move the cursor to a desired location
and press MENU.
2. Select Goto cursor and press ENTER.
Advanced Mode
Enables advanced features and settings.
The following features are enabled when Advanced
mode is turned on:
• Navigation (Enables arrival radius, off-
course distance and Bearings setting)
• Alarms (Enables arrival, off course and
anchor alarm options)
• NMEA 0183 conguration options
• Units (Enables distance, speed and
bearings conguration options)
NOTE: Leaving your unit in Standby
mode when your boat is not in use will run
down your battery.
