Lowrance LMS-480 Manuale di istruzioni

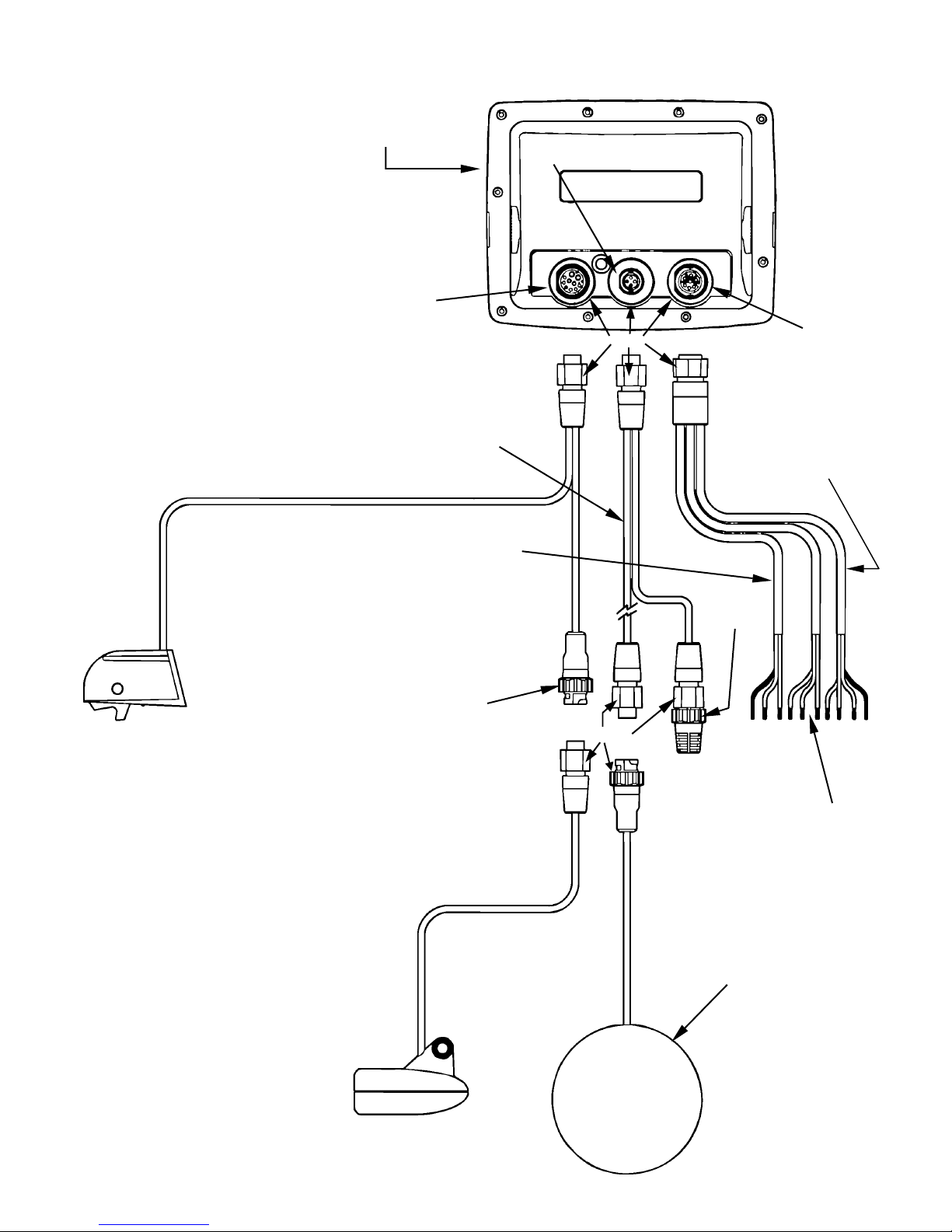

Cable connections for Lowrance LMS-480

Sonar/GPS unit

rear view

Sonar socket

Power/Data socket

SP-BL speed sensor.

This is packed with the

LMS-480DF and is

optional for the LMS-480.

NMEA 2000 Power Cable. Three wires:

red (+), black (– ground), shield (bare,

–

round). Cable label sa

s "NMEA

2000 Power." Used to power the GPS

module and/or a NMEA 2000 network

buss.

Skimmertransducer with

built-in temp sensor

SONAR PWR/DATA

Sockets with blue socket nuts, and

cable plugs with blue locking

collars are NMEA 2000 connection

types. The NMEA 0183 Data Cable

can transmit NMEA position data to

another device. The Main Power

Supply Cable provides 12-volt

power for the sonar/GPS unit (the

white speaker wire is not used). The

NMEA 2000 Power Cable supplies

12-volt power to the LGC-2000

GPS antenna module and/or a

NMEA 2000 network buss. All

unused wires in the 3-way

Power/Data Cable should be capped

with wire nuts or electrical tape.

Main Power Supply Cable.

Cable has no label, but is

thickest of the three.

Three wires: red (+), black

(– ground), white. White is

external speaker wire, not

used in these units.

LGC-2000 25'

Extension Cable

60-ohm

terminator

LGC-2000

GPS

antenna

module

NETWORK

Network socket

This figure corrects the drawing on page 35 in

the LMS-480 manual, part 988-0151-181. The

manual showed the sonar and power/data

sockets in the wrong place, and listed the

wrong speed sensor model.

Blue

NMEA 0183 Data Cable.

Four wires: blue,

orange, yellow, shield

(bare). Cable label says

"RS-232 COMM."

If sonar/GPS unit is not

connected to a powered

NMEA 2000 network, you

must connect the NMEA

2000 Power Cable to a

12-volt power source in

order for the LGC-2000

to work.

Gray

Blue

or gray

Pub. 988-0154-181

Printed in USA 050504
