M-system 61A Manuale utente

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Analog I/O module ..............................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

85 – 132V AC rating: 85 – 132V, 47 – 66 Hz, approx. 4VA

24V DC rating: 24V ±10%, approx. 4W, approx. 160mA

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply, input signal and output signal for safety.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -5 to +55°C

(23 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

INSTALLATION

Use the Installation Base (model: MxBS2).

ANALOG I/O MODULE

(conforms to AnyWire wiring saving system) MODEL 61A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-6639 Rev.2 P. 1 / 3

INSTRUCTION MANUAL

COMPONENT IDENTIFICATION

Body

Specifications

■FRONT PANEL CONFIGURATION

PWR

RDY

LINK

NAME FUNCTIONS

AModular jack for

factory calibration Used only for factory calibration.

BPower indicator

LED

MARKING (color) FUNCTIONS

PWR (green) ON: Powered

OFF: No power

PWR (orange) ON: Memory failure

OFF: Normal

CStatus indicator

LED

MARKING (color) FUNCTIONS

RDY (red)

LINK (red)

ON at normal operating

Blinking at normal operating

DTransmission

setting

Station No. DIP SWITCH

124816 32

0 OFF OFF OFF OFF OFF OFF

1 ON OFF OFF OFF OFF OFF

2 OFF ON OFF OFF OFF OFF

::::::

3E OFF ON ON ON ON ON

3F ON ON ON ON ON ON

TRANSMISSION

CLOCK

DIP SWITCH

D E

7.8 kHz OFF OFF

15.6 kHz OFF OFF

31.3 kHz ON OFF

62.5 kHz ON ON

Euro type connec-

tor terminal for

AnyWire

For AnyWire wiring

61A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-6639 Rev.2 P. 2 / 3

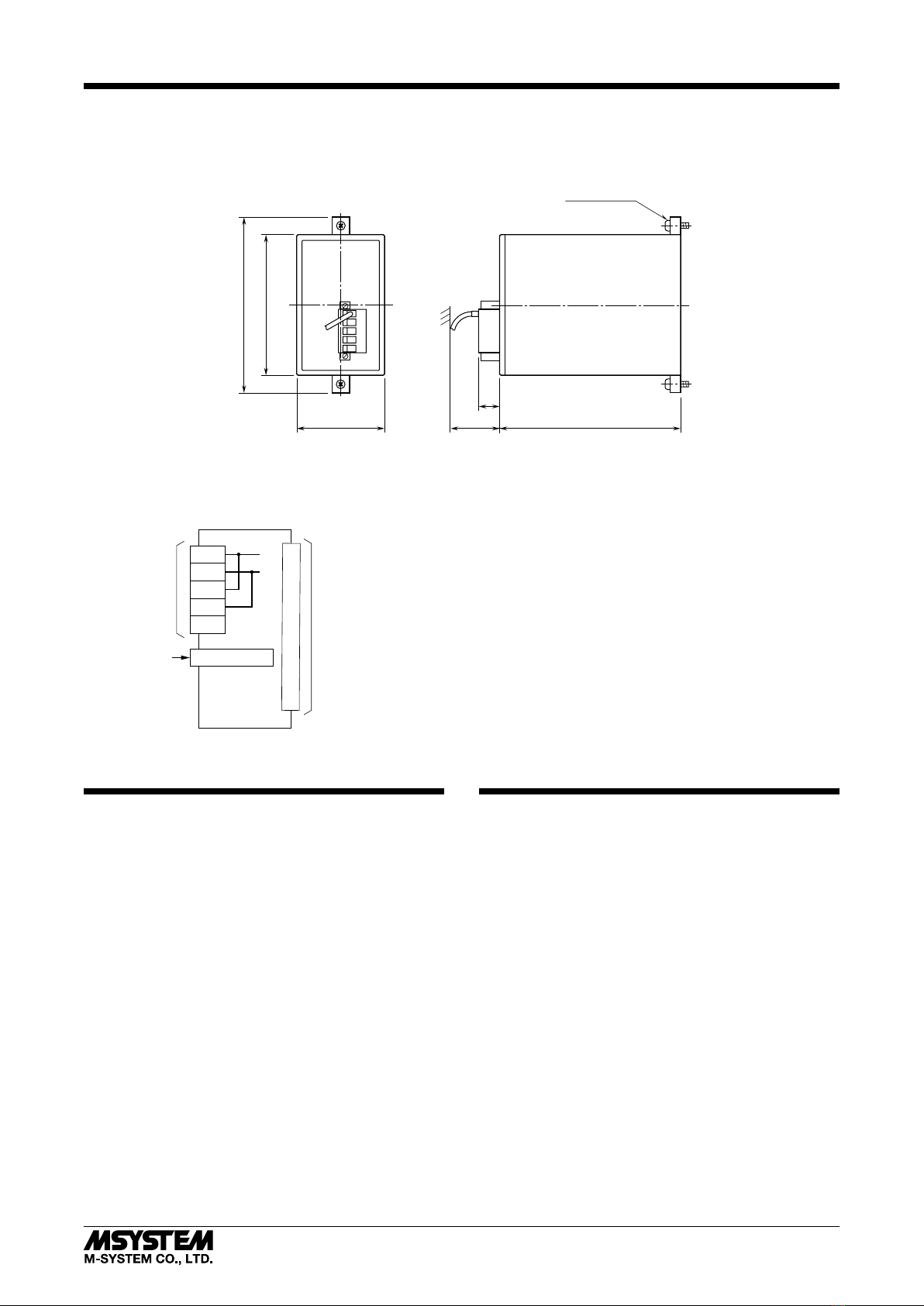

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

50 (1.97) 103 (4.06)38 min.

(1.50)

(.47)

80 (3.15)

100 (3.94)

2–M3 SCREWS

■CONNECTION DIAGRAM

Modular Jack

for Factory

Calibration

MODULAR JACK

I/O & POWER CONNECTOR

Installation

Base

−

To Other

AnyWire

Devices

*Refer to the manual of the AnyWire device to be connected

for explanations how to connect the device.

WIRING INSTRUCTIONS

■EURO TYPE CONNECTOR TERMINAL (AnyWire)

Applicable wire size: 0.2 to 2.5 mm2(AWG24 to 12)

Stripped length: 7 mm

LIGHTNING SURGE PROTECTION

M-System offers a series of lightning surge protectors for

protection against induced lightning surges. Please contact

M-System to choose appropriate models.

61A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-6639 Rev.2 P. 3 / 3
