INSTRUCTION MANUAL

PNP TRANSISTOR OUTPUT MODULE

(16points, EtherNet/IP) MODEL

R7G4HEIP-6-DC16B

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Transistor output module...................................................(1)

DIN rail mounter slider......................................................(2)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices and connected wires may

affect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure CE conformity.

■POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

24V DC rating: 24V ±10%, approx. ?mA

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and output signal for safety.

• Before you remove the terminal block or mount it, turn off

the power supply for safety.

■ENVIRONMENT

• Indoor use

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

R7G4HEIP-6-DC16B

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8004-C P. 2 / 6

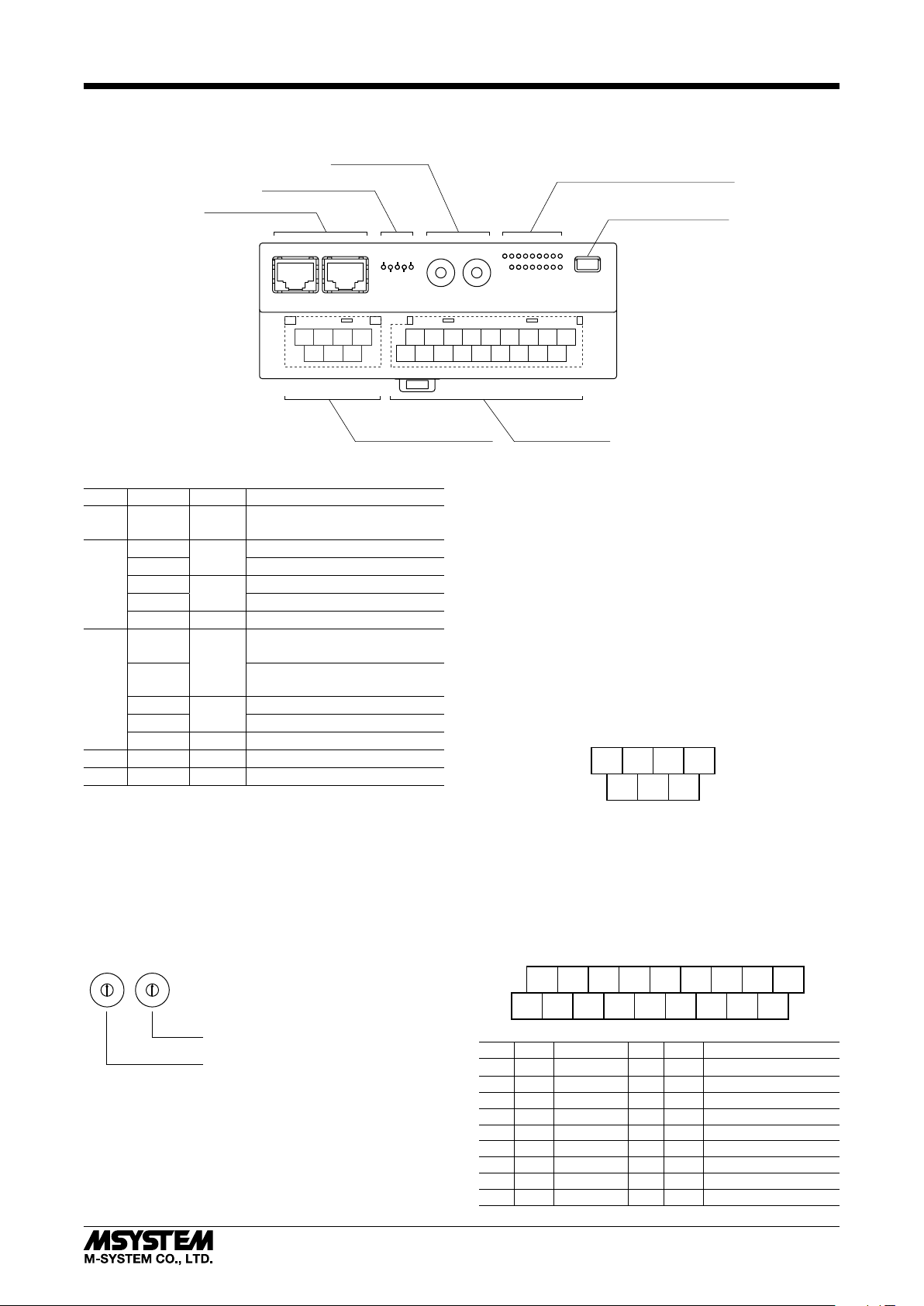

FRONT VIEW

4567

123

10 11 12 13

2341

15 16 17 18

789

PWR

SA1

×10

SA2

×1

LNK2NS

LNK1MS

LNK1 LNK2

CNFG.

Status Indicator LED

RJ-45 Modular Jack

IP Address Setting

Rotary SW

PC Configurator Jack

Output TerminalsPower Supply Terminals

Discrete Output Status Indicator LED

■STATUS INDICATOR LED

ID S TAT U S COLOR FUNCTION

PWR ON Green The internal power is supplied

normally.

MS ON Green Operating in a normal condition

Blinking Standby (needs commissioning)

ON Red Critical failure

Blinking Minor failure

OFF – No power supplied

NS ON Green Link on-line and connections in

the established state

Blinking Link on-line but no connections

in the established state

ON Red Critical failure

Blinking Minor failure

OFF – No power supplied

LNK1 ON Green LNK1 is established

LNK2 ON Green LNK2 is established

■IP ADDRESS

Set host address (2-digit hexadecimal number) in IP ad-

dress, with rotary switches SA1 for the ﬁrst digit and SA2

for the second digit, or when using network address and

Subnet mask with modiﬁcation, set 00H with the rotary

switches and then set the parameters with PC conﬁgurator

software (model: R7CFG). (Range: 00H – FFH)

(Factory setting: 01H)

IP Address Host Address MSD (x1)

IP Address Host Address LSD (x10)



■DISCRETE OUTPUT STATUS INDICATOR LED

Discrete output module displays the status of each output

with an LED (green).

Contact ON : LED ON

Contact OFF : LED OFF

■PC CONFIGURATOR JACK

The PC Conﬁgurator is used to set the following parameters

for each channel.

• IP address setting

- IP address: 192.168.0.1

- Subnet mask: 255.255.255.0

- Default gateway: 192.168.0.1

• Communication Cutoff Output Settings

Output clear (Output OFF)

Output hold (Previous normal reception data hold) (*)

For more information about the programming using the

R7CFG, please refer to the R7CFG Users Manual.

(*) Factory setting

567

123

＋

24V

NC NC FE

1.NC

2.NC

3.FE

4.NC

5.NC

6.+24V

7.0V

Functional earth

Power supply (24V DC)

Power supply (0V)

■POWER SUPPLY TERMINAL ASSIGNMENT

■OUTPUT TERMINAL ASSIGNMENTS

Y6 Y8

16 17 18

789

Y11 Y13 Y15

Y10 Y12

V+

V−

12 13

Y3 Y5

Y2 Y4 Y14

NO. ID FUNCTION NO. ID FUNCTION

1 V– 0V 10 V+

24V DC (Out. Common)

2 Y0 Output 0 11 Y1 Output 1

3 Y2 Output 2 12 Y3 Output 3

4 Y4 Output 4 13 Y5 Output 5

5 Y6 Output 6 14 Y7 Output 7

6 Y8 Output 8 15 Y9 Output 9

7 Y10 Output 10 16 Y11 Output 11

8 Y12 Output 12 17 Y13 Output 13

9 Y14 Output 14 18 Y15 Output 15

R7G4HEIP-6-DC16B

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8004-C P. 3 / 6

MOUNTING INSTRUCTIONS

■DIN RAIL MOUNTING (PARALLEL)

• Mounting

1) Set the upper hook at the rear side of the unit on the

DIN rail.

2) Push the lower part in.

• Dismounting

1) Push down the DIN rail mounter slider with the tip of a

ﬂat-blade screwdriver.

2) Pull the lower part of the unit.

3) Remove the upper hook of the unit from the DIN rail.

■SURFACE MOUNTING

1) Insert the two DIN rail mounter sliders until it clicks

once, as shown below.

2) Mount the unit with M4 screws referring to the External

Dimensions. (Torque: 1.4 N·m)

■DIN RAIL MOUNTING (RIGHT ANGLE)

• Mounting

1) Insert the longer DIN rail mounter slider until it clicks

twice, as shown below.

2) Set the upper hook at the rear side of the unit on the

DIN rail.

3) Push the lower part in.

• Dismounting

1) Push down the DIN rail mounter slider with the tip of a

ﬂat-blade screwdriver.

2) Pull the lower part of the unit.

3) Remove the upper hook of the unit from the DIN rail.

R7G4HEIP-6-DC16B

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8004-C P. 4 / 6

EXTERNAL DIMENSIONS unit: mm (inch)

Connect the unit as in the diagram below.

■DIMENSIONS mm (inch)

4567

123

10 11 12 13

2341

15 16 17 18

789

2 – 4.3 dia. 4 deep.

18–M3 SCREW

TERMINALS for Output

7–M3 SCREW

TERMINALS for

POWER SUPPLY

130 (5.12)

140 (5.51)

154 (6.06)

5 (.2)3(.12) 50 (1.97)

DIN RAIL

35mm wide

[(4) 0.16]

55 (2.17)

■CONNECTION DIAGRAM

Note: In order to improve EMC performance, bond the FE terminal to ground.

Caution: FE terminal is NOT a protective conductor terminal.

24V DC

V–

V+

Y10

Y12

Y14

Y15

Y11

Y13

EtherNet/IP

RJ-45 Modular Jack

EtherNet/IP

RJ-45 Modular Jack

*1. The network cable can be connected to either one.

■ Output Connection Examples

+−

V+

V–

Y15

R7G4HEIP-6-DC16B

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8004-C P. 5 / 6

MOUNTING REQUIREMENTS unit: mm (inch)

140(5.51)

2−M4

WIRING INSTRUCTIONS

■TORQUE

Wiring screw for separable terminal: 0.5 N m

Fixing screw for separable terminal: 0.5 N m

■SOLDERLESS TERMINAL mm (inch)

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Recommended manufacturer: Japan Solderless Terminal

MFG.Co.Ltd, Nichifu Co.,ltd

Applicable wire size: 0.25 – 1.65 mm2(AWG 22 – 16)

6 (.24) max

3.3 (.13) max

mm (inch)

■HOW TO UNMOUNT THE SEPARABLE TERMINAL

The separable terminal of the unit is a 2-piece construc-

tion. It is possible to remove the terminal by loosening two

screws of terminal alternately.

R7G4HEIP-6-DC16B

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8004-C P. 6 / 6

EtherNet/IP

■SETTING & CHECKING

1) IP ADDRESS

Set host address in IP address with front rotary switches, or when using network address and Subnet mask with modiﬁca-

tion, set both rotary switches to 0 and then set the parameters with PC conﬁgurator software (model: R7CFG).

DHCP is also supported.

2) CHECK WIRING

Connect an Ethernet cable to the front RJ-45 modular jack.

When using wiring as DLR (Device Level Ring) network, perform wiring such that a daisy-chain is formed.

3) CHECK LED

When wiring is correct, LINK1 or LINK2 is turned on.

4) CHECK R7G4HEIP CONNECTION

Enter “ping command” on the Windows MS-DOS as follows:

C:¥WINDOWS>ping ***.***.***.***

(***.***.***.***: Enter IP address in decimal.)

ping ***.***.***.*** with 32 bytes of data:

Reply from ***.***.***.*** : bytes=32 time<10ms TTL=64

Ping statistics for ***.***.***.***

Packets:Sent=4,Received=4,Lost=0(0% loss)

Replies in case of normal connection are as shown above. If the connection cannot be established normally due to e.g. wrong

IP address, other replies such as “time over” will be received.

5) CHECK CONNECTION TO THE APPLICATION SOFTWARE

Check Point 1: LINK LED

LINK1 or LINK2 turns on when the module has established normal connections with PC, PLC, hub, and so on, regardless of

data sending/receiving status.

In the case that they are not on, check power supply to the hub.

Check Point 2: MS AND NS INDICATOR

When the module has transmitted/received data correctly to/from the application software, MS and NS indicators turn on.

I/O DATA DESCRIPTION

015

0:OFF 1:ON

Output 0

Output 1

Output 2

Output 3

Output 15

Output 7

Output 8

■DISCRETE OUTPUT

Indice

Altri manuali M-system Unità di controllo

M-system

M-system R5-NM1 Manuale utente

M-system

M-system R7D-MS4 Manuale utente

M-system

M-system R3Y-DS8N Manuale utente

M-system

M-system R7C-EC8A/UL Manuale utente

M-system

M-system LONWORKS R3-NL2 Manuale utente

M-system

M-system R3-CT4A Manuale utente

M-system

M-system R30SV2 Manuale utente

M-system

M-system R80FST4NJ Manuale utente

M-system

M-system R7L-RR8 Manuale utente

M-system

M-system R7C-RS4 Manuale utente

M-system

M-system R7M-EA8 Manuale utente

M-system

M-system R6D-TS2 Manuale utente

M-system

M-system R7M-EC8B/UL Manuale utente

M-system

M-system R80ND2 Manuale utente

M-system

M-system R7ML-YV2-R Manuale utente

M-system

M-system R3-NC3 Manuale utente

M-system

M-system R3Y-PA16 Manuale utente

M-system

M-system R30TS4 Manuale utente

M-system

M-system R7M-RS4 Manuale utente

M-system

M-system R7HL-DAC15E Manuale utente

M-system

M-system R7ML-DC16B Manuale utente

M-system

M-system R3S-RS4A Manuale utente

M-system

M-system R8-DCM16ALK Manuale utente

M-system

M-system R7F4HML3-D-DAC32A Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
