INSTRUCTION MANUAL
DISCRETE INPUT MODULE
(Di 16 points; with excitation supply, tension clamp terminal block)
MODEL R3S-DA16
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■PACKAGE INCLUDES:
Discrete input module.........................................................(1)
■MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■HOT SWAPPABLE MODULES
• Replacing the module does not affect other modules on
the same base. Thus, the module can be replaced while
the power is ON. However, replacing multiple modules
at once may greatly change live voltage levels. We highly
recommend to replace them one by one.
■GENERAL PRECAUTIONS
• DO NOT set the switches on the module while the power
is supplied. The switches are used only for maintenance
without the power.
■ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
INSTALLATION
Use the Installation Base (model: R3-BSx).
R3S-DA16
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-8931 Rev.1 P. 2 / 3

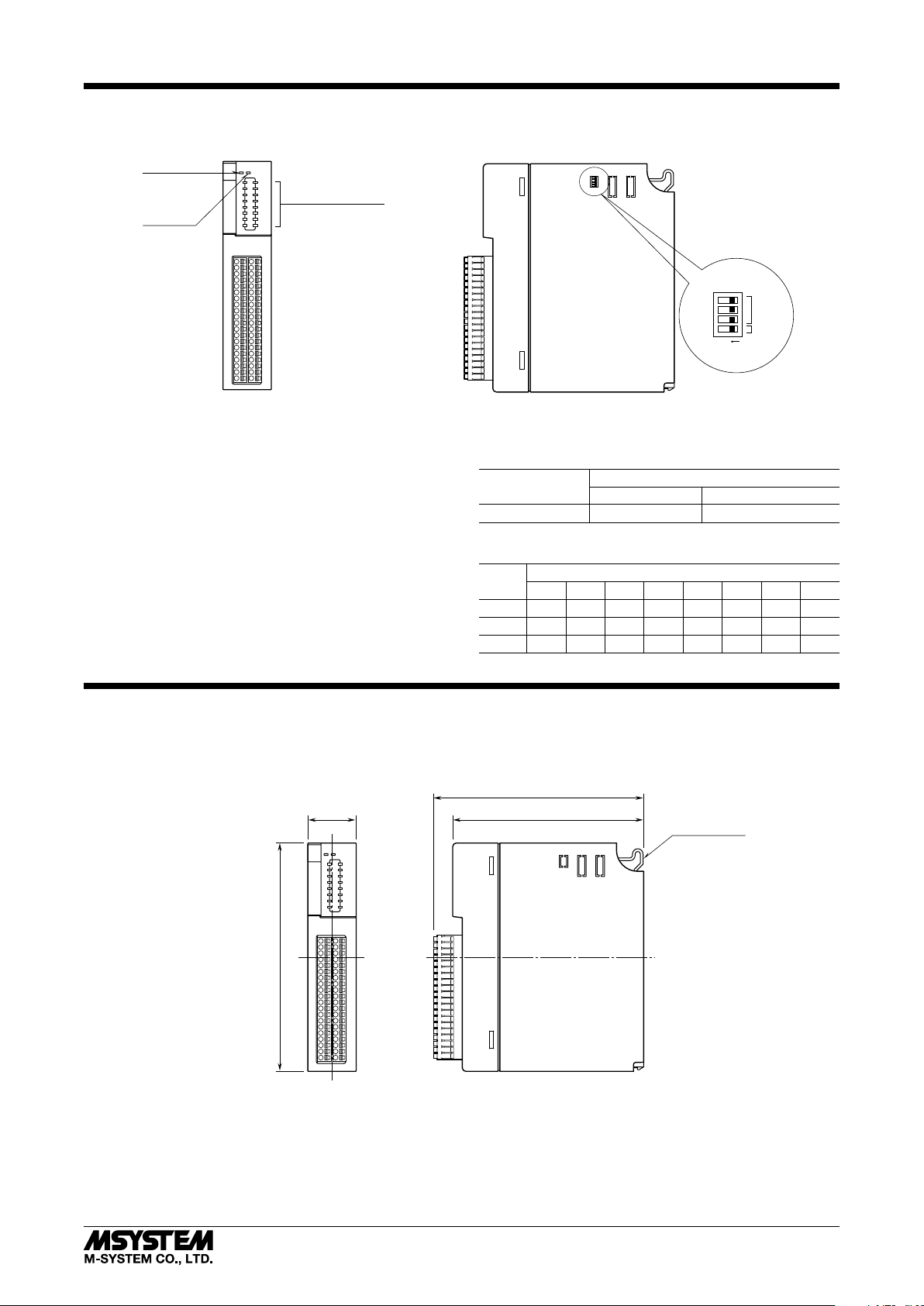

COMPONENT IDENTIFICATION
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
1
20
21
40
RUN LED
ERR LED
Status Indicator LED
■FRONT VIEW ■ SIDE VIEW
SW3
ON
4
3
2
1
Functions
Exc.
Monitor
Read
Rate
■STATUS INDICATOR LED
RUN indicator: Bi-color (red/green) LED;
Red when the bus A operates normally;
Green when the bus B operates normally;
Amber when both buses operate normally.
ERR indicator: Bi-color (red/green) LED;
Red with excitation abnormality;
Green in normal operating conditions.
Input status indicator: Red LED; turns on with the input
ON.
■SIDE DIP SW
(*) Factory setting
• Excitation Monitor: SW3-1
SW EXCITATION MONITOR
WITH (*) WITHOUT
SW3-1 OFF ON
• Read Rate: SW3-2, 3-3, 3-4
SW READ RATE (≤ msec.)
10 (*)1 5 20 50 70 100 200
SW3-2 OFF ON OFF ON OFF ON OFF ON
SW3-3 OFF OFF ON ON OFF OFF ON ON
SW3-4 OFF OFF OFF OFF ON ON ON ON
TERMINAL CONNECTIONS
Connect the unit as in the diagram below.
■EXTERNAL DIMENSIONS unit: mm (inch)
1
20
21
40
130 (5.12)
27.5 (1.08) 109 (4.29)
120 (4.72)
POSITIONING
GUIDE
R3S-DA16
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-8931 Rev.1 P. 3 / 3
■CONNECTION DIAGRAM
INTERNAL BUS A
INTERNAL BUS B*
INTERNAL POWER
*For dual redundant communication..
21
22
23
24
25
26
27
28
31
32
33
34
35
36
37
38
1
5
2
3
6
4
7
13
8
11
14
12
15
16
17
18
Di 1
Di 2
Di 3
Di 4
Di 5
Di 6
Di 7
Di 8
29
30
39
40
Di 9
Di 10
Di 11
Di 12
Di 13
Di 14
Di 15
Di 16
BUS CONNECTOR
WIRING INSTRUCTIONS
■APPLICABLE WIRE SIZE
• Solid: 0.2 to 1.0 mm2(0.55 to 1.12 dia.)
• Stranded: 0.2 to 1.5 mm2
(Tinning wire ends may cause contact failure and therefore
is not recommended.)
• Ferruled:
Unsheathed: 0.25 to 1.5 mm2
Sheathed: 0.25 to 0.75 mm2
• Expose wire conductors by 10 mm (0.39”).
Stripped length
10mm
■CONNECTION PROCEDURE
Insert the wire end until it comes to a full stop while push-
ing slot with the tip of a screw driver as shown below. Be
sure wire insulation is not inside the terminal.
Screw Driver
Power wire
INPUT PIN ASSIGNMENT
PIN No. FUNCTION PIN No. FUNCTION
21 0V 1 Di 1
22 0V 2 Di 2
23 0V 3 Di 3
24 0V 4 Di 4
25 0V 5 Di 5
26 0V 6 Di 6
27 0V 7 Di 7
28 0V 8 Di 8
29 0V 9 NC
30 0V 10 NC
31 0V 11 Di 9
32 0V 12 Di 10
33 0V 13 Di 11
34 0V 14 Di 12
35 0V 15 Di 13
36 0V 16 Di 14
37 0V 17 Di 15
38 0V 18 Di 16
39 0V 19 NC
40 0V 20 NC
FUNCTIONS
■EXCITATION MONITOR
Enabled/disabled with DIP switch setting.
• Excitation Monitor ON
The input is held at the last status when the loss of exci-
tation is detected.
• Excitation Monitor OFF
All input signals are turned off when the loss of excitation
is detected.
