Thanks

For choosing our product

PRISMA Series Industrial 3D Printers inheriting the design concept of the simple to the extreme.

Use it can print product quickly and easily, even if you’ve never used a 3D Printer.

The printer use the ABS or PLA to print the model, so the product are strong and durable. ABS or

PLA material also ensures that you can model for drilling, tapping, grinding and painting. PRISMA

Series Industrial 3D Printers reserve creative proprietary hardware, software and materials tech-

nology together. Welcome to a new realm of 3D modeling!

INDEX

User-Guide Instructions

Learn More Information

Safety Precautions

Chapter 1 Overview

1.1 Overview

1.2 Front, side and back view

1.3 Tool box accessories

Chapter 2 Installation

2.1 Take Out the Machine

2.2 Install the Material Shelf

2.3 Dismantle the Model

2.4 Paste the Masking Tape

2.5 Install the Material (for example, PLA materials)

2.6 Manual Calibration

2.6.1 Enter the adjust platform interface

2.6.2 Fine Tune the Printing Platform

2.7 Printing the Test Files

Chapter 3 Printing Operation

3.1 Display

3.2 Operation and Printing Parts

3.3 Pause or Continue to Print

3.4 Power Outages

Chapter 4 General Maintenance

4.1 Daily Preventive Maintenance

4.2 Maintenance

4.2.1 500 Hours Maintenance

4.2.2 2000 Hours Maintenance

Chapter 5 Trouble Removal

Chapter 6 Support

010

011

012

USER-GUIDE INSTRUCTIONS

This user guide has been carefully choreographed, divided into “Setup”, “operations”, “Maintenance” and “Troubleshooting” sections,

so that the readers can read in order. Please be sure to carefully read each part, in order to enjoy the best performance of the system.

LEARN MORE INFORMATION

SD card provides the electronic user guide. This guide provides information about the following topics:

1. troubleshooting information

2. important safety notices and regulatory information

3. information about supported printing supplies

4. detailed Description

SAFETY PRECAUTIONS

The following precautions ensure the proper use of the printer and prevent the printer from being damaged. Always follow these pre-

cautions.

1. use the power supply voltage speciﬁed on the nameplate. Avoid printer overload caused by the multiple devices attached to your power

outlet.

2. make sure that the printer is properly grounded. Otherwise, it may result in electrical shock, ﬁre, and prone to electromagnetic inter-

ference.

3. Before to remove or repair a printer, please contact the local service representative. Please see the “support” part of the user guide.

4. only use the power cord that came with the printer. Do not damage, cut or repair the power cord. A damaged power cord has risk of ﬁre

or electric shock. Please use approved power cord replace damaged power cords. Do not allow metal or liquids to touch the internal parts

of the printer. Otherwise, it may result in ﬁre, electric shock or other serious injury.

5. in any of the following cases, please turn off the printer, and then unplug the power cord from the power outlet:

• Printer smoking or abnormal smell

• The printer makes strange noises that never produced during normal operation

• Metal or a liquid (not part of cleaning and maintenance routines) touches internal parts of the printer

• Thunderstorm weather

• Power off

This guide uses the following categories.

Note: potentially dangerous situation, if not avoided, may result in minor or moderate injury.

Warning: potentially dangerous situation, if not avoided, may result in serious injury.

High temperature surface: the hot surface symbol indicates a high-temperature equipment. When working close to the hot parts,

make sure to be careful and wear safety gloves.

Gloves: When performing some maintenance procedures, the machine may be hot, so need to use gloves to avoid burns.

Safety glasses: Please wear safety glasses to avoid eye injury.

Lifting hazard: when lifting the printer, there are need two or more persons co-operate, in order to avoid causing serious injury.

Recovery: Use the correct method for recovering materials and packaging materials.

ESD: When using electronic components or work around these parts, please use standard electrostatic discharge (ESD) precautions.

CHAPTER1

OVERVIEW

1.1 Overview

PRISMA Series Industrial 3D Printers through the stl ﬁle into gcode document production model. The printer print product in the fol-

lowing ways: through computer-controlled printing nozzle, squeeze ABS or PLA material that can be used to produce high-quality pro-

duct. Cura is the pretreatment software when the WindowsXP, WindowsVista, Windows7, Windows8 or Windows10 run on the platform.

PRISMA Series Industrial 3D Printers product dimensions and sizes can be made as follows. Materials available for each material

carrier is equipped with 1000g, enough to make about 120 hours in a row without having to reload, and you can add a second material

to extend time.

Model Product dimensions (W×D×H)mm The size can be made (W×D×H)mm

EB-3DP322-017 520×410×665 300×200×200

EB-3DP325-018 520×410×965 300×200×500

PRISMA Series Industrial 3D Printers have functions of resume printing with power off and resume printing with ﬁlament used out,

which can greatly save the client’s losses.

Continue printing with power off: please open the UPS switch when machine is printing, if power off, the machine will pause prin-

ting, the storage battery will keep printing condition for 24 hours, after power apply the machine can continue to print automatically.

Special remind: without power supply , you’d better not click continue to print, because ups can’t supply too long time, and Run out

of electricity will reduce battery working life.

Continue printing with ﬁlament used up: if the ﬁlament is used up when printing, the machine will automatically pause to print while

detect no material, only after new ﬁlament apply can you continue to print.

1.2 Front, side and back view

1Material shelf 6UPS switch

2Print Nozzle 7Power Socket

3SD card slot 8Display panel

4USB port 9Print platform

5ON/OFF Button

1.3 Tool box accessories

1Jumper cable 7Scraper knife

2Screwdriver 8SD card

3Extrusion nozzle, Hexagon screw, Wrench, socket 9Masking tape

4Material shelf 10 Art knife

5Tweezer 11 Diagonal pliers

6Feeding tube 12 Power cable

CHAPTER2

INSTALLATION

2.1 Take Out the Machine

It may need two people to take out the machine with the handle beside the machine.

2.2 Install the Material Shelf

Step 1: Use the M3 screw, which attached in the accessory box

Step 2: Plugged in.

Step 3: Turn on the power switch.

2.3 Dismantle the Model

Warm prompt: PRISMA Series Industrial 3D Printers display panel is full touch screen resistive screen, click to conﬁrm the content

items.

1. Set down the Hot bed: choose “Z” axis , then click move button , fell the hot bed to a suitable height.

2. Heat the hot bed: click the hot bed button , and input 80,that it turns red means beginning heating ,and the hot bed tempera-

ture will automatically rise to 80°C.

3. Take the model: After 2 minutes heating, take off the model with the scraper knife gently.

2.4 Paste the Masking Tape

Tear the broken tape and paste a new one ，pay attention not to overlap and too large clearance.(If the tapeis are not broken,it can

be reused)

2.5 Install the Material (for example, PLA materials)

1. Hung ﬁlament on the shelf, and insert the ﬁlament through the Material detector.

2. Click the printing head button and input 200,that it turns red means beginning heating ,and the head temperature will auto-

matically rise to 200°C

2. Insert the material into the entrance of extruder. (As shown in ﬁgure)

4. When the temperature rises to 200°C, press the material at the entrance of shrapnel, insert the material, the material squeezing

down, if the material is melted and extruded material, that means the material is inserted successfully. You can also click on

the screen to feed the material.

2.6 Manual Calibration

NOTE: BEFORE CALIBRATION, YOU NEED TO DISMANTLE THE MODEL AND PUT NEW TAPES.

2.6.1 Enter the adjust platform interface

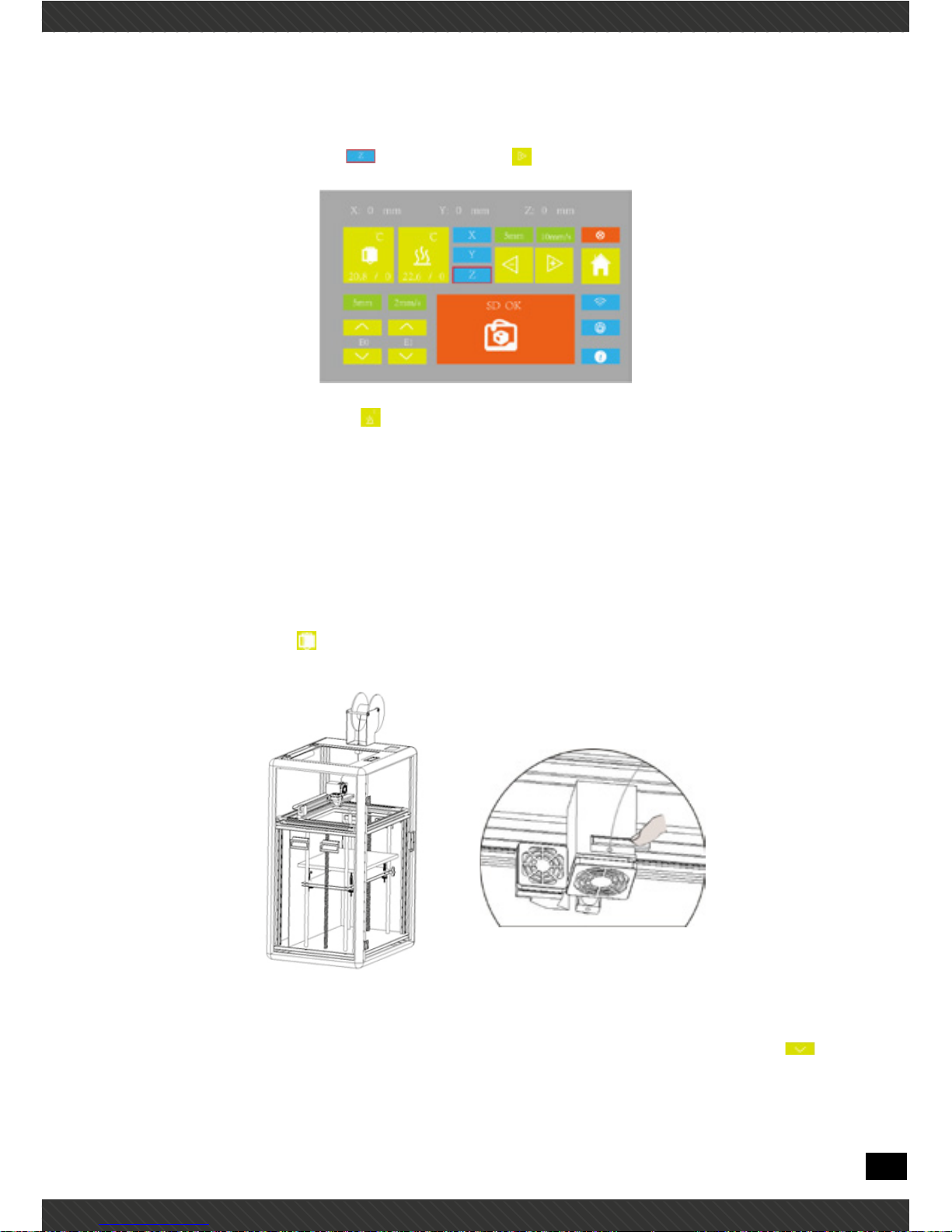

1. Choose “Z” axis , and click reset button to raise the hot bed to the highest degree.

2.6.2 Fine Tune the Printing Platform

1. Let the hot bed rise to maximum height and press button to unlock the motors of machine ,and then the printing head can be

lightly pushed to everywhere by hand. It can also be moved by clicking screen.

2. Observe the printing nozzle, the printing platform printing nozzle has a gap of about 0.1 mm (about the thickness of a sheet of

A4 paper), then you can insert a sheet of A4 into the printing nozzles and the printing platform gap, to ensure that the paper can be

inserted, but printing nozzle will not press the paper is suitable. While moving the head, if the clearance is too large or too small,

you need to adjust the corresponding adjustment nut (As shown in ﬁgure).

2.7 Printing the Test Files

Click on the SD card icon, choose a gcode ﬁle which you want to print, and press on the top right corner to printVeriﬁcare che il

ﬁlamento si depositi bene sul piatto, in caso contrario veriﬁcare la calibrazione del piatto. Porre attenzione al nastro adesivo, deve

When printing bottom layer, Observe the print nozzle .If the material can not be pasted on the hotbed, you need to Adjusting nut coun-

terclockwise. If the tape was broken, you need to Adjust the nut clockwise. the best print state is that the material paste on hot bed is

like ﬂat ribbon rather than strips or ﬂat shape.

CHAPTER3

PRINTING OPERATION

3.1 Display

1. XYZ axis coordinate values displayed in real time

2. Head preheating and Bed preheating: press the icon, input a number and click OK, it will begin to heat while the icon turns red.

Click again to cancel heating

3. Length and speed of extrusion: It can be manual adjusted

4. Extrusion and Retraction: E0 is to left extruder while E1 is to right extruder. E0 and E1 will be the same if there is only one extruder

in machine.

Attention: For double extruders , head 1 and 2 mean E0 and E1 in repetier host Icon means retraction, we suggest not use

retraction, it may cause extruder blocked

5. XYZ axis: It will show red border when clicking the icon , then you can click to move the head or bed.

6. Length and speed of moving: moving settings of head, also it can be manual adjusted

7. Moving: Icon means moving towards zero axis, icon means moving outwards from zero axis. Zero axis is located in upper

left corner of front print area.

When moving , choose X, Y or Z axis ﬁrst, then click icon or to move. When coordinate shows zero, that you can only click

icon to move towards zero axis

8. Unlock the motors: If you click, the motors will be unlocked, then you can push printing head by hand. You can stop moving by click

button at any time.

9. Reset: When choosing X、Y or Z axis, you can press icon to reset that axis you choose. If there is not any axis to be chosen, it

will reset XYZ axis in turn.

10. Card: Click into SD card, select ﬁle ,and click button on top right corner to print. You can pause or stop printing at

ay time

Attention: It may need several seconds to preheat before printing.

11. Wiﬁ, Automatic shutdown and system information: This machine is not installed components, not for use temporary

3.2 Operation and Printing Parts

1. Stick the tape to the printing plate ( note to swipe air bubbles )

2. Insert the SD card

3. Double click “SD” icon on the display panel, enter into SD card content.

4. Choose the Gcode document , click printing icon, PRISMA Series Industrial 3D Printers will print automatically.

5. after ﬁnish printing , use the scraper knife from the kit to take off the printed model.from the heating bed.

Note: when the parts are still warm, it’s easier to remove from the working plate. or pls re-heat the platform to 80°C for a minute,

so that you can remove the model easily

3.3 Pause or Continue to Print

While printing ﬁles, you can pause it at any time.

1. Press the “pause” on the display panel, the machine will be suspended to print.

2. When printer pause, press the start icon, it will continue to print.

3. If press stop icon, the printer will stop printing.

3.4 Power Outages

If want to cut off the printer power, please press the power button again. You could do it at anytime, it will not damage the printer.

And there is no need to operate any other steps. If you do it when printer is making parts, it will not ﬁnish the current printing task.

Note: After turning off the power switch, the system cooling fan and indicator light will continue to work for a few seconds
