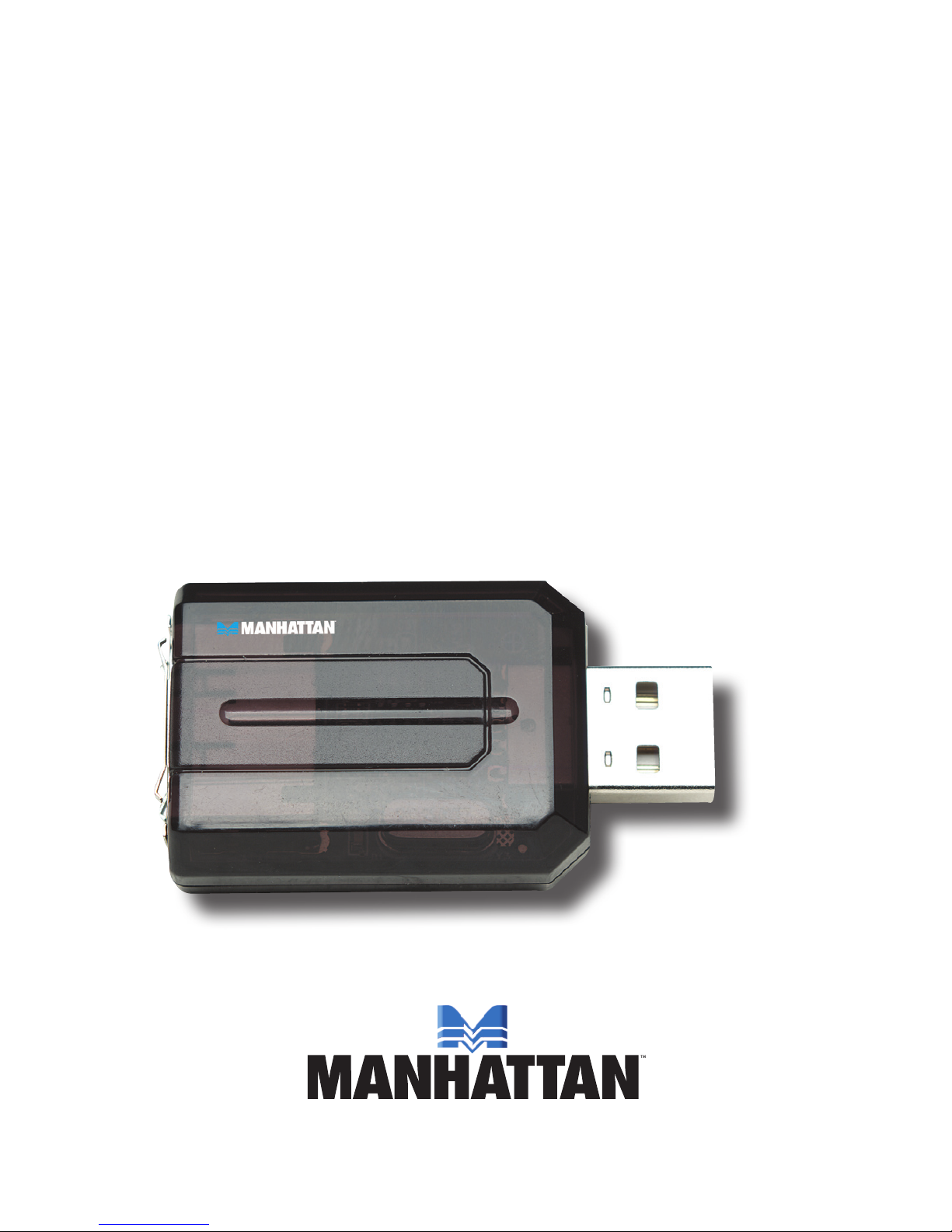

Manhattan 179089 Manuale utente

HI-SPEED

USB 2.0 TO

SATA 150

ADAPTER

WITH POWER SUPPLY

USER

MANUAL

Model 179089

MAN-179089-UM-0208-03

Thank you for purchasing the MANHATTAN

Hi-Speed USB 2.0 to SATA

150 Adapter with Power Supply, Model 179089.

This convenient device connects external SATA storage devices to

desktop and notebook computers using a USB port so that backing up

les or storing large le archives on external drives is faster and easier

to accomplish.

Installation of the adapter is quick and simple, so you’ll soon be enjoying

the benets of these features:

• Supports data transfer SATA 150 speeds up to 1.5 Gbps and Hi-Speed

USB 2.0 speeds up to 480 Mbps

• Supports 48-bit LBA for drives up to 750 GB

• Fits SATA 150 and CD/DVD drives up to 5.25”

• Plug and Play; hot-swappable; Windows, Mac and Linux compatible

• Lifetime Warranty

INSTALLATION

NOTE: Do not store or operate this device in conditions of excessive heat

or humidity. If the initial installation attempt fails, go to My Computer →

Control Panel →System Properties → Device Manager and remove any

items tagged with a question mark (?) or exclamation point (!).

1. Plug in the power supply and connect it to the SATA device with the

4-pin/15-pin cable.

2. Connect the Hi-Speed USB 2.0 to SATA 150 Adapter to the SATA

device using the SATA data cable, then plug the adapter into the

computer’s USB port.

3. Windows will detect a new device and automatically install the driver

(no added software is needed).

• To verify the connection, go to My Computer → Control Panel →

System Properties → Device Manager. Open “Hard disk controllers”

to display the newly added hard disk drive.

• If connecting to a brand new hard disk drive, use “Fdisk” to set its

capacity. NOTE: This will destroy any data on the HDD. Back up any

data on the drive rst if it needs to be saved.

• Format the HDD using standard procedures. If its icon appears on the

desktop but you can’t nd it listed, check/conrm that: the HDD has

been properly installed; the correct driver for this HDD is installed.

SPECIFICATIONS

Standards and Certications

• Hi-Speed USB 2.0

• USB 1.1

• SATA 1.0a

• FCC

• CE

General

• Hi-Speed USB 2.0 type A male; eSATA connection 7-pin female ports

• Hi-Speed USB 2.0 transfer interface

• 480 Mbps maximum transfer rate

• Supports SATA and external SATA drives

• Chipset: SPIF215A

Power Supply

• Input 100 – 250 V AC; 50/60 Hz maximum, 0.5 A

• Output: 5 V / 2 A; 12 V / 2 A

Physical

• 4.8 x 2.7 x 1.25 cm (1.9 x 1.1 x 0.5 in.)

• Cables: eSATA, 20 cm (8 in.); power, 1.7 m (67 in.)

• Weight: 275 g (9.7 oz.) with power supply

System Requirements

• Windows 2000/XP/Vista, Mac OS 10, Linux

Package Contents

• Hi-Speed USB 2.0 to SATA 150 Adapter with Power Supply

• eSATA cable

• User manual

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line

of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information

or visit us online at
