Manhattan 179195 Manuale utente

HI-SPEED USB 2.0

TO SATA/IDE

ADAPTER

USER MANUAL

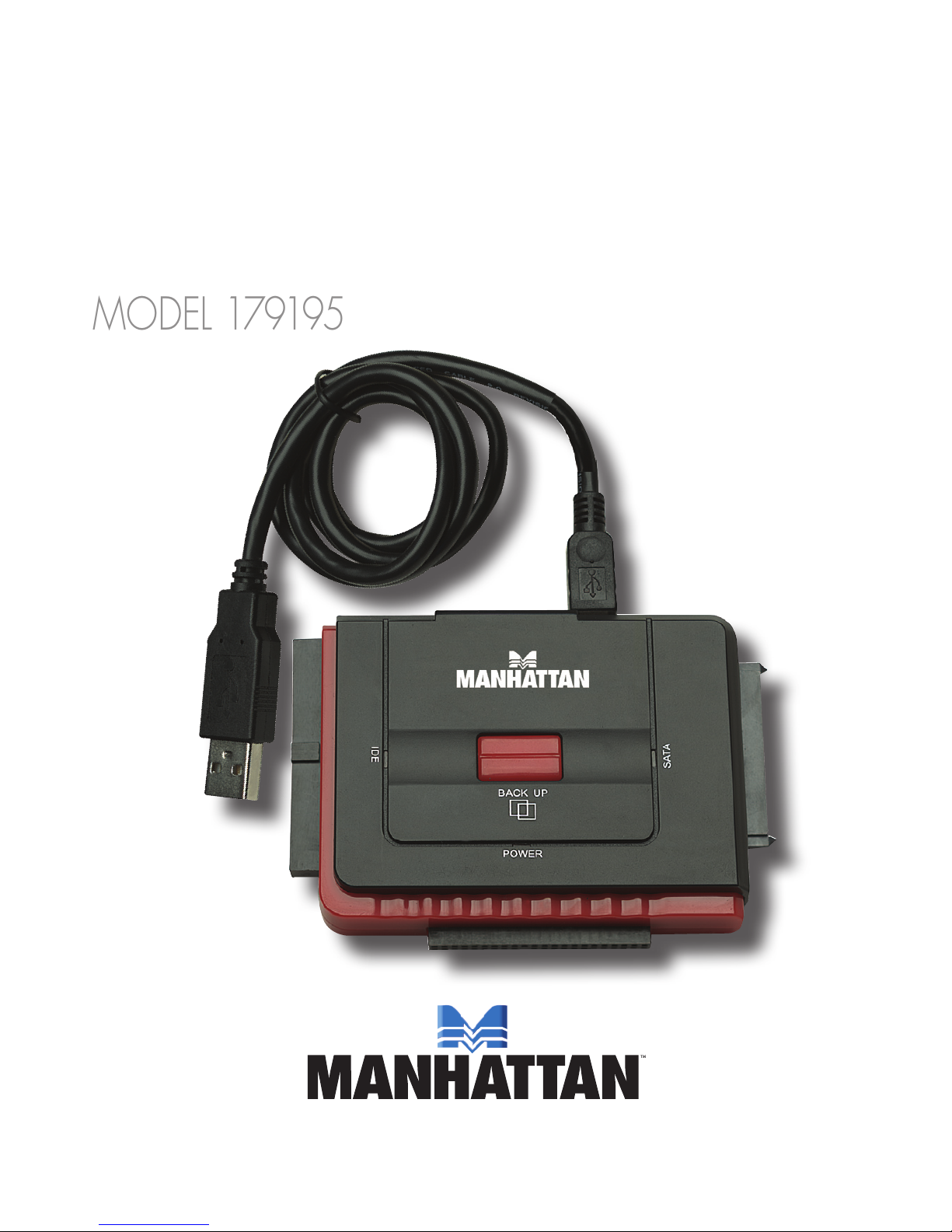

Model 179195

MAN-179195-UM-0609-06

Thank you for purchasing the MANHATTAN

Hi-Speed USB 2.0 to

SATA/IDE Adapter, Model 179195.

This convenient device connects SATA, SATA-enhanced, IDE and

enhanced-IDE hard disks to desktop and notebook computers using a

USB port to more easily transfer, share and back up les or store large

le archives on external drives.

Installation of the adapter is quick and simple, so you’ll soon be enjoying

the benets of these features:

• Supports data transfer SATA speeds up to 1.5 Gbps and Hi-Speed

USB 2.0 speeds up to 480 Mbps

• Supports 48-bit LBA (Logical Block Addressing) for drives up to 750 GB

• Fits external SATA and IDE hard disks up to 5.25”

• Plug and Play; hot-swappable; Windows, Mac and Linux compatible

• Lifetime Warranty

INSTALLATION

NOTE: Do not store or operate this device in excessive heat or humidity.

If the initial installation attempt fails, go to My Computer / Control Panel

/ System Properties / Device Manager and remove any items tagged with

a question mark (?) or exclamation point (!).

1. Connect the Hi-Speed USB 2.0 to SATA/IDE Adapter to the HDD

IDE port and the computer’s USB port.

2. Windows will detect a new device and automatically install the driver.

NOTE: No added software is needed for basic operation of this device.

To use the one-touch backup button/function, however, the included

software needs to be installed (Step 3 below).

• To verify the connection, go to My Computer / Control Panel / System

Properties / Device Manager. Open “Hard disk controllers” to display

the newly added hard disk drive.

• If connecting to a brand new hard disk drive, use “Fdisk” to set its

capacity. NOTE: This will destroy any data on the HDD. Back up any

data on the drive rst if it needs to be saved. Format the HDD using

standard procedures. If its icon appears on the desktop but you can’t

nd it listed, check/conrm the following:

- The HDD has been properly installed

- The HDD is set in the “Master” position

- The correct driver for this HDD is installed

3. Install the one-touch backup software from the included CD by

following the simple on-screen instructions.

SPECIFICATIONS

Standards and Certications

• Hi-Speed USB 2.0, USB 1.1, SATA 1.0, FCC, CE, EuP; complies with

ATA/ATAOI-100 spec v1.0 standards

General

• USB 2.0 type-A male; SATA L-type male; IDE 40-pin; IDE 44-pin ports

• Hi-Speed USB 2.0 transfer interfaces

• 480 Mbps maximum transfer rate

• Supports SATA, enhanced-SATA, IDE and enhanced-IDE drives

Power Supply

• Input: 100 – 240 V AC; 50/60 Hz maximum 0.8 A

• Output: 12 V / 2 A

• Cable: 1.5 m (59 in.)

Physical

• 8.5 x 6 x 1.7 cm (3.375 x 2.375 x 0.7 in.)

• Cables: USB, 80 cm (31.5 in.); 4-pin power, 10 cm (4 in.)

• Weight: 280 g (9.9 oz.)

System Requirements

• Available USB type-A port

• Windows 2000/XP/Vista/7

Package Contents

• Hi-Speed USB 2.0 to SATA / IDE Adapter

• User manual and software CD

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line

of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information

or visit us online at
