Manhattan 130288 Manuale utente
DRIVE ENCLOSURE
USER MANUAL
MODEL 130288
MAN-130288-UM-0712-01
manhattan-products.com
2
INTRODUCTION
Thank you for purchasing this MANHATTAN®Drive Enclosure, Model 130288.
Install an idle or new hard disk drive into a MANHATTAN Drive Enclosure to
expand storage capacities for desktop and notebook computers. With support for
large-capacity 3.5-inch SATA drives up to 2 TB and Hi-Speed USB data transfer
rates of up to 480 MBps, this MANHATTAN Drive Enclosure helps optimize high-
performance personal computer storage applications.
By following the instructions in this user manual — or the simpler setup procedure
in the printed quick install guide included with the product — you’ll soon be
enjoying these additional features:
• Integrated one-touch backup button
• Lightweight, compact design ideal for portable storage
• Sturdy case protects drive and facilitates cooling
• Plug and Play installation – Windows and Mac compatible
• Lifetime Warranty (For a complete list of country-specic warranties, go to
manhattan-products.com/warranty.)
Package Contents
• Drive Enclosure
• USB cable, power adapter, stand, installation hardware, screwdriver and quick
install guide
System Requirements
• Available USB type-A port
• Windows XP/Vista/7 or Mac support
HARDWARE AND DRIVER INSTALLATION
A B
C D
3

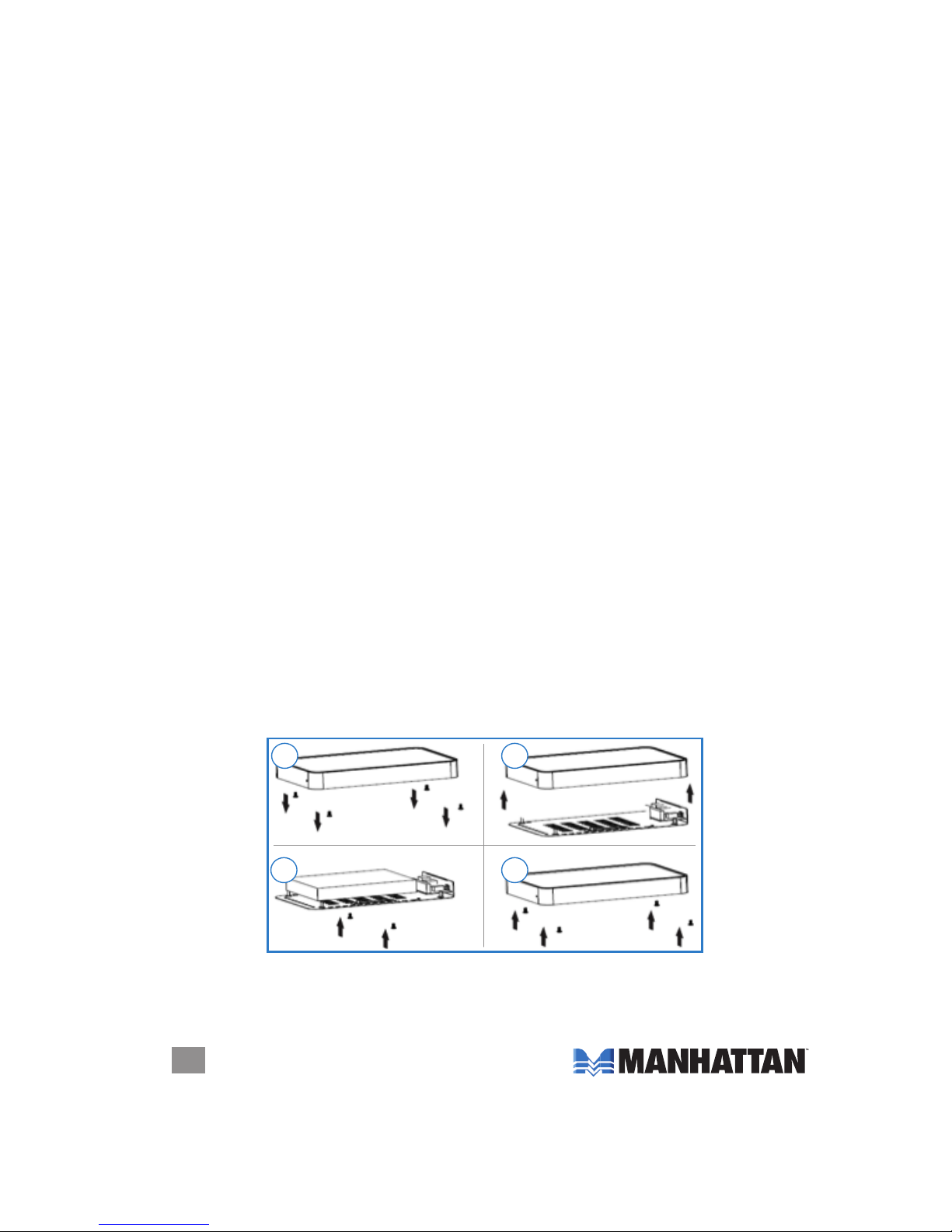

1. Remove the 4 screws on the bottom of the enclosure (A) and lift off the top (B).
2. Connect the hard drive to the SATA data and power connectors on the
e n c l o s u r e , t h e n s e c u r e i t t o t h e e n c l o s u r e u s i n g t h e i n c l u d e d s c r e w s ( C ) .
3. Re-assemble the enclosure (D) using the 4 screws in Step 1.

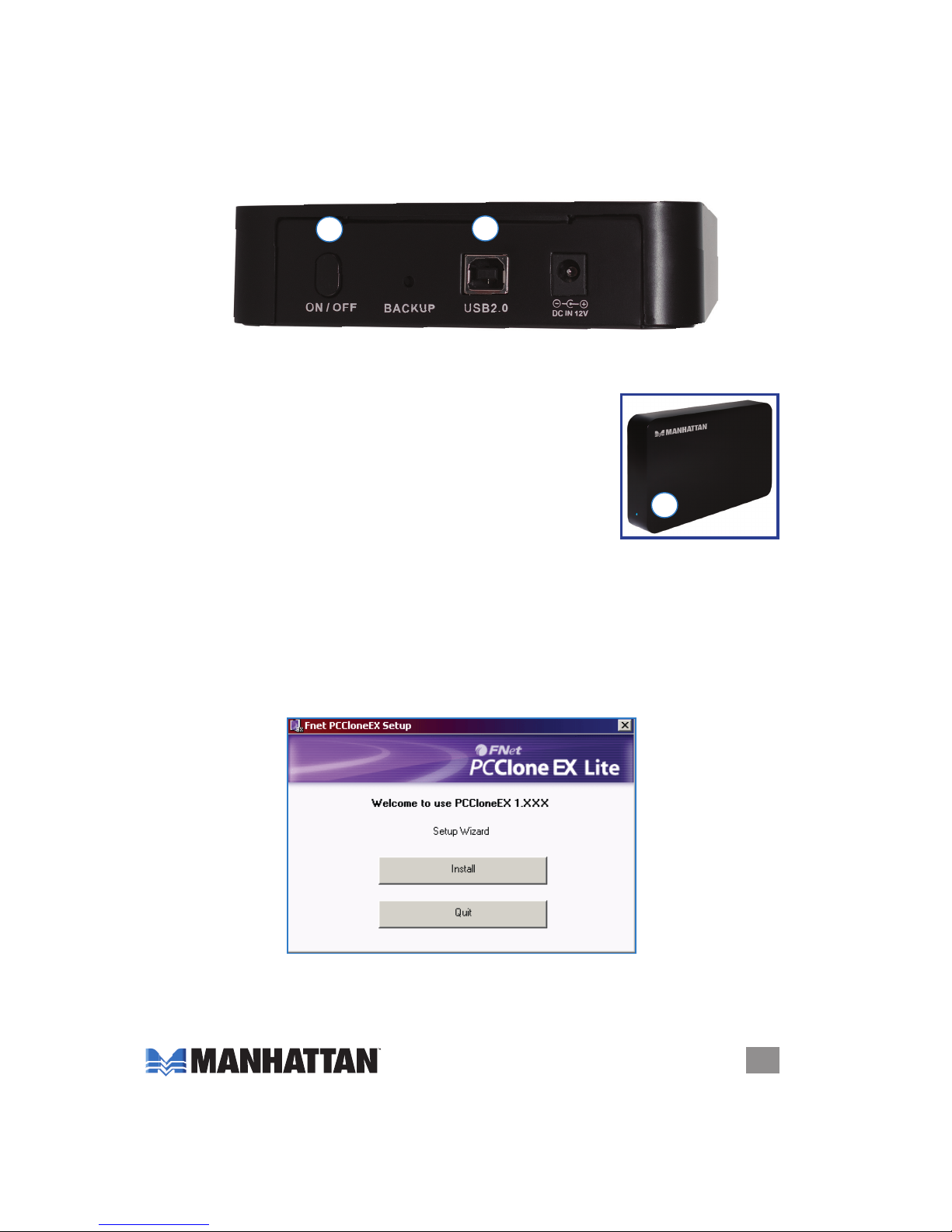

4. Using the included USB cable, connect the enclosure (E) to a USB port on the
computer.
5. Press the Power button (F). Conrm the Power LED (G)
lights.
Your system will automatically detect the new hardware and
complete the setup, conrmed when “USB Mass Storage
Device” displays in the Device Manager folder.
SOFTWARE INSTALLATION
These steps are for the installation of the convenient one-touch backup software.
NOTE: This software doesn’t support Mac operating systems. Some images may
look different on your computer, as your software version may be slightly different
than the one represented here.
1. Load the included software CD. The PC Clone EX setup wizard’s Welcome
screen will display automatically. Click “Install” to continue.
FE
G
4
2. When the License and Warranty Agreement displays, click “Agree” to continue.
3. Enter the desired pathway for the installation or click “Browse” to nd a current
folder. Click “Install” to continue.
4. The nal Setup screen will display a progress status bar. When nished, the
wizard will display an “Install complete!” message. Click “OK” to exit the wizard.
Install Complete!
5
5. The PC Clone EX icon will appear in the system tray. To open the program, you
can double-click the icon or right-click to display the menu option for selection.
CREATING PARTITIONS
NOTE: If the hard drive you have placed in the enclosure (the drive that you are
copying data to) has already been partitioned, you can proceed to the next section.
1.
With the adapter plugged into a USB port on your computer and powered
on (see
Hardware Installation above), right-click My Computer on your desktop and go
to Manage. (Or go to Start / Control Panel / Administrative Tools / Computer
Management.)
6
2. In the left-hand le directory, click/select “Disk Management” so its screen
displays on the right. Right-click on the disk identied as “Unallocated,” then
click/select “New Partition...” from the pop-up menu. NOTE: To conrm that the
drive you’ve placed in the enclosure is indeed the unallocated disk, disconnect
the USB cable and see if the corresponding “Unallocated” text disappears.
3. With the Format Partition screen displayed, select your preferred settings, then
click “Next” to continue.
7
OPTION: An alternative pathway for accessing the formatting options is through
Start on your desktop, then All Programs / PCCloneEX / FNet FAT32 Format. The
formatting details and instructions will appear on the screens that display.
FAT32 FORMAT UTILITY
With the increases in drive capacities, the FAT32 Format Utility in older operating
systems is unable to support data transfers in excess of 32 GB. The solution is
to use the FNet formatting utility on the enclosed CD, which can quickly format a
disk for as much as 4 TB (4,000 GB). Note that all data already on the disk will be
deleted.
1.
Connect the HDD to the drive enclosure and turn on the computer.
2. Open PC Clone EX and select Visit FNet.
Show PCClone EX
Visit FNet
8
3. Conrm that the elds for USB Device and Drive to Format display your
preferences and click Start.
4. Select “Quick Format” and click Start. Remember, all data previously loaded
on the receiving HDD will be deleted.
9
5. A Status screen will display the progress of the formatting.
6. When the Format Complete message displays, click OK. The selected disk has
been formatted with the FAT32 le system.
10
ONE-TOUCH BACKUP FUNCTION
To use any of the features available with this function, be sure the enclosure is
plugged into a USB port on your computer and powered on, and that a backup
drive has been properly loaded in the enclosure. NOTE: Before backing up les
for the rst time using this device, it’s recommended that the function parameters
be set on the File Backup Settings screen in the PC Clone EX program.

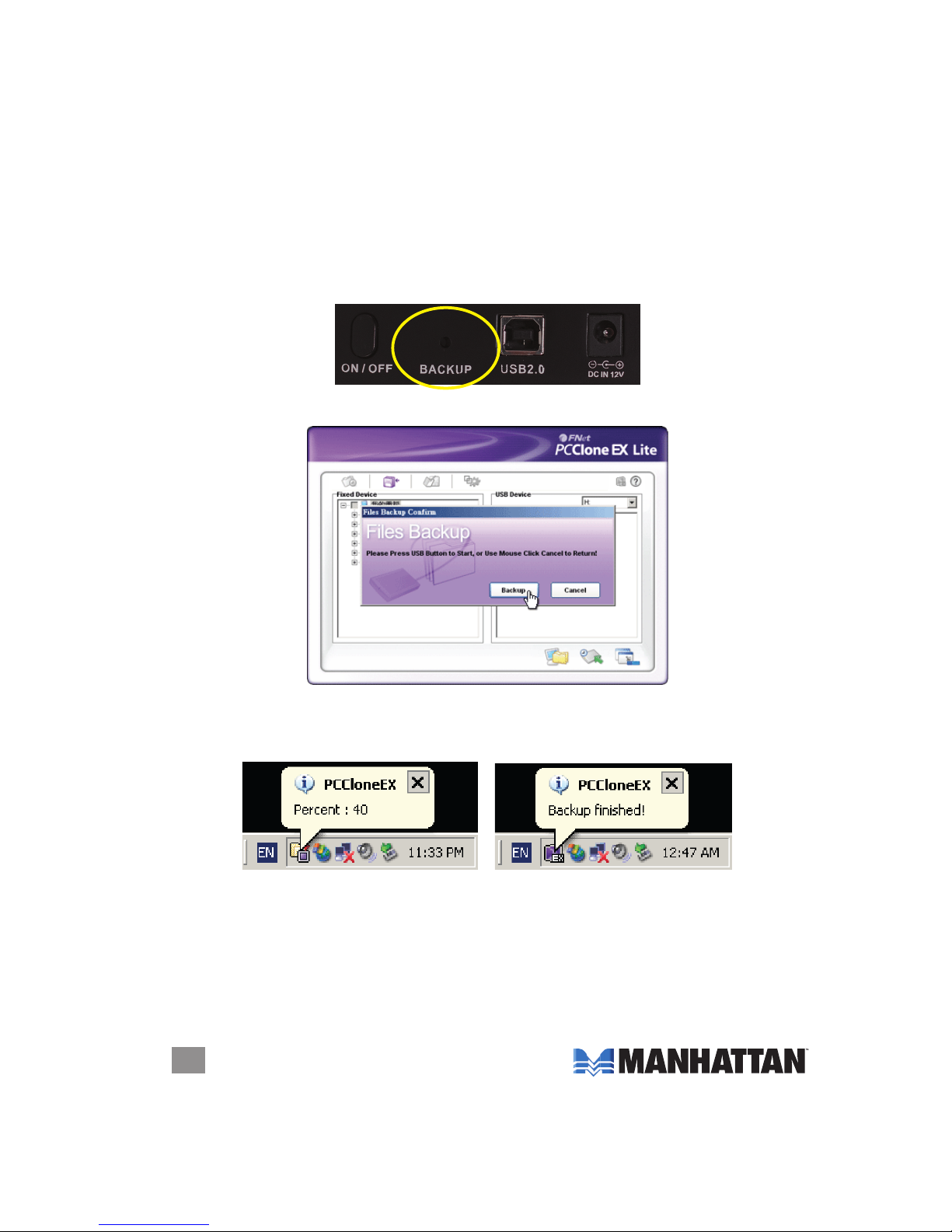

1. With the PC Clone EX program open and the disk connected to the enclosure
(see Hardware Installation above), press the Backup button on the enclosure.
2. A Files Backup Conrm screen will display. Click Backup to continue.
3. While the backup procedure is in progress, the PC Clone EX icon will ash in
the system tray and a status uplate will display every 10 seconds until the
backup is complete.
