Manhattan 709040 Manuale utente

MAN-709040-UM-0308-01

eSATA, 3.5”

ExTErnAl

EncloSurE

uSEr MAnuAl

MODEL 709040

2

Thank you for purchasing the MANHATTAN®eSATA, 3.5” External Enclosure, Model 709040.

Fully SATA-capable and equipped with eSATA I-type ports, the chipset-free design quickly transfers

data without conversion between SATA-enabled systems. Just install an idle, unused drive to

create new and productive storage solutions. Additional features:

• Supports SATA data transfer rates up to 3 Gbps

• Lightweight, compact design ideal for portable storage

• Sturdy aluminum case protects drive and facilitates cooling

• Fits standard 3.5” SATA drives with easy, quick installation — includes rear-mount power switch

• Windows and Macintosh compatible, Plug and Play, hot swappable

• Lifetime Warranty

Package contents:

• External Enclosure

• eSATA and power adapter

• User manual and stand

System requirements:

• eSATA-enabled PC or Macintosh

• Available eSATA port

• Windows 2000/XP/Vista or Mac OS 10.x and above

3

hArdwArE inSTAllATion

NOTE: Images are for example only. Actual positions of switches or connectors may vary slightly.

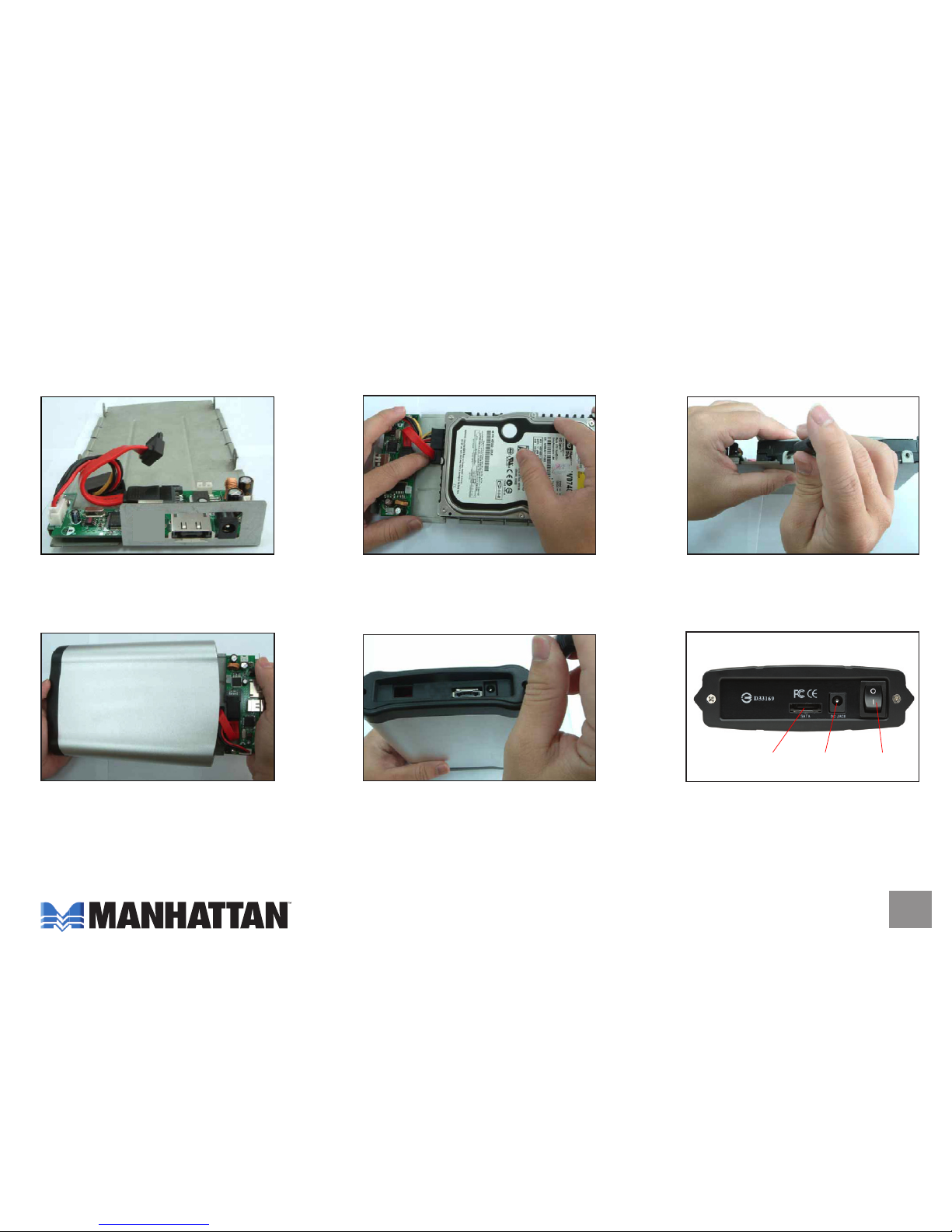

1. Open the enclosure. 2. Connect the power and

SATA cables to the HDD.

3. Tighten the sides screws

to secure the HDD.

4. Slide the connected hard

disk drive inside the external

enclosure.

5. Replace and tighten the two

retaining screws to secure

the rear panel.

6. Connect the external

cables.

eSATA

port 12 V DC

in On/Off

4

SofTwArE inSTAllATion

Windows 2000/XP

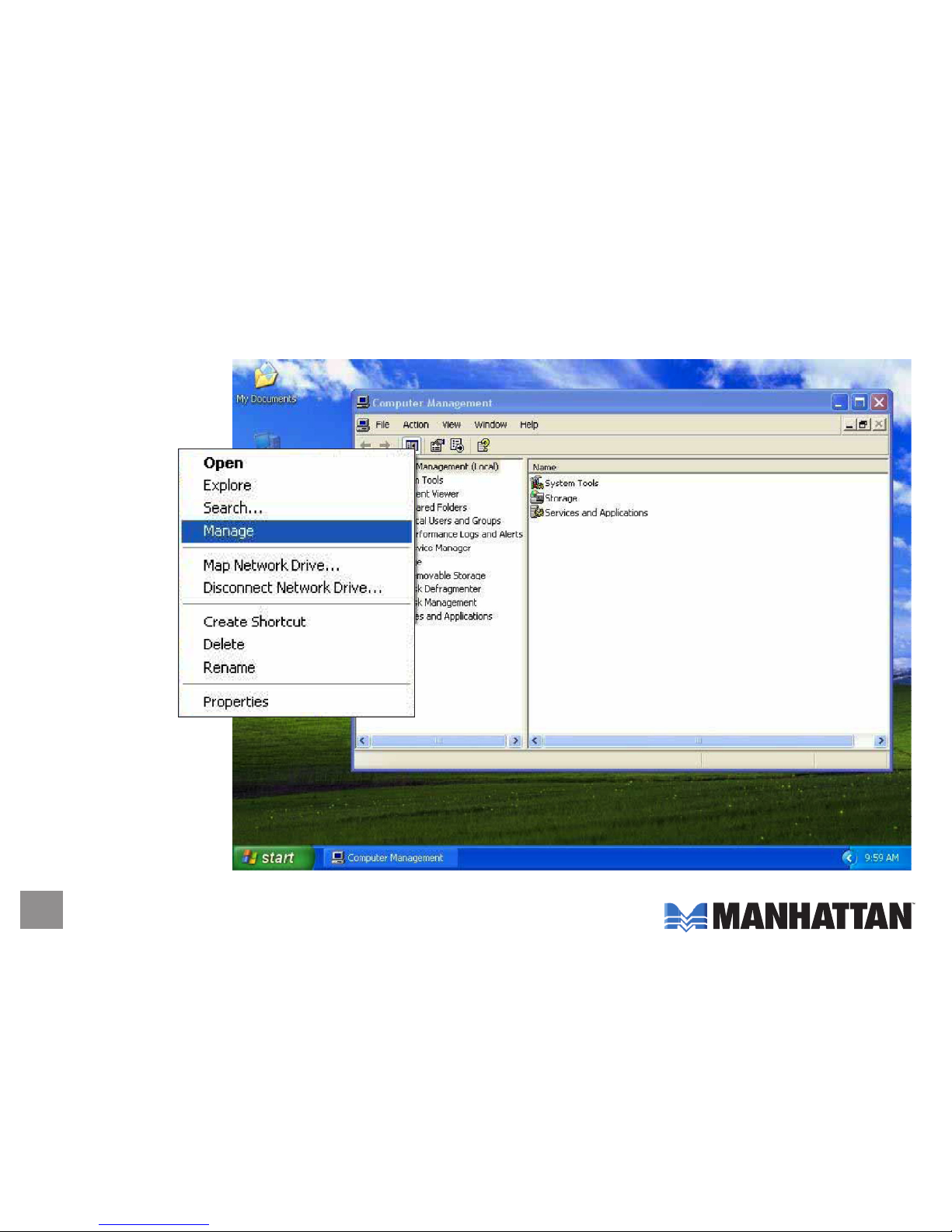

1. Click on the My

Computer

icon; click

"Manage"

to initialize

the hard

disk drive.

5

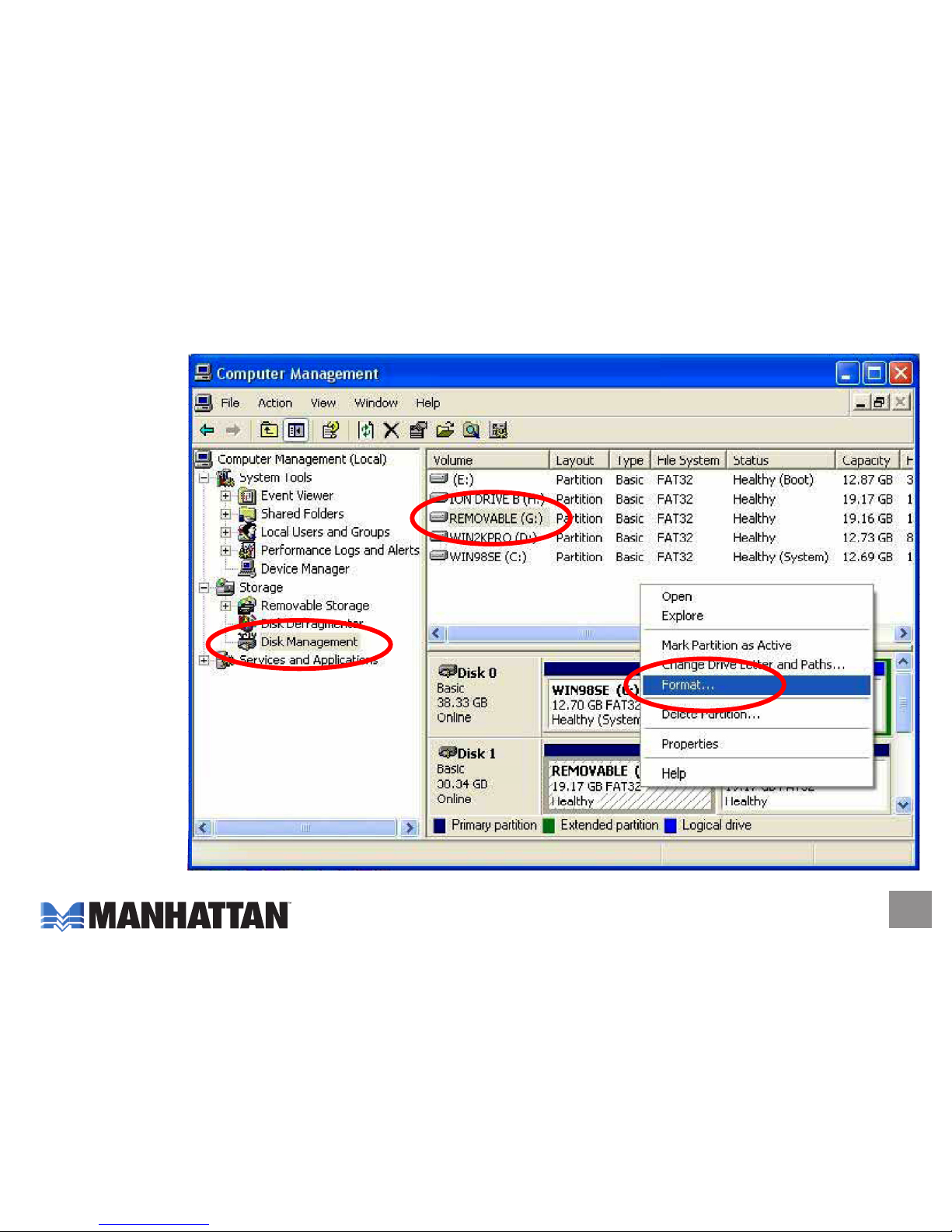

2. Click "Disk Management," then click "Removable Disk," then click "Format."

6

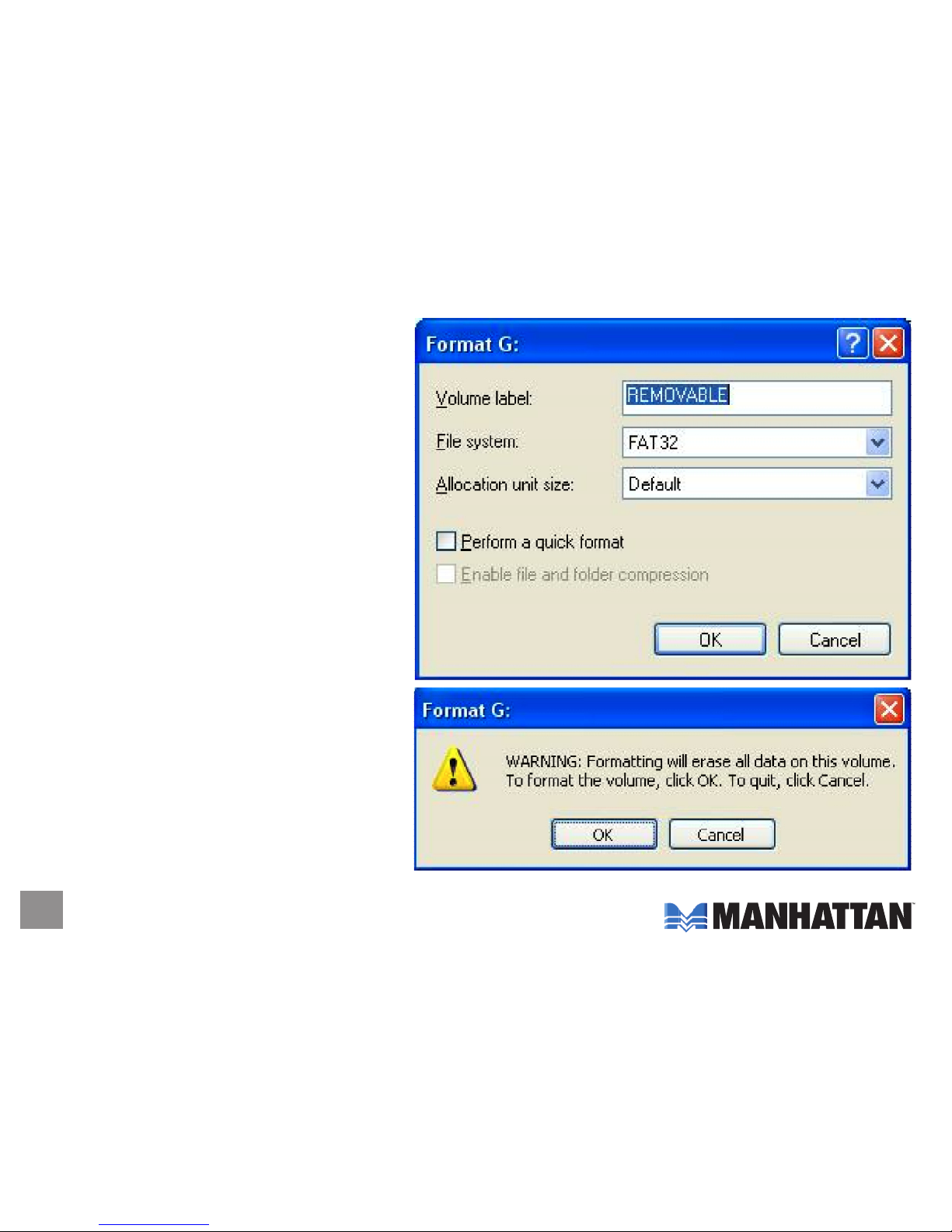

3. Conﬁrm that "Removable" and "FAT32"

are entered/selected in the "Volume

label" and "File system" ﬁelds,

respectively. Click "OK."

4. When the warning prompt appears,

click "OK."

7

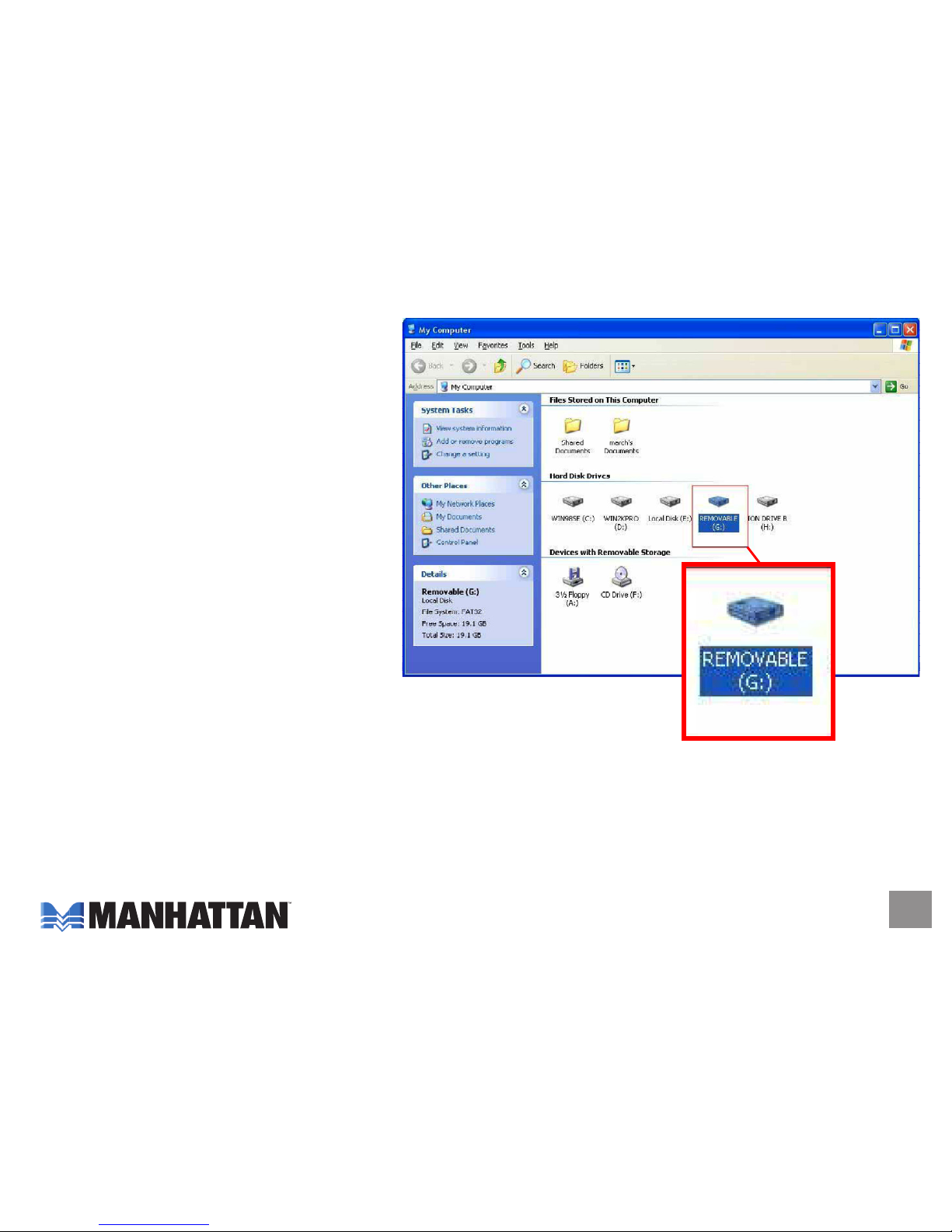

5. Click "My Computer" and conﬁrm

that the new "Removable" icon

appears. The External Enclosure

with hard disk drive is now ready

for use.

SpEcificATionS

• SATA L-type internal data and power connections

• eSATA I-type external connections

• DC single-post power input (AC adapter included)

• eSATA I-type to I-type ﬂat cable, 1.1 m (3.75 ft.)

• 12 V / 2 A power adapter, 1 m (3.5 ft.)

• 22.25 x 12.7 x 3.8 cm (8.75 x 5 x 1.5 in.)

• 363 g (12.8 oz.)

www.manhattan-products.com

Copyright © MANHATTAN

All products mentioned are trademarks or registered trademarks of their respective owners.

MANHATTAN®offers a complete line of PC Components,

Peripherals, Cables and Accessories. Ask your local computer dealer for more

information or visit us online at
