Model WT3-201M

MOTORIZED WIRE CRIMP PULL TESTER

User’s Guide

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

Thank you…

Thank you for purchasing a Mark-10 WT3-201M wire crimp

pull tester, designed for pull test applications up to 200 lbF

(1,000 N).

With proper usage, we are confident that you will get many

years of great service with this product. Mark-10 instruments

are ruggedly built for many years of service in laboratory and

industrial environments.

This User’s Guide provides setup, safety, and operation

instructions. Dimensions and specifications are also provided. For additional information or answers to

your questions, please do not hesitate to contact us. Our technical support and engineering teams are

eager to assist you.

Before use, each person who is to use the WT3-201M should be fully trained in appropriate

operation and safety procedures.

TABLE OF CONTENTS

LIST OF INCLUDED ITEMS...................................2

SAFETY ..................................................................2

SETUP ....................................................................2

HOME SCREEN AND CONTROLS .......................6

OPERATING MODES.............................................9

UNITS OF MEASUREMENT ..................................9

DIGITAL FILTERS................................................10

PASS / FAIL LIMITS.............................................11

SPEED ..................................................................12

AUTO START .......................................................13

PRELOAD.............................................................14

PULL TO LOAD (optional function)...................15

LOAD HOLDING (optional function)..................16

BREAK DETECTION............................................17

AUTO RETURN ....................................................18

AUTO SETTINGS .................................................19

DATA MEMORY AND STATISTICS ....................20

COMMUNICATIONS AND OUTPUTS .................22

PROFILES (optional function) ...........................26

PASSWORDS.......................................................27

OTHER SETTINGS...............................................29

FUNCTION ACTIVATION.....................................31

CALIBRATION .....................................................32

MAINTENANCE....................................................36

SPECIFICATIONS ................................................37

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

1 LIST OF INCLUDED ITEMS

Qty.

Part No.

Description

WT3-201M

Wire crimp pull tester

Power cord

Certificate of calibration without data (standard) or with data (optional)

09-1165

USB cable

USB driver, MESUR®Lite software, MESUR®gauge evaluation software, User’s Guide

Download at: www.mark-10.com/resources

2SAFETY

The following safety checks and procedures should be performed before and during operation:

1. Always consider the characteristics of the sample being tested before initiating a test. A

risk assessment should be carried out beforehand to ensure that all safety measures have been

addressed and implemented.

2. Wear eye and face protection when testing. Be aware of the dangers posed by potential

energy that can accumulate in the sample during testing. Extra bodily protection should be worn if

a destructive failure of a test sample is possible.

3. Keep away from moving parts of the tester. Loose articles of clothing should not be worn.

Long hair should be covered to avoid a hazardous situation.

4. In those applications which could lead to a hazardous situation, use of a machine guard

is strongly recommended.

5. When the tester is not in use, ensure that the power is turned off to prevent accidental

engagement of any of the controls.

Safety features provided by this tester may be impaired if it is not used in a manner not specified

by Mark-10.

3SETUP

3.1 Mechanical Setup

3.1.1 Assembly

The tester is shipped completely assembled.

3.1.2 Mounting and placement

Place the tester on a clean, flat and level work area free from vibration. If desired, the tester can be

secured to the work area with four 1/4-20 screws fastened into the threaded holes in the underside of the

base (depth of 0.5 in. [12 mm]).

Ensure that the rear of the tester is easily accessible, so that the power cord can be disconnected in an

emergency.

3.1.3 Installing the ring terminal fixture or blank terminal fixture

To install or uninstall the standard terminal fixture or optional fixture, loosen the screw in the center of the

fixture, remove, place the other fixture in the receptacle, and re-tighten the screw. Keep away from metal

particles that may have originated from testing samples, as there are magnets located inside the terminal

fixtures.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

3.1.4 Sample setup

1. Secure the terminal into the standard terminal fixture or optional ring terminal fixture, as

shown in the images below. Rotate the fixtures until the desired slot or ring size is aligned with

the cam mechanism adjacent to the lever.

2. Insert the loose end of the wire between the cams in the mechanism. Keep the wire taut

as it is inserted. If auto-start is enabled, the test will begin when the switch is activated (refer to

later sections for operational details). Refer to the image below:

3. Note the protective red safety guard (circled, below), which automatically rotates into

position as the cam mechanism closes.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

3.2 Connections and Outputs

1. I/O Connector

RS-232, set point, analog, Mitutoyo, and other outputs are provided. Refer to the

Communications and Outputs section for details.

2. Fuse

3. Power Switch

Use to turn power on and off.

4. Power Plug Receptacle

Plug the power cord in here. Refer to the Connecting power sub-section for important safety

information.

5. USB Connector

Plug the USB cable in here, for data output to a PC, PLC, printer, etc.

3.3 Installing the USB driver

If communicating via USB, install the USB driver available at: www.mark-10.com/resources

Caution!

Install the USB driver before physically connecting the tester to a PC with the USB cable.

Further instructions for configuring and using the tester’s outputs are provided in the Communications

and Outputs section.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

3.4 Connecting power

Plug one end of the power cord into its receptacle at the rear of the tester and the other end into a wall

outlet with local earth ground (3-prong connector).

Before turning on power, the following safety checks and procedures should be performed:

1. Never operate the tester if there is any visible damage to the power cord or the tester

itself. The WT3-201M is powered by 100-240VAC. Any contact with this high voltage can cause

serious injury or even death.

2. Ensure that the tester is kept away from water or any electrically conductive liquids at all

times.

3. Make sure the electrical outlet powering the tester has local earth ground (3-prong

connector).

4. The tester should be serviced by a trained technician only. Power must be disconnected

before disassembly.

5. Never use a detachable mains supply cord with inadequate ratings.

After the above safety checks and procedures have been performed, the tester may be powered on and

is ready for operation.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

4HOME SCREEN AND CONTROLS

4.1 Demo Mode Functions

The WT3-201M is shipped in Demo Mode, which provides full functionality of all available optional

functions for an evaluation period of 160 operating hours. When this period has expired, any functions not

purchased will no longer be accessible.

After the initial power-up sequence, the display appears as follows:

The available optional functions are as follows:

1. Profiles

Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc.

Maximum of 500 profiles may be stored.

2. Load Holding

The tester will stop and maintain a specified load for a specified period of time.

3. Pull To Load

The tester will stop when the specified load has been reached.

4. Date & Time Stamp

A date and time stamp is assigned to each saved data point.

Refer to the Function Activation section for further instructions on how to activate functions.

*** DEMO MODE ***

All functions are

temporarily enabled.

Remaining demo time:

160 hours

Press ENTER.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

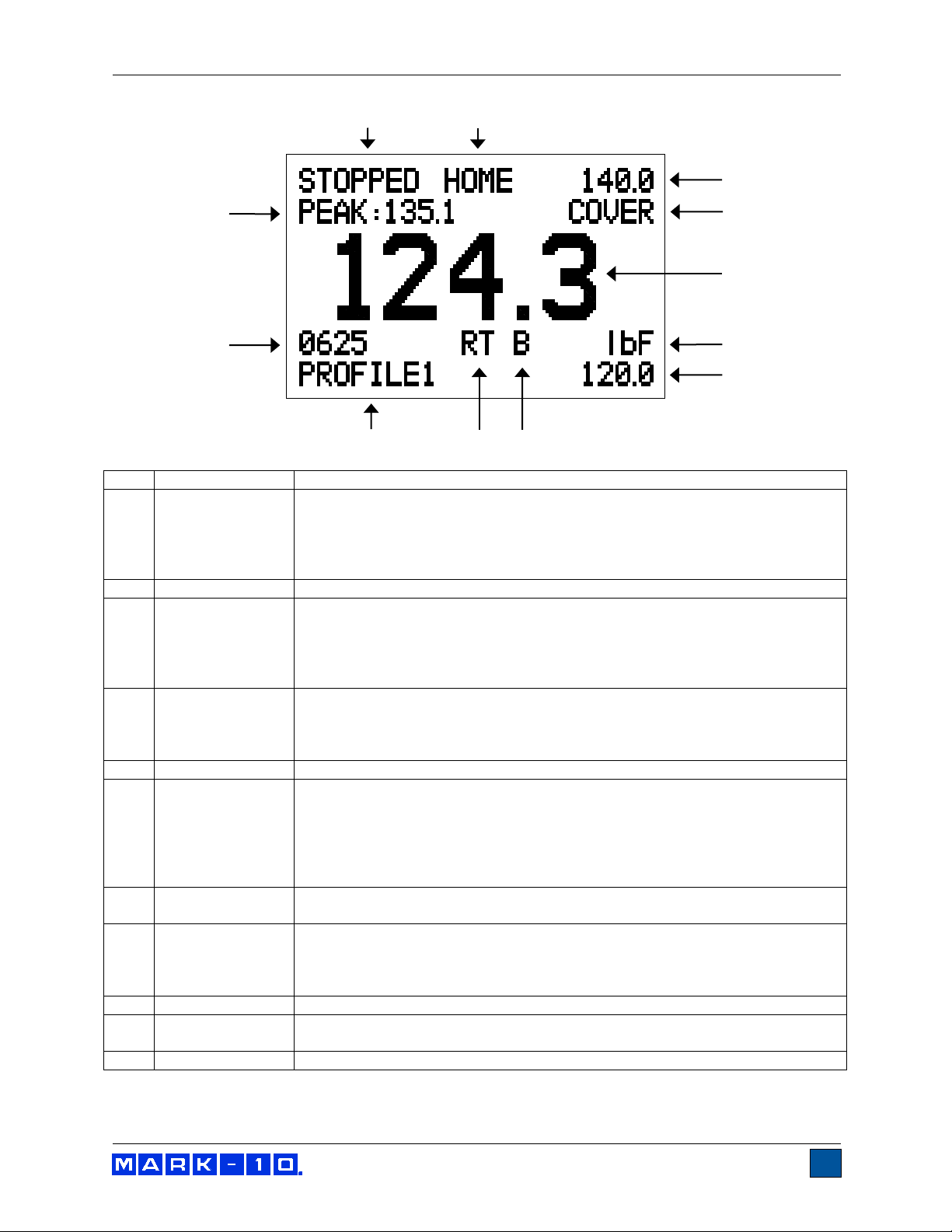

4.2 Home Screen

No.

Name

Description

1 Status

Indicates one of the following statuses:

STOPPED

PULLING

RETURNING (to the Home position)

HOLDING (Load Holding sequence in progress)

Position

Indicates one of the following positions: HOME or LIMIT

3 / 7 Upper / lower

force limits

Indicates the upper and lower acceptable force limits, as configured in the

Pass / Fail Limits menu. The upper and lower red “X” indicators adjacent to

the values illuminate if the displayed force is less than the lower limit or

greater than the upper limit. The green “checkmark” indicator illuminates if

the displayed force is within range.

4 Message

Indicates one of the following messages:

COVER - the actuator cover is removed.

PL ON – Pull to Load (optional function) is active.

LH ON – Load Holding (optional function) is active.

Primary reading

The current displayed reading. See Operating Modes section for details.

6 Unit of

measurement

The current measurement unit. Abbreviations are as follows:

lbF – Pound-force

ozF – Ounce-force

kgF – Kilogram-force

N – Newton

kN – Kilonewton

Break detection

on/off

The letter “B” appears if the Break Detection function is enabled. Refer to the

Break Detection section for details.

9 Mode

The current measurement mode. Abbreviations are as follows:

RT – Real Time

PK – Peak

See Operating Modes section for details about each of these modes

Profile name

Indicates the currently selected profile. See Profiles section for details.

Number of data

points

The number of data points stored in memory, up to 2,000.

Peak force

The maximum measured tension force. May be reset by pressing ZERO.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

4.3 Controls

Primary

Label

Primary Function

Secondary

Label

Secondary Function

ENTER

Various uses, as described in the

following sections.

ZERO

Zeroes the primary reading and

peaks.

(UP)

Navigates up through the menu and

sub-menus.

MENU Enters the main menu. ESCAPE

Reverts one step backwards through

the menu hierarchy.

MODE

Toggles between measurement

modes.

(DOWN)

Navigates down through the menu

and sub-menus.

DATA

Stores a value to memory, transmits

the current reading to an external

device, and/or initiates automatic

data output, depending on setup.

DELETE Enables and disables Delete mode

while viewing stored data.

START

Starts motion. Press and release to

produce maintained motion. In

Maintenance mode, a key press

results in momentary motion.

STOP Stops motion. RETURN

Reverses motion. Press and release

to produce maintained motion until

return to the Home position. In

Maintenance mode, a key press

results in momentary motion.

4.4 Menu navigation basics

Most of the tester’s various functions and parameters are configured through the main menu. To access

the menu press MENU. Use the UP and DOWN keys to scroll through the items. The current selection is

denoted with clear text over a dark background. Press ENTER to select a menu item, then use UP and

DOWN again to scroll through the sub-menus. Press ENTER again to select the sub-menu item.

For parameters that may be either selected or deselected, press ENTER to toggle between selecting and

deselecting. An asterisk (*) to the left of the parameter label is used to indicate when the parameter has

been selected.

For parameters requiring the input of a numerical value, use the UP and DOWN keys to increment or

decrement the value. Press and hold either key to auto-increment at a gradually increasing rate. When

the desired value has been reached, press ENTER to save the change and revert back to the sub-menu

item, or press ESCAPE to revert back to the sub-menu item without saving. Press ESCAPE to revert one

step back in the menu hierarchy until back into normal operating mode.

Refer to the following sections for details about setting up particular functions and parameters.

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide

5 OPERATING MODES

Caution!

In any operating mode, if the capacity of the tester has been exceeded by more than 10%, the

display will show “OVER” to indicate an overload. A continuous audible tone will be sounded until

the MENU key has been pressed or the load has been reduced to a safe level.

Three operating modes are possible with the WT3-201M. To cycle between the modes, press MODE

while in the home screen.

5.1 Real time (RT)

The primary reading corresponds to the live measured reading.

5.2 Peak (PK)

The primary reading corresponds to the peak tension reading observed. If the actual force decreases

from the peak value, the peak will still be retained in the primary reading area of the display. Pressing

ZERO will reset the value.

6 UNITS OF MEASUREMENT

The WT3-201M can display five different force measurement units. To change the unit, select Units from

the menu. The display will list the available units, as follows:

Note: Changing the unit within this menu will not set the default unit. To always power on automatically

with the desired unit, configure the unit in the Initial Settings menu.

UNITS

* lbF

ozF

kgF

Indice

Altri manuali Mark-10 Apparecchiature di prova

Mark-10

Mark-10 TT05 Series Manuale utente

Mark-10

Mark-10 TT01 series Manuale utente

Mark-10

Mark-10 F105 Manuale utente

Mark-10

Mark-10 Series 3 Manuale utente

Mark-10

Mark-10 TSTM-DC Series Manuale utente

Mark-10

Mark-10 TT01 series Manuale utente

Mark-10

Mark-10 ESM301 Manuale utente

Mark-10

Mark-10 MTT03C-12 Manuale utente

Mark-10

Mark-10 TT05 Series Manuale utente

Mark-10

Mark-10 WT3-200 Manuale utente

Mark-10

Mark-10 ESM303 Manuale utente

Mark-10

Mark-10 ES10 Manuale utente

Mark-10

Mark-10 F Series Manuale utente

Mark-10

Mark-10 TT01 series Manuale utente

Mark-10

Mark-10 ESMH Manuale utente

Mark-10

Mark-10 MTT02-25 Manuale utente

Mark-10

Mark-10 ES Series Manuale utente

Mark-10

Mark-10 TT02 Series Manuale utente

Mark-10

Mark-10 WT3-201 Manuale utente

Mark-10

Mark-10 7 Series Manuale utente

Mark-10

Mark-10 STA Series Manuale utente

Mark-10

Mark-10 MTT05-25 Manuale utente

Mark-10

Mark-10 F Series Manuale utente

Mark-10

Mark-10 CT Series Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
