Marmitek AMM32 Manuale utente

USER MANUAL

MM3

20402/20120119 • AMM32™

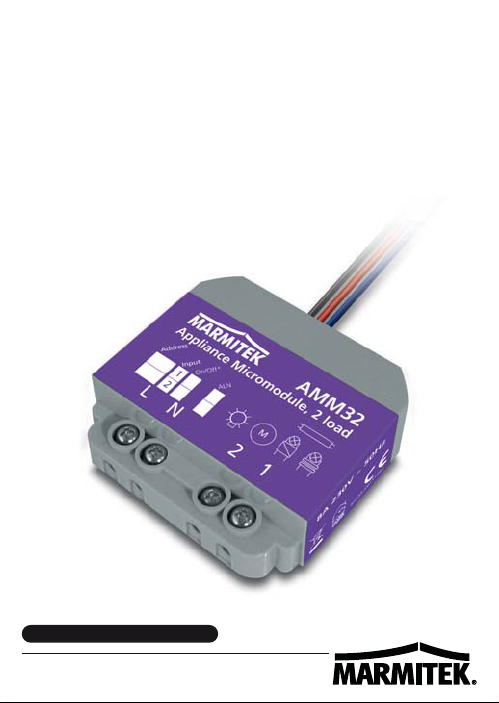

AMM32™

Appliance Micromodule, 2 load

TABLE OF CONTENTS

TABLE OF CONTENTS....................................................... 2

SAFETY WARNINGS ......................................................... 3

HOW DOES MARMITEK X-10 WORK? ............................ 4

ADRESSES ......................................................................... 4

SIGNAL RANGE ................................................................ 5

TWO-LOAD APPLIANCE MICRO MODULE...................... 7

FUNCTIONS ...................................................................... 7

INSTALLATION ................................................................. 8

PROGRAMMING. ............................................................. 9

FREQENTLY ASKED QUESTIONS ................................... 10

TECHNICAL DATA .......................................................... 11

DECLARATION OF CONFORMITY.................................. 13

COPYRIGHTS .................................................................. 14

AMM31 3

SAFETY WARNINGS

•The wiring of your electrical installation is live (230 V)

and extremely dangerous. Never connect the module

when plugged into the mains. Always turn off the

main switch before starting the installation.

•This product is for professional use and should be

installed by a certified installer."

•To prevent short circuits, this product should only be

used inside and only in dry spaces. Do not expose the

components to rain or moisture. Do not use the

product close to a bath, swimming pool etc.

•Do not expose the components of your systems to

extremely high temperatures or bright light sources.

•In case of improper usage or if you have altered and

repaired the product yourself, all guarantees expire.

Marmitek does not accept responsibility in the case of

improper usage of the product or when the product is

used for purposes other than specified. Marmitek

does not accept responsibility for additional damage

other than covered by the legal product

responsibility.

•This product is not a toy. Keep out of reach of

children.

•Do not open the product: the device may contain live

parts. The product should only be repaired or serviced

by a qualified expert.

•Automatic switching devices provide comfort, but can

also be dangerous. They can surprise people or can

ignite clothing hanging over an electric heat source.

Please be careful and take appropriate measures to

avoid accidents.

HOW DOES MARMITEK X-10 WORK?

Marmitek X-10 components use the existing mains wiring

to communicate (using Marmitek X-10 signals). You can

build a complete system using the three different kind of

components of the Marmitek X-10 System:

1. Modules: These components will receive Marmitek X-10

signals and will switch or dim the attached lamp or

appliance. Examples of these modules are lamp modules

and appliance modules. These are available as build-in,

micro, DIN rail and plug-in modules.

2. Controllers: These components will transmit Marmitek

X-10 signals and thus will control the Modules.

3. Transmitters:Wireless components like remotes. The

signals of these components will be received by a

controller with transceiver functionality (IRRF 7243, TM13,

CM15Pro…..). The Transceiver will translate the signals into

Marmitek X-10 signals on the power line.

ADRESSES

Up to a maximum of 256 different addresses can be preset.

These are subdivided into a so-called HouseCode (A to P

incl.) and a UnitCode (1 to 16 incl.). The HouseCode can

also be set on the controllers, so that the controllers and

modules become part of the same system. The address can

be set either using code dials or by pressing buttons,

depending on the type of module.

The Marmitek X-10 System uses standard commands,

which control all units with the same HouseCode at the

same time (e.g. all lights on, all units off, etc.).

AMM31 5

SIGNAL RANGE

Range of Marmitek X-10 signals over the Power Line

and how to increase the range.

The Marmitek X-10 System is based on power line

communication. The range of the Marmitek X-10 signals

very much depends on the local circumstances. On average

the range is a cable length of 80 meters.

If you have difficulties with the range of your

Marmitek X-10 signals, please pay attention to the

following facts:

1. When more than one phase is used for your electrical

system, it is necessary to couple these phases for the

Marmitek X-10 signals. For coupling you can use FD10

Phase Couplers/Filters. You only need to install a Phase

Coupler/Filter when your wall outlets and light switches

are divided over more than one phase (more than one

group is no problem). For bigger buildings or longer

distances we advice you to use an active repeater instead

of passive FD10’s.

2. It is possible that Marmitek X-10 signals are attenuated

by devices and lights which are connected to the power

line. In a normal home situation this effect is negligible

(the Marmitek X-10 system is using active gain control to

eliminate the effects). However, it is possible that a

particular device in your house is attenuating the signals so

much that the range of Marmitek X-10 signals is decreased

significantly. When you have range problems, it is wise to

try to locate the device which is attenuating the signals

simply by unplugging devices from the power line, and

testing the differences in range for your Marmitek system.

When e.g. your conclusion is that e.g. your computer

monitor is attenuating the signal, you can use a FM10

Plug-in Filter between the power line and the monitor to

eliminate the effects.

Known devices which can cause attenuation are:

PC Monitors

PCs with heavy internal power supplies

Old Televisions

Copiers

Fluorescent Lights

Gas Discharge Lamps (Energy Saving Lamps)

3. Some (old) devices are able to disturb the signal by

transmitting noise on the power line. Because the

Marmitek X-10 signals are transmitted on 120 kHz, only

noise on or near this frequency will have influence on the

range. When you use a FM10 Filter to connect this device

to the power line, the noise will be filtered.

4. The Marmitek X-10 protocol has several mechanism to

avoid modules to be switched on or off by other sources

than your Marmitek X-10 Controllers. However, it is

possible that the Marmitek X-10 signals are disturbed by

e.g. baby phones which are in TALK mode (continuous

transmission). When these kind of signals are present on

the power line it is possible that the Marmitek X-10 signals

will not come through.

5. The mains do not stop at the front door of your home.

Everything that is attached to mains nearby your home can

have influence on Marmitek X-10 signals (e.g. heavy

machinery). If you think that your system is influenced by

devices out of your house, it is advisable to install FD10

Phase Coupler/Filter on each phase entering the house.

These filters will block signals coming into or going out of

your house, but will also match the impedance for the

mains. Hereby make your house Marmitek X-10 compatible

for these units. The FD10’s will not only filter but will also

couple the phases (please see 1).

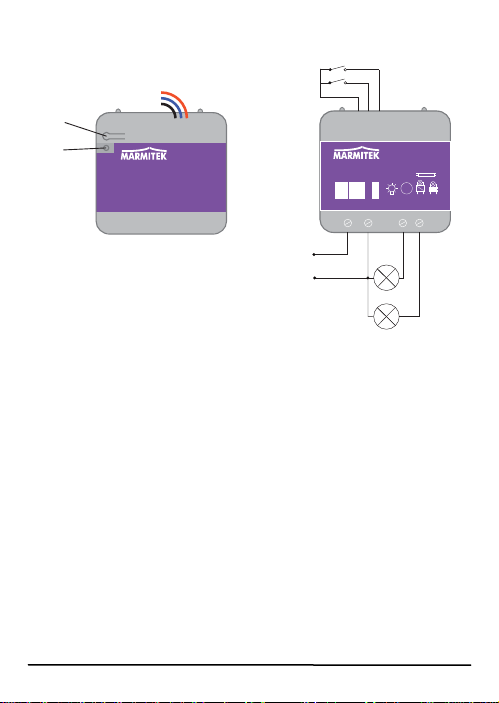

TWO-LOAD APPLIANCE MICRO MODULE

Appliance Micromodule, 2 load

AMM32

Inptu

Ad r ssd e

On/ ffO *

LNA

LN 12

PHASE

NEUTRAL

Appliance Micromodule, 2 load

AMM32

1800W/230V for resistive (ohm) load

300W/230V for inductive/capacitive load

1100W/230V for light bulbs and

halogen lighting

Program

Button

Light

Indicator

RED

BLUE

BLACK

RED

BLUE

BLACK

FUNCTIONS

•Switch module to turn 230V appliances, halogen and

tube lights, etc. on or off.

•Can be used in combination with ‘designer’ switching

material.

•Operation of the unit with Marmitek X-10 Commands

takes place via the mains wires, which means no extra

wiring is necessary.

•Controllable from a distance with the Marmitek X-10

commands On/Off.

•Makes your X-10 system invisible

•The module responds to the Marmitek X-10

Commands ‘On’, ‘Off’ and ‘All off’.

•Phase and Neutral have to be available before the

module can be installed.

AMM31 7

•Transforms your existing switch into a X-10

controllable switch

•The MicroModule is an extremely small Marmitek X-

10 appliance module which can be fitted behind any

installed switch or outlet. The lights and appliances

connected to the MicroModule can be controlled by

the Marmitek X-10 system. You will be able to use

your switch in the normal way. The MicroModule uses

one-way X-10 communication.

•Remote and local control On and Off

•Can also be used with low-energy lamps.

•Quick and easy to install and program.

•Switches loads up to 1800W

INSTALLATION

•Switch off appropriate mains fuse and master switch!

•Take the wall switch out of the wall box.

•Disconnect all wires from the switch.

•Pull an additional Neutral wire if it is missing.

•Connect the phase, neutral and load wires to the “L”,

“N” , “1” and “2” terminals of the micromodule

•Connect the thin Black, Blue and Red wires of the

built-in module to the wall switch.

•Position the MicroModule against the back wall of

the wall outlet behind all the wires.

•• You are now able to program the MicroModule.

•For more information see chapter “Programming”.

•Install the wall switch at its original place after the

MicroModule is programmed.

•Please note: due to heat generation, apply no more

than one module per flush socket / central socket!

AMM31 9

PROGRAMMING.

WARNING: DO NOT FORGET TO TURN ON THE MAIN

MASTER SWITCH PRIOR TO PROGRAMMING.

Programming the address and the optional function All

Lights On: The factory setting for the AMM31 is to address

A1 and no response to the optional function All Lights On.

Unlike most Marmitek X-10 Modules the AMM31 does not

have code wheels.

To change the address and the optional setting for the All

Lights On function, the module needs to be set to the

program mode.

Press and hold the “Program” button for 5 seconds,

indicator light turns ON, means entering “Program mode”.

(If your load is a lamp, use your controller to transmit the

“All Lights On” command, the Micro Module will then

respond to “All lights On”, while if the load is an

appliance, you should transmit the “All Units Off”

command, the Micro Module will then not respond to “All

lights On” commands.) Transmit the address command for

the first address of the module, followed by the address

command for the second address, at this time the indicator

light goes OFF.

Warning! The MicroModule will leave the setup mode if it

doesn’t receive any commands within 8 seconds.

Indice

Altri manuali Marmitek Unità di controllo

Marmitek

Marmitek LM12AU Manuale utente

Marmitek

Marmitek Home Control TM13 Manuale utente

Marmitek

Marmitek PROGUARD800 Series Manuale utente

Marmitek

Marmitek W home TM13AU Manuale utente

Marmitek

Marmitek AWM2P Manuale utente

Marmitek

Marmitek LM 15ES Manuale utente

Marmitek

Marmitek LWM1 Manuale utente

Marmitek

Marmitek AMM31 Manuale utente

Marmitek

Marmitek Invisible Control 2 Manuale utente

Marmitek

Marmitek Invisible Control Black4 Manuale utente

Marmitek

Marmitek LW12 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
