NEWPORT Series Installation Guide

Models Parameters (Fan Only):-

MNF143WWR 1420mm 3 Blade Ceiling Fan White Satin with Remote Control

MNF143MMR

MNF143OWR

MNF143WOR

1420mm 3 Blade Ceiling Fan Matt Black with Remote Control

1420mm 3 Blade Ceiling Fan Old Bronze/Walnut with Remote Control

1420MM 3 Blade Ceiling Fan White Satin/Oak with Remote Control

Models Parameters (Fan and Light):-

MNF1433WWR 1420mm 3 Blade Ceiling Fan White Satin, 15W Tricolour LED Light with Remote Control

MNF1433MMR

MNF1433OWR

MNF1433WOR

1420mm 3 Blade Ceiling Fan Matt Black, 15W Tricolour LED Light with Remote Control

1420mm 3 Blade Ceiling Fan Old Bronze/Walnut, 15W Tricolour LED Light with Remote Control

1420mm 3 Blade Ceiling Fan White Satin/Oak, 15W Tricolour LED Light with Remote Control

Part List:

Qty 1x motor assembly Qty 1x instruction manual Qty 1x screw kit Qty 1x balancing kit

Qty 1x hanging bracket Qty 1x remote control kit Qty 3x blades

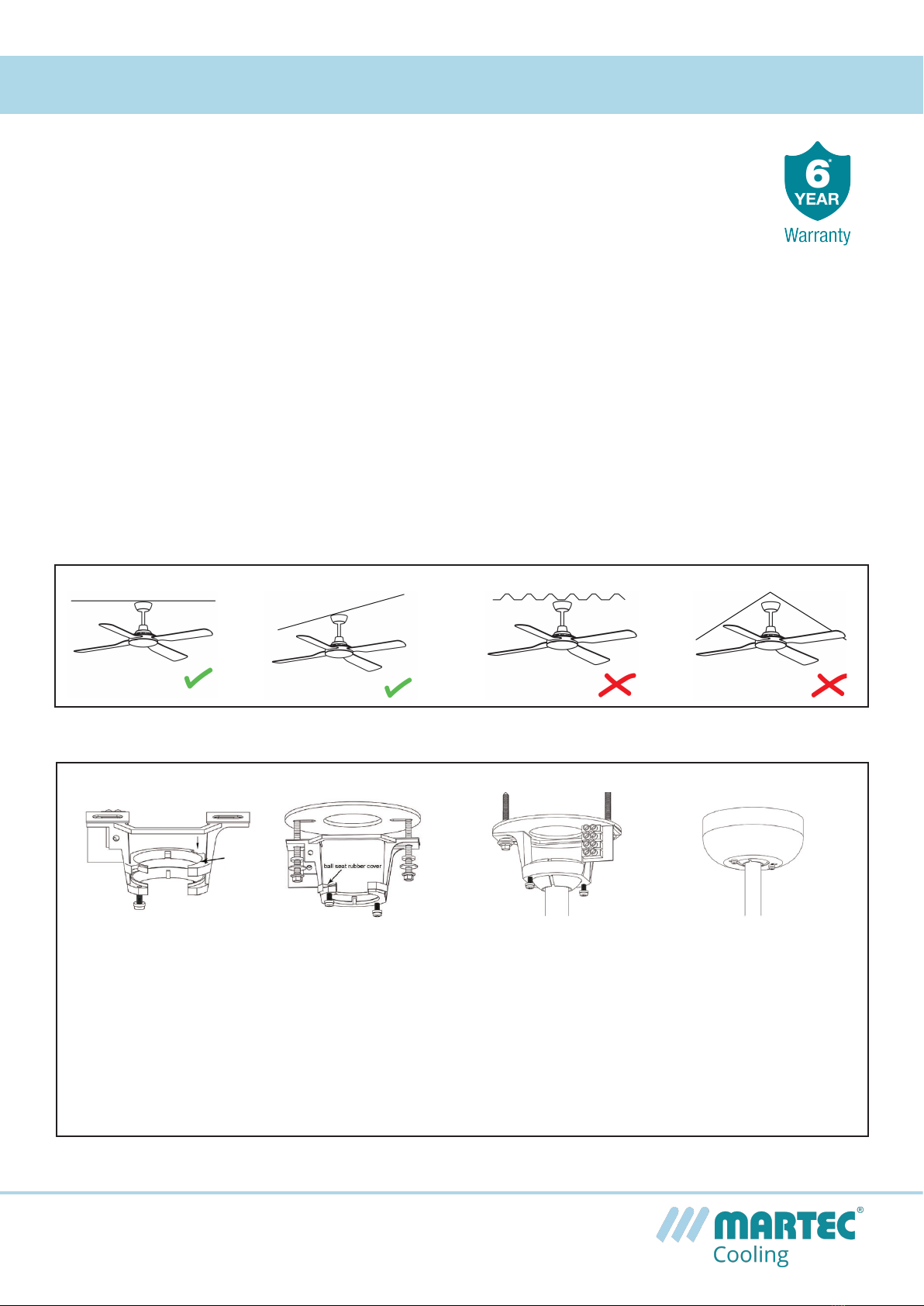

How to Assemble

Secure the hanger bracket

to ceiling beam or a suitable

piece of timber inserted

between the ceiling beams

using the two long screws

supplied with the package.

Place circular shockproof

gasket above the hanger

bracket. Align the bracket

and screw the hanger

bracket to the ceiling tightly.

Place fan into hanger

bracket and align Ball Joint

Slot with hanger bracket as

illustrated.

After wiring is completed,

attach the canopy to the

hanger bracket by pushing

upwards and twisting anti-

clockwise. Tighten screws

and ensure canopy is not

touching the ball joint.

Fg.1 Fg.2 Fg.3 Fg.4

Thanks for choosing our Newport DC Series ceiling fan.

We strongly recommend that you read this manual carefully before installation.

Application

Flat Surface / Ceiling Slope Ceiling up to 10° Corrugated Ceiling Apex Ceiling

E: [email protected] | P: 02 8778 7500

www.martecaustralia.com.au

WARNING Installation MUST carry out by a qualied and licensed electrician.

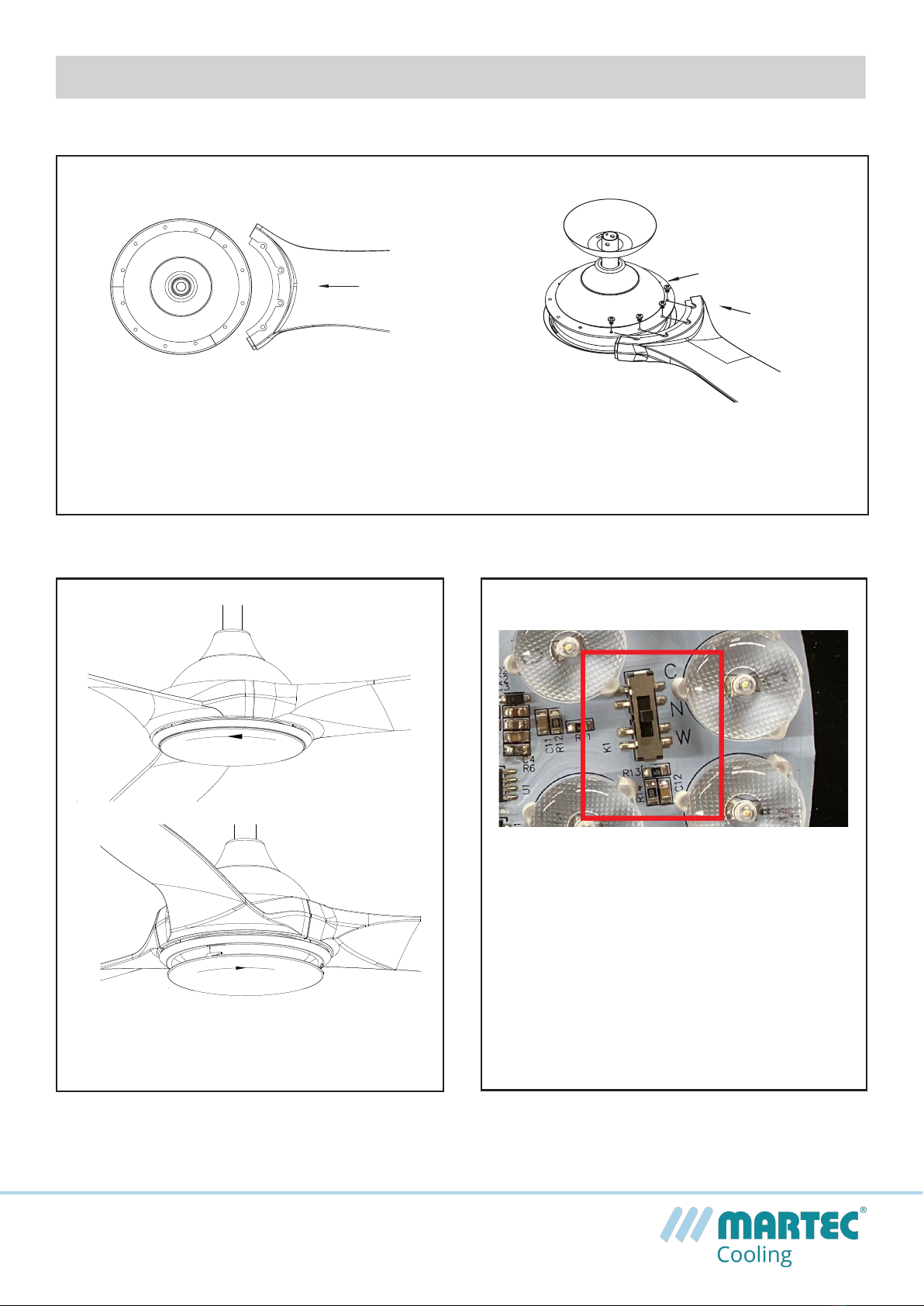

How to Install Blades

Attach the blade to the top of the motor using the 4 blade

screws provided. Tighten the screws and repeat this

procedure for all blades.

Fg.6

To install align the blades with the orice as shown.

Fg.5

How to Install / Remove the Plastic Shade

To remove - turn the plastic shade anti-clockwise.

To install - The plastic shade buckle is pushed up to the long

hole on the light plate, spin the plastic shade clockwise.

Fg.7

CCT (Colour Changeable Temperature)

Choose colour temperature by licking the switch in the LED

C = 5000K cool white

N = 4000K neutral white

W = 3000K warm white

Fg.8

mounting plate

------------------------------------------------------

AC POWAER INPUT

LIGHT

TO FAN W

L N

yellow green

black blue brownb lack

brown blue green

plug

yellow green

AC IN L

AC IN N

brown

blue

yellow green

E: [email protected] | P: 02 8778 7500

www.martecaustralia.com.au

WARNING Installation MUST carry out by a qualied and licensed electrician.

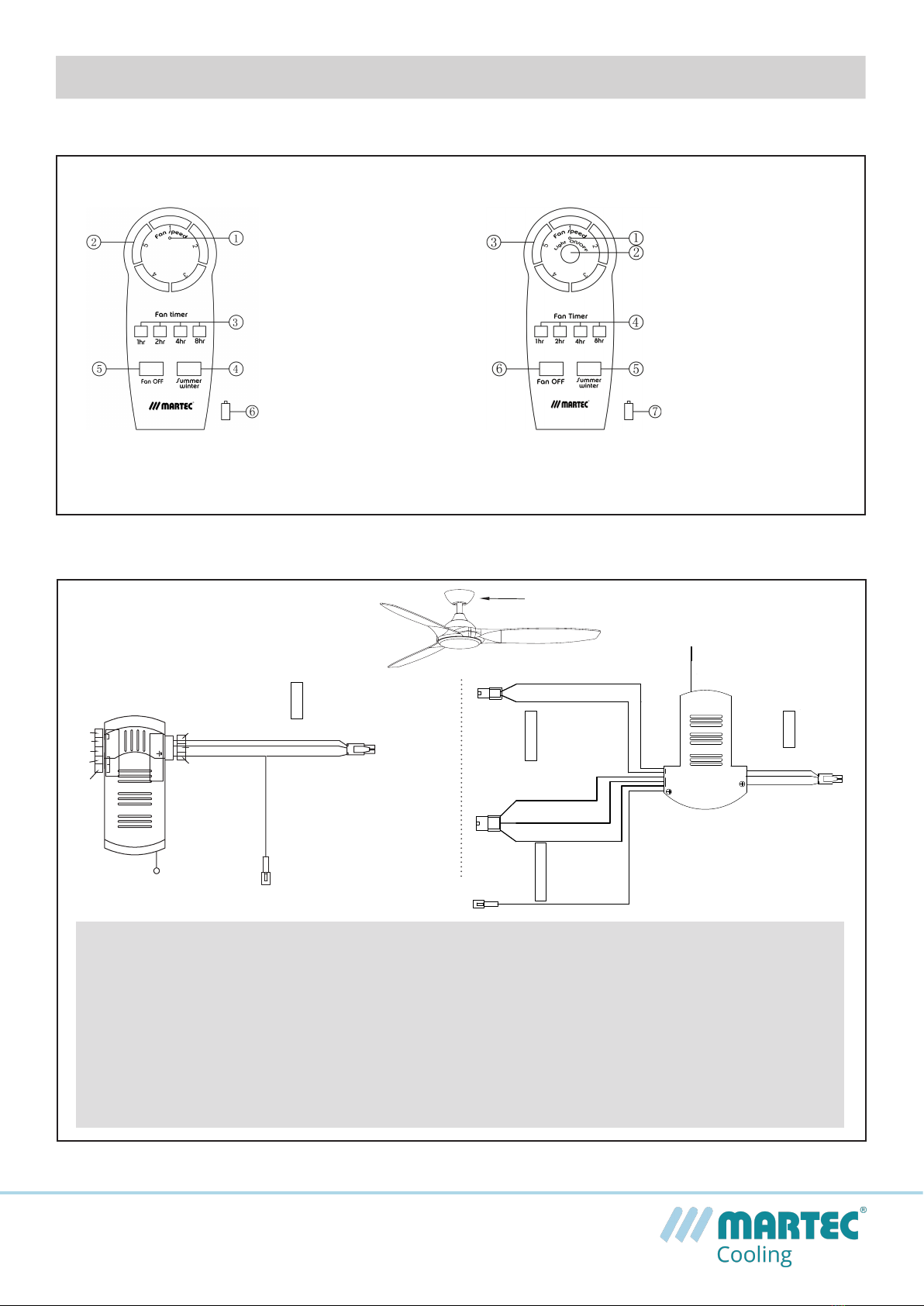

Instructions and Functions of Transmitter

1. LED indicator light

2. Light ON/OFF

(Use to dim light within 1s)

3. Speed of the fan

(1 high speed - 5 low speed)

4. Timing control of the fan

5. Direction of the fan

(reverse switch)

6. Fan ON/OFF

7. 12v battery to be used

in transmitter

1. LED indicator light

2. Speed of the fan

(1 high speed - 5 low speed)

3. Timing control of the fan

4. Direction of the fan

(reverse switch)

5. Fan ON/OFF

6. 12v battery to be used in

transmitter

Installing Receiver Remote Control

Important Reminders

• Receiver must be correctly installed in the mounting bracket

• When the transmitter cannot control the receiver, please check

i) has sucient battery in the transmitter

ii) any existence of similar remote controlled products nearby that cause interference

•Replace battery if getting low as this will aect sensitivity of the transmitter

• Take the battery out from the transmitter when leaving used for a long time to avoid battery leaks

• Support up to 200W lighting power

• Isolation switch MUST be connected in the line

• Dimming switch on the light models is operated by tuning the light ON/OFF button within 1s. Light output will dim

in stages from 18W to 8W to 2W approximately

Fan Only Model Fan LED Light Model

receiver

yellow green

OUTPUT

totheFANMOTOR

black

blue

black

blue

brown

totheFANLIGHT

LIGNT

FOR LIGHT N

FOR LIGHT L

FOR FOR

MOTOR

TO MOTOR

toACPower

ACINL brown

ACINN blue

yellow green

L N

ACINPUT

4P plug

toACPower

E: [email protected] | P: 02 8778 7500

www.martecaustralia.com.au

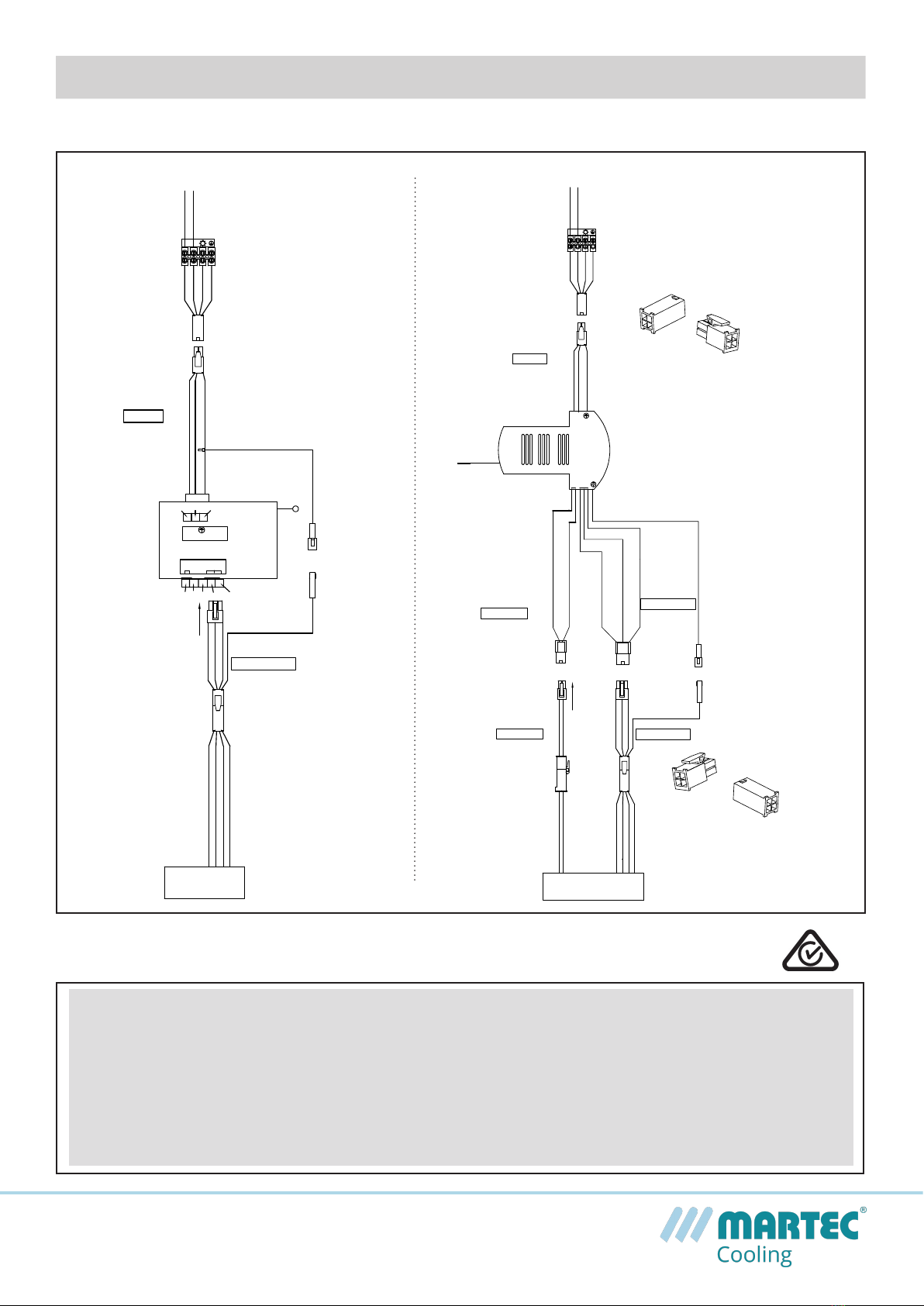

Wire Connections

WARNING

• Installation of fans MUST follow SAA standards and meet local authority regulations.

• Installation MUST be carried out by a qualied and licensed electrician.

• Fan and light MUST be earthed.

• Bracket MUST be rmly attached to a at solid structure or timber frame.

• DO NOT mix blades from one model to another, all blades MUST be replaced if damaged.

• The warranty is VOID if product is not installed according to this installation guide.

6* Year Warranty

Visit our website for details https://www.martecaustralia.com.au/warranty-statement/

Fan LED Light ModelFan Only Model

yellowgreen

black

plug

yellow green

black

blue

FORLIGHTL

FORLIGHTN

Motor

black

TOMOTOR brown

blue

TOMOTOR

black

blue

yellowgreen

brown

blue

FORLIGHTL black

FORLIGHTN

black

TOMOTOR brown

blue

TOMOTOR

yellow green

totheFANMOTOR

tothe FANLIGHT

ACINN

ACINL

yellow green

black

blue

brown

totheFANMOTOR

TO MOTOR

tothe FANLIGHT

black

blue FOR LIGHT N

FOR LIGHT L

LIGNT MOTOR

L N

ACINPUT

FOR FOR

OUTPUT

yellow green

black

brown

blue

brown

4P plug

toACPower

yellowgreen black

brown blue

yellowgreen

brown

blue

ACN

ACL

L N

240 VacSUPPLY

Motor

yellowgreen

black

TOMOTORbrown

blue

TOMOTOR

toACPower

ACINN

ACINL

yellowgreen

black

TOMOTOR

4P plug

brown

blue

TOMOTOR

black blue brown

black

yellowgreen

totheFANMOTOR

yellowgreen

brown blue green

yellowgreen

N L

ACPOWAERINPUT

receiver of

remotecontrol

blue

brown

4P plug yellowgreen

black

brown

blue

240 VacSUPPLY

ACN

ACL

L N

L NMOTOR

LIGHT

TOFANWIRES
