Martin Audio OMNILINE - SYSTEM PREPARATION Manuale utente

The Martin Experience



OmniLine®

System Preparation

Martin Audio Omniline®system preparation

Notes:

A variety of mounting and suspension systems are available. Make sure you

have ordered the required wall mounting or suspension kit to suit your chosen

installation method. See section 4 for kit details…

Martin Audio Omniline® loudspeakers must be installed by experienced

loudspeaker installation personnel using the full installation kit provided

It is the installer’s responsibility to ensure that all relevant local, national and

international electrical, fire and building safety regulations are complied with

Every Omniline® loudspeaker must be fitted with a steel safety wire this can

be fitted between an attachment bracket (provided) and a suitable supporting

structure.

You will need the following tools for OmniLine preparation and installation.

Tool Size Operation

Building arrays

Screwdriver PZ1 Rear covers removal/assembly

Allen Key/Socket Set 4 Link Plates assembly

Open Ended Spanner 10mm Link Plates assembly

Screwdriver S3 Wiring

4 Cab Bracket

Allen Key/Socket Set 5 Adding brackets to the array

Allen Key/Socket Set 8 Adding collar

Allen Key/Socket Set 6 Clamping collar

Open Ended Spanner 13mm Clamping collar

8 - 16 Bracket

Allen Key/Socket Set 5 Adding brackets to the array

Allen Key/Socket Set 8 Adding collar

Allen Key/Socket Set 6 Clamping collar

Open Ended Spanner 13mm Clamping collar

Pliers Split pin removal/fitting

Open Ended Spanner 8mm Attaching Dog Grip

Flying Bracket

Allen Key/Socket Set 5 Adding brackets to the array

Allen Key/Socket Set 6 Adding brackets to the array

PZ = Pozidrive S = Straight/Flat head

1 Introduction

Omniline® is a versatile, micro-line array designed for installation in a wide variety of

architectural environments.

It’s modular approach and scalability extends its use from foreground applications to

sound reinforcement in large acoustic spaces.

Intelligent software enables an array to be configured to deliver sound precisely over

any vertical angle to fit the venue profile without spilling onto surfaces where sound is

not required.

Additionally, elimination of high frequency side-lobes gives Omniline® the advantage

over currently available DSP steered columns, making it suitable for high quality

music reproduction as well as speech in large, reverberant spaces.

2 Main features

The Omniline® module consists of 2 x 89mm reflex-loaded, mid/low radiators either

side of a central strip of 5 x 14mm HF devices in a unique, patent pending

arrangement. All drives have been painstakingly developed from the ground up,

specifically for the array module.

3 Warranty

Martin Audio Omniline® products are warranted against manufacturing defects in

materials or craftsmanship over a period of 5 years from the date of original

purchase.

During the warranty period Martin Audio will, at its discretion, either repair or replace

products which prove to be defective provided that the product is returned in its

original packaging, shipping prepaid, to an authorised Martin Audio service agent or

distributor.

Martin Audio Ltd. cannot be held responsible for defects caused by unauthorised

modifications, improper use, negligence, exposure to inclement weather conditions,

act of God or accident, or any use of this product that is not in accordance with the

instructions provided by Martin Audio. Martin Audio is not liable for consequential

damages.

This warranty is exclusive and no other warranty is expressed or implied. This

warranty does not affect your statutory rights.

4 Installation methods and kit details

A site survey is required before purchase. Omniline® software should be used to

determine the position, installation method and number of Omniline® modules

required for the installation.

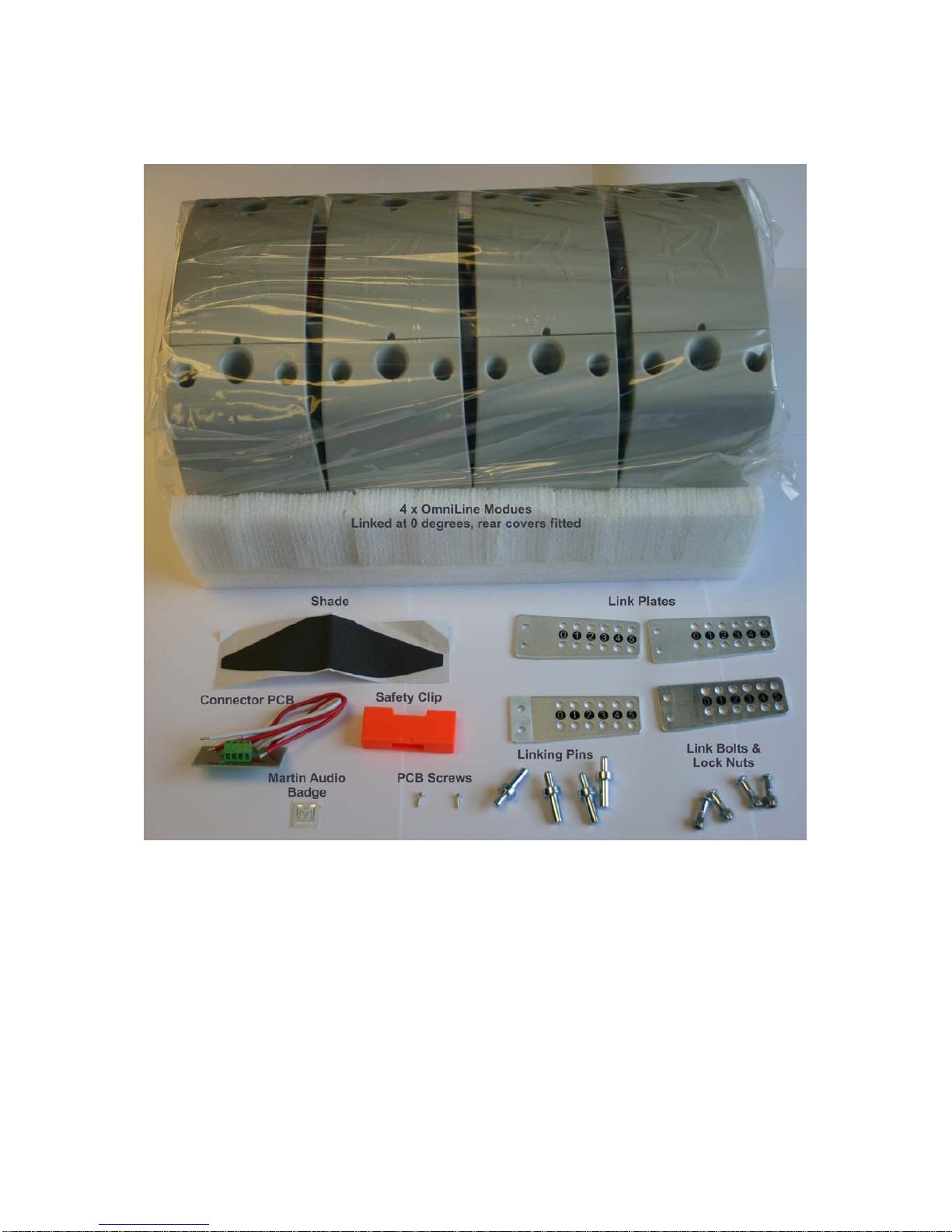

Omniline®module pack

Each pack of OmniLine® modules comprises the following parts:

Omniline®module pack

Note that the self adhesive shade included in the module pack may be used to

prevent down-lighting from shining down through the grilles in architecturally

sensitive locations.

There are three methods of installing an Omniline® Loudspeaker system. Choose

the position and number of Omniline® modules required as indicated by the

Omniline® software.

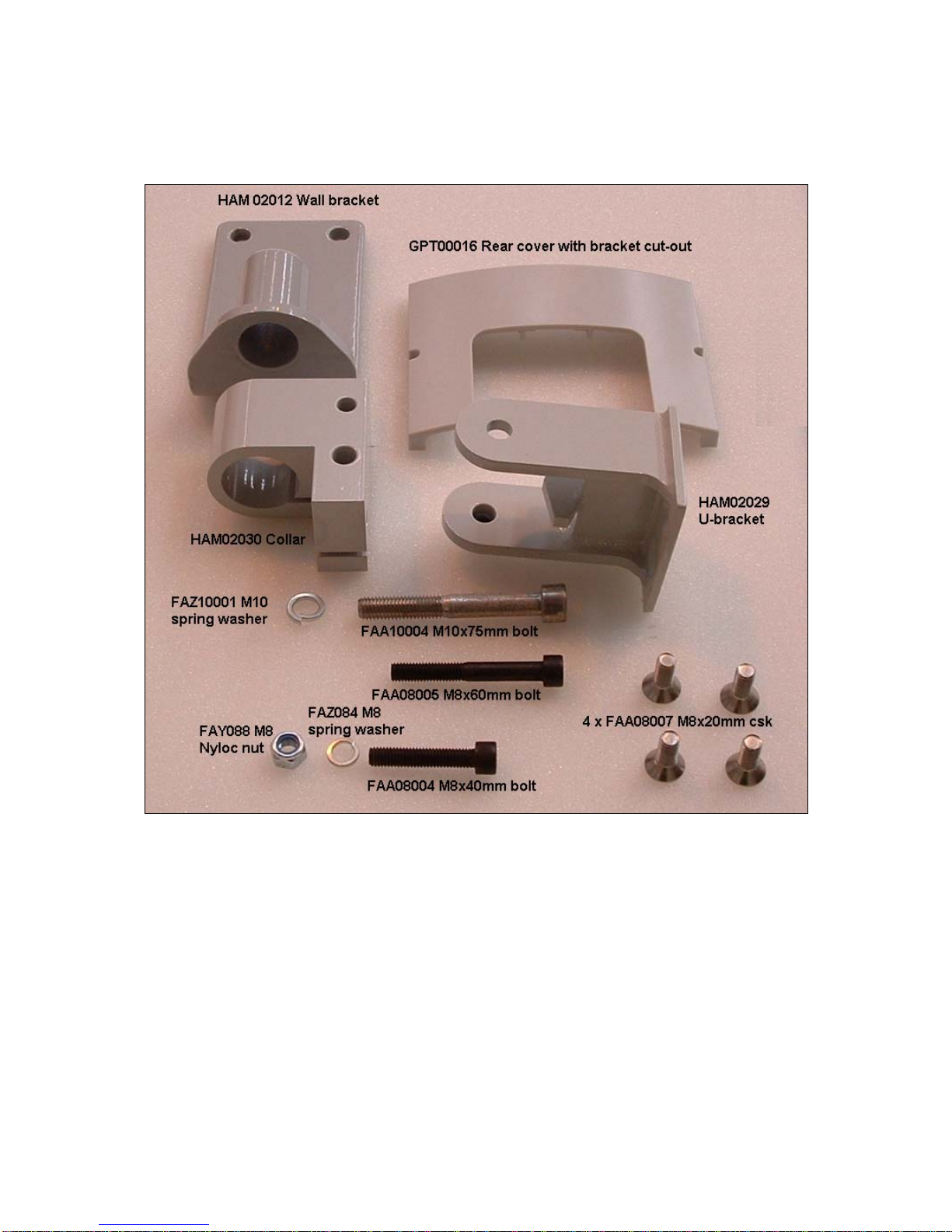

4 x OmniLine®wall mounting kit

Each 4 x OmniLine® wall mounting kit comprises the following parts:

4 x OmniLine®wall mounting kit

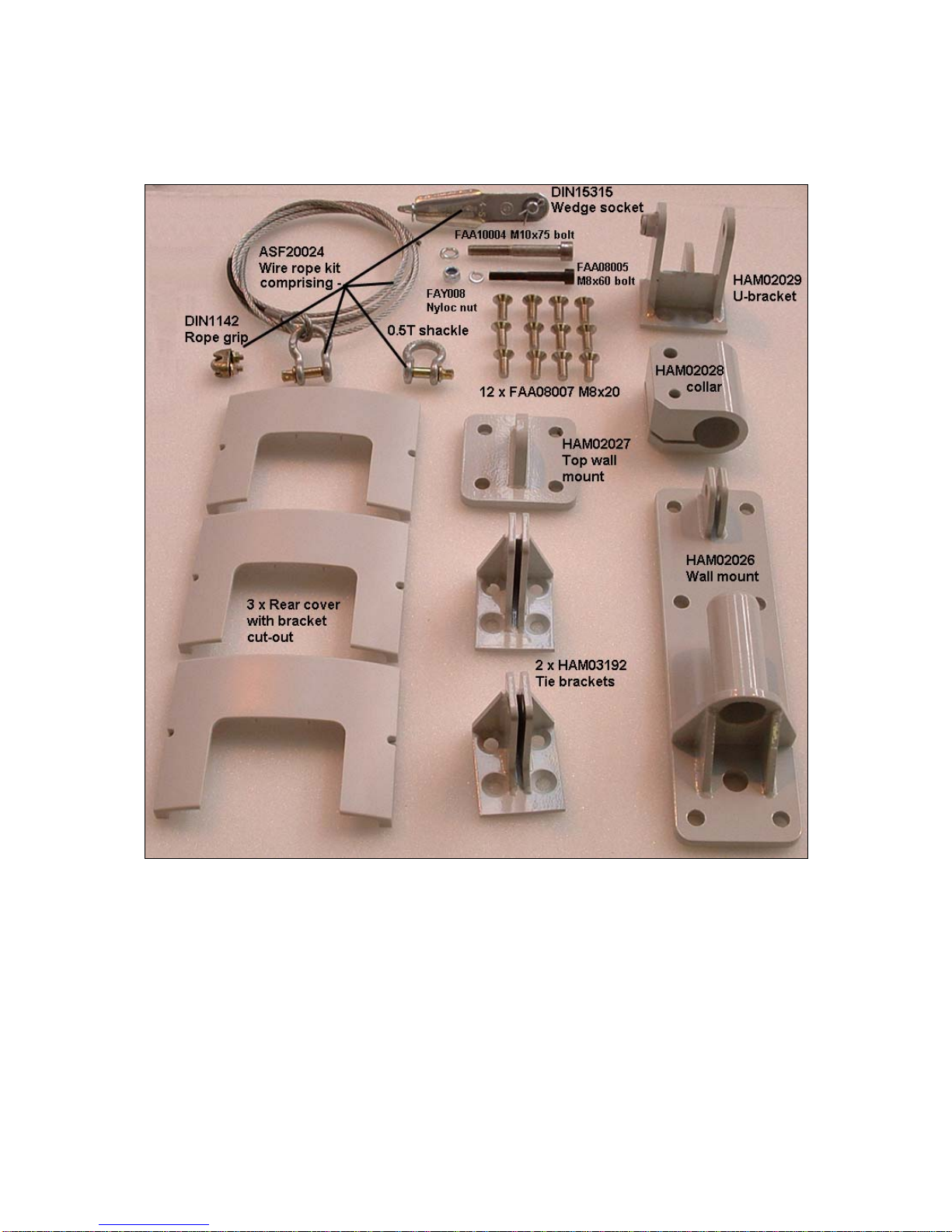

8-16 x OmniLine®wall mounting kit

Each 8-16 x OmniLine® wall mounting kit comprises the following parts:

8-16 x OmniLine®wall mounting kit

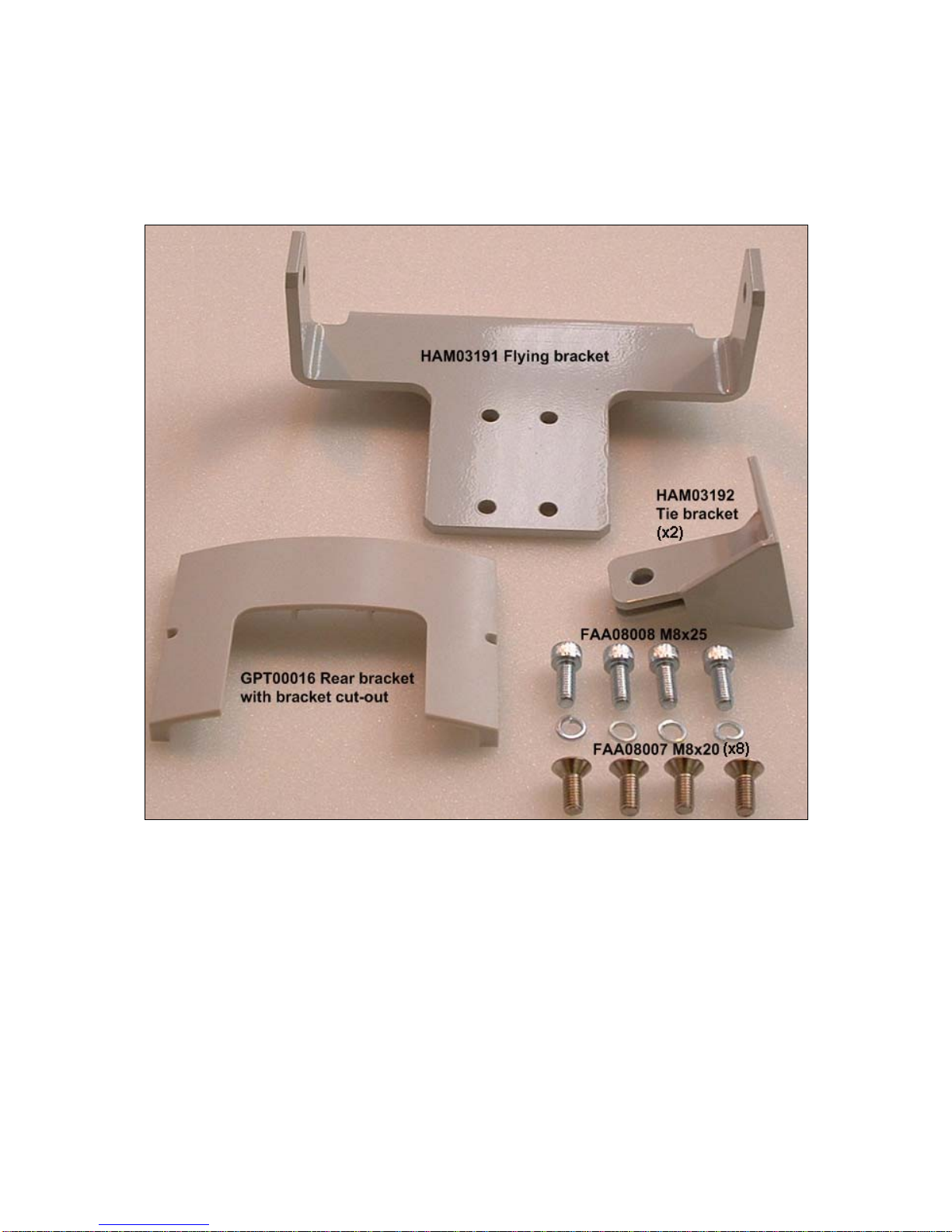

OmniLine®flying kit

Each OmniLine® flying kit comprises the following extra parts.

Please note that the flying kit also includes the ASF20024 wire rope kit (not shown):

5 Unpacking

Every Martin Audio loudspeaker is built to the highest standard and thoroughly

inspected before it leaves the factory.

After unpacking the system, examine it carefully for any signs of transit damage and

inform your dealer if any such damage is found.

We suggest that you retain the original packaging so that the system can be

repacked at a future date if necessary. Please note that Martin Audio and its

distributors cannot accept any responsibility for damage to any returned product

through the use of non-approved packaging.

5.1 System preparation

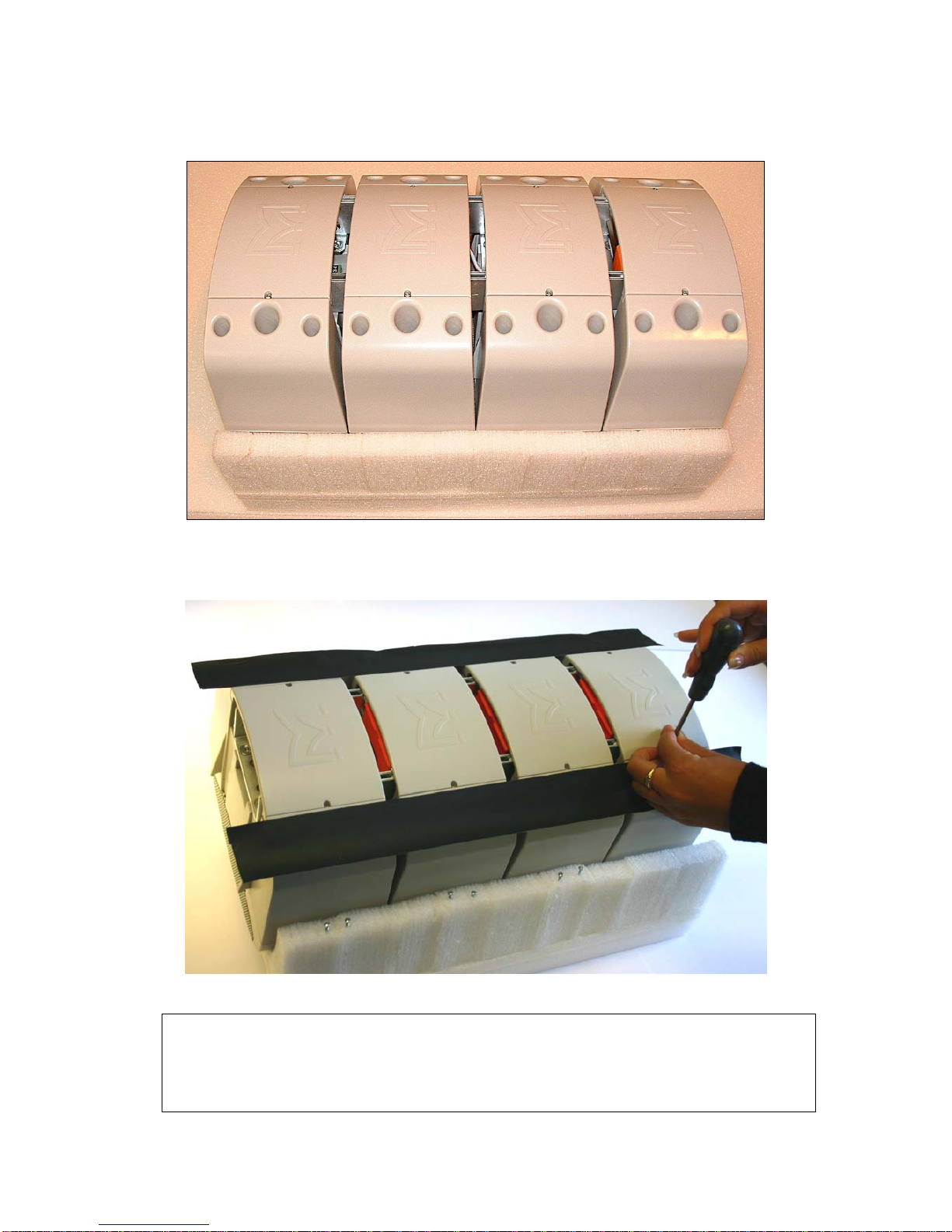

To avoid flattening or damaging your OmniLine grilles, we strongly recommend that

you keep each block of four Omniline® modules in their polystyrene trays.

Take off the rear covers by removing the rear screws from each unit.

Tips!

1) If you are not using a magnetic screwdriver, we recommend covering the

rear port holes with some tape as shown above to prevent dropping screws

down the ports!

2) Press the screws into the front of the polystyrene tray to avoid loosing

them.

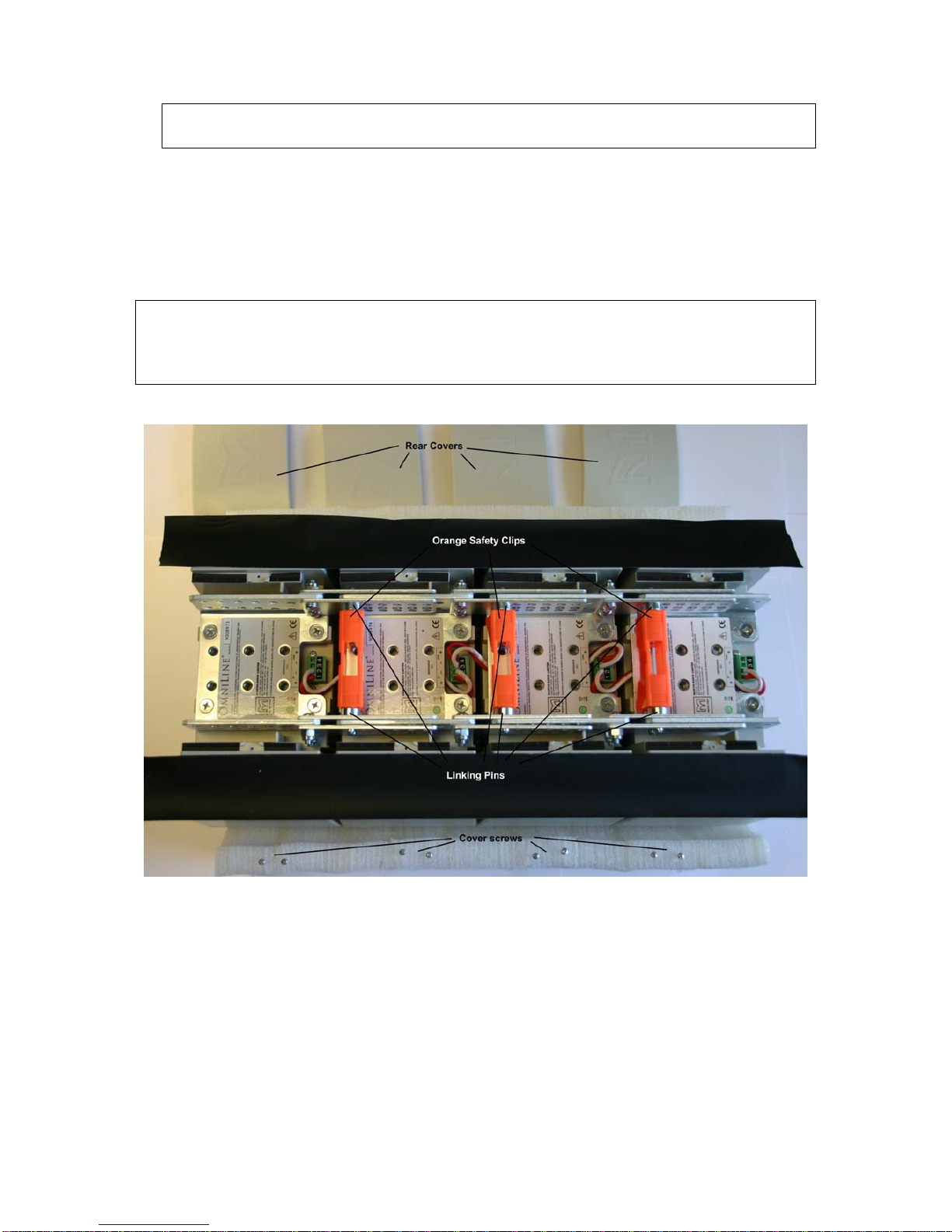

5.2 Splay angle adjustment

Omniline® modules are shipped with splay angles set at 0 degrees. Having

determined splay angles and mounting or suspension attachment points using the

Omniline® software, set the required inter-module splay angles as follows:

Tip!

Leave modules that require wall mounting or suspension attachments (see software

recommendations) until last as these brackets need to be orientated and fitted before

nearby link pins are inserted – see later…

1) Remove the rear cover

2) Remove the orange safety clip

3) Remove the linking pins from the splay angle holes
