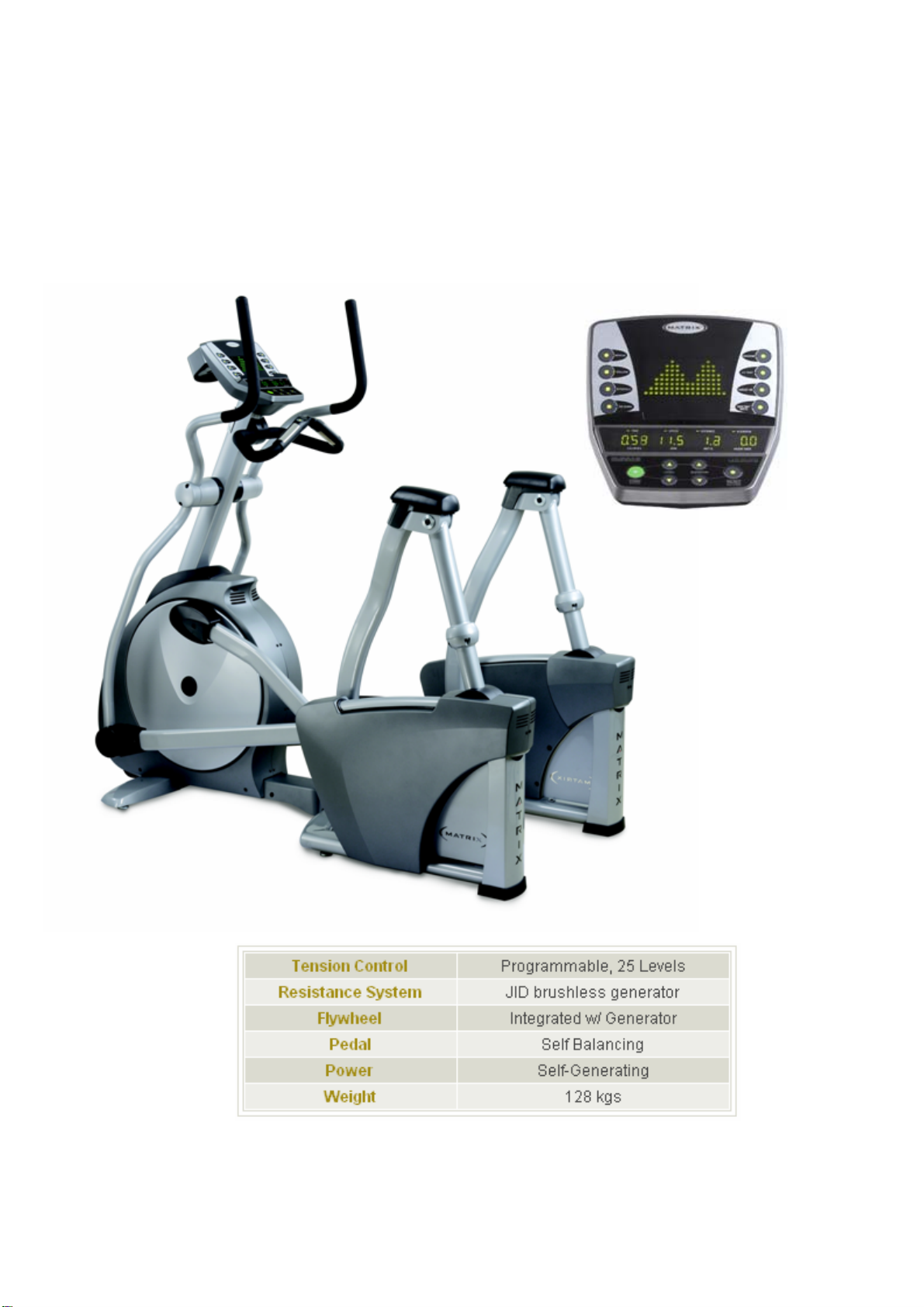

Matrix MX-A5 Series Manuale utente

1

MX-A5x SERVICE

MANUAL

2

TABLE OF CONTENTS

SECTION 1: MAINTENANCE PROCEDURE…………….…...3

1. Preventive maintenance tips…………………………..……..…..4

2. Cleaning the grooves………………………………………..........5

SECTION 2: WIRING DIAGRAM INSTRUCTION…...........…6

1. MX-A5x wiring diagram instruction…………………………….7

2. Console cable wiring diagram ………………….………………..8

3. Pulse sensor wire wiring diagram…………………..……...….….8

4. Elevator wire wiring diagram …………………………...………..9

5. ECB Load wire wiring diagram…………….………………….…9

SECTION 3: CONSOLE ENGINEERING MODE GUIDE…….10

• How to enter into the engineering mode?...................................11-14

SECTION 4: LCB3 LED INSTRUCTIONS …………………… ..15

1. A5x(EP72) LCB3 LED place and definition……………………....16

SECTION 5: TROUBLESHLOOTING…………………………..17

1. No display on the console or the display is dim……………..….19

2. All or some of the function keys do not respond……………….20

3. No resistance change or too hard for pedaling……………….…21

4. Feel slipping while pedaling……………………………….……22

5. Knocking or creaking noises……………………………….……22

6. Heart-Rate-Control function does not work…………….……….23

7. Error Messages on the Console…………………………………24-31

SECTION 6: Part Replacement Guide …………………………..32

1. Replacement incline motor procedure…………………………..33

2. Install incline motor procedure………………………………….34-37

SECTION 6: SOFTWARE UPGRADE PROCEDURE…………..38

1. MX-A5x software upgrade SOP…...............................................39-44

3

SECTION 1

MAINTENANCE PROCEDURE

4

PREVENTATIVE MAINTENANCE TIPS

Locate Suspension Elliptical Trainer in a cool, dry place.

Make sure all bolts and fasteners are kept tight.

Keep the display console free from fingerprints and salt build-up

caused by sweat.

Use a cotton cloth with water and a mild cleaning product to clean

the Suspension Elliptical Trainer. Other fabrics, including paper

towels, may scratch the surface. Do not use ammonia or acid- based

cleaners.

Clean the exterior of the machine thoroughly on a regular basis.

PREVENTATIVE MAINTENANCE SCHEDULE

Follow the schedule below to ensure proper operation of the product.

5

Caution:

If there is any dust in the grooves of the Poly-V belts and pulleys, noises

will be generated during operation.

Frequency: Every 3 to 4 months.

CLEANING THE GROOVES

Procedure:

1.Remove the Poly-V belts and check

the grooves of the belt for dirt or dust

and clean it if any.

2.Check the grooves in the pulley for

dirt or dust and clean it if any.

3.Check the grooves in the roller pulley

for dirt or dust and clean it if any

6

SECTION 2

WIRING DIAGRAM INSTRUCTION

7

MX-A5x WIRING DIAGRAM INSTRUCTION

8

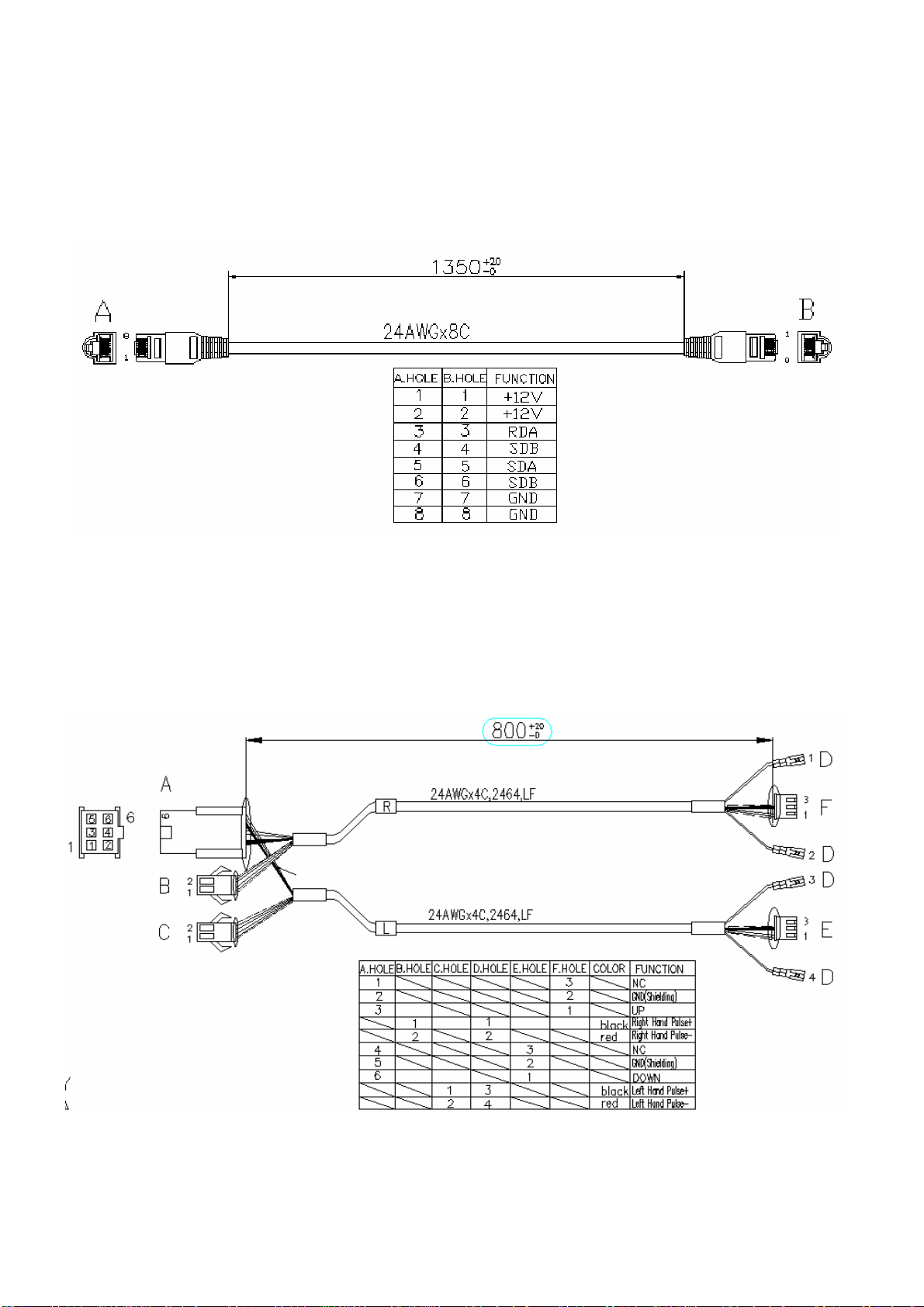

P05 : Digital cable (console cable)

P04 : Pulse sensor wire

9

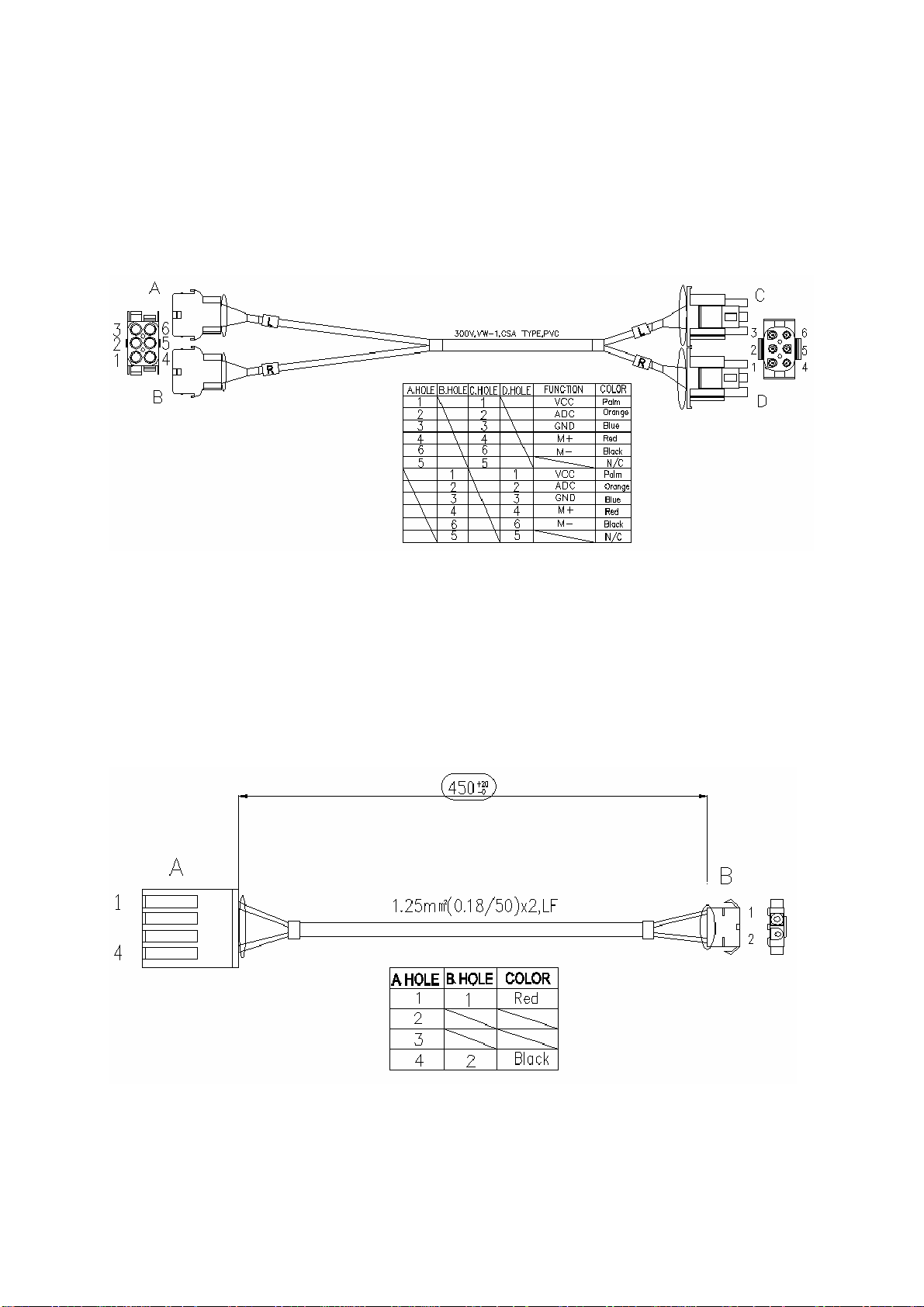

P02 : Elevator Wire

P14 : ECB Load Wire

10

SECTION 3

CONSOLE ENGINEERING MODE GUIDE
