CONSOLE GUIDE
Before proceeding, nd the serial numbers located on barcode stickers and enter them in the spaces provided below.
CONSOLE SERIAL NUMBER
FRAME SERIAL NUMBER
MODEL
FT5x FT5xGT FT7xe FT7xi MATRIX TREADMILL
* Use the information above when calling for service.

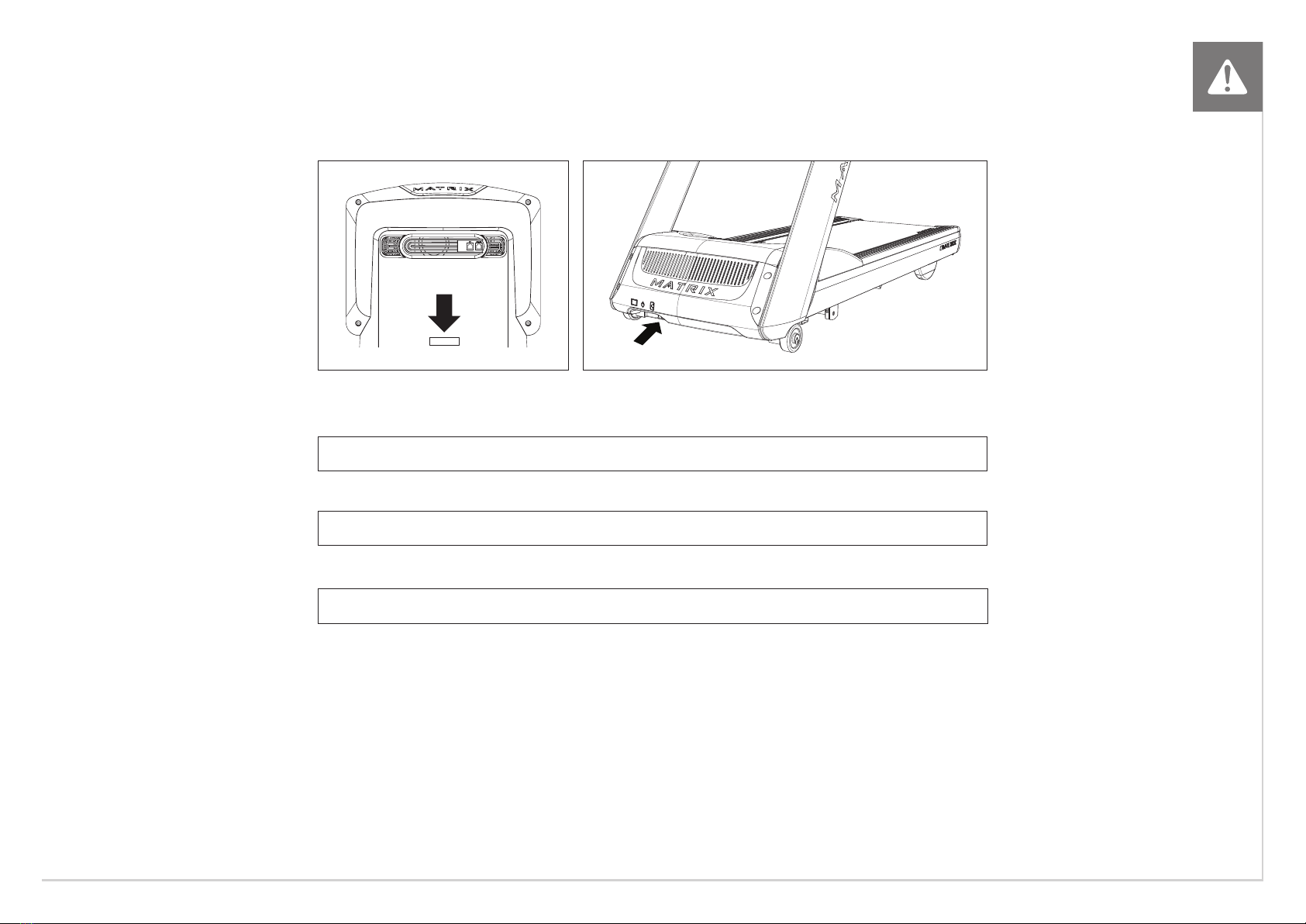

SERIAL NUMBER LOCATIONS
ENGLISH
4
T5X CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in two pieces: the base and
the console. Carefully unpack the unit and dispose of the box material. Note: There is a thin
protective sheet of clear plastic on the overlay of the console that should be removed before use.

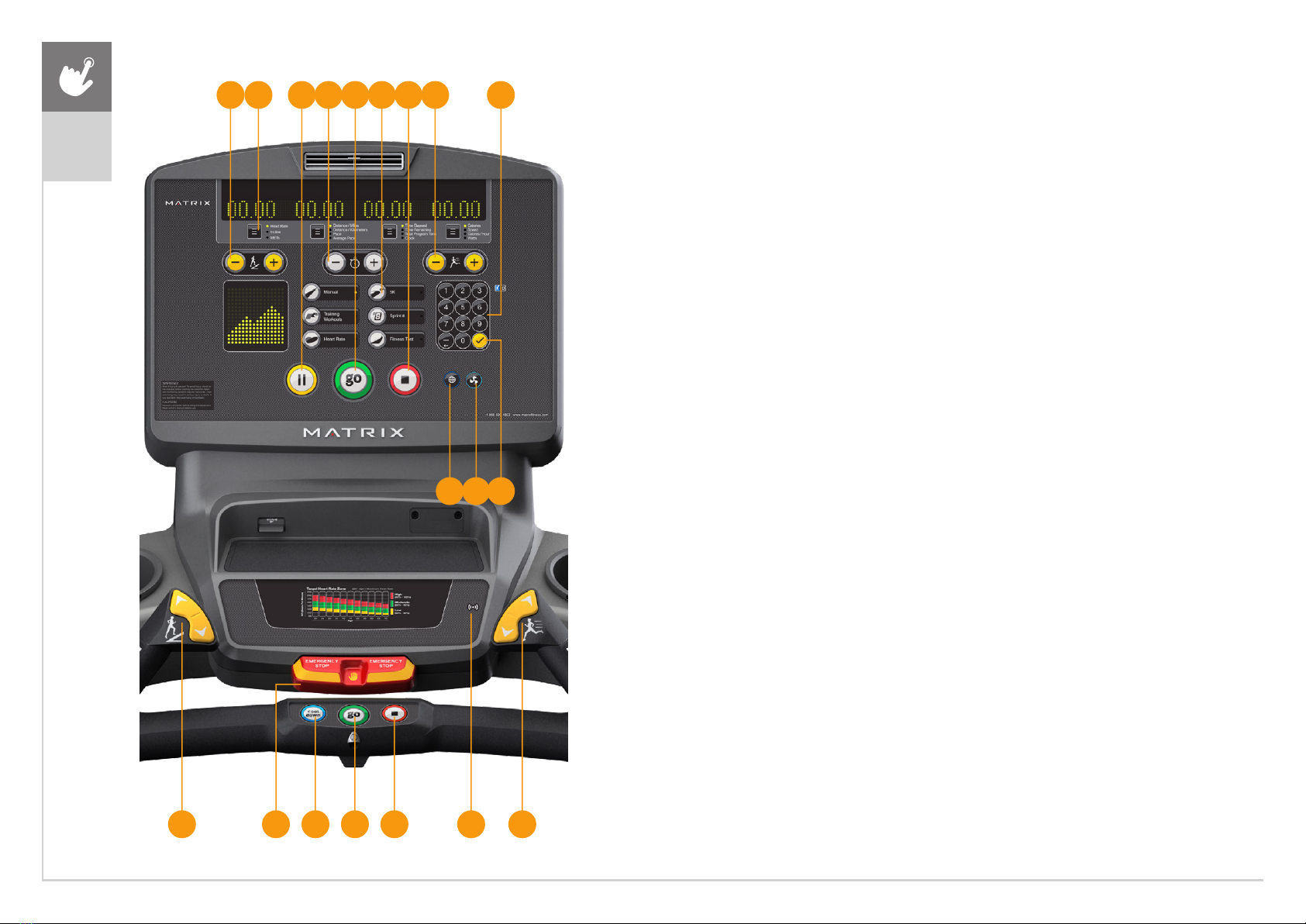

A) WORKOUT KEYS: Simple program view and selection buttons. Press
Fitness Test button to cycle through available tests.
B) GO: One Touch Start.
C) ENTER: To confirm each program setting.
D) UP/DOWN INCLINE: Adjust incline and make program selections.
E) UP/DOWN SPEED: Adjust speed and make program selections.
F) UP/DOWN TIME: Adjust time and make program selections.
G) EMERGENCY STOP / IMMOBILIZATION: To stop all functions and immobilize
the unit. The emergency stop on this treadmill must be returned to its
original position in order to allow normal operation of the unit.
H) STOP: Ends workout and shows workout summary data.
I) PAUSE: Pauses workout. Pause duration can be set in manager or engineering mode.
J) NUMBER KEYPAD: Workout data input for workout setup. Speed adjustment during workout.
K) COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the
length of the workout. Workouts 19 minutes and shorter will have a cool down length of
2 minutes. Workouts 20 minutes and longer will have a cool down length of 5 minutes.
L) FAN: Allows for fan speed selection (fan has three operating speeds.)
M) TOGGLE DISPLAY: Cycles between 4 rows of workout information displayed in LED
window. The console will automatically cycle between the workout information
if the Toggle Display button is pushed and held down for 3 seconds.
N) LANGUAGE: Select Language.
O) RFID SENSOR: Wireless login access location (optional add-on feature).*
* Supported standards with carrier frequency of 13.56 MHz include; ISO 14443 A, ISO
15693, ISO 14443 B, Sony Felica, Inside Contact-less (HID iClass), and LEGIC RF.
5X
B E
BKD E
N
H
D M I F A H
L C
J
G O
ENGLISH
5
5X GT
ENGLISH
T5X GT CONSOLE DESCRIPTION
The Matrix Machine is inspected before it is packaged. It is shipped in two pieces: the base and
the console. Carefully unpack the unit and dispose of the box material. Note: There is a thin
protective sheet of clear plastic on the overlay of the console that should be removed before use.
The T5xGT treadmill is specifically designed for Group Training settings, with one touch speed
and incline controls for members to follow coaching and make easy changes on the fly.
A) INTENSITY BUTTONS:
Pre-workout - Press to customize your low/medium/high intensity presets.
During workout - Press to automatically adjust speed to your presets.
Note: Default speed/incline presets will be used if not customized pre-workout.
B) INCLINE QUICK KEYS: Adjust incline during workout.
C) SPEED QUICK KEYS: Adjust speed during workout.
D) FAN: Allows for fan speed selection (fan has three operating speeds.)
E) PAUSE: Pauses workout. Pause duration can be set in manager or engineering mode.
F) STOP: Ends workout and shows workout summary data.
G) GO: One Touch Start
NOTE: To access manager mode on the T5xGT console, press and hold the ‘1’ buttons
for speed and incline for 4 seconds. Navigate the menus using handle bar toggles.
E
A
D CB F G
6
7XI
T7XI CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in two pieces: the base and the
console. Carefully unpack the unit and dispose of the box material. Note: There is a thin protective
sheet of clear plastic on the overlay of the console that should be removed before use.
The T7xi has a fully integrated touch screen display. All information required for workouts is explained
on-screen. Exploration of the interface is highly encouraged. The information explaining how to
program for various workouts will give an explanation about the contents of each screen on the T7xi.
A) GO: One Touch Start.
B) STOP: Ends workout and shows workout summary data.
C) INCLINE TOGGLES: Adjust incline during workout.
D) SPEED TOGGLES: Adjust speed during workout.
E) COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length
of the workout. Workouts 19 minutes and shorter will have a cool down length of 2 minutes.
Workouts 20 minutes and longer will have a cool down length of 5 minutes.
F) EMERGENCY STOP / IMMOBILIZATION: To stop all functions and immobilize the unit. The
emergency stop on this treadmill must be returned to its original position in order to allow
normal operation of the unit.
T7XI ENTERTAINMENT ZONE
G) VOLUME UP/DOWN: Adjusts the volume output through headphones.
H) CHANNEL UP/DOWN: Allows for channel selection on the integrated console TV.
I) HOME: Will take the user back to the home screen.
J) LAST CHANNEL: Allows the user to cycle between the current channel and the previous channel
they were viewing.
K) CC/MUTE: Mutes sound and turns closed captioning on or off.
L) DISPLAY MODE: Allows user to cycle through display modes.
M) NUMBER KEYPAD: Allows for easy number inputs.
N) RFID SENSOR: Wireless login access location (optional add-on feature).
A
C D
NM
AE BF
LI J KHG
ENGLISH
7
7XE
T7XE CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in two pieces: the base and the
console. Carefully unpack the unit and dispose of the box material. Note: There is a thin protective
sheet of clear plastic on the overlay of the console that should be removed before use.
The T7xe has a fully integrated touch screen display. All information required for workouts is explained
on-screen. Exploration of the interface is highly encouraged. The information explaining how to
program for various workouts will give an explanation about the contents of each screen on the T7xe.
A) GO: One Touch Start.
B) STOP: Ends workout and shows workout summary data.
C) INCLINE TOGGLES: Adjust incline during workout.
D) SPEED TOGGLES: Adjust speed during workout.
E) COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length
of the workout. Workouts 19 minutes and shorter will have a cool down length of 2 minutes.
Workouts 20 minutes and longer will have a cool down length of 5 minutes.
F) EMERGENCY STOP / IMMOBILIZATION: To stop all functions and immobilize the unit. The
emergency stop on this treadmill must be returned to its original position in order to allow
normal operation of the unit.
T7XE ENTERTAINMENT ZONE
G) VOLUME UP/DOWN: Adjusts the volume output through headphones.
H) CHANNEL UP/DOWN: Allows for channel selection on the integrated console TV.
I) HOME: Will take the user back to the home screen.
J) LAST CHANNEL: Allows the user to cycle between the current channel and the previous channel
they were viewing.
K) CC/MUTE: Mutes sound and turns closed captioning on or off.
L) DISPLAY MODE: Allows user to cycle through display modes.
M) NUMBER KEYPAD: Allows for easy number inputs.
N) RFID SENSOR: Wireless login access location (optional add-on feature).
A
C AE BF D
NMLI J KHG
ENGLISH
8
7XE
7XI
ENGLISH
LOGIN SCREEN
7XE / 7XI CONSOLE OPERATION
GETTING STARTED
• Touch the USER button to sign-in with your XID.
• Touch the GUEST button to workout anonymously.
• Touch the REGISTER button to create a new XID.
• For help or more information, touch .
• To change language, touch .
USER SIGN-IN
1) Enter your XID and touch .
2) Enter your PASSCODE and touch .
Consoles equipped with RFID will have this symbol in the lower-
right corner of the display. To log in, touch your RFID tag to the
symbol located on the bottom right of the console. *
REGISTER A NEW USER
1) Don’t have an xID account? Registration is easy.
2) Follow the on-screen prompts to create your free account.
3) Review your information and select the I ACCEPT THE TERMS
AND CONDITIONS box to review the Terms and Conditions.
4) Touch to complete registration. Your account
is now active and you are signed-in.
GO SCREEN
• Touch GO to begin working out immediately. Or...
• Touch the WORKOUT CATEGORY button of your
choice to customize your workout.
PROGRAM SETUP
1) After selecting a WORKOUT CATEGORY button, select one of the PROGRAMS
listed to the left.
For more information on a selected program, touch .
2) Use the SLIDER CONTROLS to adjust your program settings.
3) Press GO to begin your workout.
* Supported standards with carrier frequency of 13.56 MHz include; ISO 14443 A, ISO 15693, ISO 14443 B, Sony Felica, Inside Contact-less (HID iClass), and LEGIC RF.
Note: Workouts and features vary based on model type, console
configurations, software versions and options purchased.
9
GO SCREEN
HOME SCREEN
• The USERNAME or GUEST is shown in the upper left corner.
• Touch to change WORKOUT STATISTICS
displayed at the bottom of the screen.
• Touch to go back to the home screen whenever you’re using an app.
• Touch to adjust VOLUME, pair a BLUETOOTH device or to
change AUDIO SOURCE (TV, My Media, Virtual Active, etc.).
• Touch to increase or decrease the intensity level, speed or incline.
• Touch to use the keypad to set intensity level, speed
or incline. Press to confirm change.
• Touch to change intensity level, speed or incline back to previous setting.
• Touch to temporarily pause your workout and touch to resume.
NOTE: After resuming, speed, incline and intensity levels will be reset.
• While paused, touch to end workout.
• Touch to increase or decrease the duration of your workout.
• Touch to enter cool down mode. Cool down lasts for a few minutes while
reducing the workout intensity, allowing your body to recover from your workout.
• Touch to lock the screen in order to prevent accidental screen touches from
being implemented. Touch it again to unlock the screen and allow screen touches.
• Touch to turn the fan on. There are three fan speeds (low, medium, high).
HOME SCREEN
PROGRAM SETUP
Note: Workouts and features vary based on model type, console
configurations, software versions and options purchased.
7XE
7XI
ENGLISH
10
APPS AND ENTERTAINMENT
WEATHER
Get local weather info.
WEB BROWSER
Access the world wide web while you work out.
FACILITY CALENDAR
View Facility event schedule and other info.
YOUTUBE
Browse and watch YouTube videos while you work out.
FACEBOOK
Browse your Facebook page while you work out.
TWITTER
Access your Twitter feed while you work out.
NETFLIX
Browse and watch Netflix videos while you work out.
Netflix account required to access content.
HULU
Browse and watch Hulu videos while you work out.
Hulu account required to access content.
MYFITNESS PAL
Lose weight with MyFitnessPal, the fastest and easiest to use calorie counter.
SIMPLE
Workout stats are displayed in 3 customizable windows.
TRACK
Displays a 400 m (1/4 mile) track. Split feature allows you to
keep track of your fastest laps and improve your time.
VIRTUAL ACTIVE
Your workout info is displayed and Virtual Active courses are
shown. With Virtual Active, escape the confines of an ordinary
workout as you or walk or run through exotic destinations.
TARGET HEART RATE
Track your progress while working out to a Target Heart Rate program.
FITNESS TEST
Track your progress while working out to a Fitness Test program.
SPRINT 8
Track your progress while working out to a Sprint 8 program.
CHANGE WORKOUT
Select a different workout without stopping your current workout.
MY MEDIA
Connect and control audio and video files on-screen via USB port or Bluetooth.
TV
Watch live TV.
Note: Workouts and features vary based on model type, console
configurations, software versions and options purchased.
7XE
7XI
ENGLISH
Altri manuali per T5X GROUP TRAINING
2
Questo manuale è adatto per i seguenti modelli
6
Indice
Altri manuali Matrix Tapis roulant
Matrix
Matrix T5 Manuale utente
Matrix
Matrix TF30 Manuale utente
Matrix
Matrix T3xe Manuale utente
Matrix
Matrix T3xe Manuale utente
Matrix
Matrix T1x Manuale di manutenzione
Matrix
Matrix T1XE-03 Manuale utente
Matrix
Matrix LIVESTRONG T1xLS Manuale utente
Matrix
Matrix T5X-02 Manuale utente
Matrix
Matrix T7X-01 Manuale utente
Matrix
Matrix T3X-05 Manuale utente
Matrix
Matrix MX-T5x Manuale utente
Matrix
Matrix TF30 Manuale utente
Matrix
Matrix MX-A5 Series Manuale utente
Matrix
Matrix TF30 Manuale utente
Matrix
Matrix C5X-05 Manuale utente
Matrix
Matrix T1XE-01 Manuale utente
Matrix
Matrix MX-T3x Manuale utente
Matrix
Matrix TOUCH XL Manuale utente
Matrix
Matrix ENDURANCE STEPPER Manuale utente
Matrix
Matrix TF30 Manuale elenco delle parti
